Product Overview

Description





   >>Conduit     >>wiring duct             >>cable terminals        >>cable gland     >>cable tie



Top Design, Professional Process, High-Quality Service

RCCN Terminals AES

Copper Ture Terminals

Product Material: Terminal made of high quality copper, good conductivity
Features: The use of high-quality matte plating, greatly extended anti-rust time, no sharp parts; supporting the daily terminal crimping tools can be pressed wire, beautiful wiring,
International Certification: EU RoHS environmental certification, the European CE certification.
Product Features: Good quality, no crack after cracking open, -40 degrees heat to 150 degrees normal use.
How to use: peel the wire skin, into the terminal after the brass

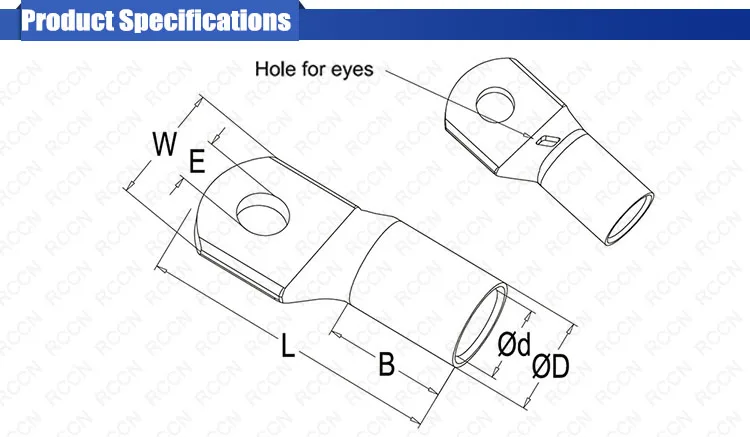

Item No.	E	Dφ	dφ	W	B	L
AES1.5-3	3.2	3.7	1.8	8	6	16
AES1.5-4	4.3	3.7	1.8	8	6	17
AES1.5-5	5.3	3.7	1.8	10	7	19
AES1.5-6	6.5	3.7	1.8	10	7	20
AES2.5-3	3.2	3.9	2.3	8	7	17
AES2.5-4	4.3	3.9	2.3	8	7	18
AES2.5-5	5.3	3.9	2.3	10	7	20
AES2.5-6	6.5	3.9	2.3	10	7	20
AES2.5-8	8.3	4.3	2.3	12.5	7	22.5
AES4-4	4.3	4.7	3	10	8	21
AES4-5	5.3	4.7	3	10	8	22
AES4-6	6.5	4.7	3	10	8	23
AES4-8	8.3	4.7	3	12.5	8	24
AES6-4	4.3	5.9	4	10	9.5	24.6
AES6-5	5.3	5.9	4	10	9.5	24.6
AES6-6	6.5	5.9	4	11	9.5	24.6
AES6-8	8.3	5.9	4	12.5	9.5	27.3
AES6-10	10.3	6.2	4	15	9.5	28.3
AES10-4	4.3	6.6	4.5	11	13	30
AES10-5	5.3	6.6	4.5	11	13	30
AES10-6	6.5	6.6	4.5	11	13	30
AES10-8	8.3	6.6	4.5	12.5	13	30
AES10-10	10.3	6.9	4.5	16	13	34.1
AES10-12	12.7	6.9	4.5	18	12	34.1
AES16-5	5.3	7.5	5.5	11	14	30.7
AES16-6	6.5	7.5	5.5	11	14	30.7
AES16-8	8.3	7.5	5.5	12.5	13	30.7
AES16-10	10.3	7.5	5.5	16	14	35.9
AES16-12	12.7	8.1	5.5	18	13	35.9
AES25-5	5.3	9.1	6.7	13	13	32.2
AES25-6	6.5	9.1	6.7	13	13	32.2
AES25-8	8.3	9.1	6.7	13	13	32.2
AES25-10	10.3	9.1	6.7	16	14	36.9
AES25-12	12.7	9.1	6.7	18	13	36.9
AES25-14	14.8	9.1	6.7	20	13	38.9
AES35-5	5.3	11	8.6	16	16	37.6
AES35-6	6.5	11	8.6	16	16	37.6
AES35-8	8.3	11	8.6	16	16	37.6
AES35-10	10.3	11	8.6	16.7	16	41.5
AES35-12	12.7	11	8.6	18	16	41.5
AES35-14	14.8	11	8.6	20	16	43.5
AES35-16	16.5	11	8.6	23	16	45.5
AES50-5	5.3	12.4	9.5	18	17	41
AES50-6	6.5	12.4	9.5	18	17	41
AES50-8	8.3	12.4	9.5	18	17	41
AES50-10	10.3	12.4	9.5	18	17	44
AES50-12	12.7	12.4	9.5	19	17	44
AES50-14	14.8	12.4	9.5	21	19	52.8
AES50-16	16.5	12.4	9.5	23	19	52.8
AES70-5	5.3	15	12	22	21.5	52.4
AES70-6	6.3	15	12	22	21.5	52.4
AES70-8	8.3	15	12	22	21.5	52.4
AES70-10	10.3	15	12	22	21.5	52.4
AES70-12	12.7	15	12	22	21.5	52.4
AES70-14	14.8	15	12	22	21.5	55
AES70-16	16.5	15	12	24	20	55
AES95-8	8.3	17	13.4	25	22.5	54.7
AES95-10	10.3	17	13.4	25	22.5	54.7
AES95-12	12.7	17	13.4	25	22.5	54.7
AES95-14	14.8	17	13.4	25	22.5	58.3
AES95-16	16.8	17	13.4	25	22.5	58.3
AES120-8	8.3	19	15	27	23	60
AES120-10	10.3	19	15	27	23	60
AES120-12	12.7	19	15	27	23	60
AES120-14	14.8	19	15	27	23	64
AES120-16	16.5	19	15	27	23	64
AES150-10	10.3	21.2	16.5	30	27	67
AES150-12	12.7	21.2	16.5	30	27	67
AES150-14	14.8	21.2	16.5	30	27	67
AES150-16	16.5	21.2	16.5	30	27	71.4
AES150-20	20.9	21.2	16.5	30	27	71.4
AES185-10	10.3	23	19	34	30	73
AES185-12	12.7	23	19	34	30	73
AES185-14	14.8	23	19	34	30	73
AES185-16	16.5	23	19	34	30	76.2
AES185-20	20.9	23	19	34	30	76.2
AES240-10	10.3	26.5	21	38	38	91.4
AES240-12	12.7	26.5	21	38	38	91.4
AES240-14	14.8	26.5	21	38	38	91.4
AES240-16	16.5	26.5	21	38	38	91.4
AES240-20	20.9	26.5	21	38	38	91.4
AES300-12	12.7	30	24.5	43	42	98
AES300-14	14.8	30	24.5	43	42	98
AES300-16	16.5	30	24.5	43	42	98
AES300-20	20.9	30	24.5	43	42	98
AES400-12	12.7	35	27	49	44	104
AES400-14	14.8	35	27	49	44	104
AES400-16	16.5	35	27	49	44	104
AES400-20	20.9	35	27	49	44	104

Use note:this series installed by tool of YYT

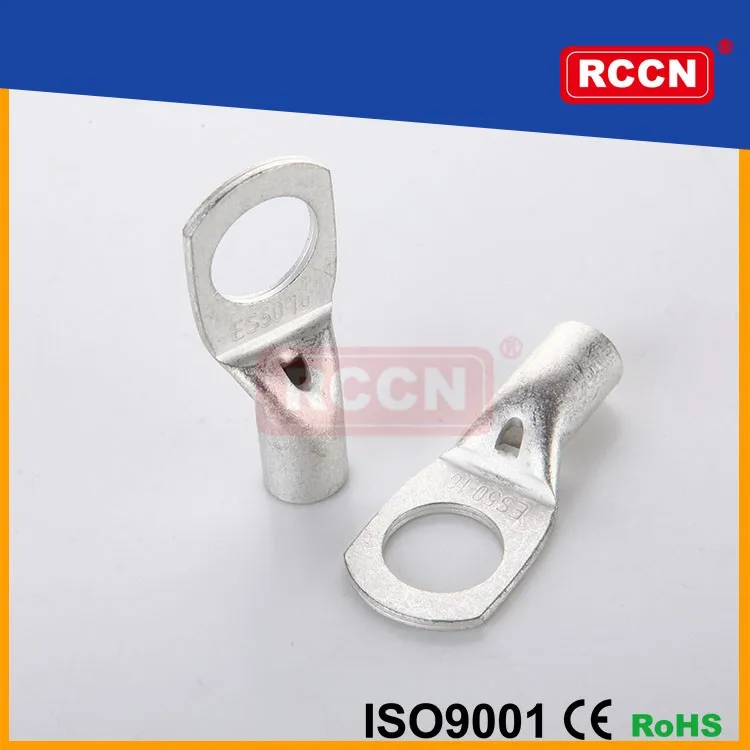

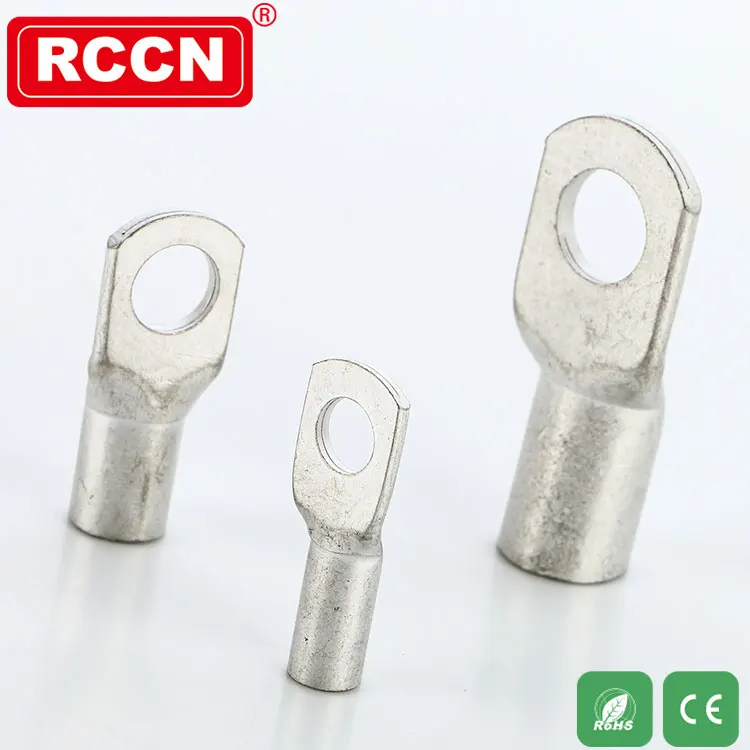

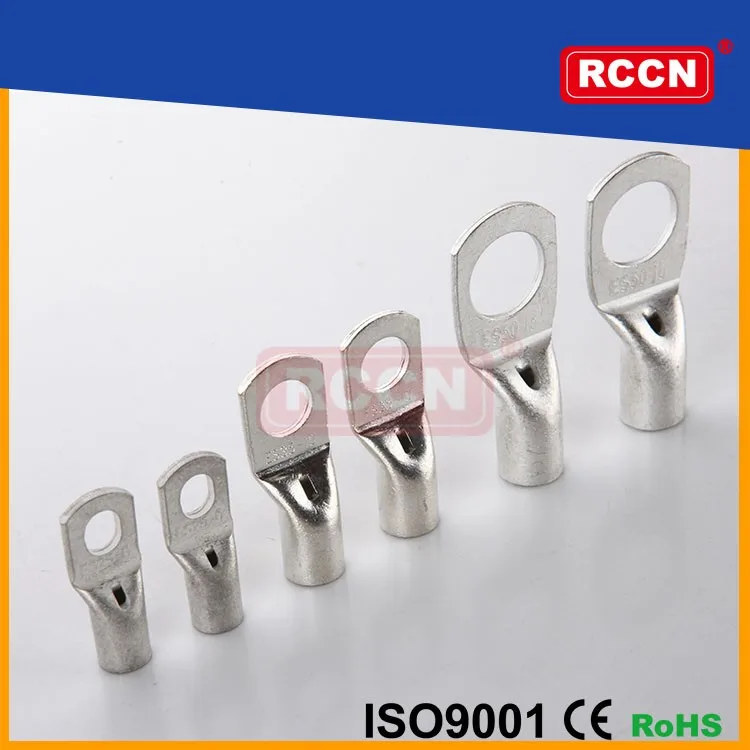

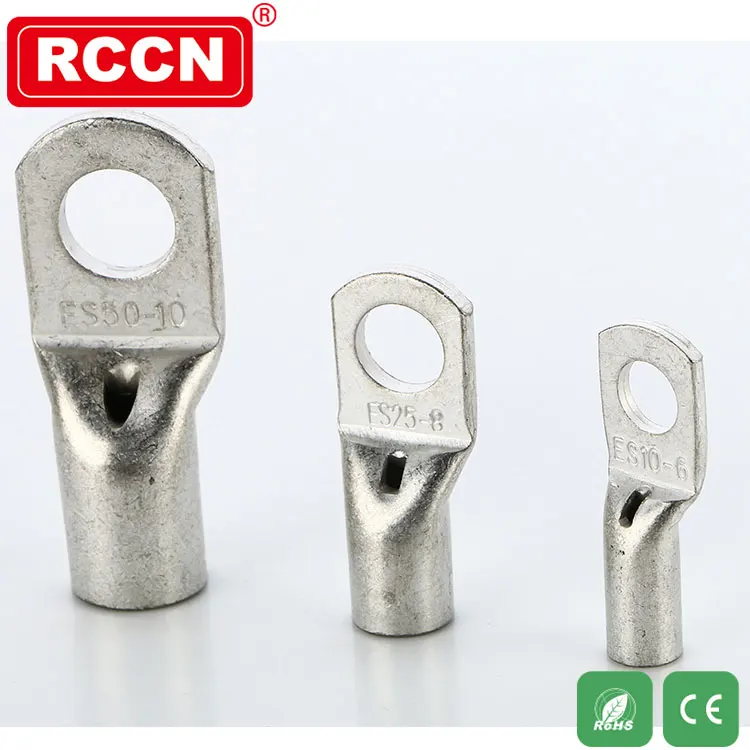

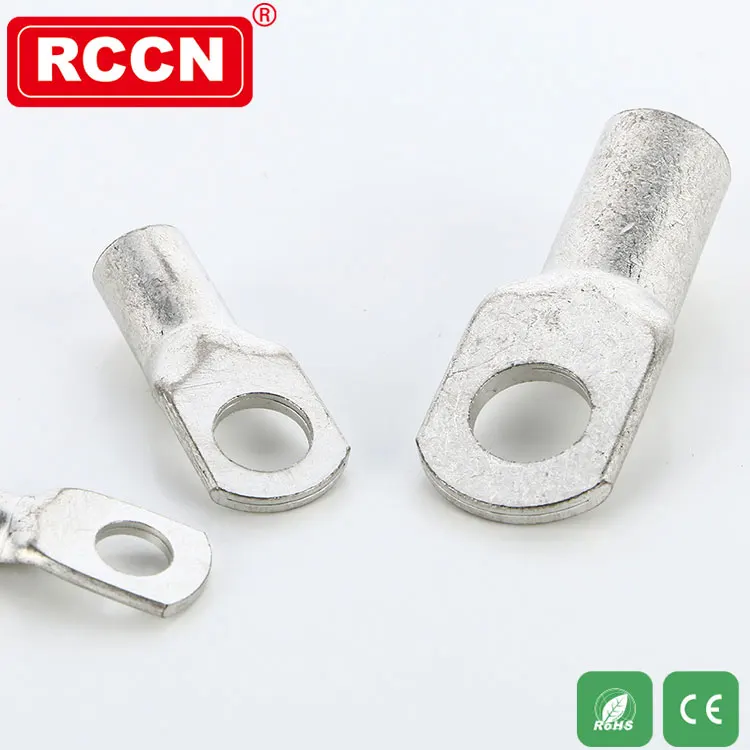

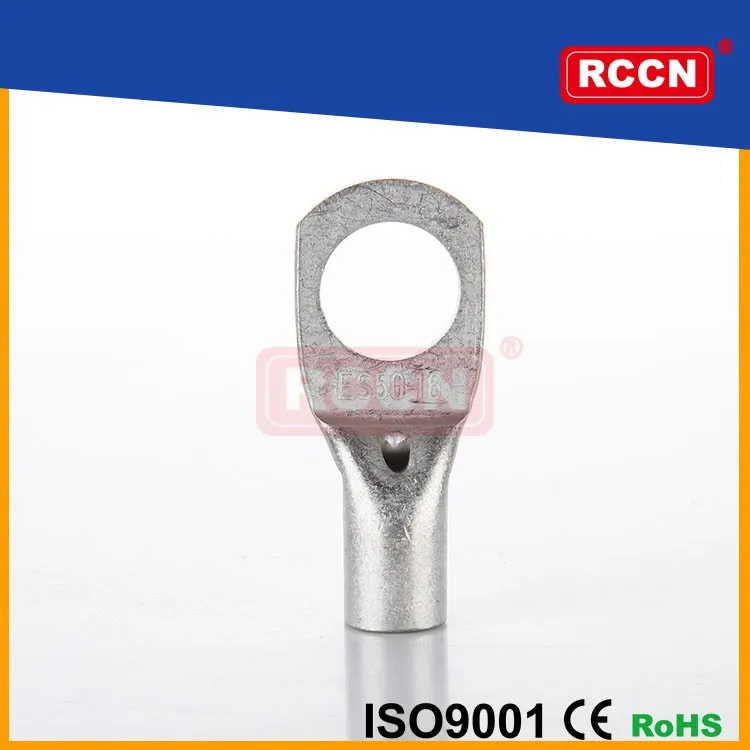

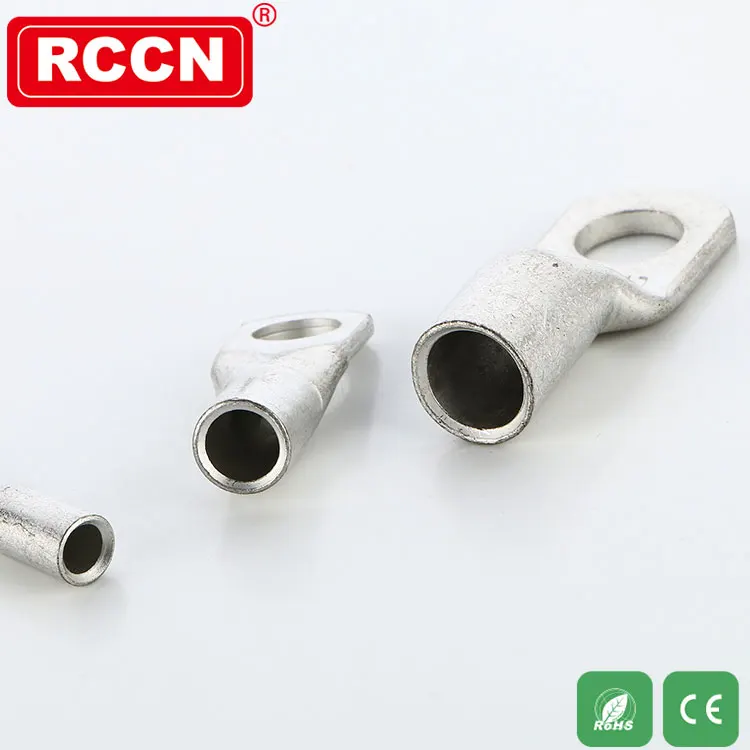

PICTURE OF PRODUCT

RCCN AES Copper Ture Terminals



MORE WIRE TERMINALS







1 Q:Do you have your own factory or just a trading company?

A: We have our R&D, producing, marketing and trading team, more than 200 employees in total. With 12 years manufacturing and selling experience in wiring accessories, we can provide you products with best quality, competitive price, satisfying pre-sale and after-sale service.



2 Q: Could you change the size for the customer?

A: Yes, sizes can be customized, for more details please contact us.



3 Q: How many days delivery the order?

A: Normally after deposit or L/C 15 days,In case of urgent need, delivery date can be advanced depends on your request.



4 Q: Do you provide free sample?

A:Yes, Sample can be provided with freight charge to be collected.





5 Q: Do you accept OEM or ODM?

A:Yes, OEM and ODM are available, any legal logo can be printed on the product.



6 Q:How about the after-sale service?

A: Any feedback or comments are welcomed. We have engineers available to solve your application problems.







For more information of cable ties, please feel free to contact us! We provide 7*24 hours service.
