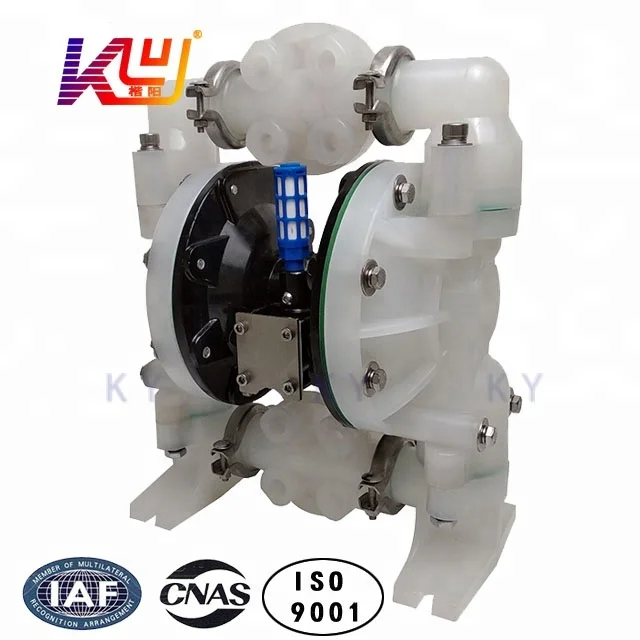

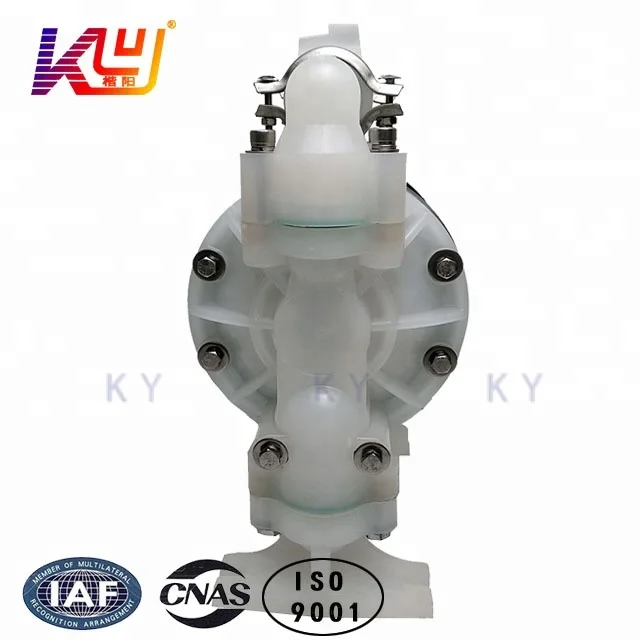

KY 25LS Plastic pneumatic double diaphragm pump chemical resistant diaphragm pump

 Plastic material for some chemical principle has good corrosion resistance, so the plastic pneumatic diaphragm pump also known as chemical diaphragm pump or chemical resistant diaphragm pump.Polypropylene pneumatic double diaphragm pump is called plastic pneumatic double diaphragm pump, because of its unique material to its good characteristics: first, relative to the metal pneumatic double diaphragm pump it can help to reduce the weight of the half, greatly strengthened the movement of the diaphragm pump performance; Polypropylene pneumatic double diaphragm pump for conveying liquid containing metal medium has no effect, and for some acidic liquid by better corrosion resistance, for some of the medical unit, chemical unit and gold mine is a very good pump selection;
KY brand enhanced polypropylene pneumatic double diaphragm pump, is our Shanghai Yang pump industry continuously absorb and learn the experience of the imported pneumatic double diaphragm pump is developed a new type of domestic pneumatic double diaphragm pump. Distribution device further innovation, intermediates and every other row of one-piece; Power-assist axis and help move the slider to one-piece production, and increase the slide valve power-assist ventilation device, greatly improving the utilization efficiency of the air, to avoid the crash, because of the air pressure is not stable and downtime; Really do not crash, and automation machinery and equipment to do the seamless connection.

 1, Pneumatic diaphragm pump polypropylene material relative density is small, only 0.89-0.91, is one of the lightest varieties of plastics.
2, polypropylene material is qualitative good mechanics performance, in addition to the resistance to impact and other mechanical properties are better than polyethylene, processing performance is good; Polypropylene pneumatic diaphragm pump texture pure, non-toxic, good electrical insulation.
3, polypropylene chemical performance is good, so the plastic pneumatic diaphragm pump also known as chemical diaphragm pump or chemical resistant diaphragm pump.almost no water absorption, and does not react with most chemicals.
4 pneumatic diaphragm pump, polypropylene as he powered by air, and it is destined to his unparalleled safety performance and quiet performance.
5, explosion-proof performance: don't worry about danger because of wire, the engine, in the environment of the inflammable, explosive operation need not take any protective measures, and don't have to worry about there will be noise annoyance;
6, pneumatic diaphragm pumps do not need irrigation water diversion, up to seven meters, suction lift up to 80 meters.
7, can be submerged in the working medium, the water pump no rotating parts and no shaft seal, diaphragm, such as the movement of the pump and pumping medium components, workpiece medium completely separated, the conveying medium will not leak out.
8, pneumatic diaphragm pump pump body to do a variety of material, has good corrosion resistance, suitable for all kinds of medium
9, KY type pneumatic diaphragm pump on integral structure to optimize, the pump cavity and competent road has improved remarkably, self-priming function and flow head has a lot to improve (maximum flow / 54 cubic meters/hour, maximum head 80 meters). Customers to become super flow pneumatic diaphragm pump and filter press special pneumatic diaphragm pump.
10, KY type pneumatic diaphragm pump flow and pressure has greatly enhance not only, also significantly reduce the noise, because KY type pneumatic diaphragm pump all adopt the reverse osmosis filtration core, truly fall the action of the sound without resistance; Because KY brand pneumatic diaphragm pump work for three guide one-piece, its pulse also significantly reduced.

1, the chemicals industry: acid, alkali, solvent, suspended solids, decentralized system.
2, the petrochemical industry: crude oil, heavy oil, grease, mud, mud, etc.
3, due to: resin, solvents, stain, paint, etc.
4, daily chemical industry: detergent, shampoo, lotion, cream, hand cream, surfactant.
5, ceramics, mud, ceramic slurry, lime, clay slurry.
6, mining, coal slurry, magma, mud, mortar, powder slurry, lubricating oil etc.
7, water treatment, lime, soft sediment, sewage, chemicals, waste water.
8, the food industry: liquid and solid, chocolate, salt, vinegar, sugar, vegetable oil, soybean oil, honey, animal blood.
9, beverage industry: yeast, syrup, concentrate, the mixture of gas and liquid, wine, fruit juice, corn starch, etc.
10, pharmaceuticals, solvents, acid, alkali, plant LianYe, ointment, plasma and other kinds of medicine material liquid.
11, the paper industry: binder, resin, paint, printing ink, paint, hydrogen peroxide, etc.
12, the electronics industry: solvents, plating solution, cleaning fluid, sulfuric acid, nitric acid, waste acid, polishing liquid, corrosive acid.
13, textile, dye chemicals, resins, rubber, etc.
14, construction, cement, ceramic tile adhesive, the rock slurry, ceiling, paint, etc.
15, the auto industry: polishing emulsion, oil, coolant, automotive primer, oil emulsion, degreaser, paint, lacquer, varnish additive, etc.
16, the furniture industry: binder, varnish, dispersions, solvents, reagents, white glue, epoxy resin, starch adhesive.
17, metallurgy, casting, and dyeing industry: metal plasma, hydroxide and carbon slurry, dust washing pulp, etc.

Q1: what is the packaging of your product?
Answer: standard exports plywood box or carton to be decided according to specific product.
Q2: how about the quality and service of your company?
Answer: we are a professional manufacturer of diaphragm pump, to quality survival, welcome your use and inspection; We are China Great Wall quality system certification enterprise, please feel free to use.
Q3: what kind of diaphragm pumps do you produce?

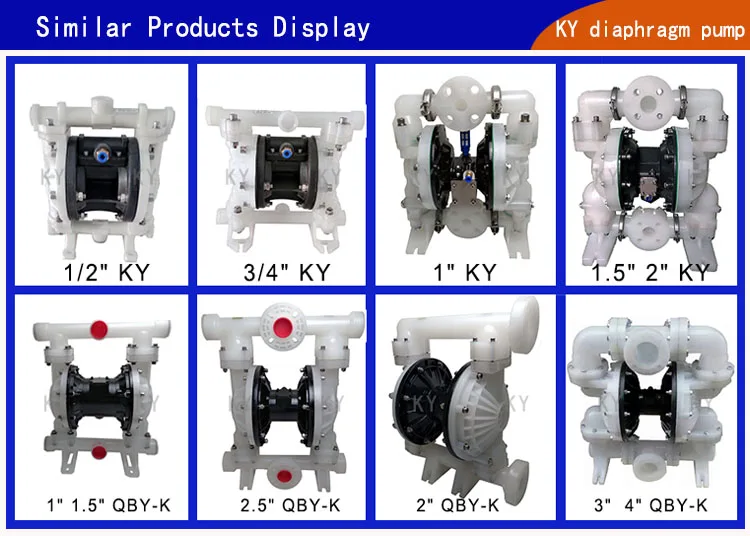

Answer: my company is an experienced diaphragm pump manufacturer, materials have cast steel, aluminum alloy, stainless steel, polypropylene, fluorine plastics, lining teflon; Diaphragm pump caliber is 1/2 "3/4" 1 "1.5" 2 "2.5" 3 "4", the power mode is divided into pneumatic and electric.
Q4: can your company guarantee our healthy cooperation?
Answer :1. Our company guarantees our good long-term cooperation with the guarantee of product quality and the assistance of professional receiving services.

2. We hope to establish good cooperative relations with friends around the world. The process of cooperation is not only business, but also the process of making friends.
Q5: when is your delivery time?
A: most of our products are in stock, depending on type and quantity. We'll deliver the goods as soon as possible.
