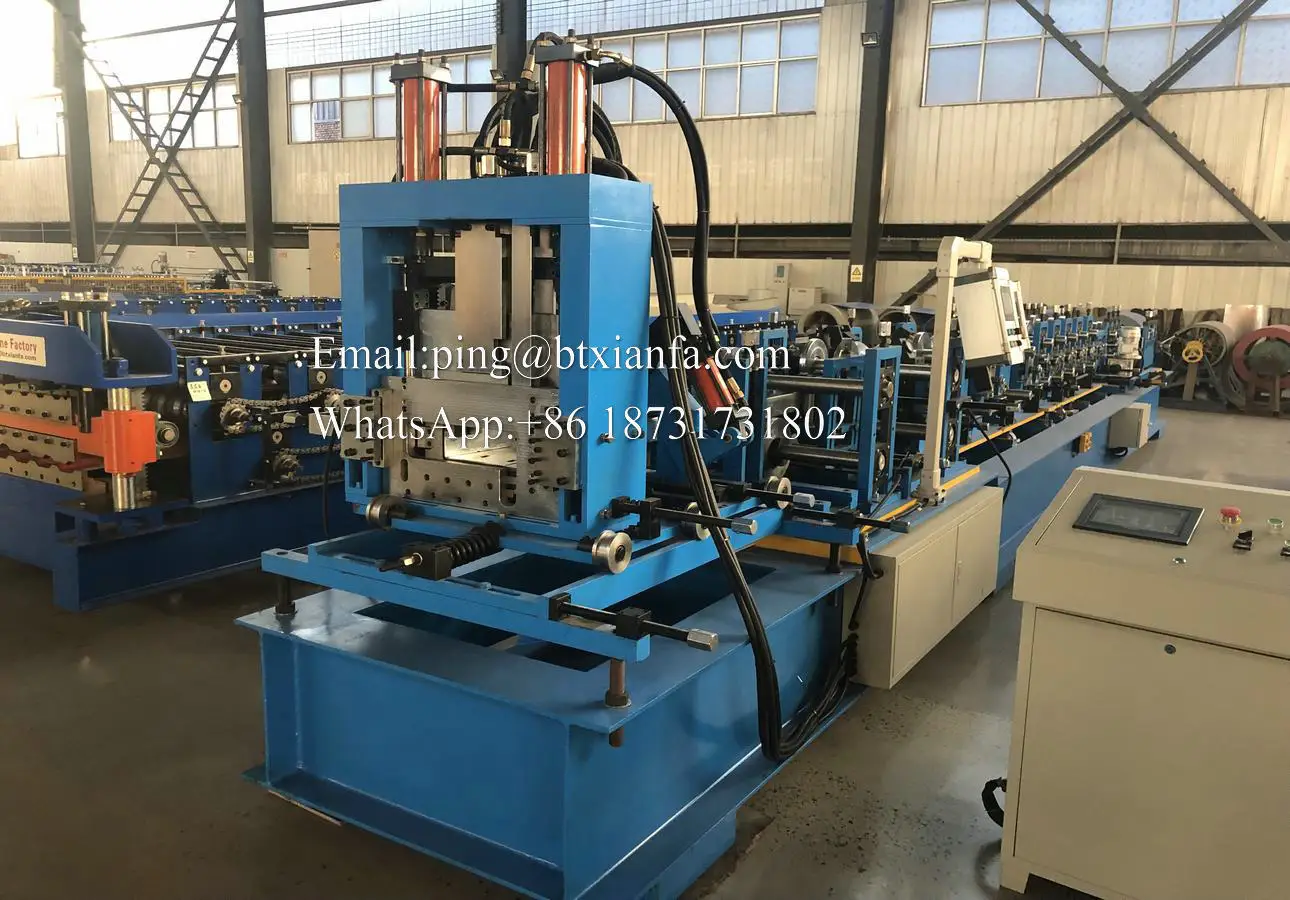

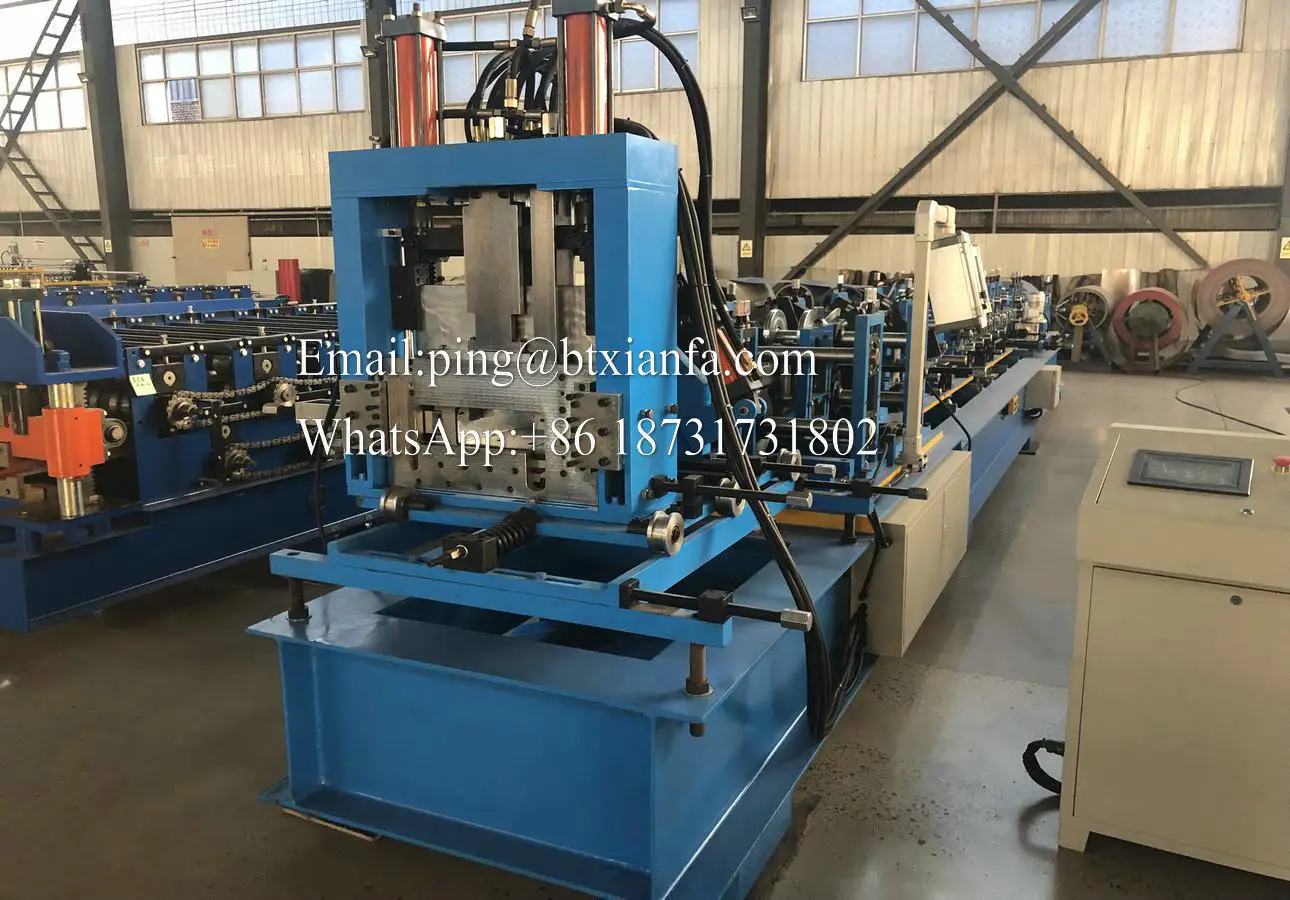

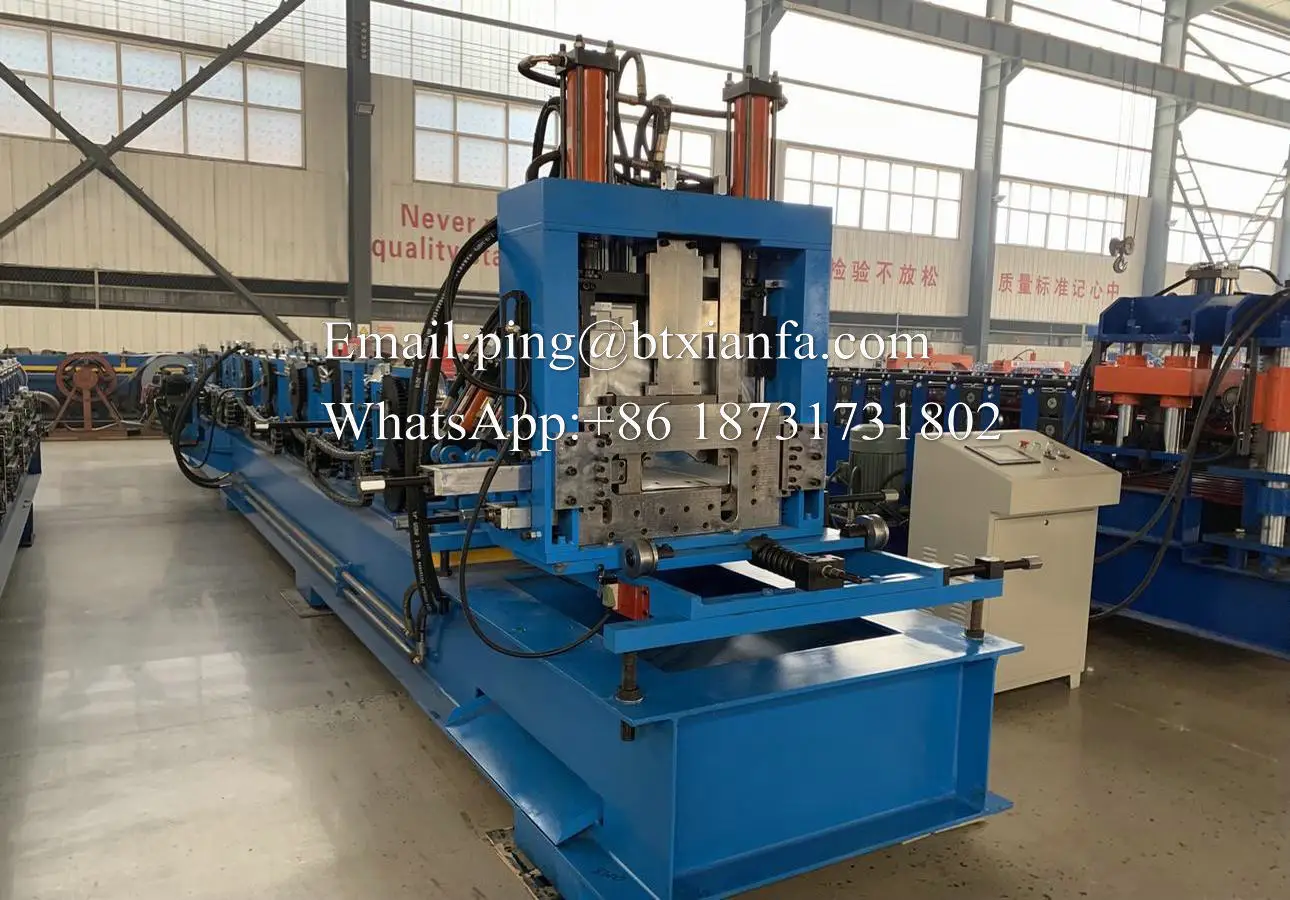

Roll Forming Machine
Machine Including Components
Electric Decoiler--Feeding Platform--Forming--Hydraulic System--Computer Control Cabinet--Punching--Hydraulic Cutting--Receiving Platform

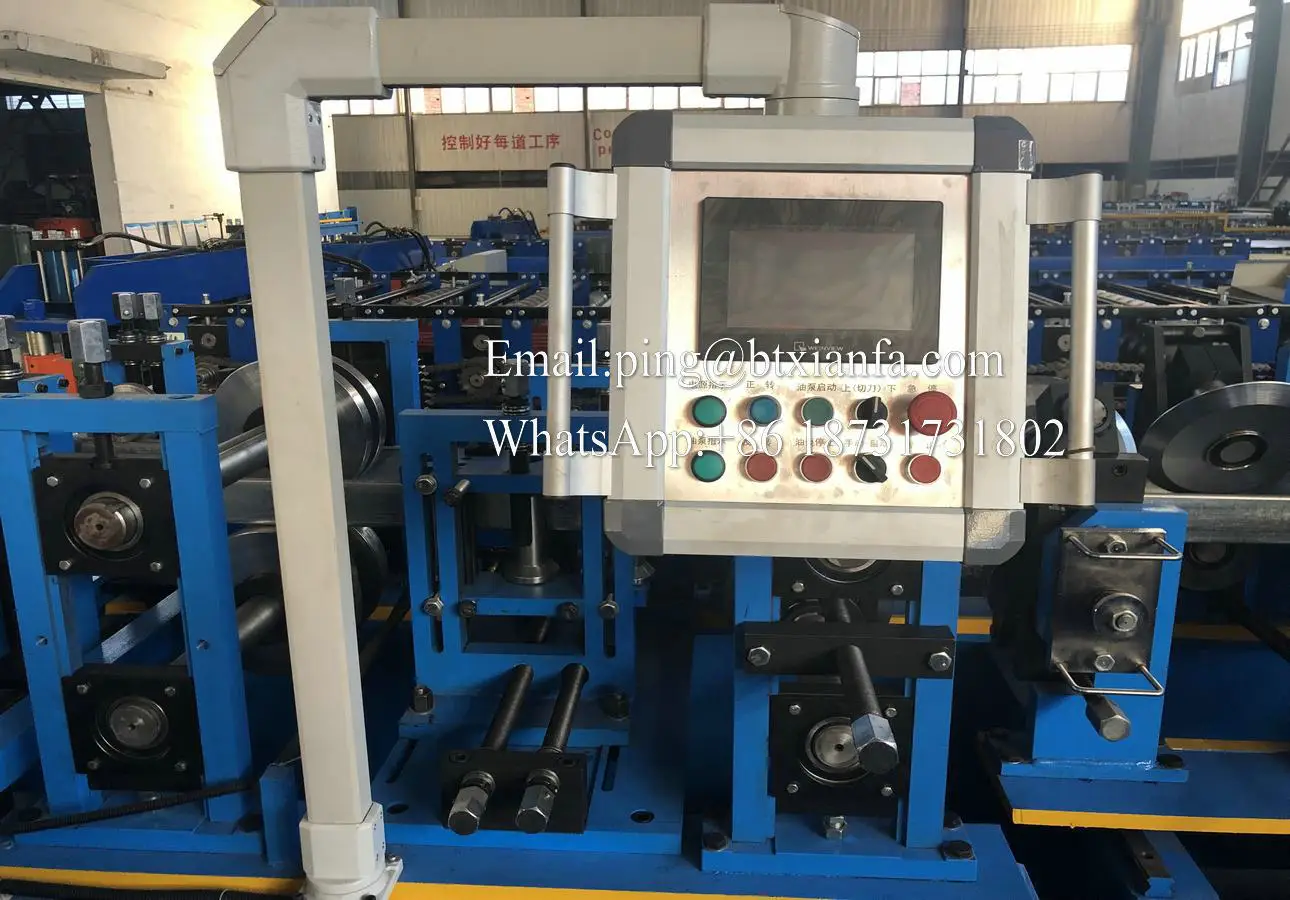

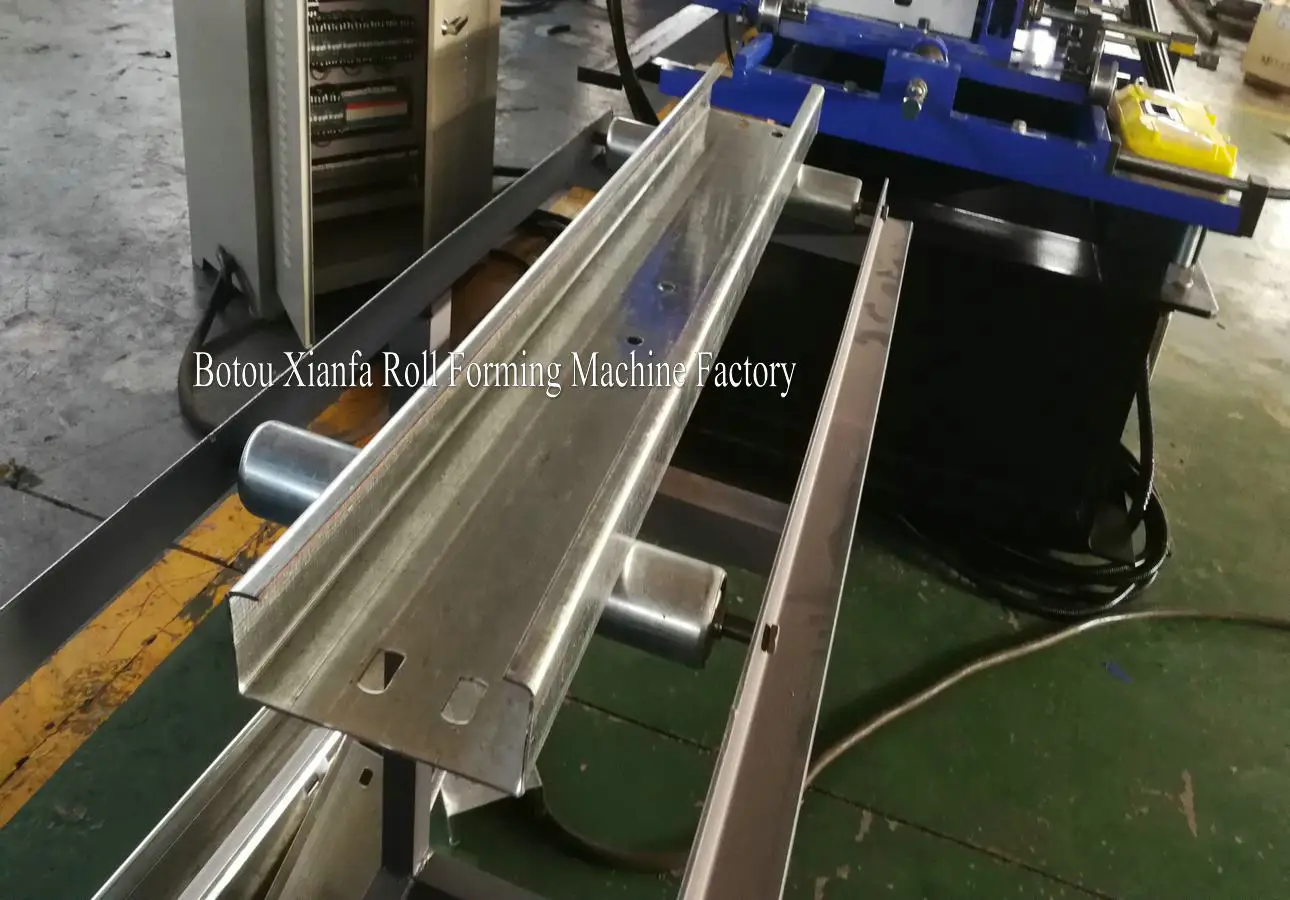

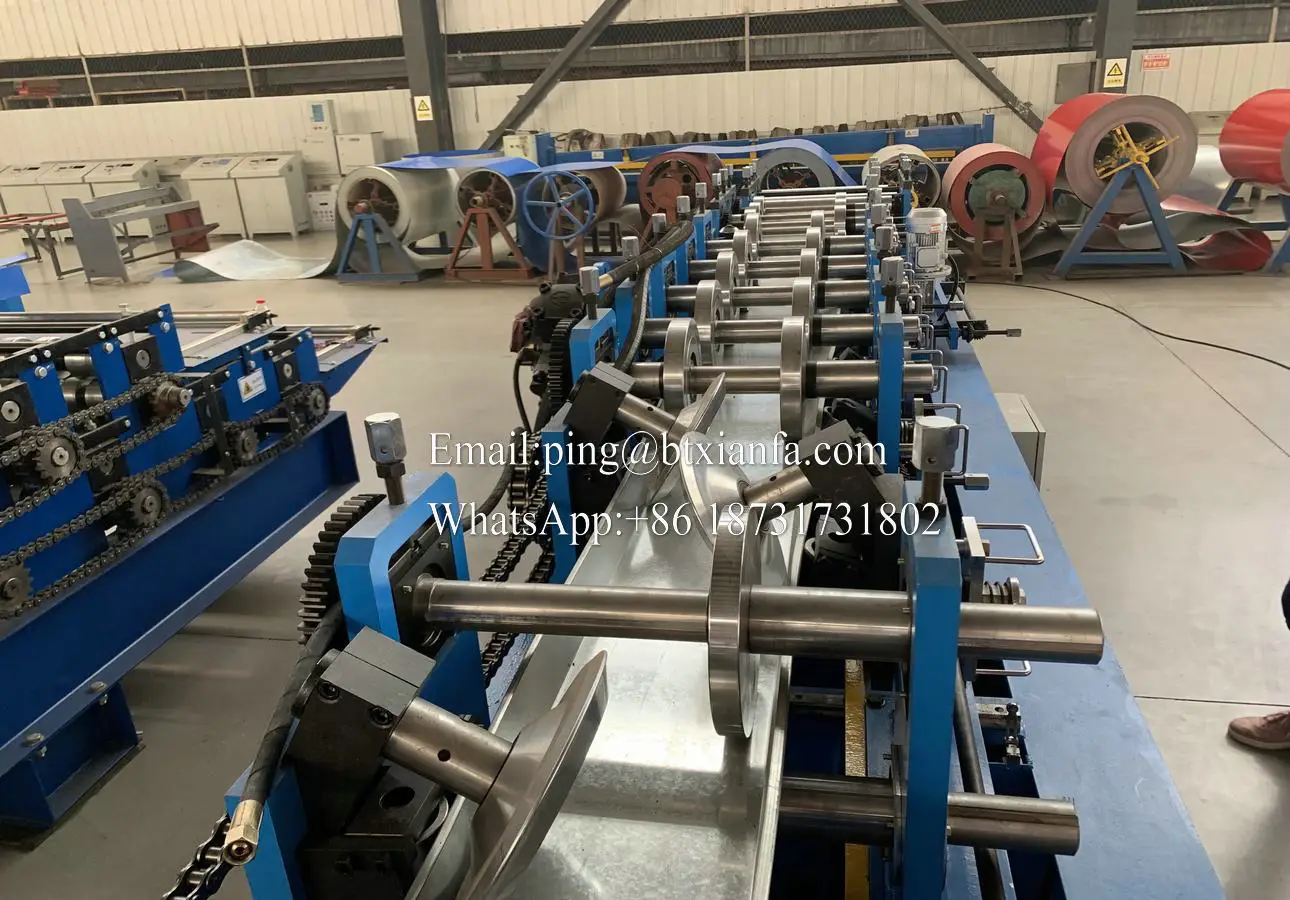

Machine Pictures
Machine Main Parameters
1.Suitable Material:GI/PPGI(Q235)
2.Width Of The Raw Material:175-465mm
3.Rows Of Rollers:18Rows
4.Productivity:0-13m/min
5.Appearance Size:About 12500*1650*1750mm
6.Sidewall thickness :20mm
7.Machine Frame:450H Steel
8.Total Power:22+7.5KW
9.Thickness Of Raw Material:1.5-2.8mm
10.Diameter Of Shaft:80mm
11.Voltage:380V 50Hz 3phases
1.Suitable Material:GI/PPGI(Q235)
2.Width Of The Raw Material:175-465mm
3.Rows Of Rollers:18Rows
4.Productivity:0-13m/min
5.Appearance Size:About 12500*1650*1750mm
6.Sidewall thickness :20mm
7.Machine Frame:450H Steel
8.Total Power:22+7.5KW
9.Thickness Of Raw Material:1.5-2.8mm
10.Diameter Of Shaft:80mm
11.Voltage:380V 50Hz 3phases
Machine Parts Description
Electric Decoiler
Loading capacity:4T
Inner diameter: 480-520mm
Motor power: 3+3KW
Frequency converter power: 4KW
Inner diameter: 480-520mm
Motor power: 3+3KW
Frequency converter power: 4KW
Feeding Platform
Feeding Platform,Ensure smooth& precise
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and
passed to the Flattening, then the feed roll forming
Leveling: top 3 station & down 4 station + twice transmission.
Material: 45#
material feed.steel plate platform, two
pitching rollers, position stopping block.
The coil is guided in the correct position and
passed to the Flattening, then the feed roll forming
Leveling: top 3 station & down 4 station + twice transmission.
Material: 45#

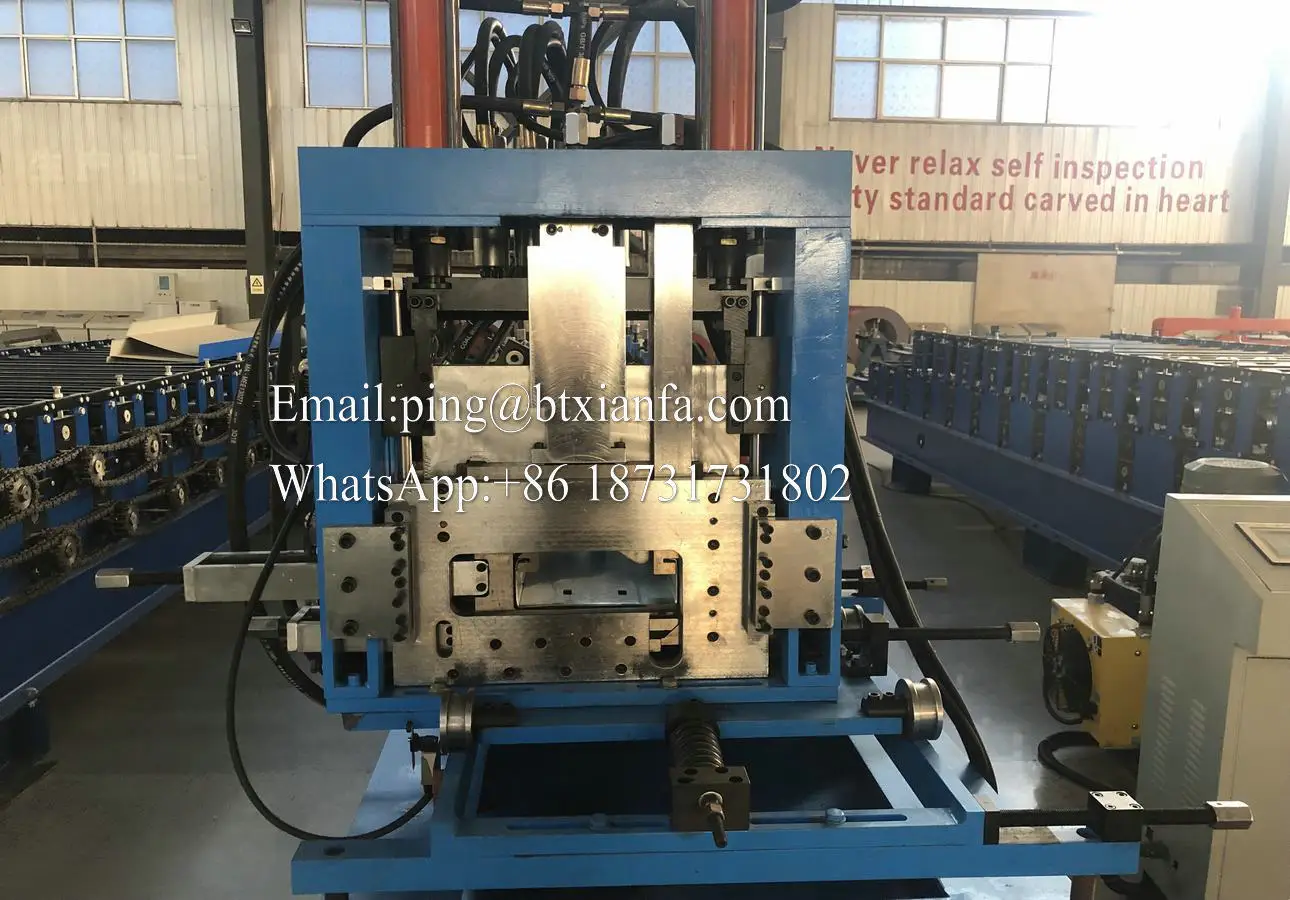

Main Roll Forming Machine

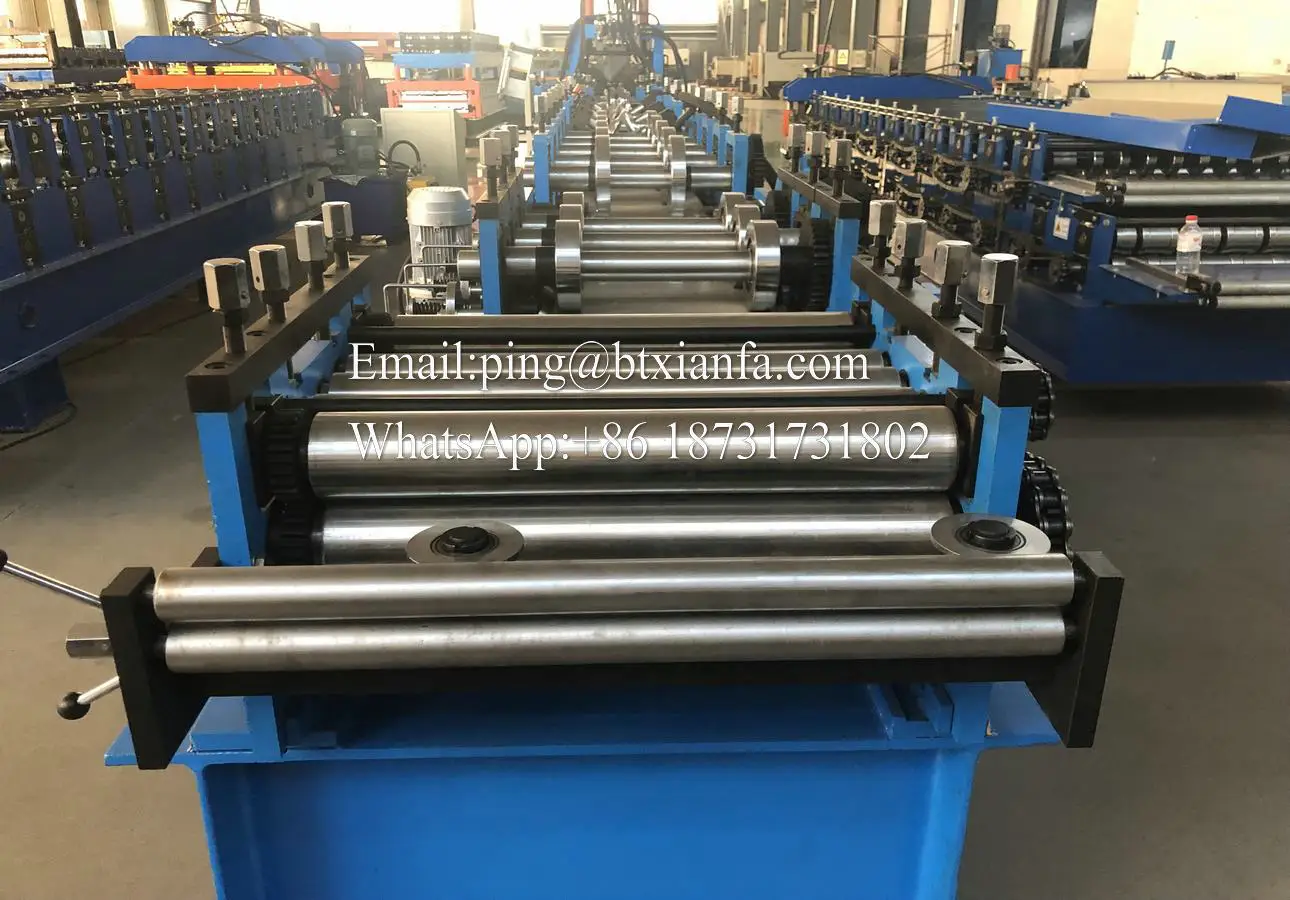

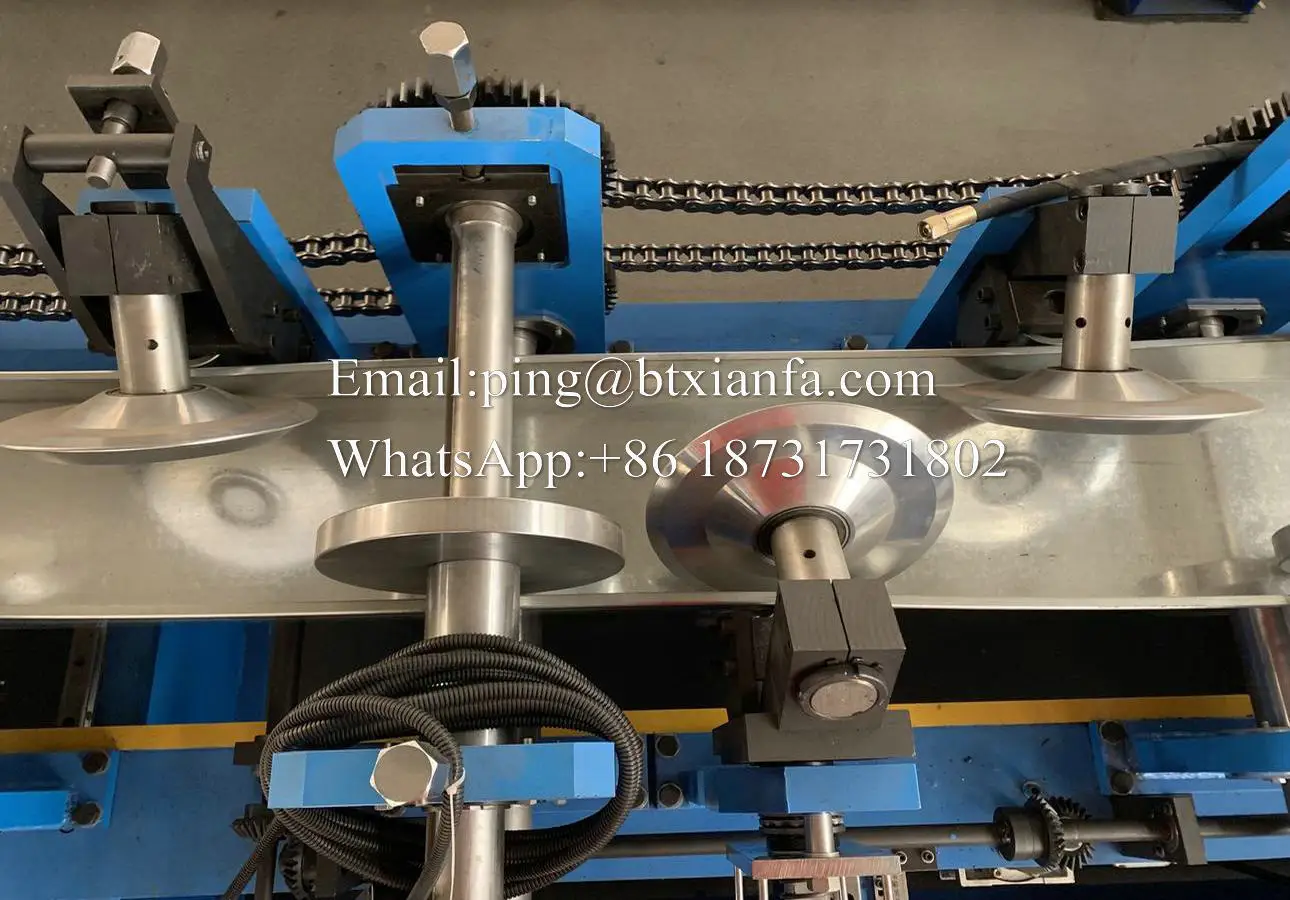

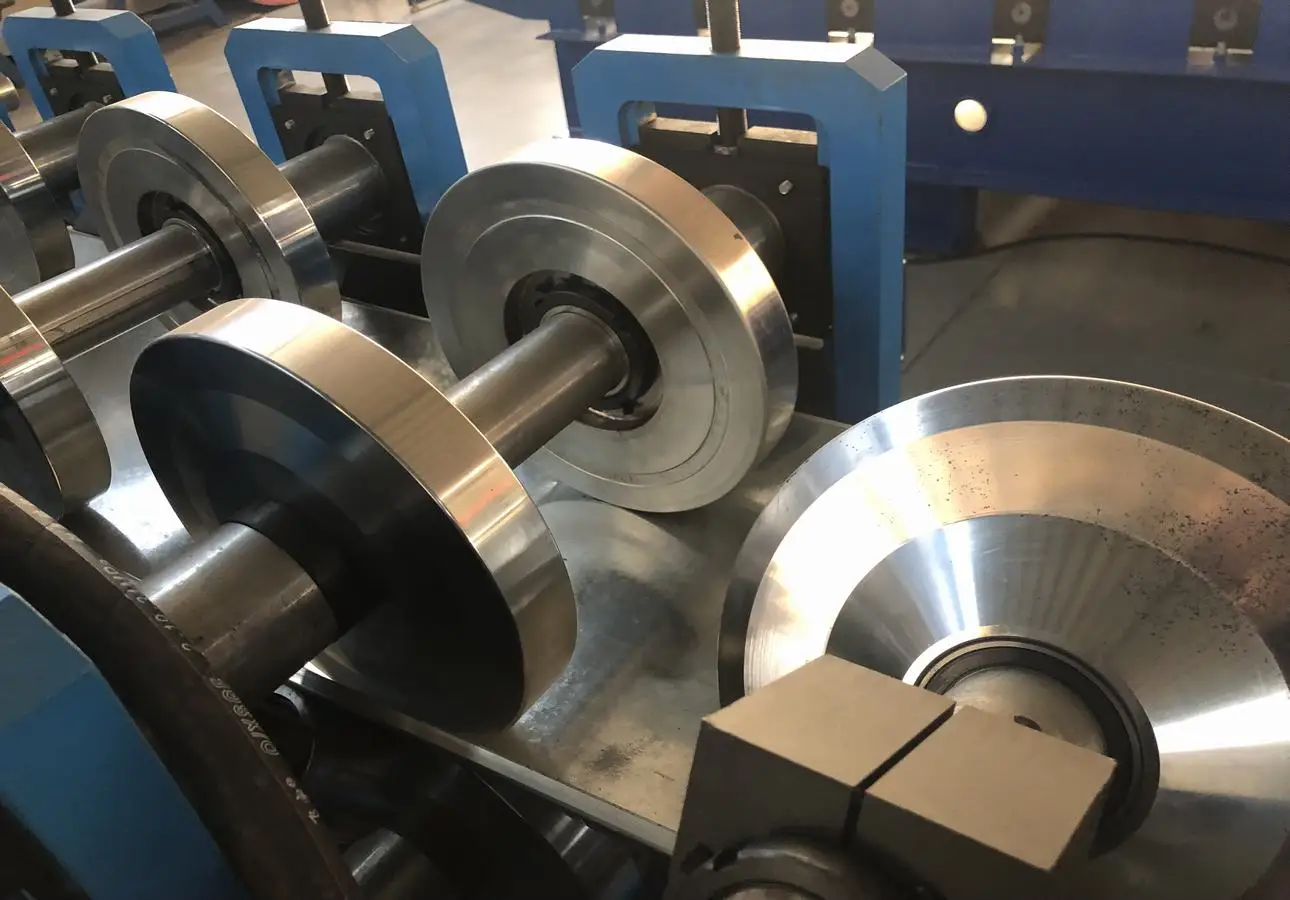

Material of rollers:Bearing steel (quenched)，roller surfaces polishing, hard plating , The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Punching
Punching: can punch single hole & double holes after forming.

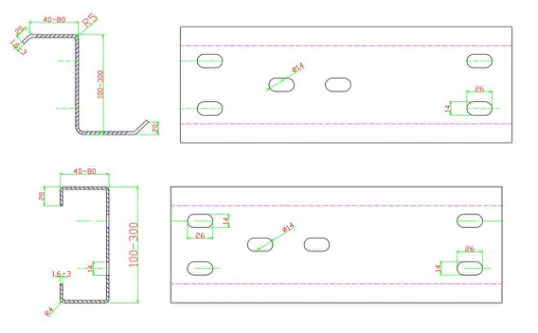

With round hole:14mm and 16mm; elliptical hole 28*16mm and 28*14mm. (Selectable)
Punch hole for the middle hole and side hole
With round hole:14mm and 16mm; elliptical hole 28*16mm and 28*14mm. (Selectable)
Punch hole for the middle hole and side hole
Shearing Mechanism

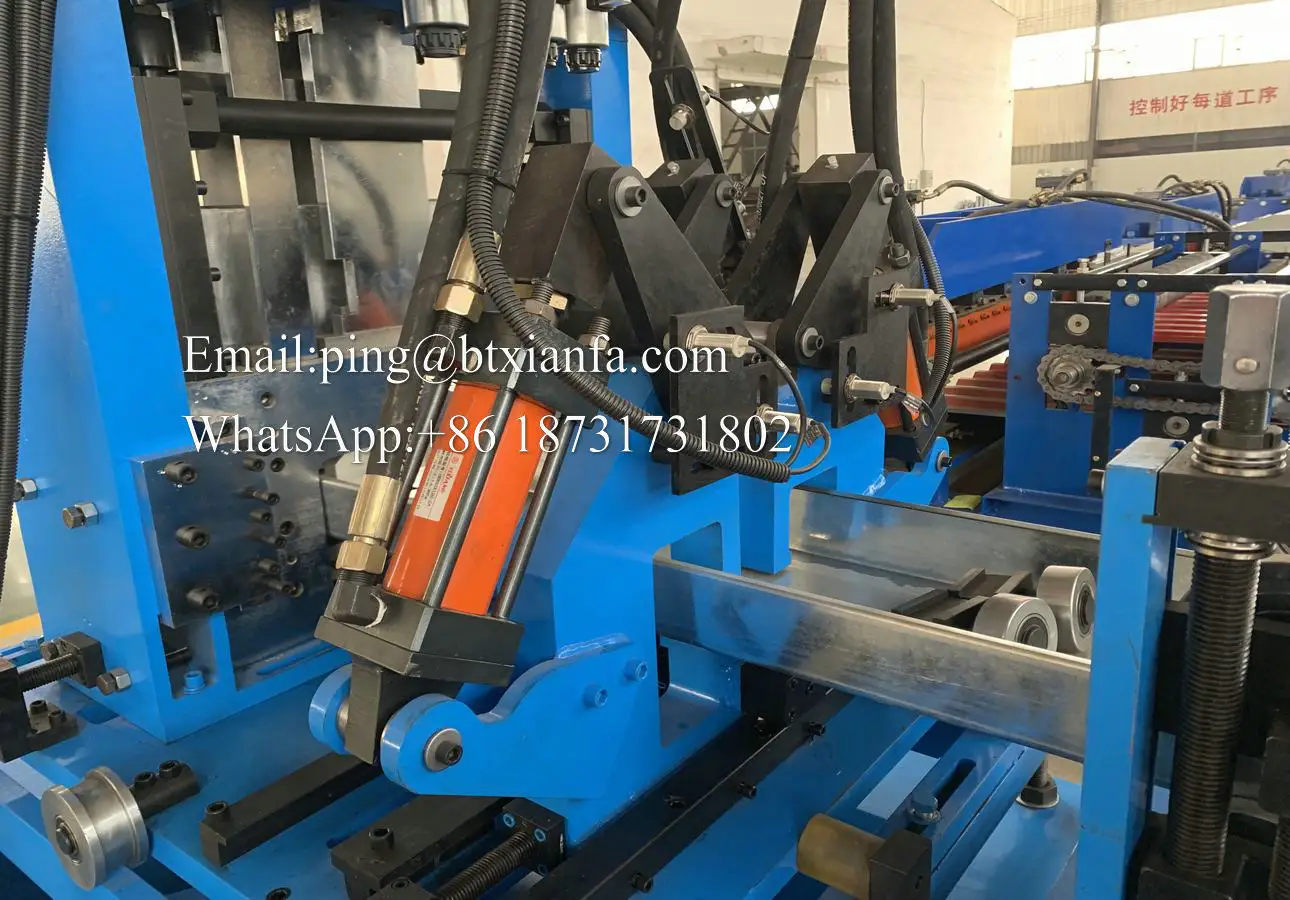

It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Cr12,quenching treatment
Finished tile fall automatically
Material of blades: Cr12,quenching treatment
Finished tile fall automatically
Output Table
It adopts welded steel and supported roller to transmit the products,which is used to collect the finished products
Computer Control Cabinet
Function
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
The whole line is controlled by
PLC and touch screen operation
PLC system is with high-speed
communication module, it is
easy for operation.
The technical data and system
parameter can be set by touch
Operation
Length is adjustable and digit of it can be adjusted.
Computed mode has two modes: automatic and manual one.
The system is easy to operate and use
Hydraulic System
Adopted top brand hydraulic
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system
system components to
ensure the stability and
lifetime, avoid leakage.Supplies the initial power to
the cuter through a closed oil
tank. It is off without cutting,
which can save the power
Servo Motor
The hydraulic pump station has a heat dissipation system
Packing Method AND Transportation
1.All machines need one 40 feet container
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
2.Main machine is nude,the computer control box is packed by carton
box.The loading machine is operated by professionals and will not
cause any damage to the machine during sea transportation
3.Payment Term 30% deposit by T/T ,Making machine Provide photos and videos of the machine to the customer after the machine is
finished After the qualified The customer will pay all the balance after confirmation
4.Delivery Time 50Working days after
receiving the deposi tcomplete 3.Warranty Free warranty for 12 months, lifetime maintenance service
