Product Overview
Description
Product Description

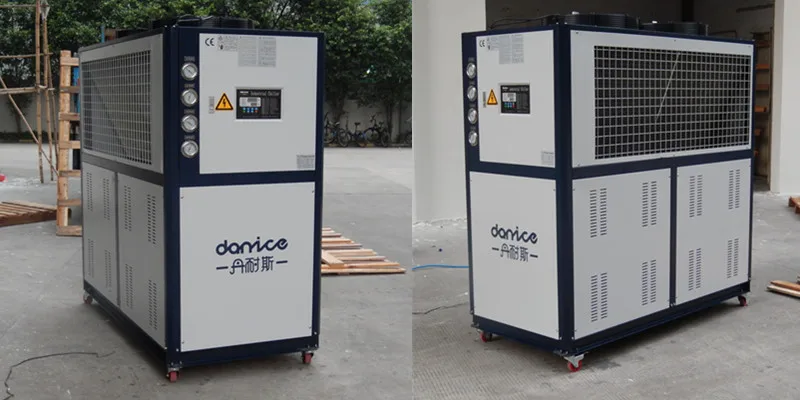

Reliable performance and reasonable price water cooled chiller cooling system
1.Condenser and evaporator units adopt efficient heat transfer tubes.We salect imported efficient hermetic scroll compressor as our most important parts in our chiller ,which has a compact structure,small size,light weight, easy installation and many other advantages.
2.Installation of all components, running tests has been finished before ex-factory,As long as users connect the waterway and the circuit, it can be put into use,uttermost reduction of installing time and commissioning time.
3.R22,R134a,R407c,R404a refrigerant are all available , our standard chiller refrigerant is R22,IF you need other environmental refrigerant R407c,R134a, Pls let us know.
4.Cooling pacacity: 114036kcal/h (132.6kw).
PARAMETER LIST
DNC-40WD | ||||
Cooling capacity | kcal/h 50HZ | 114036 | ||
Kw 50HZ | 132.6 | |||
Input Power | kw | 40.4 | ||
Refrigerant | Type | R22&r407c&r404a&r410a | ||
Control | Capillary | |||
Compressor | Type | Hermetic scroll | ||
Power | kw | 18.2*2 | ||
Condenser | Type |
| Efficient aluminum finned copper sleeve+low noise external rotor fan | |
Water flow | m3/h | 29.3 | ||
(inch)Diamet | inch | 3’’ | ||
Evaporator | Type |
| Stainless steel Tank coil evaporate | |
Tank volume | L | 200 | ||
Chilled water flow | m3/h | 22.8 | ||
Inlet and outlet connection(BSP) | inch | 3’’ | ||
Cooling Pump | Power | Kw | 4 | |
Max flow rate | m3/h | 30 | ||
Max head | M | 36 | ||
Security | Compressor overheating protection,over-current protection,high and low pressure protection,over-temperature protection,traffic protection,phase sequence/phase loss protection,low level protection,frost protection | |||
Dimension | mm | 2000*980*1700 | ||
Weight | kg | 870 | ||
Notes:1.Rated cooling capacity is based on: chilled water inlet and outlet water temperature 12 ℃ / 7 ℃, the cooling air inlet and outlet temperature 30 ℃ / 35 ℃
2.Scope of work: chilled water temperature range: 5 ℃ to 35 ℃; chilled water inlet and outlet temperature difference: 3 ℃ to 8 ℃.
Exhibition
Packaging & Shipping
Why Choose Us?
Certifications
Contact us
Contact person:Dora Duan
Whechat/whatsApp/skype: +86 13532307980
Tel: +86 07552989 2135
Fax:07552994 7530
Website:www.dannicechiller.com
IF further question , please contact us without hesitation !
