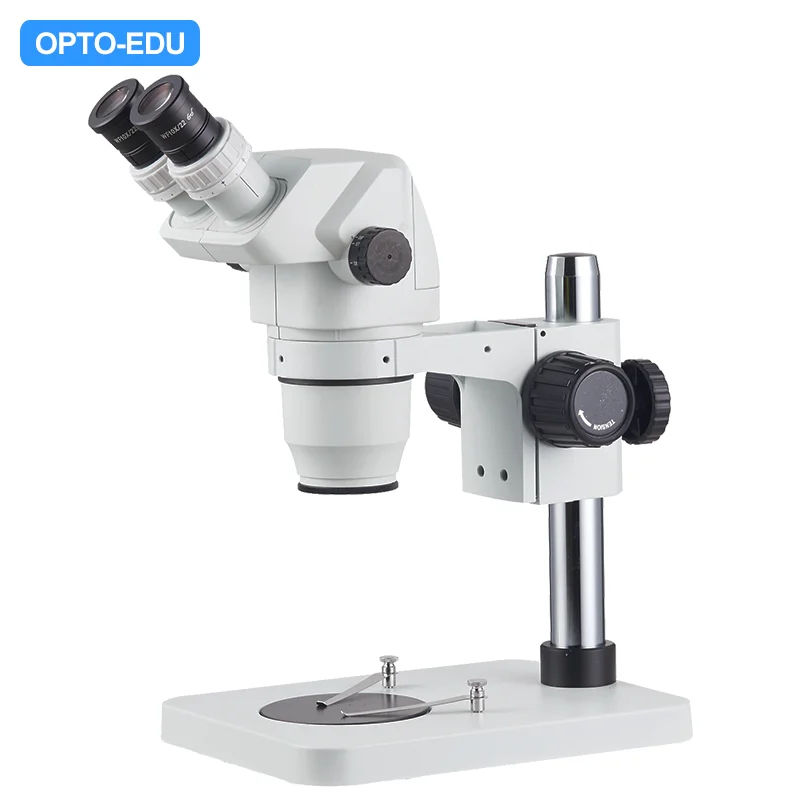

OPTO EDU A23.3667L B1T 0.67X 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope
OPTO-EDU A23.3667L-B1T 0.67X - 4.5X Trinocular Zoom Stereo Microscope

OPTO EDU A23.3667L B1T 0.67X 4.5X Trinocular Zoom Stereo Microscope

Share on (60802187001):


Price:$225.89 - $281.11

Quantity:


Product Overview

Description

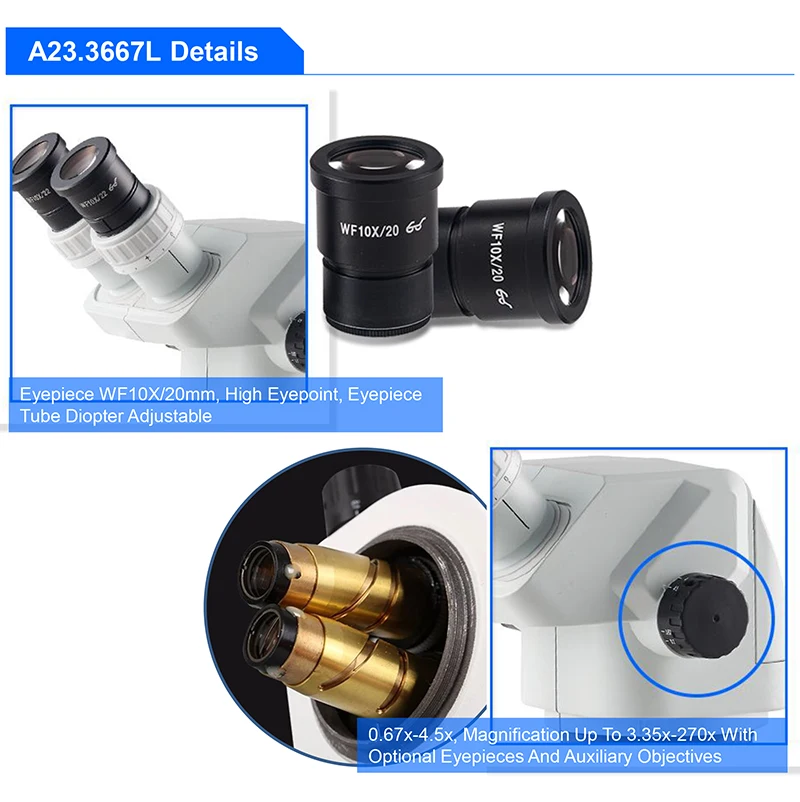

Eyepiece WF10X/20mm, High Eyepoint, Eyepiece Tube Diopter Adjustable
0.67x-4.5x, Magnification Up To 3.35x-270x With Optional Eyepieces And Auxiliary Objectives
A54.3640 35 Kinds Stands Optional For Different Usage & Condition

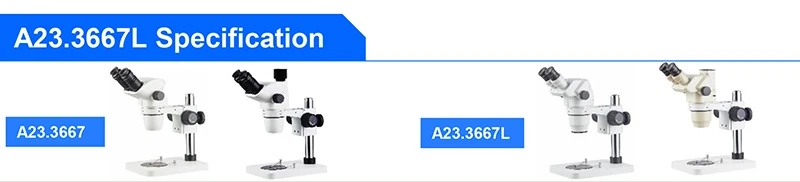

A23.3667L Series Zoom Stereo Microscope Specification
B
T
Head

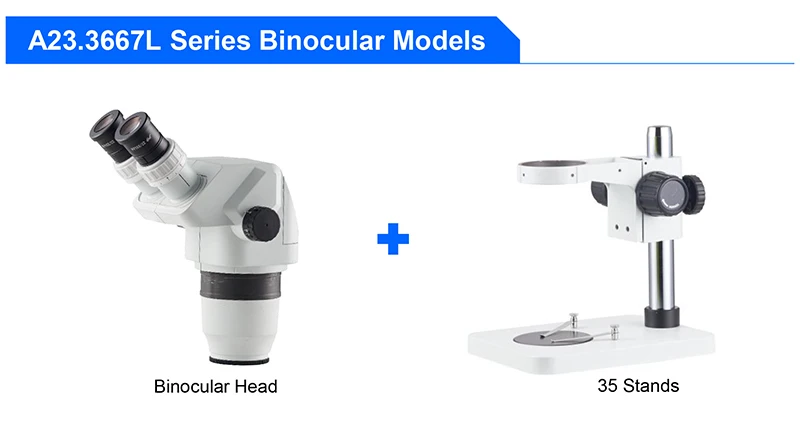

Binocular Head, 45° Inclined, 360°Rotatable, Interpupillary Adjustment 54-75mm
●

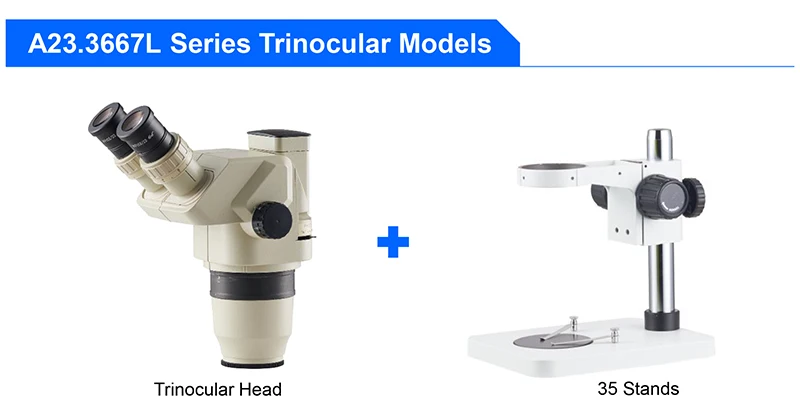

Trinocular Head, 45° Inclined, 360° Rotatable, Interpupillary Adjustment 54-75mm, With Eyepiece Adapter Focus Adjustable,
Light Split Fixed P50:E50, Simul Focal Design To Show Image On Both Eyepiece & Photo Port At Same Time
●
Eyepiece
WF10x/22mm, Dia.30mm, High Eyepoint, Diopter Adjustable
Zoom Range
0.67x~4.5x
Zoom Ratio
1:6.7
Magnification
6.7~45x, Up To 2x-270x With Optional Eyepieces & Auxiliary Objectives
Working Distance
105mm, Up To 26~287mm With Auxiliary Objectives
Field Of View
0.9-109.5mm (Detail See Optical Data Sheet)
Focusing

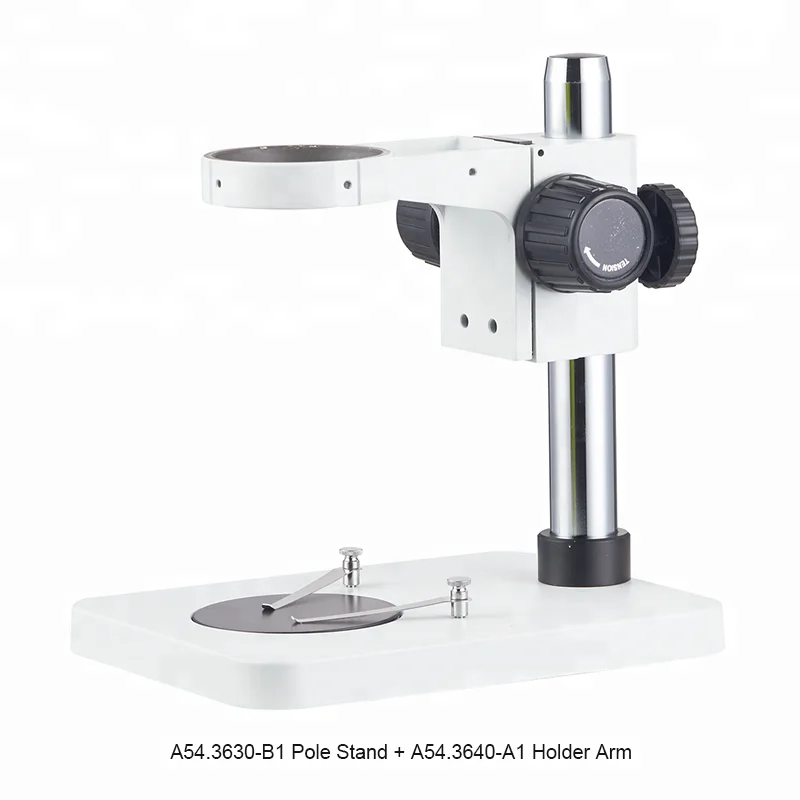

Pole Stand Coarse Focusing Range 50mm, Tension Adjustable
Track Stand Coarse Focusing Range 74mm, Tension Adjustable

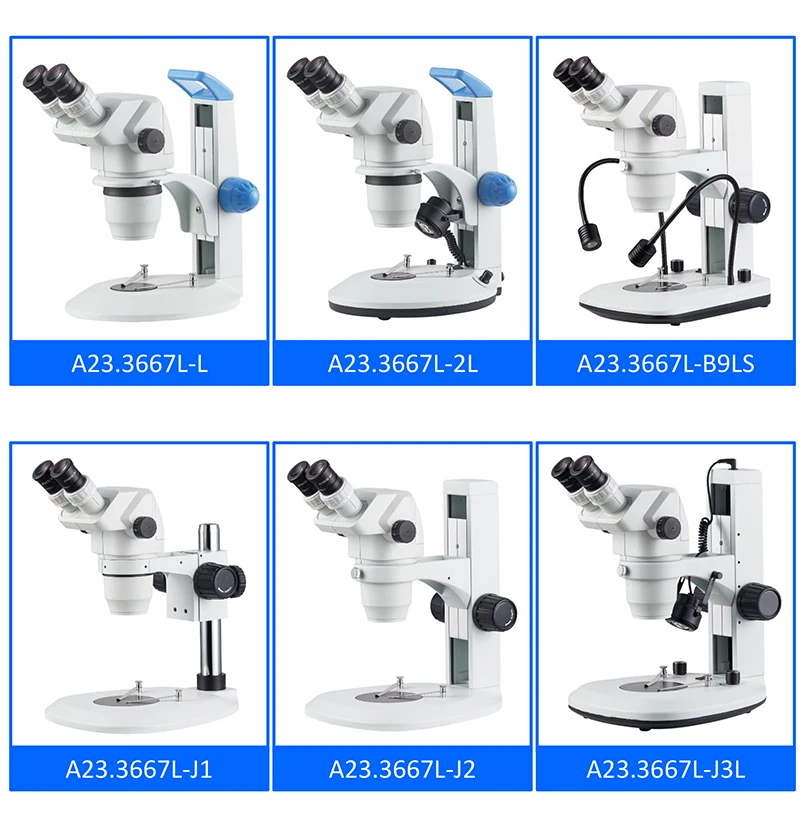

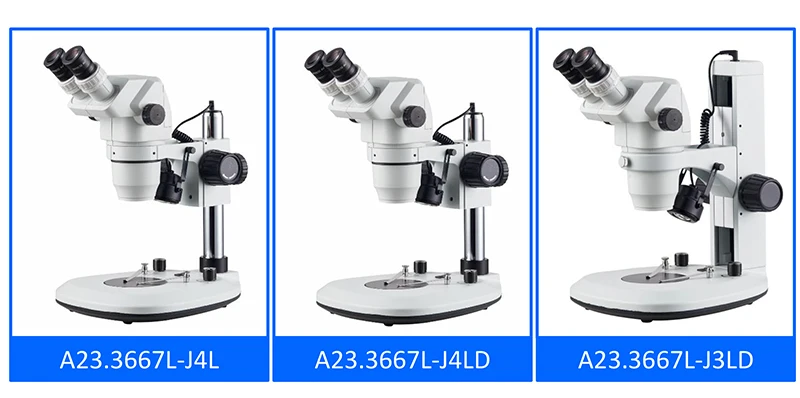

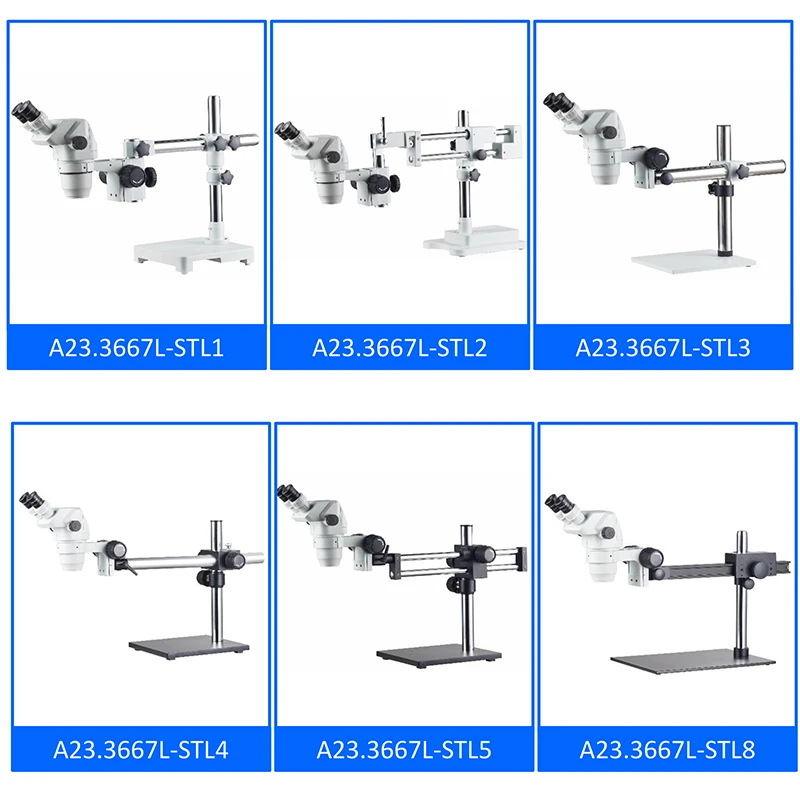

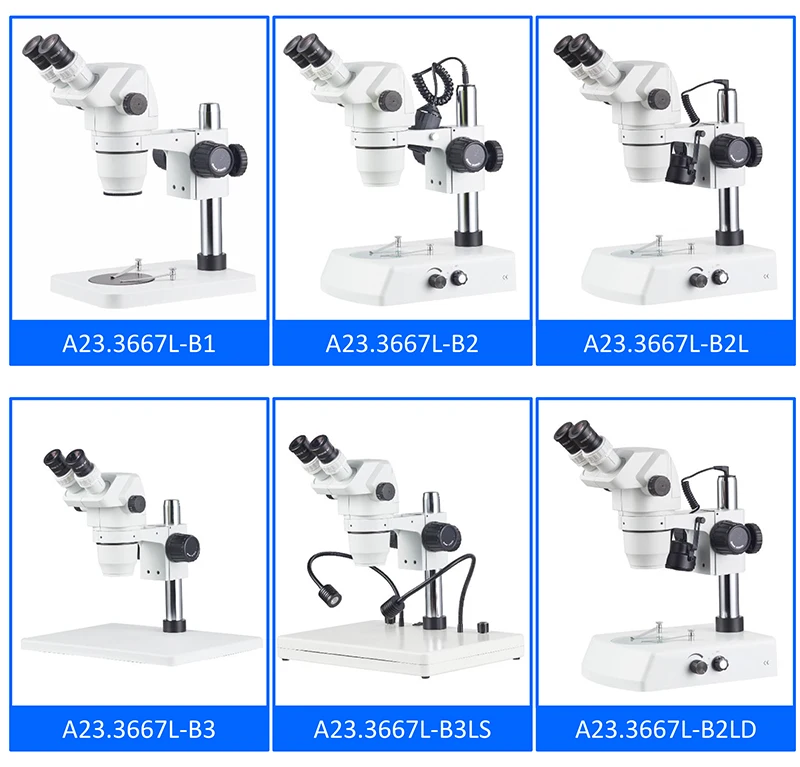

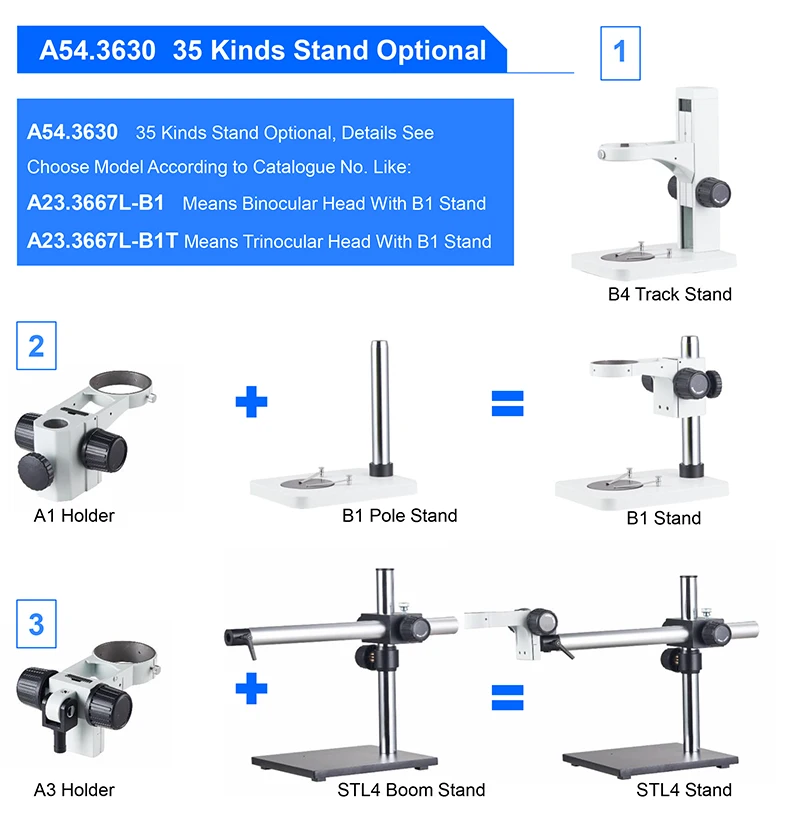

Stand

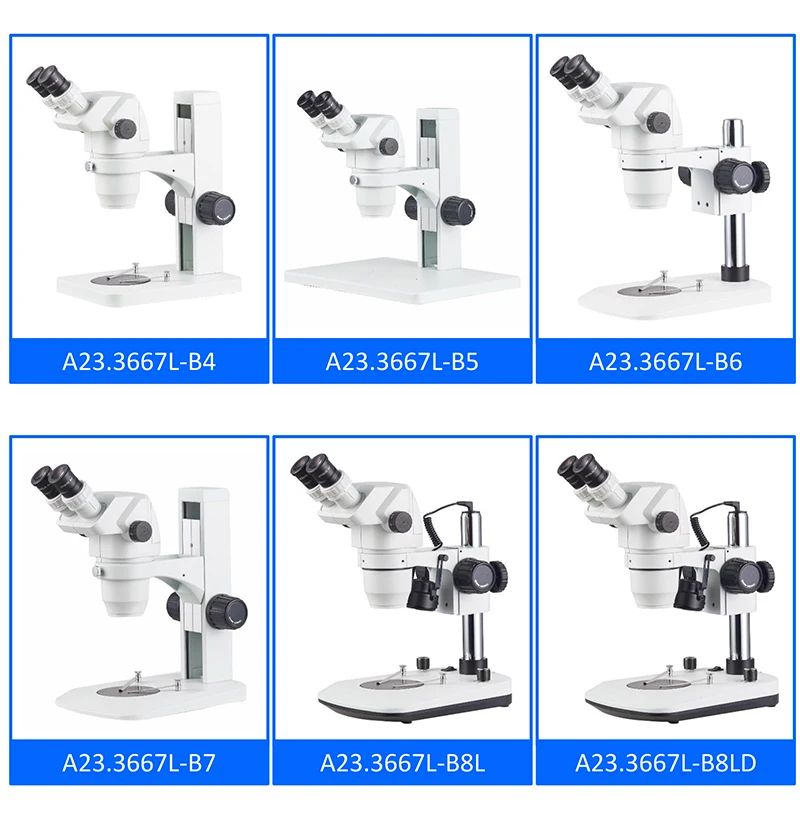

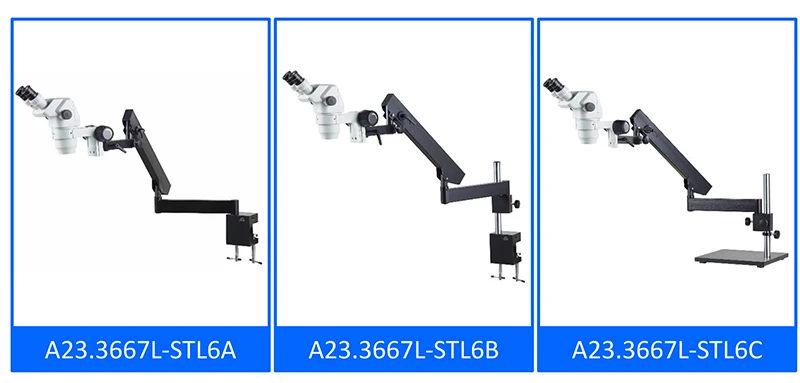

35 Kinds Stand Optional, Details See A54.3630
Choose Model According To Cata. No. Like:
A23.3667-B1 Means Binocular Head With B1 Stand
A23.3667-B1TMeans Trinocular Head With B1 Stand


A23.3667L Series Zoom Stereo Microscope Optical Data Sheet
Zoom Lens
0.67x~4.5x
Auxiliary Lens
0.3x
0.5x
0.7x
0.75x
1.0x(Standard)
1.5x
2.0x
Working Distance
287mm
177mm
120mm
117mm
105mm
47mm
26mm
WF10x/22mm
Magnification
2.0-13.5x
3.4-22.5x
4.7x-31.5x
5.0-33.8x
6.7-45.0x
10.1-67.5x
13.4-90.0x
View Field(mm)
109.5-16.3
65.7-9.8
46.9-6.9
43.8-6.5
32.8-4.9
21.9-3.3
16.4-2.4
WF15x/16mm
Magnification
3.0-20.3x
5.0-33.8x
7x-47.2x
7.5-50.6x
10.1-67.5x
15.1-101.3x
20.1-135x
View Field(mm)
79.6-11.9
47.8-7.1
34.1-5.1
31.8-4.7
23.9-3.6
15.9-2.4
11.9-1.8
WF20x/12mm
Magnification
4.0-27.0x
6.7-45.0x
9.3x-63x
10.1-67.5x
13.4-90.0x
20.1-135.0x
26.8-180x
View Field(mm)
59.7-8.9
35.8-5.3
25.6-3.8
23.9-3.6
17.9-2.7
11.9-1.8
9-1.3
WF25x/9mm
Magnification
5.0-33.8x
8.4-56.3x
11.7x-78.7x
12.6-84.4x
16.8-112.5x
25.1-168.8x
33.5-225x
View Field(mm)
44.8-6.7
26.9-4.0
19.2-2.8
17.9-2.7
13.4-2.0
9.0-1.3
6.7-1.0
WF30x/8mm
Magnification
6.0-40.5x
10.2-67.5x
14.1x-94.5x
15.0-101.4x
20.1-135x
30.3-202.5x
40.2-270x
View Field(mm)
37.3-5.6
23.8-3.6
16-2.25
14.1-2.25
11.9-1.8
7.9-1.2
6.0-0.9


Optional Accessories
Cata.No.

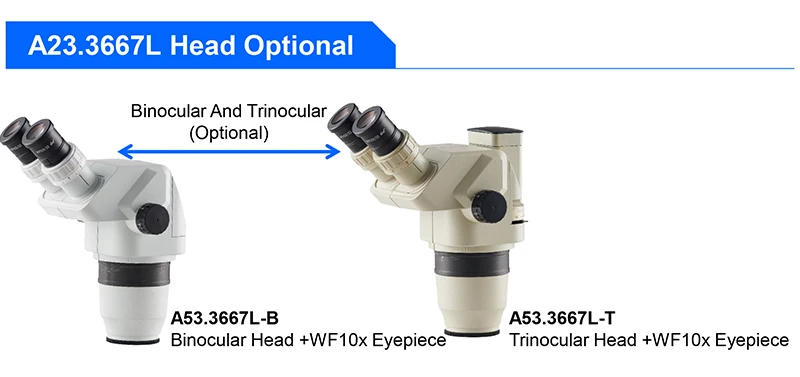

Head
Binocular Head + WF10x/20mm
A53.3667-B

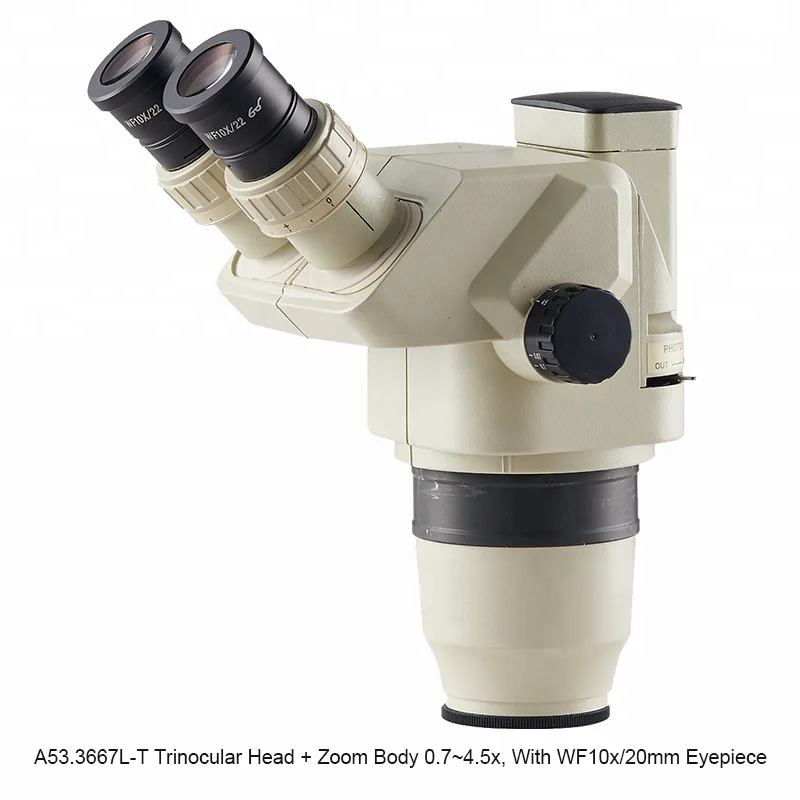

Trinocular Head + WF10x/20mm
A53.3667-T
Eyepiece
WF10x/22mm, High Eyepoint, Diopter Adjustable, Dia.30mm
A51.3622-1022
WF15x/16mm, High Eyepoint, Diopter Adjustable, Dia.30mm
A51.3622-1516
WF20x/12mm, High Eyepoint, Diopter Adjustable, Dia.30mm
A51.3622-2012
WF25x/9mm, High Eyepoint, Diopter Adjustable, Dia.30mm
A51.3622-2509
WF30x/8mm, High Eyepoint, Diopter Adjustable, Dia.30mm
A51.3622-3008

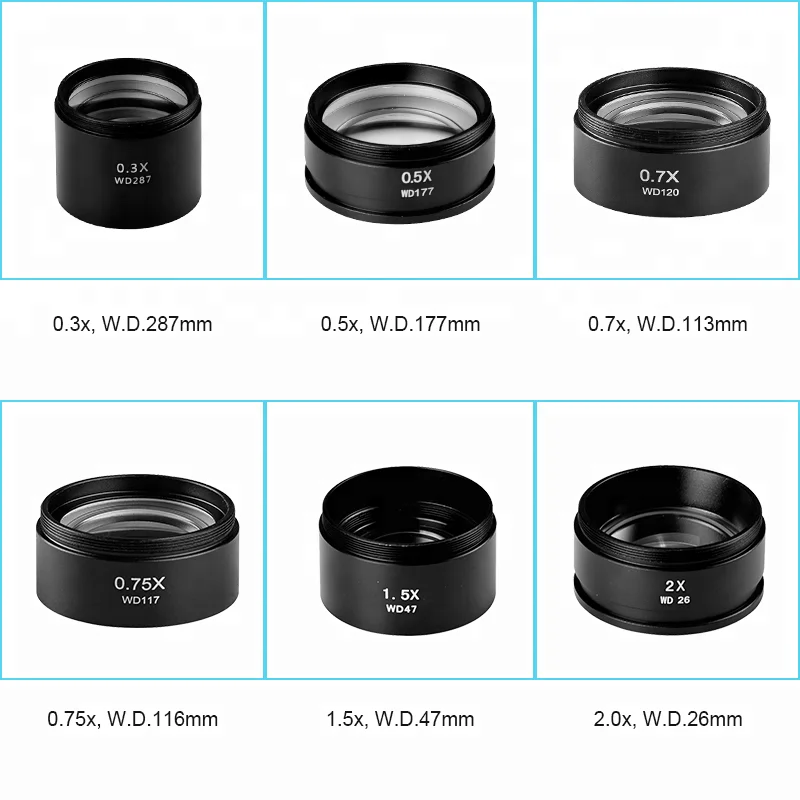

Auxiliary Lens
0.3x, W.D. 287mm
A52.3622-03
0.5x, W.D. 120mm
A52.3622-05
0.7x, W.D. 117mm
A52.3622-07
0.75x, W.D. 116mm
A52.3622-75
1.5x, W.D. 47mm
A52.3622-15
2.0x, W.D. 26mm
A52.3622-20

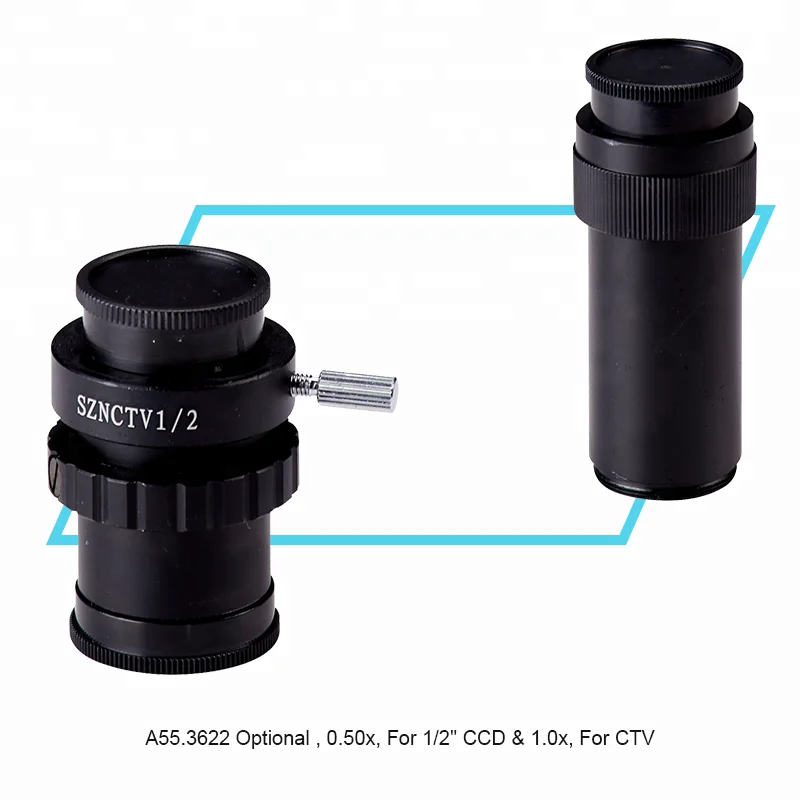

CCD Adapter

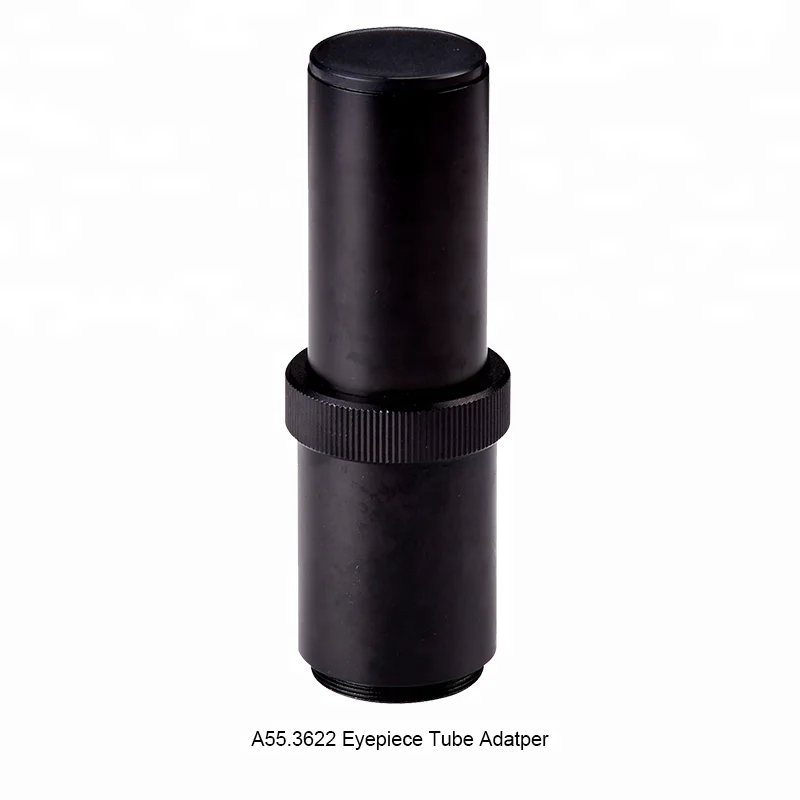

Eyepiece Adapter Focus Adjustable
A55.3623-E
1.0x, Focus Adjustable
A55.3623-10
0.50x, Focus Adjustable, For 1/2"CCD
A55.3623-05
0.35x, Focus Adjustable, For 1/3"CCD
A55.3623-35
