High speed drilling machine which is 5-10 times than twist drilling,helping you make more benefits
Model
QDLHD1040
Unit
Processing Area
Spec
mm
X,Y,Z
4000*1000*500
mm
Spindle nose to table surface
150-650
mm
Worktable
4000
mm
T slot size
5-22-200
mm
Max bearing load
5000
kg
Main shaft
Speed
50-2500
r/min
Taper hole
BT50
Motor power
11
kw
Diameter
Φ155
mm
Feeding
X/Y fast moving
0-9
m/min
Z fast moving
0-6
m/min
Feeding rate
10-5000
mm/min
Guide rail
Type
Three guide rail
Positioning accuracy
0.05/300
mm
Repositioning resolution
0.03/300
mm
Tools
(Standard/option)
Amount
Straight line-6 tools
Max diameter
Φ125
mm
Max length
300
mm
Max weight
10
kg
Spec
Net weight
12000
kg
Dimensions
5500*2000*3000
mm
Others
Cutting machine motor power
400
w
Motor torque
15
Nm
Cooling pump power
0.4-2.2
kw
Total power
About 25
kw

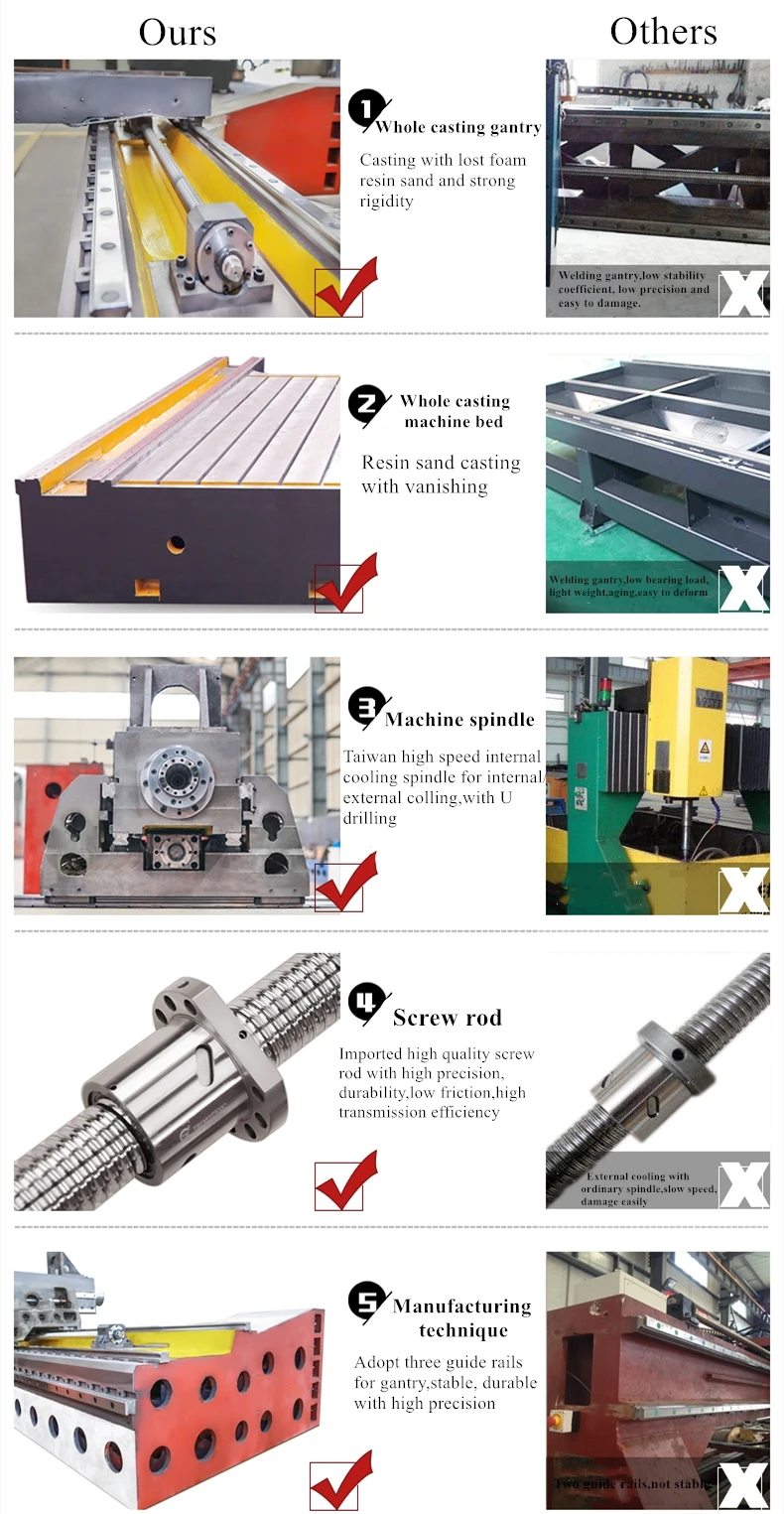

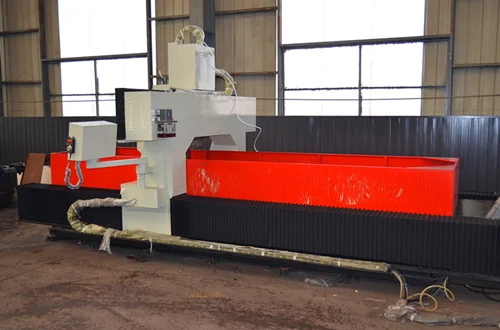

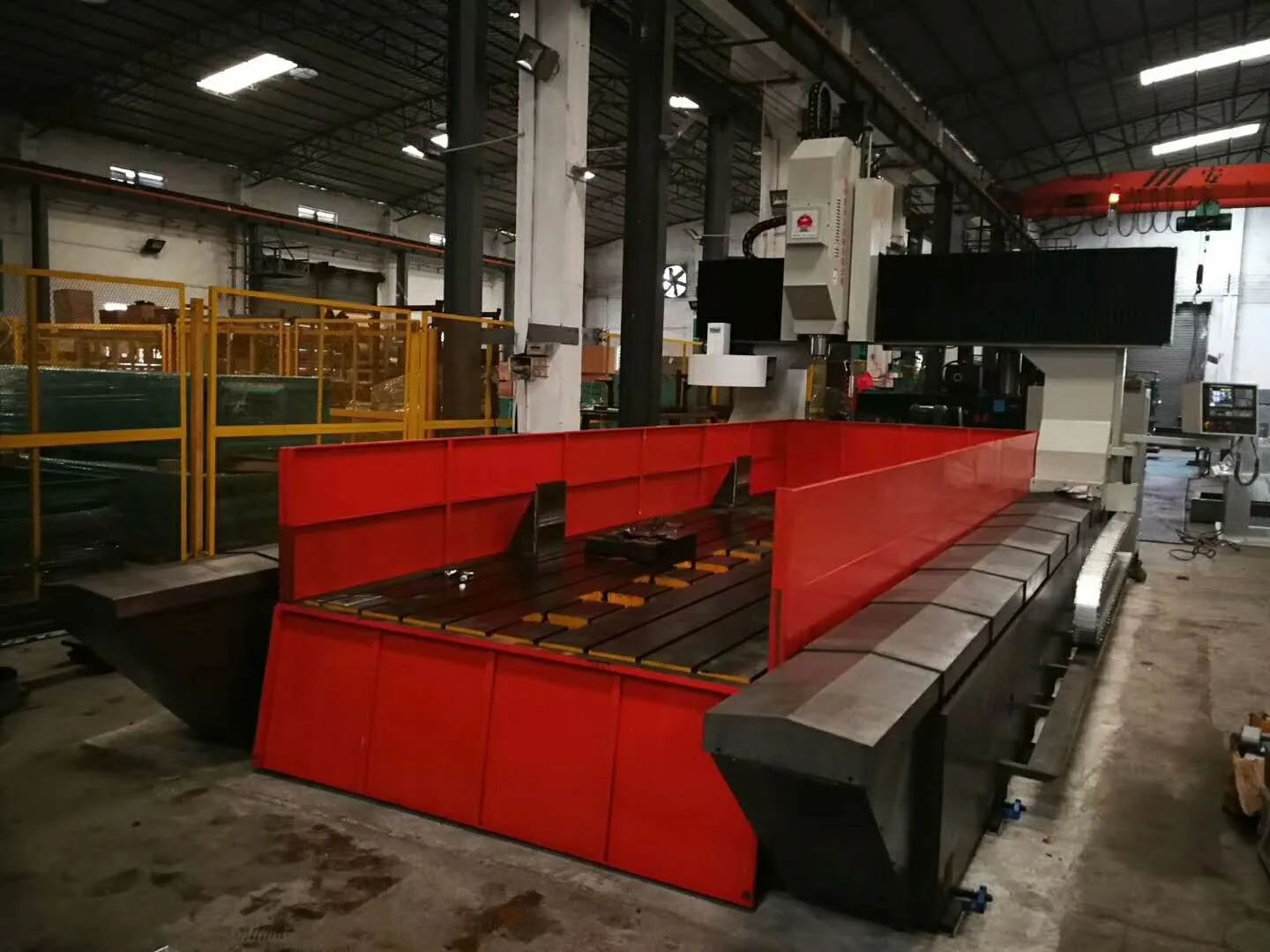

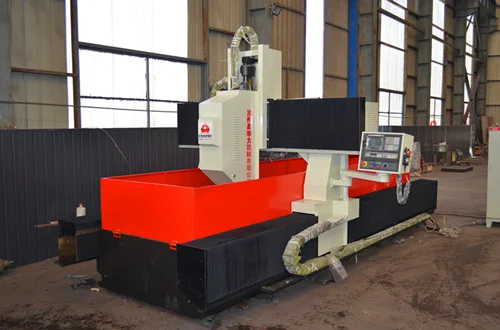

Detail pictures about High Speed Metal CNC Drilling Deep Hole Machine :
Packaging & Shipping
Company Information
Botou Huazheng Machinery Equipment Co., Ltd.located in Botou City, which is called" the land of casting". Founded in 2004, as one of the key machinery industry in the in Botou, has always been dedicated in the development and manufacturing of cast iron surface plate.
Over 300 employees, 5000 tons' iron yearly capacity, 30-50 billion' s annual output value, advanced management philosophy, abundant technical resources and complete testing methods, these are factors that make us into your strong backup. Manufacturing based on national and export industry standards. Equipped with perfect quality assurance system, certificated with ISO9001: 2015 by Beijing Zhong Jiao Hang Yuan quality authentication center (CQC). Aiming at creating Chinese Honest Brand, building win-win cooperation and seeking development for both. Our purpose always is to put clients first, honoring the contacts and building healthy commercial relationships.
Let Chinese high-quality products go to the world.
A good product not only saving money but also making more benefits for you.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
Medium-sales service
* OEM/ODM
* Sample manufacturing.
* Design machine and accessories according to customer's need.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Please feel free to contact me by the right side inquiry box.
Free plan provided.
FAQ
1. The length of X/Y/Z?

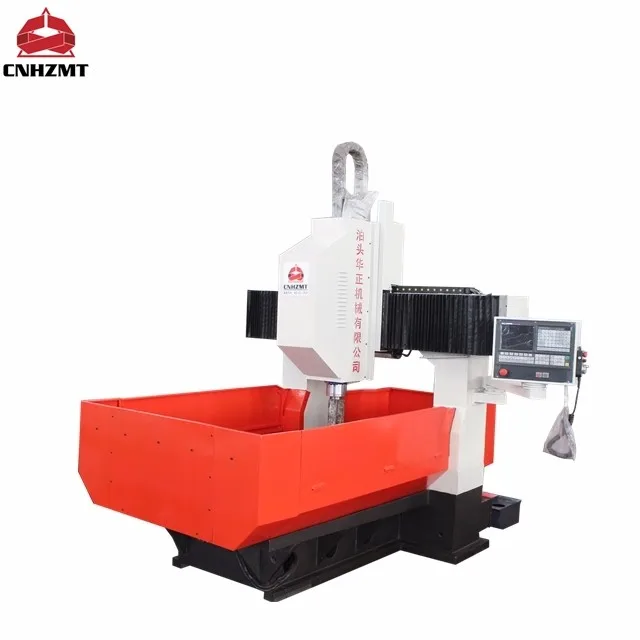

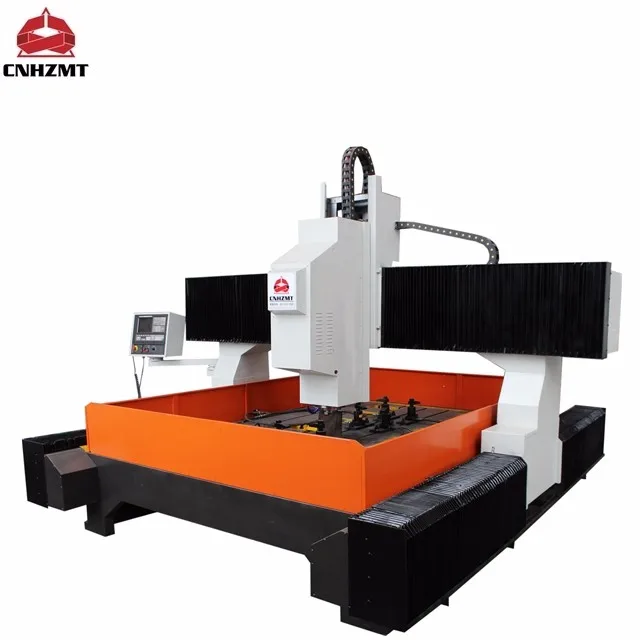

Our standard type is 1010, 1610, 1020, 1620, 2020, 2030, 2040,2525,3030,4040;and above 1620,there's heavy duty ones;Customized are welcome;10,20 reprsent as 1000mm,2000mm;
Z length:500mm\600mm,Customized are welcome;
2.What about the drilling diameter?Which are the usually used ones ?And the max diameter?
Standard as BT40 inner cooling shaft,7.5KW low speed high torque main motor power,with U drilling no more than φ30mm;heavy duty as BT50 inner cooling shaft,
11/18.5/22KW low speed high torque main motor power,U drilling maxφ50mm;Customized are welcome for big ones;
3.Materials that drilled?
Q235\345,stainless stell,45#steel,cast iron,aluminium copper alloy,Nickel-chromium high hardness alloy,Forgings etc.

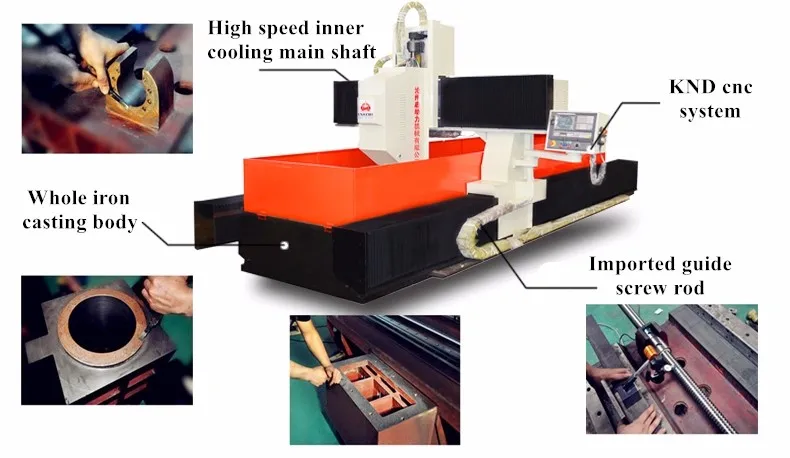

Our drilling machine with whole casting machine body,high precision manual scraping technology,servo motor,Taiwan screw rod and guide,KND cnc system,stable working.
