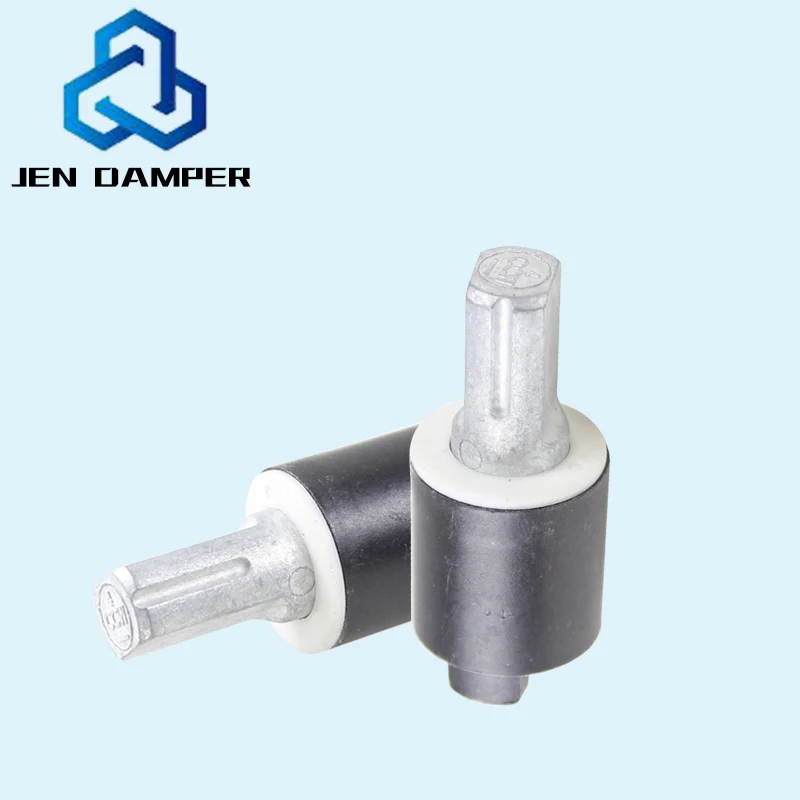

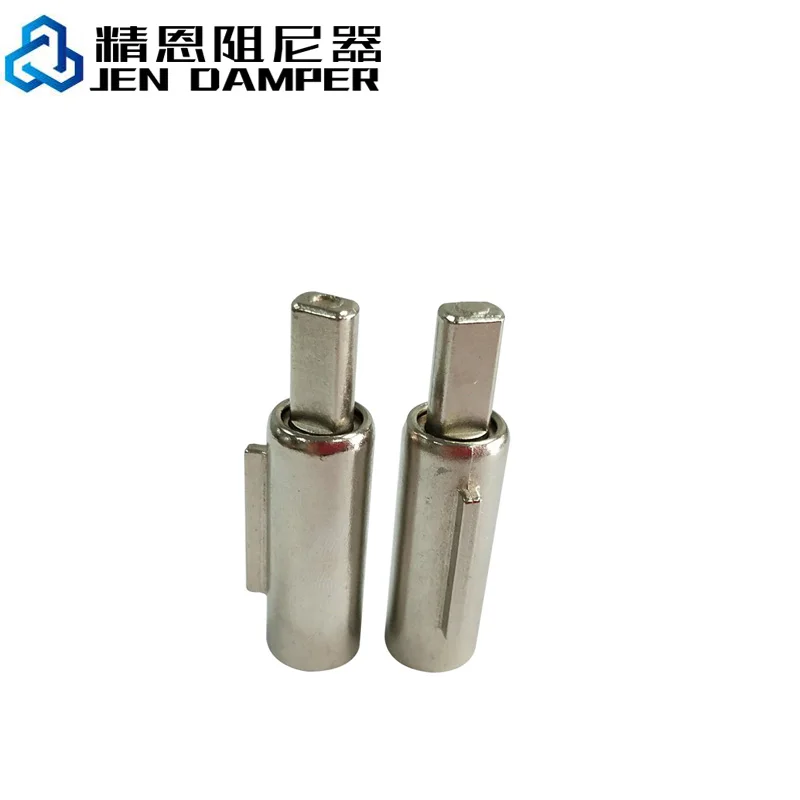

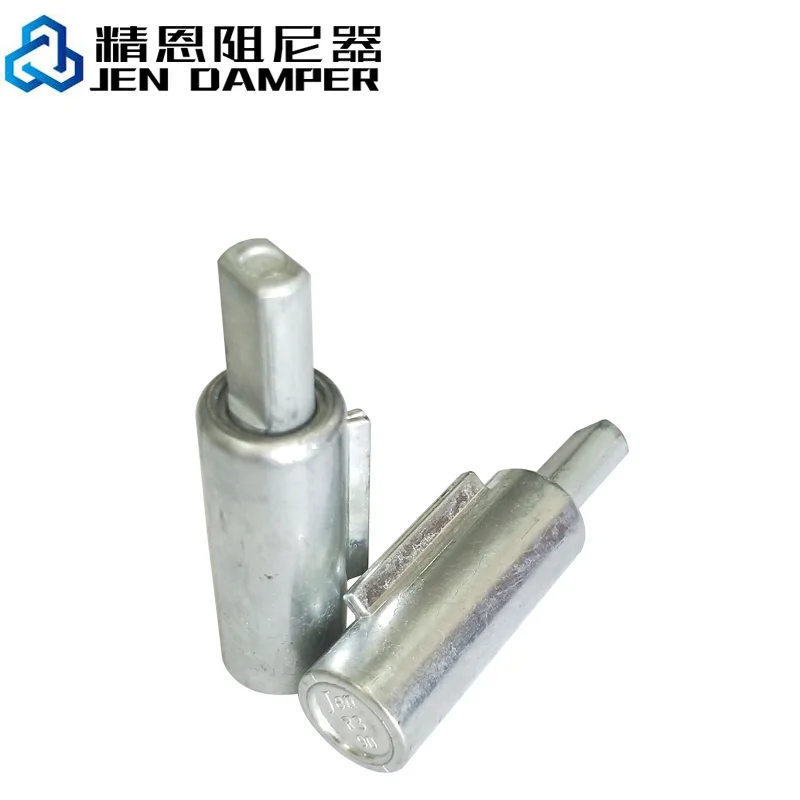

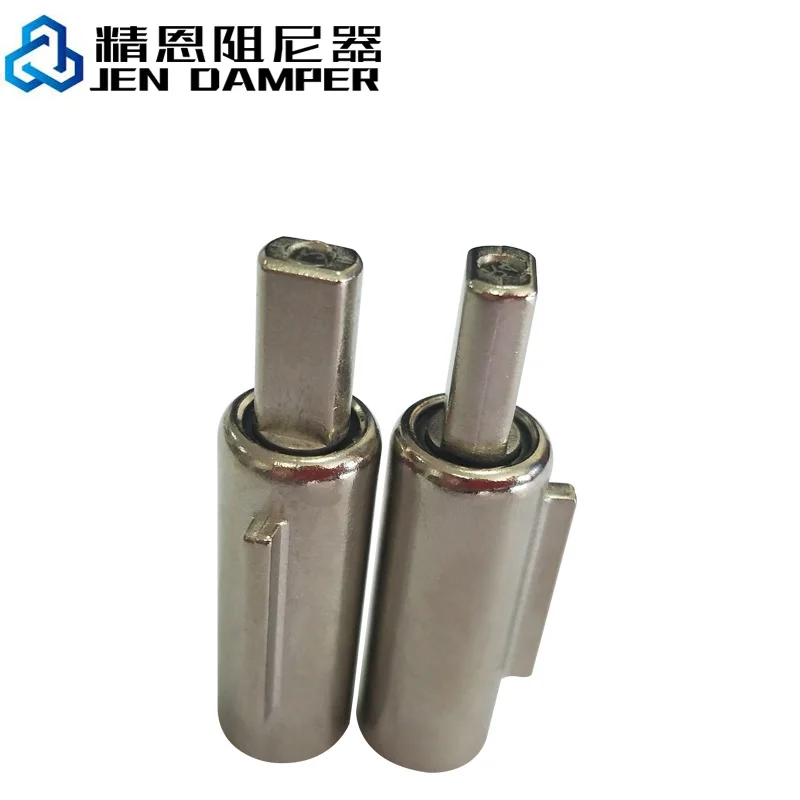

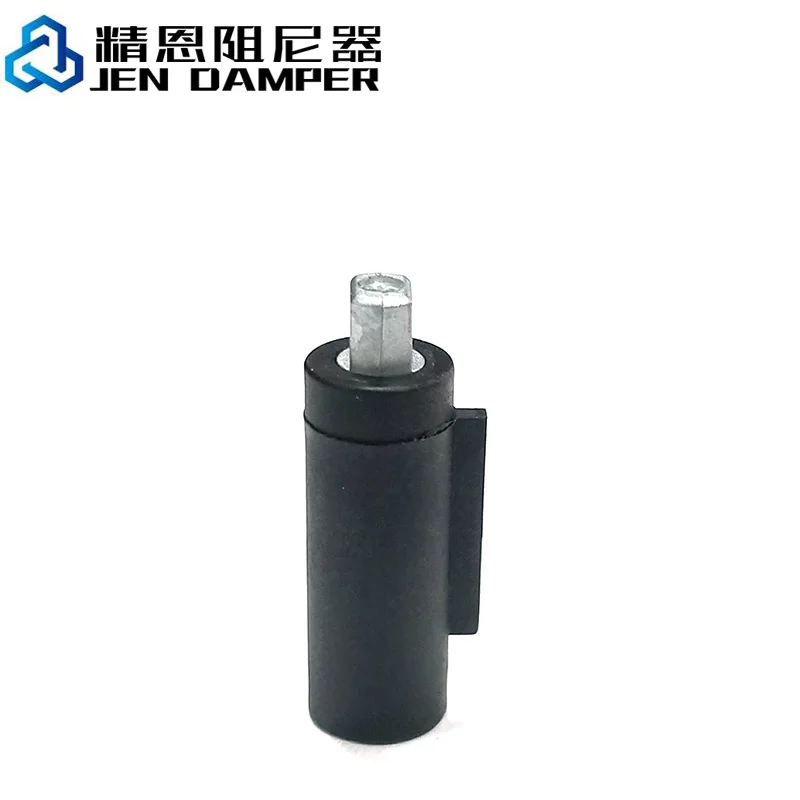

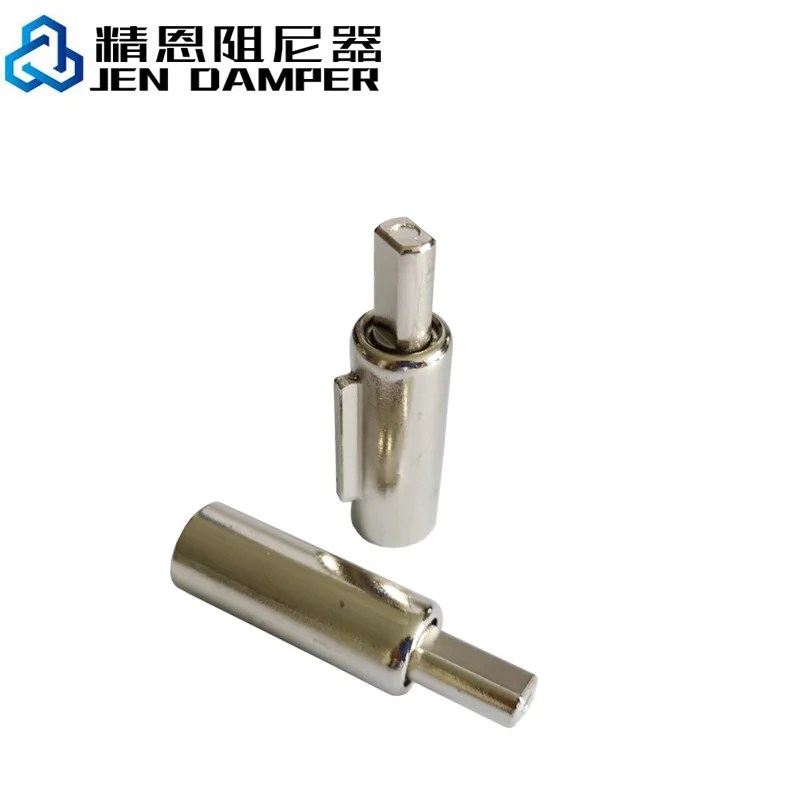

Wholesale Dimethyl Silicon Oil Rotary Damper for Home Appliances

Share on (60802196297):


Price:$0.82 - $0.95

Quantity:


Product Overview

Description


Why choose us

Why choose Wholesale Customized Rotary Damper for medical instruments ?

* World class Rotary Damper for medical instruments, Professional R & D team

* ODM & OEM factory, small MOQ with 10pcs

* Exelent quality with free sample and cost saving price

* Most reasonable price, quick delivery within 7 days

* Best after sales service, reply within 8h

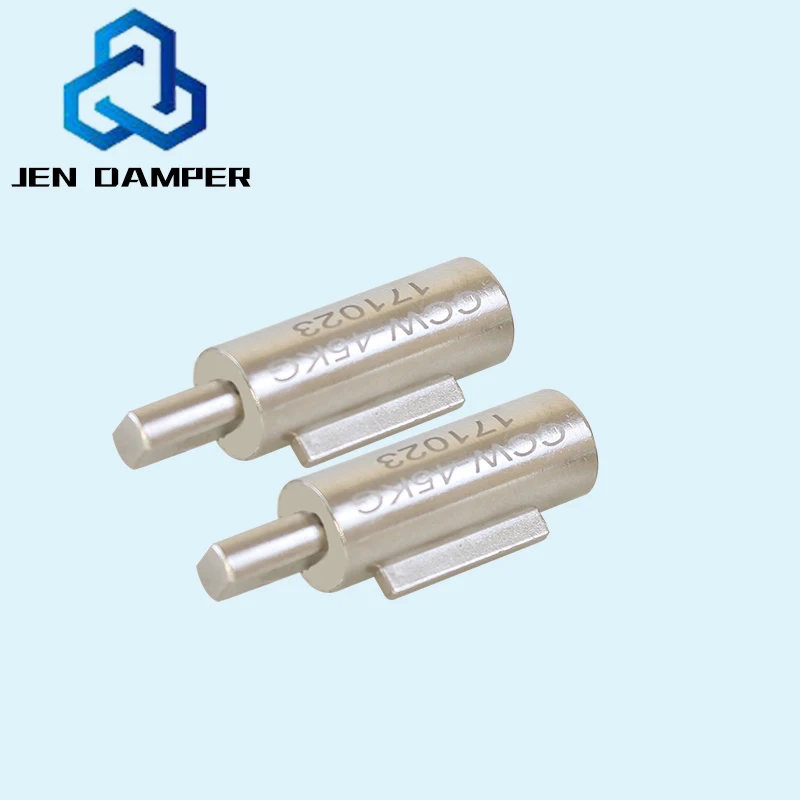

Product Information
\t
    Item no.
\t
Action Stroke
\t
    Torque
\t
 Use temperature
\t
   Material
\t
     Use Oil
\t

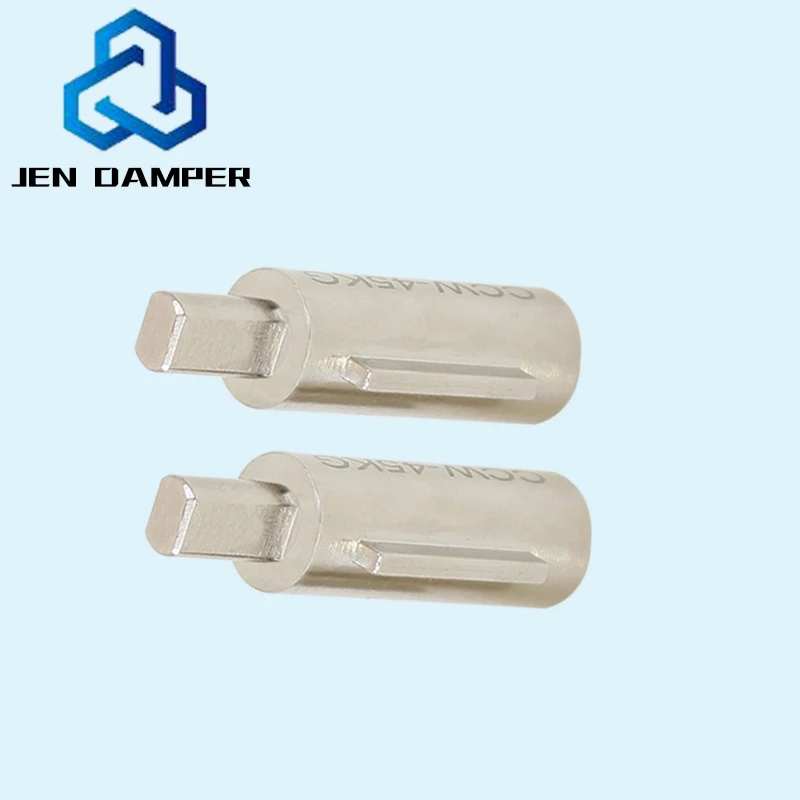

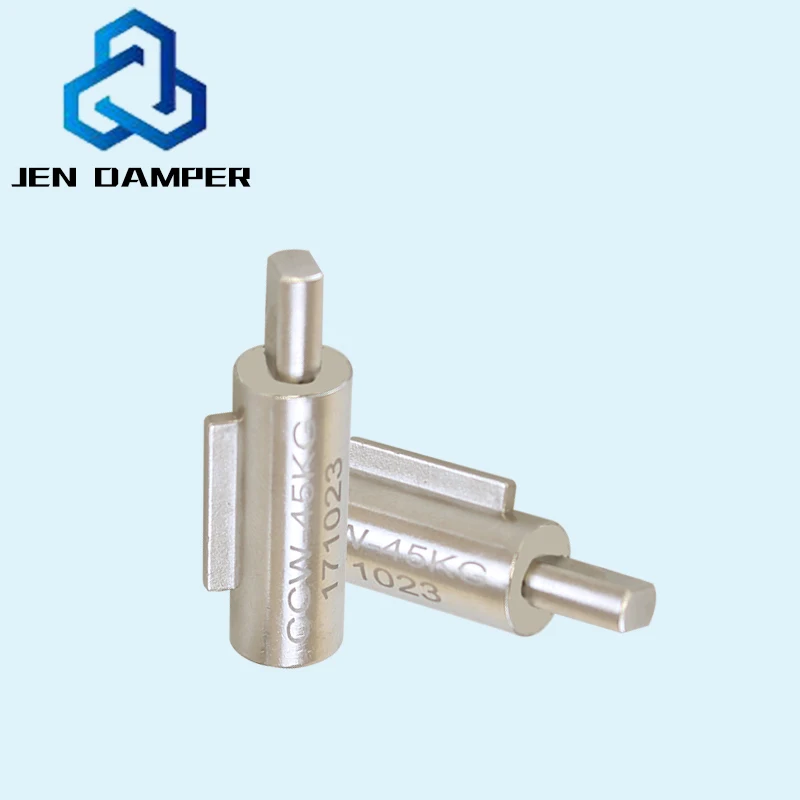

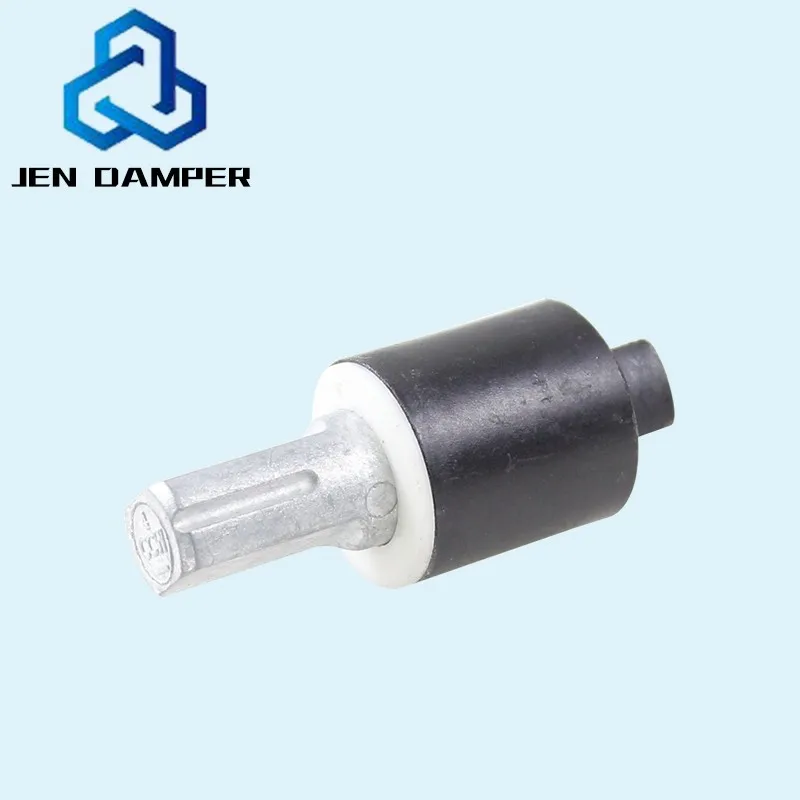

    Jen-1012D
\t
        25mm
\t
  5-45kgf.cm
\t
            -20-70℃
\t
PA66    &           Zinc alloy
\t
       Silicon oil

Product rotation direction:
Counter clockwise rotation, the product is labeled as "L"

Clockwise rotation, the product is labeled as "R"

Speed characteristics:
Torque and speed is proportional to the speed increase or decreases, static torque is different from standard value at startup


Temperature characteristics:
The torque decreases when the ambient temperature increases,the ambient temperature decrease when torque increase

Product characteristics:
1, The toilet seat damper hinge torque annotation at a temperature of 23℃, the relative humidity is 80% under the condition of high precision servo drive motor rotation speed as driving energy is 20r/min, with the greatest precision torque tester lid angle rotation (5 cycles) as the basis of torque test.

2, As the physical and chemical properties of the damper are very stable (international standard determination basis), the slope of the viscosity temperature characteristic curve is only 1/5 of other mineral oils, and different torque requirements can adjust the viscosity of silicone oil to customize.

3. According to the particularity of the medium, material and structure of the damper, the temperature range is: -20℃-70℃.

Performance:
The products are imported into Japanese technology and equipment. They are divided into unidirectional dampers (counterclockwise or clockwise) and bidirectional dampers (all two directions have resistance). This product is a one-way damper. Using the principle of fluid resistance to reduce vibration, it can be used in different gear and torque equipment. The torque will change according to the change of rotation speed, and it will change according to the change of environment temperature. The shape can be directly installed according to the customer's usage and bilateral installation or various kinds of buckle forms.

Application

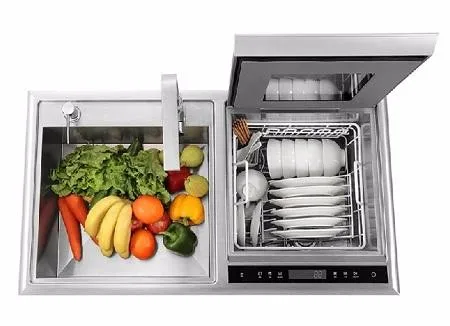

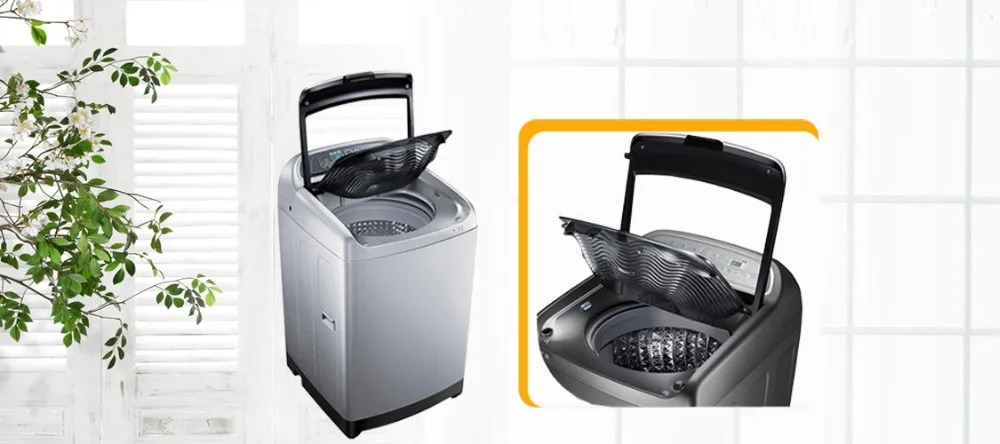

Jen rotary dampers are widely used in household appliances for soft close down silently, to work stably under -20℃ to +70℃, widely used in all kinds of kitchen appliances, such as dishwashers, steam engines, such as intelligent sanitary toilet, toilet cover, household appliances such as washing machine, pressure cooker, electric cooker, kettle, and various types of box box, sliding clamshell, telescopic products, shockproof effect and slow down the door opening and closing speed of the smooth, smooth, can effectively reduce the products used in the process of noise, improve the product quality and the delay of the service life of products, to create the maximum economic benefits.

Rotary Damper for medical instruments are also used in other office appliances with cover like printer, meeting desk and chairs, outlet, computers and so on.

Certifications

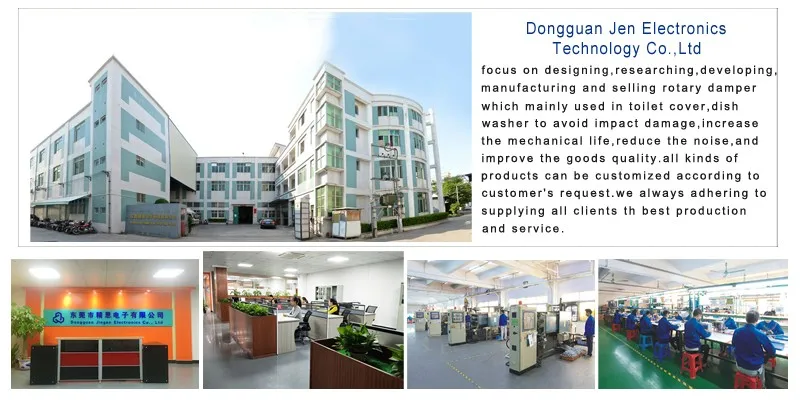

Our Company

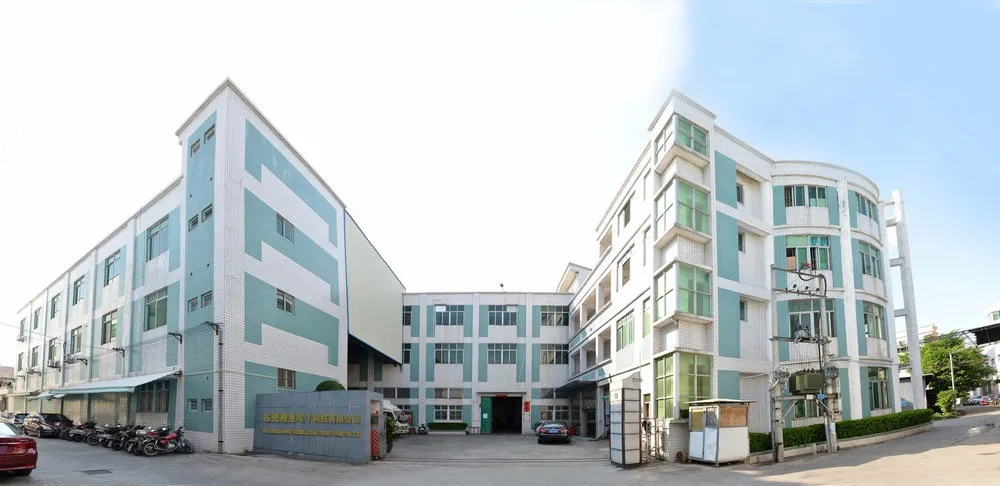

Factory

Office team

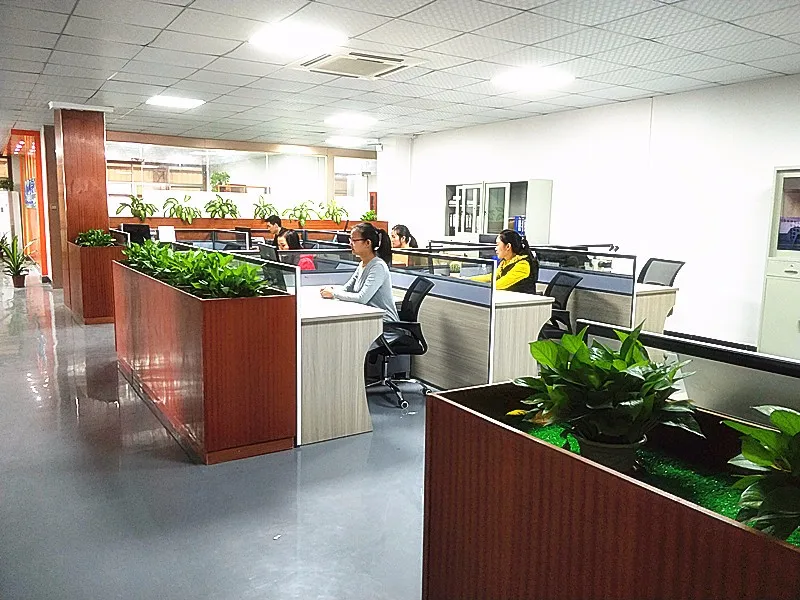

Office

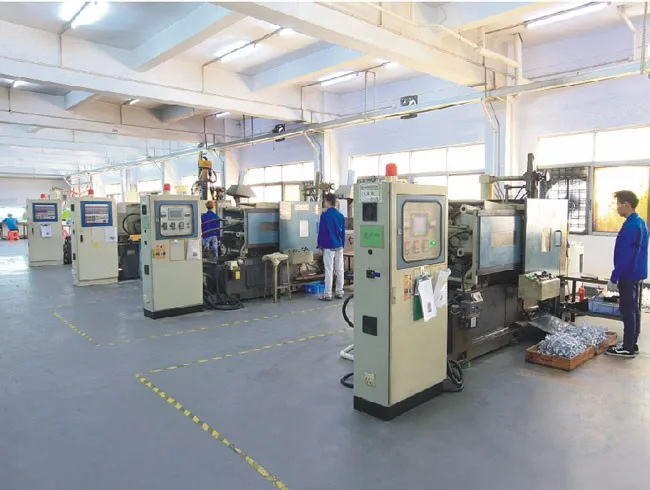

Die casting workshop

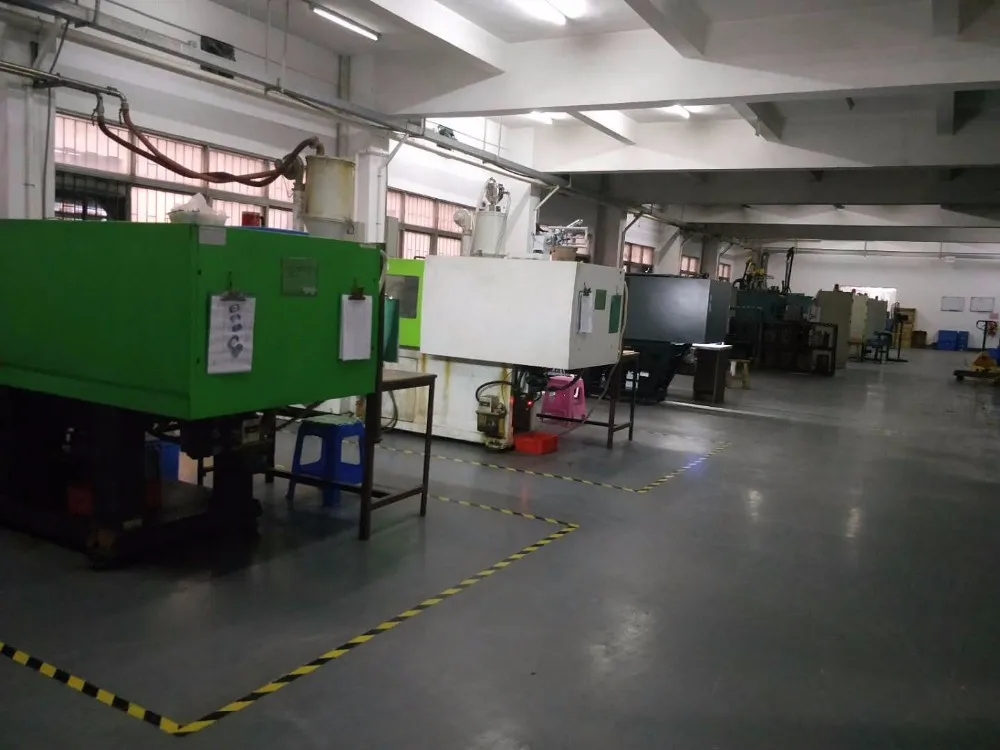

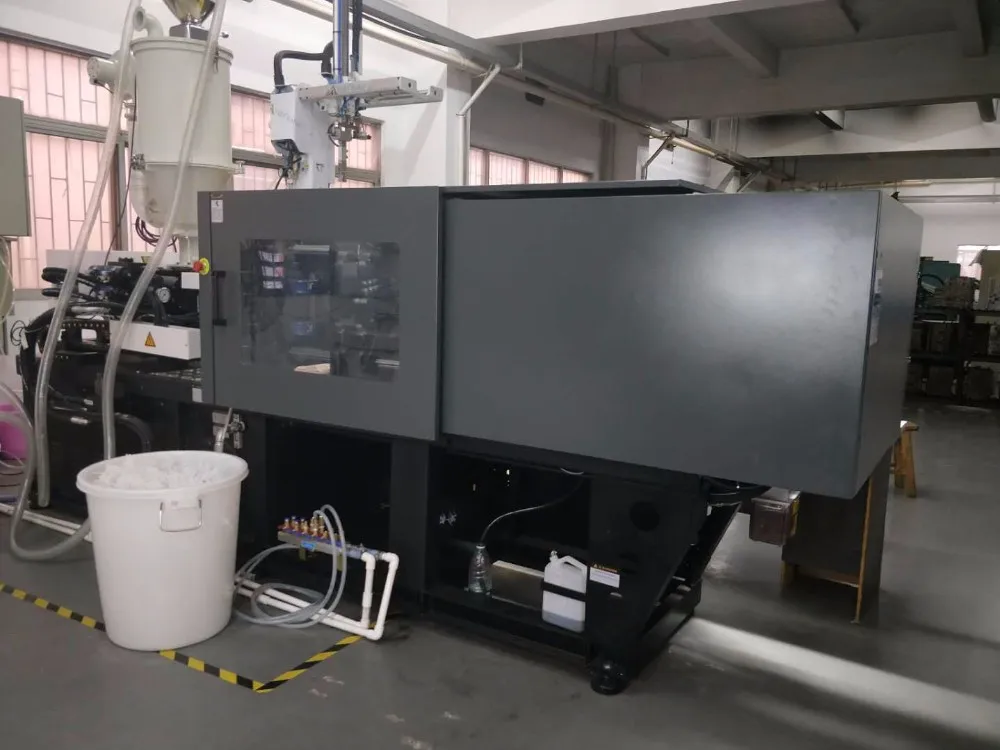

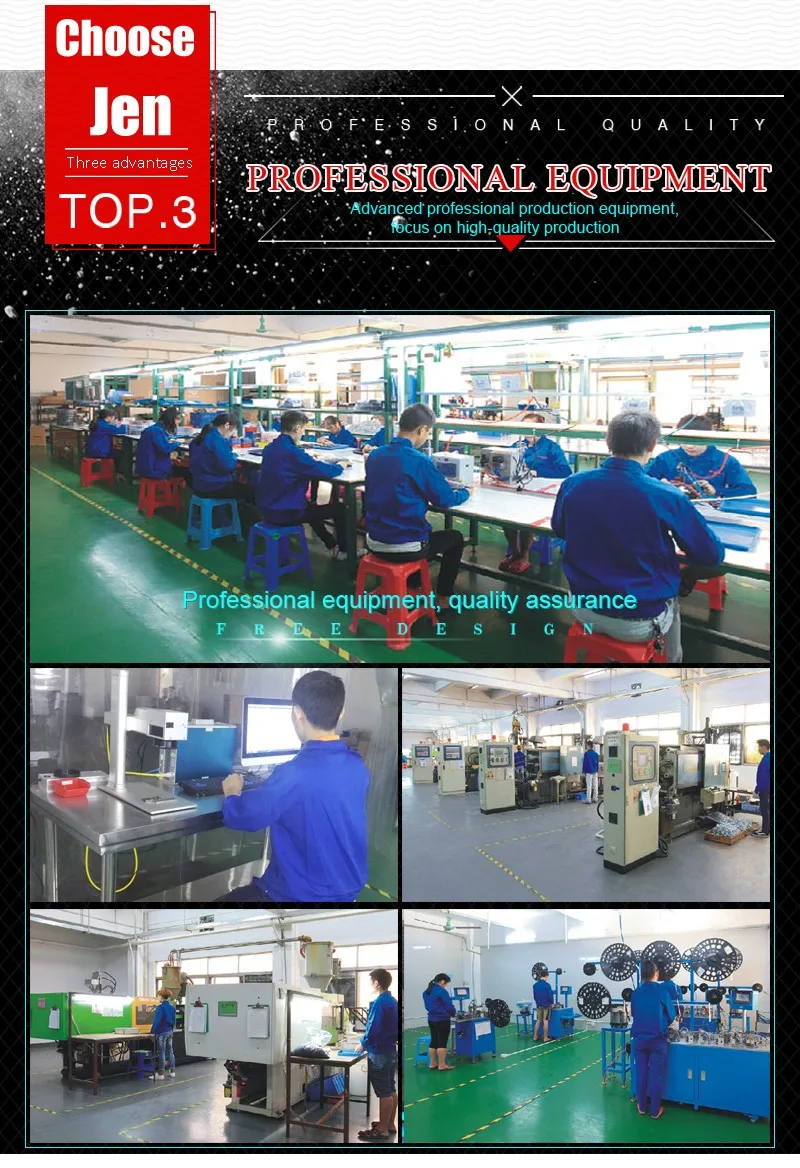

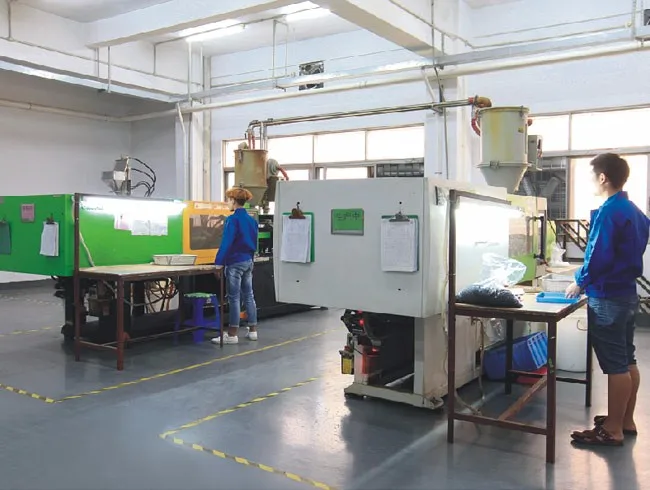

Injection workshop

Injection workshop

All injection machine with automatic robot

Packing & Delivery
FAQ

Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all damper is made by ourselves and we can provide customize service according to your requirement.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q:What about your warranty?
A:Our warranty is 1 year, all damper parts can be replaced for free within 1year if broken(not including man made).

Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.

Q: Is there any installation direction after we received the dampers?
A: Yes, we have a professional technical team and warm after service. We will solve any problem you meet during the installation and packing production in time.

Q: Is there any ensurance to guarantee my order from your company?
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.

The rotary damper buffer will have one year warranty. During the warranty year if any of the parts broken not by man-made. We will free charge to replace the new one to you . The warranty will begin after the dampers send out we received the B/L .
