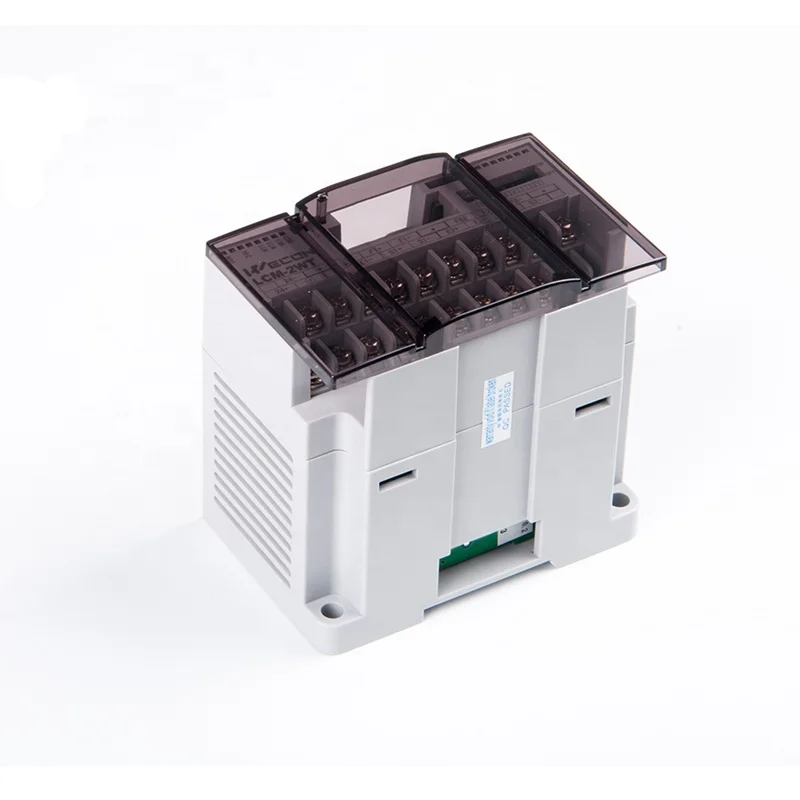

WECON LX3V 8EX 8 Transistor Input Expansion PLC Module
- Category: >>>
- Supplier: Fuzhou Fuchang WECON Technology Co. Ltd.
Share on (60802200519):
Product Overview
Description
Wecon LX3V-8EX PLC Expansion modules
SPECCIFICATIONS
Item | Relay output | Transistor output | |
Mode | LX3V-16EYT | ||
Output circuit |
| ||
Power supply | DC5V ~ 30V | ||
Circuit insulation | Photo-coupling | ||
LED | LED on when Photo-coupling is driven | ||
Load | Resistance | 0.5A/ one point | |
inductance | 0.8A/ two point | ||
Lamp | 1.6A/ eight point | ||
Leakage current | 0.1mA/DC30V | ||
Minimum load | ----- | ||
OFF->ON | Less than 0.2ms | ||
ON->OFF | |||
PROGRAMMING SOFTWARE
Wecon PLC Editor- Programmable Logic Controller (PLC) Programming Software
It has been designed as a programming tool for the Wecon LX series PLC. And it is totally free for all its user.
PLC EXPANSION
BD Board | Description | |||
LX3V-2AD2DA-BD | 2 channels analog input (4~20mA),2 channels analog output(4~20mA) | |||
LX3V-2ADV2DAV-BD | 2 channels analog input (-10~10V),2 channels analog output(-10~10V) | |||
LX3V-2TC2DA-BD | 2 channels thermal resistance input,2 channels analog output(4~20mA) | |||
LX3V-2PT2DA-BD | 2 channels thermocouple input, 2 channels analog output(4~20mA) | |||
LX3V-4ADI-BD | 4 channels analog input (4~20mA) | |||
LX3V-4ADV-BD | 4 channels analog input (-10~10V) | |||
LX3V-2RS485-BD | Extended COM port (RS485) | |||
l Wecon LX3V PLC Modules | ||||
Module | Description | Module | Description | |
LX3V-16EX | 16 input terminals (X) | LX3V-4AD | 4 channels analog input | |
LX3V-16EYR | 16 relay output terminals(Y) | LX3V-4DA | 4 channels analog output | |
LX3V-16EYT | 16 transistor output terminals(Y) | LX3V-4PT | 4 channels thermocouple input | |
LX3V-1WT | 1 channel weighing signal input | LX3V-4TC | 4 channels thermal resistance input | |
LX3V-2WT | 2 channels weighing signal input | LX3V-4LTC | 4 channels thermal resistance input (PID) | |
