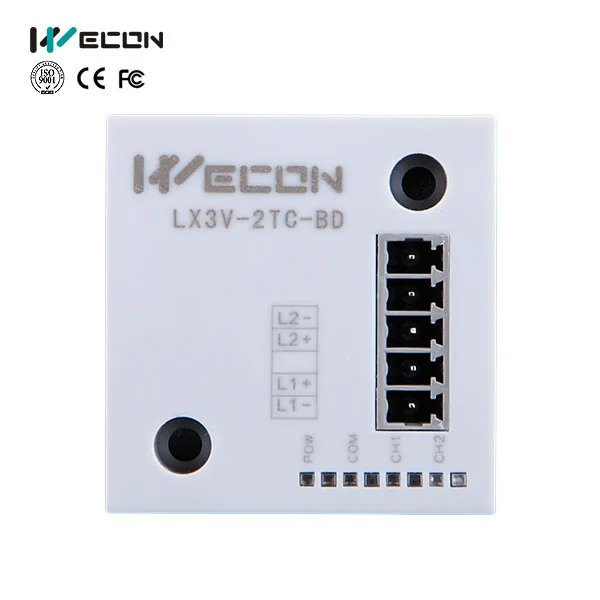

WECON LX3V 2TC BD 2 channels thermal resistance input

Item

Explanation

Analog circuitry

DC 24V ±10%, 70mA

Digital circuitry

DC 5V, 90mA (From the PLC internal power supply)

Temperature

Read data by buffers

Analog input signal

Thermocouple: K or J type (2 channels)

Range of rated temperature

K

-100℃ - 1200℃

J

-100℃ - 600℃

Digital output

K

-1000 - 12000

J

-1000 - 6000

12 bits total

Accuracy

K

0.4℃

J

0.3℃

Overall accuracy

±0.5%

Conversion rate

50ms*2

Conversion characteristics

BD Board

Description

LX3V-2AD2DA-BD

2 channels analog input (4~20mA),2 channels analog output(4~20mA)

LX3V-2ADV2DAV-BD

2 channels analog input (-10~10V),2 channels analog output(-10~10V)

LX3V-2TC2DA-BD

2 channels thermal resistance input,2 channels analog output(4~20mA)

LX3V-2PT2DA-BD

2 channels thermocouple input, 2 channels analog output(4~20mA)

LX3V-4ADI-BD

4 channels analog input (4~20mA)

LX3V-4ADV-BD

4 channels analog input (-10~10V)

LX3V-2RS485-BD

Extended COM port (RS485)

l Wecon LX3V PLC Modules

Module

Description

Module

Description

LX3V-16EX

16 input terminals (X)

LX3V-4AD

4 channels analog input

LX3V-16EYR

16 relay output terminals(Y)

LX3V-4DA

4 channels analog output

LX3V-16EYT

16 transistor output terminals(Y)

LX3V-4PT

4 channels thermocouple input

LX3V-1WT

1 channel weighing signal input

LX3V-4TC

4 channels thermal resistance input

LX3V-2WT

2 channels weighing signal input

LX3V-4LTC

4 channels thermal resistance input (PID)
