Product Overview

Description

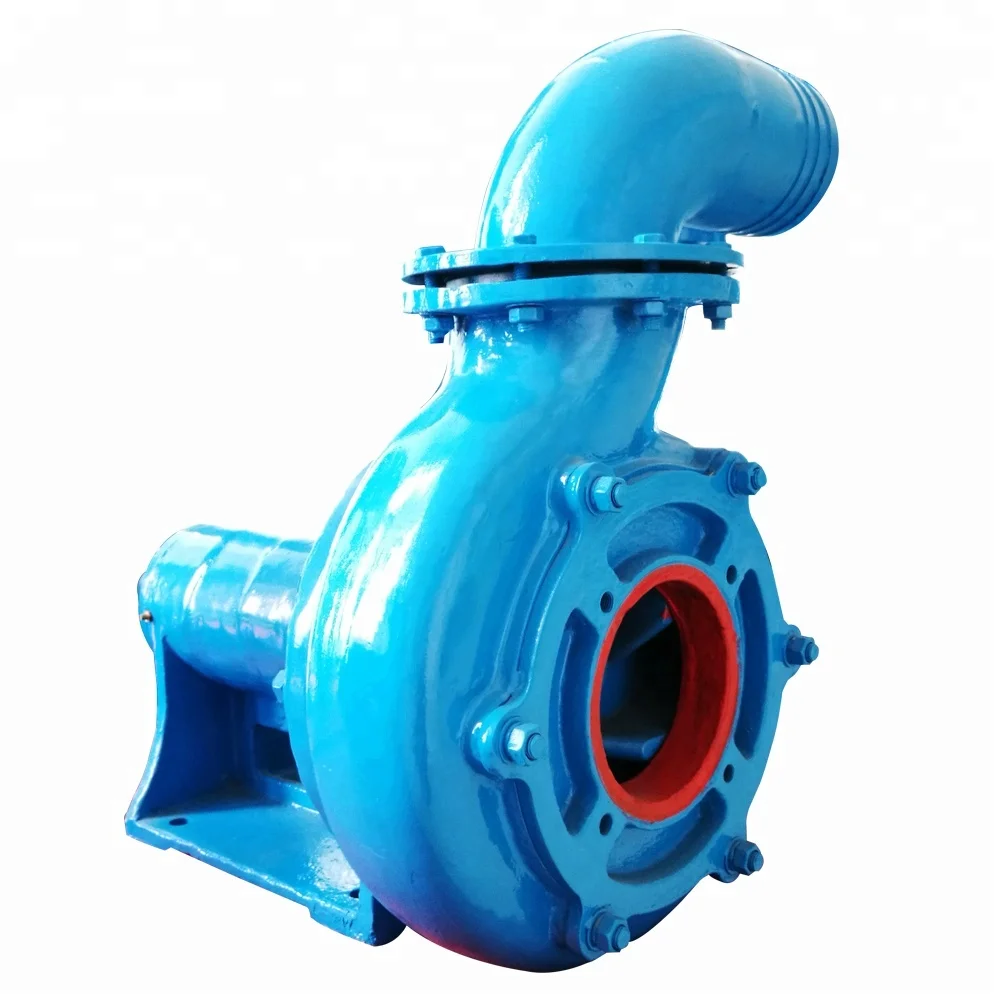

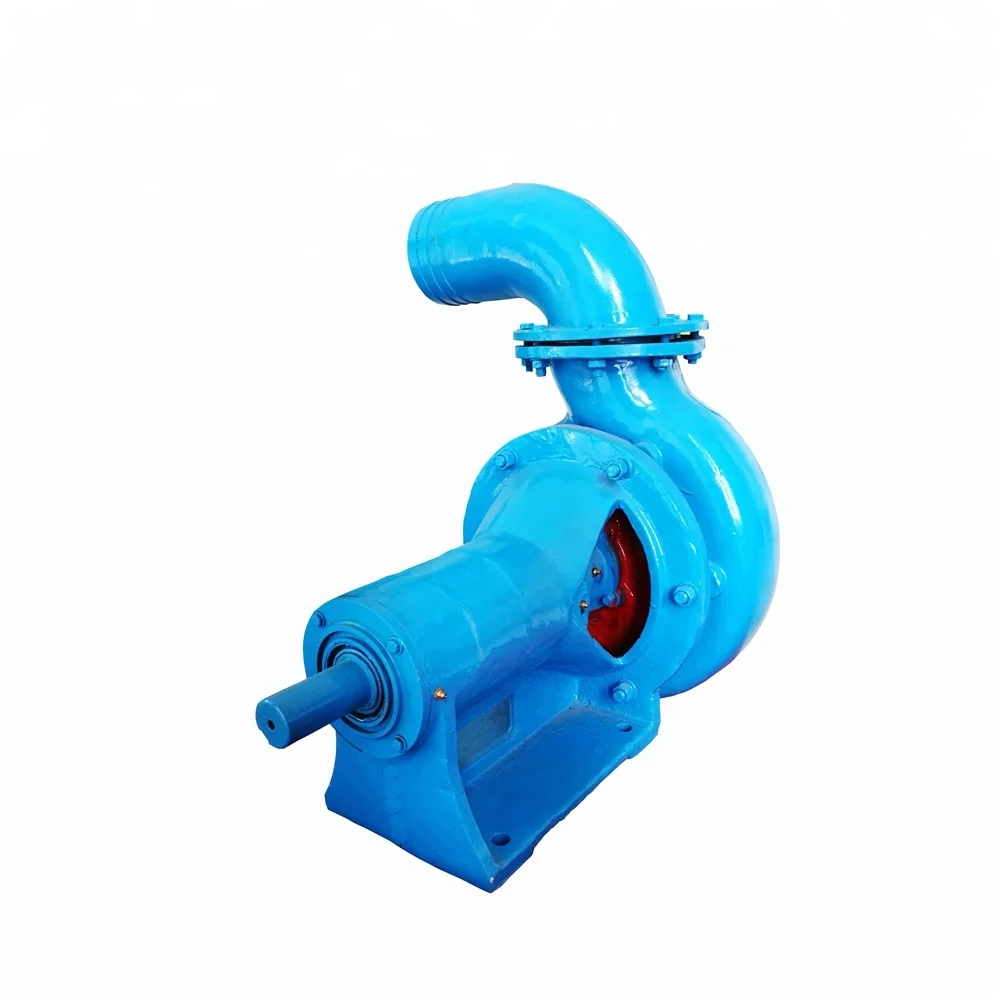

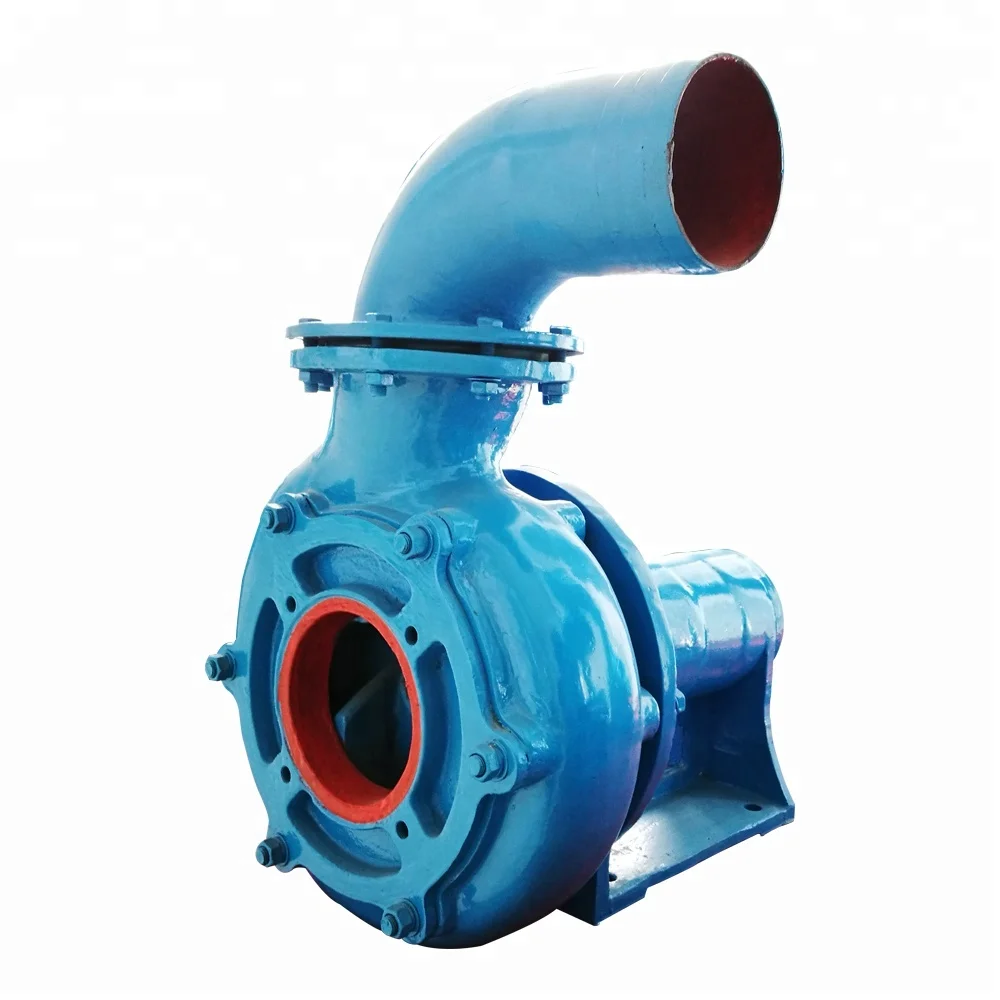

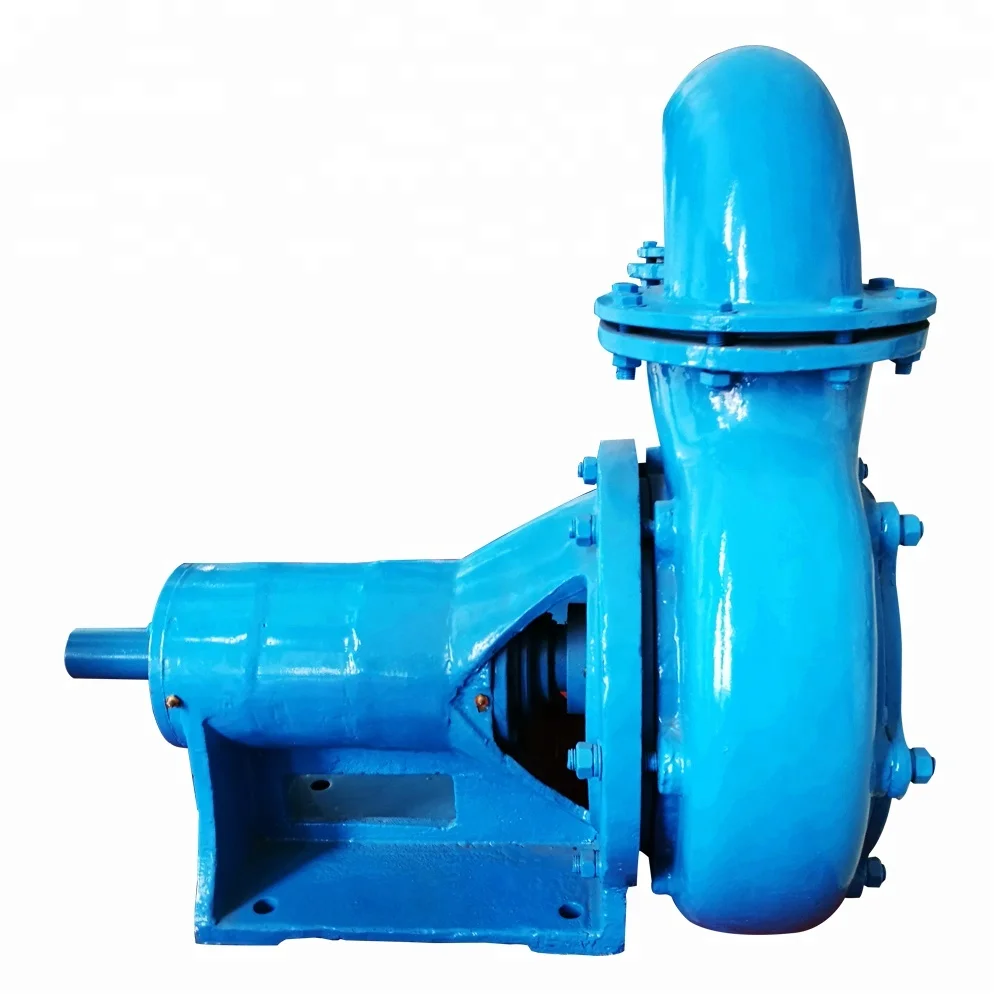

heavy duty hot sale low cost dredger cr27 mud sand pump

6PN-30 horizontal mud sand pump:patent product,abrasion resistant meterial and

advanced structure design,widely used in desilting,sand pumping,slurry discharge,etc,

main parts function are as following:

1. Support frame:main part for supporting flow parts,connect with bearing plates

on the two sides to form bearing assembly.

2. Pump casing:connect with support frame by 6 bolts,can rotate in 60°gap according

to needs,impeller,protecting plate,pump cover installed inside,material is abrasion

resistant,the impeller,pump casing and pump cover of this pump are same as

6PNL-30 vertical mud sand pump.

3. Split type pump casing with long pump cover(flat pump cover and long pump

cover).one body pump casing is available also.

4. Shaft seal box:installed outside of protecting plate,seal assembly installed in it,

it joints shaft sleeve,lubricating it with grease through grease fitting to prolong lifetime.

5. Shaft sleeve:installed at the back of impeller,can compress tightly by impeller rotation.

6. Water retaining plate:installed in front of the front bearing gland,compressed with a

screw so that it can rotate with pump shaft in same speed and direction,and form

labyrinth seal with front bearing gland to prevent the liquid spilling from shaft sleeve

          from damaging bearing.

7. Support frame oil injection hole:one oil fitting on each side of support frame for

lubricating the bearing.

8. Pump rotation direction is clockwise judge from motor side,counter clockwise is

prohibited.

      Mud pump is also called engine mud pump,river mud pump,diesel mud pump,electric mud pump,sludge mud pump,mud suction pump,mud liquid pump,motor mud pump,mud water pump,centrifugal mud pump,trash mud pump,mud sump pump,mud transfer pump,portable

mud pump,mechanical seal mud pump,mud sand pump,cr26 mud pump,cast iron mud pump,mud feed pump,mud bilge pump,mud gravel pump,mini mud pump,dredge mud pump,mining mud pump,maritime mud pump,mud sludge pump,iron mud pump,metal mud pump,electricity mud pump,engine sludge pump,sludge suction pump,sludge liquid pump,

sludge water pump,centrifugal sludge pump,trash sludge pump,portable sludge pump,sludge

feed pump,sewage sludge pump,mining sludge pump,sludge transfer pump,etc

Established in 1976,Yuzhou Shenlong Pump Co.,ltd is a manufacturer and trader specialied

in design and production of sand gravel pumps,,mine slurry pumps,mud pumps,sewage pumps,hydroseeder pumps,sand dredgers and sand separators,sand washing machine,hydrocyclone,sand conveyor,etc,      from raw material to product,the whole production process are made by our factory.We stick to science     and technologe oriented,innovation as our subject,user centered and demand targeted,marcket demand is

always our research subject.For 40 years,we insist on “living by quality,development by credit”,and changed the three-packs of after-sale service to lifetime warranty.

     Our researcher successfully designed and developed new high

anti-abrasive slurry pump,gravel pump and sand pump in 2006.Our advanced skill and equipments make the lifetime of flow parts increase 4-5 times,at present,the flow part

lifetime of sand gravle pump can be up to 1.5 million cubic meters(calculated as per sand quantity),which effectively improve the economic and social benefits.

1.processing with supplied drawing

2.processing with supplied samples

3.produce all kinds of anti abrasive spare parts except for pump

4.product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to repalce.

We also provide customized service,please provide following information for our reference:

1. flow m3/h

2. head:m

3. material

4.drawing

5. weight
