Product Overview

Description

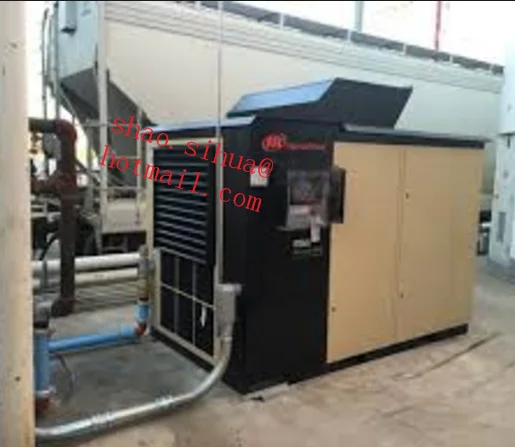

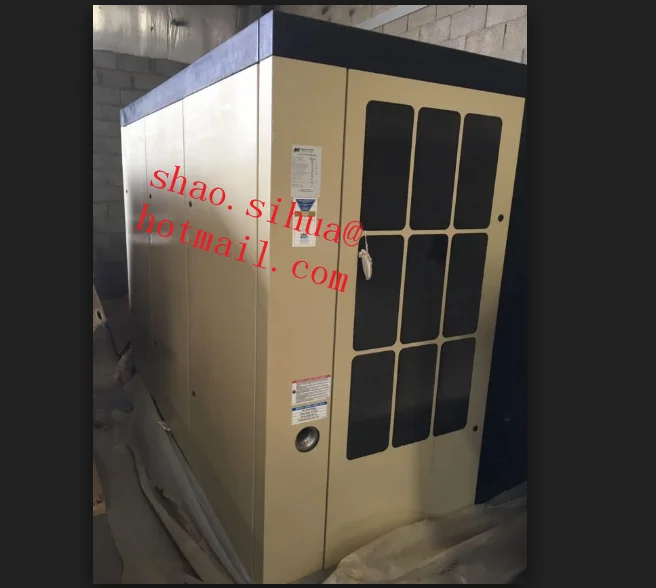

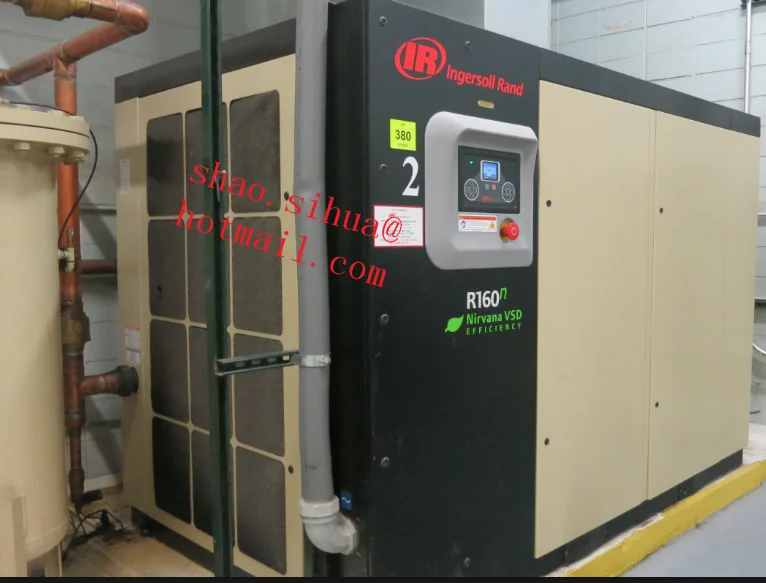

R-Series 90-160kW



We can help take your productivity further

Since 1872, when we introduced our first air compressor,we at Ingersoll Rand have inspired progress by driving innovation
with technology that improves the way the world works. We’re the technology leader in compressed air not only because we develop class-leading products, but also because we stand behind our customers in everything we do.
A compressed air system is a considerable investment. So, you want to be confident that the particular system you’re choosing is a smart investment. You want the peace of mind that comes from knowing the equipment won’t need to be replaced prematurely. With Ingersoll Rand, you buy once, not twice. We’ll ensure you have the right sized equipment, delivering the appropriate air quality to meet your demands.







Progressive Adaptive Control™ (PAC™) Protection
Continuously monitors key operating parameters and adapts to prevent unexpected downtime.
*Increases uptime by scanning and adjusting operating parameters in response to changes in filter condition
*Ensures peak performance with real-time electronic maintenance indicators
*Optimises energy consumption and reduces noise by adjusting fan speed
*Improves productivity by proactively monitoring and conditioning incoming power
V-Shield™ Technology Leak-free design with stainless steel pipes and long-life metal-flex hoses.
*Repeatable leak-free connections using superior elastomeric seals
*Reduces downstream contamination with stainless steel air piping
*Extends compressor life and reduces noise via vibration isolation system and metal-flex hoses



Xe-Series Controller
Features an intuitive high resolution colour display with web access.
*Remote access and control using web-enabled communications with a standard web browser
*Achieves system optimisation through built-in performance analysis and trending
*Clear and intuitive compressor controls with high intensity LED indicators and large
navigation buttons
*Increases efficiency and stabilizes pressure by sequencing up to 4 Xe-controlled compressors without additional hardware

Sequential Cooling System
Significantly improves efficiency, serviceabilityand noise level.
*Reduces thermal stress and extends life using independently-mounted, free-floating
heat exchangers
*Reduces the energy required to remove harmful condensate in downstream air by
significantly lowering discharge temperatures
*Lowers energy consumption and noise with an energy-efficient centrifugal blower



Total Air System (TAS)
Clean, dry air in a single package that minimises installation costs and space.
*Protects downstream equipment with:
– Integrated refrigerated dryer that provides dew point suppression up to 46°C (115°F ambient temperature and 40% relative humidity
– Standard high efficiency coalescing filter that delivers ISO Class 1-4-2 quality air
*Increases reliability and efficiency with a lower pressure drop than typical dryers and
patented 3-in-1 heat exchanger
*Reduces service time and cost with single-point maintenance and monitoring
*Prevents unplanned shutdowns with PAC™ Protection by adjusting operating parameters in response to changes in filter condition.

FEATURES:

• Efficient Design: Time-proven airends, a sequential cooling system and an option Energy recovery Stystem (ERS) significantly improves efficiency
• Leak-free Design: V-Shield Technology provides a totally integrated, leak-free design featuring PTFE stainless steel braided oil hoses and O-ring face seals
• Remote Intelligent Control: Xe-Series controller delivers increased control functionality through an intuitive user interface and remote access with any common, current web browser
• Reduced Downtime: Progressive Adaptive Control (PAC™) monitors key operating parameters and continuously adapts to prevent unexpected downtime
• Trouble-Free Operation: Features such as two-stage filtration, easy maintenance and extended life Ingersoll Rand premium grade coolant keep your operation running smoothly

 SPECIFICATION

MODEL	CAPACITY		PRESSURE
	m3/min	ft3/min	bar(g)	psi(g)
R90IU-7.5	16.7	590	7.5	109
R90IU-8.5	15.3	540	8.5	123
R90IU-10	14	494	10	145
R110IU-7.5	20	706	7.5	109
R110IU-8.5	19.2	678	8.5	123
R110IU-10	17.5	618	10	145
R132IU-7.5	23.5	830	7.5	109
R132IU-8.5	22.3	788	8.5	123
R132IU-10	21	742	10	145
R160IU-7.5	28.5	1006	7.5	109
R160IU-8.5	26	918	8.5	123
R160IU-10	25	883	10	145
