DGLD2400 DEGUAN станок для нагрева в стиле Monfort
- Category: Textile Finishing Machines >>>
- Supplier: Dezhou Deguan Textile Machinery Co. Ltd.
Share on (60802292314):
Product Overview
Description
Product Description
Product Application

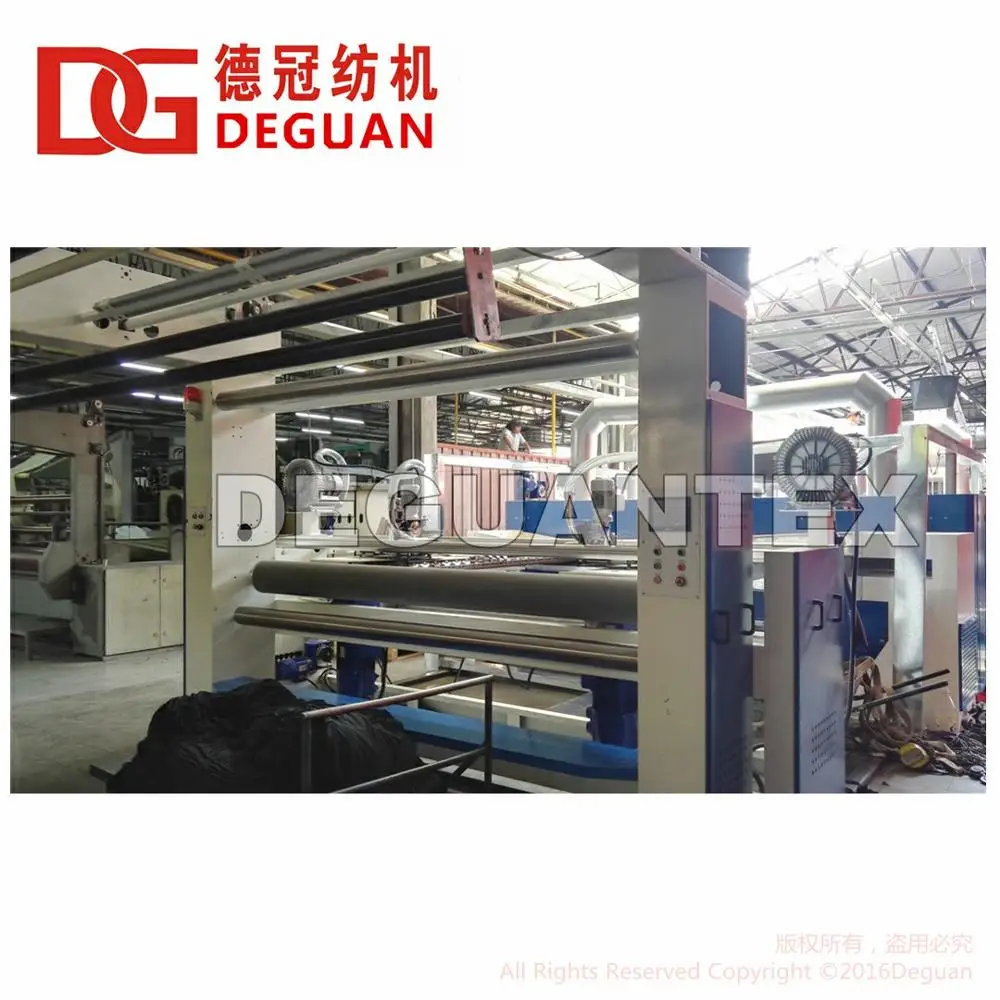

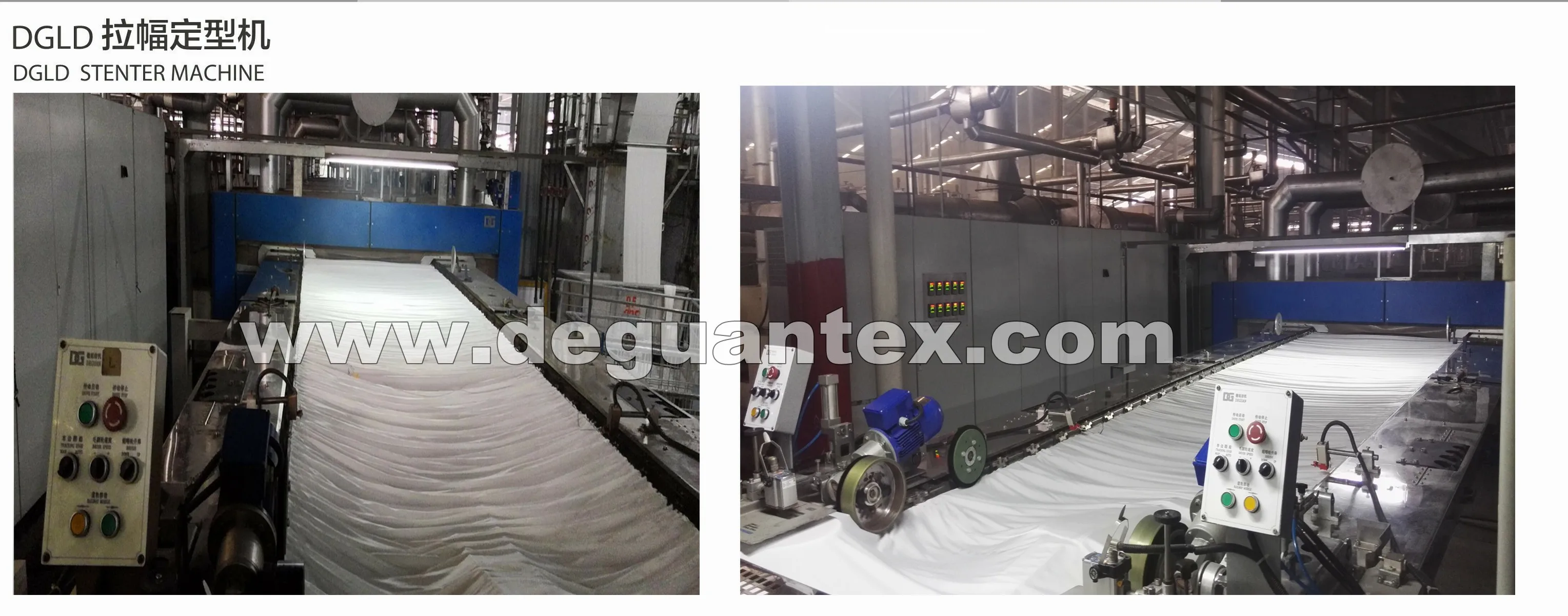

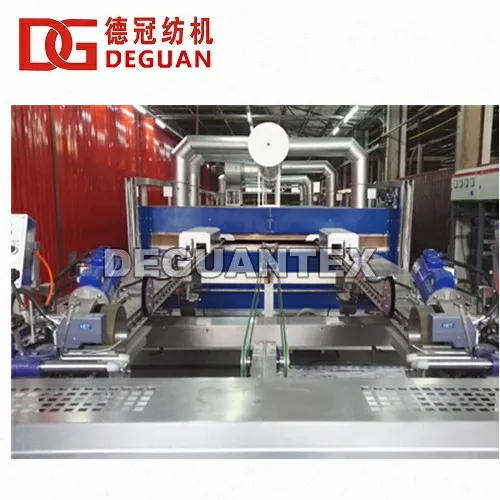

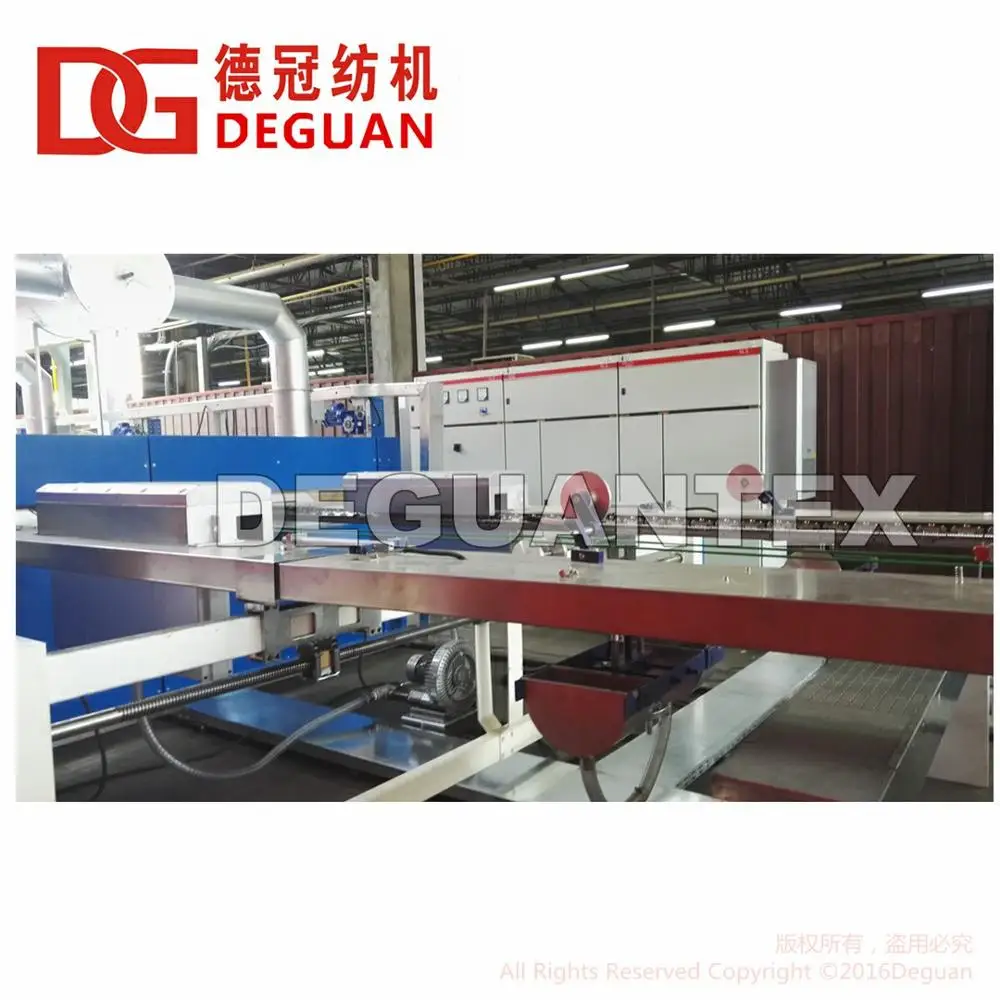

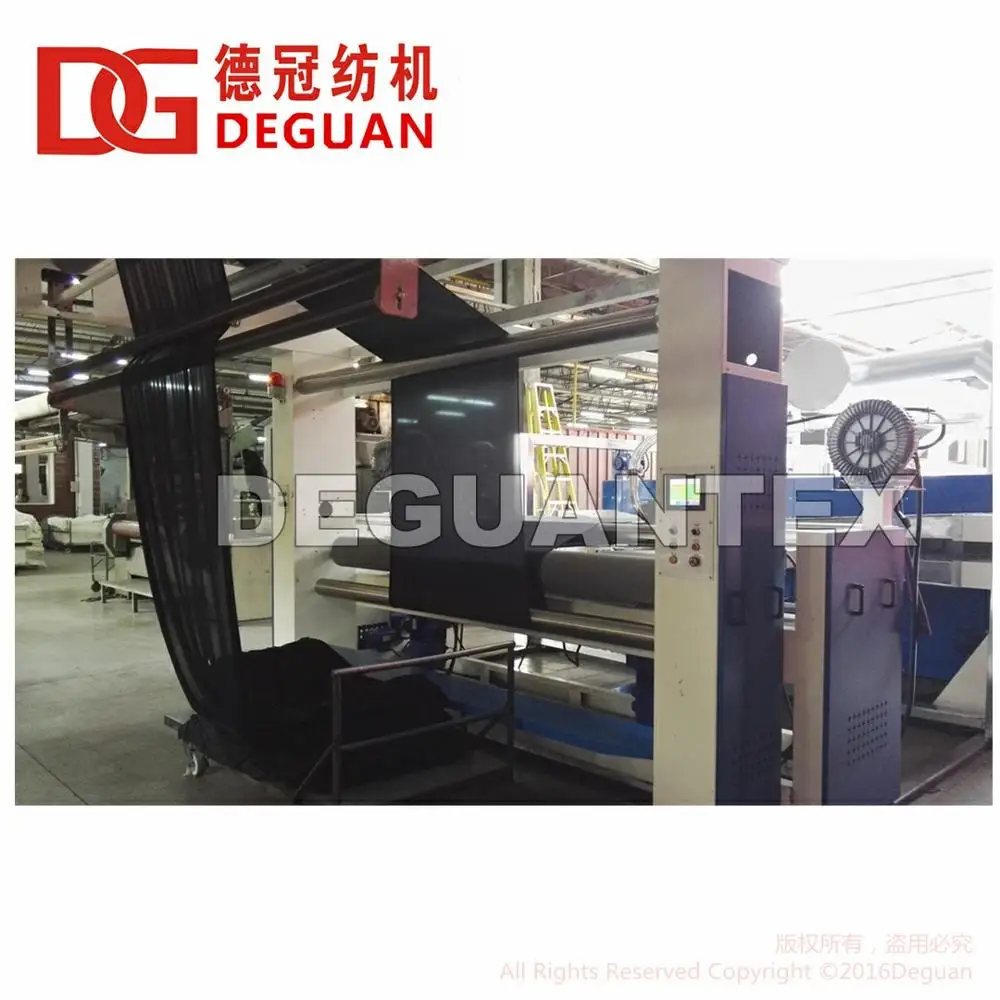

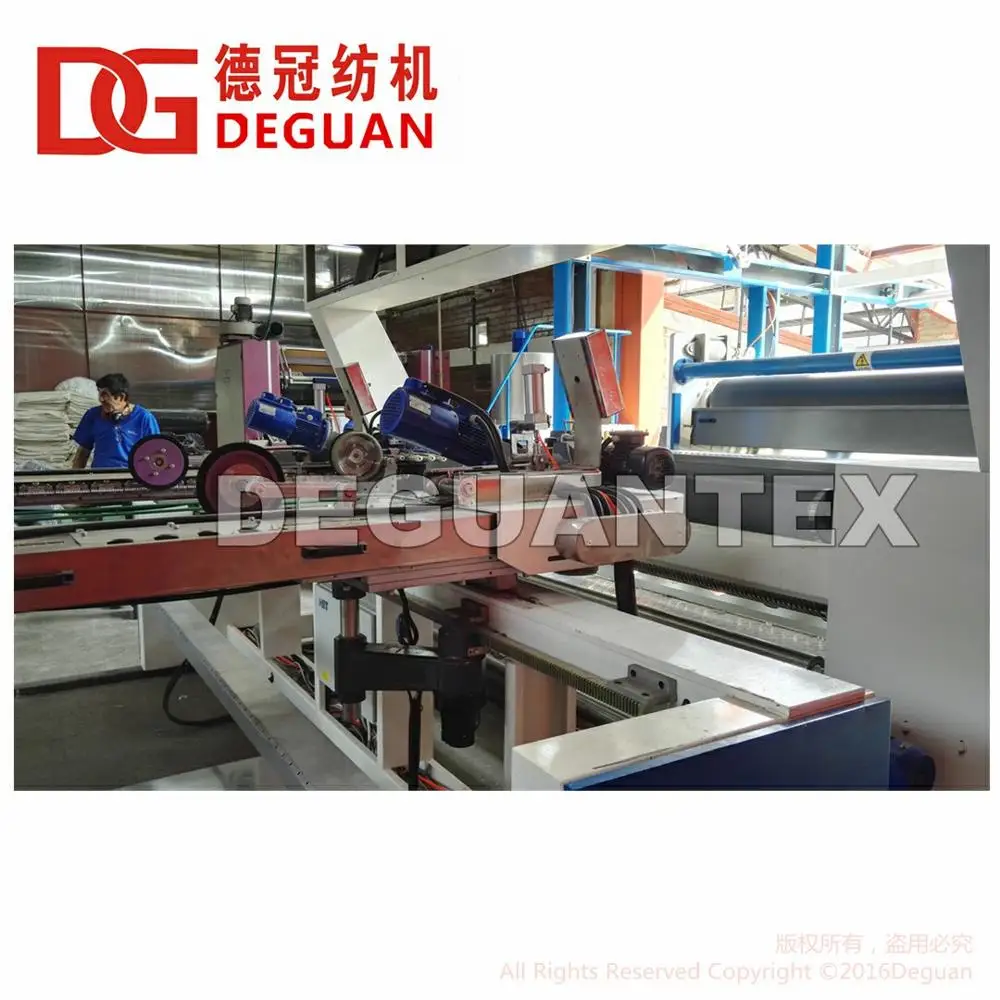

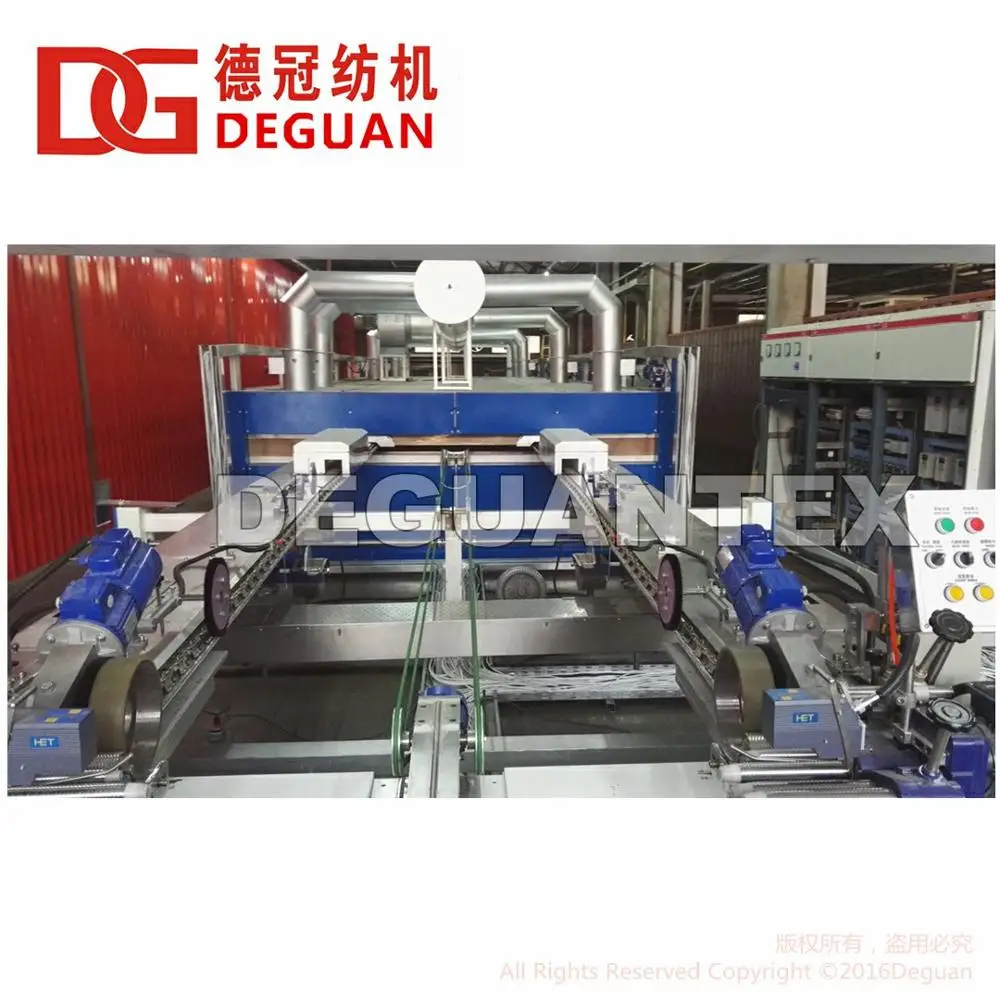

The Heat Setting Stenter Machine is used for cotton/chemical fiber/mixed knitted woven fabric in open width status.
According to the width size of the fabric, we can offer the following models with different normal work width:
FSLD2400/2600/2800,which are popular sales according to customer's usage.
The machine is equipped with horizontal rollers, single padder, mechanic weft straightener. All parts and components are applied some famous brand in order to keep excellent quality.
Main Parameter and Requirements | ||
BRAND NAME | DEGUAN/ DG | |
MODEL | DGLD HEAT SETTING STENTER | |
ORIGION | CHINA | |
YEAR OF MANUFACTURE | ACCORDING TO ORDER | |
Main Matching Fabric | open width fabric (70~350g/m²) made of cotton, cotton/polyester,wool,synthtic fiber and other blended fibers | |
Heat source | Natural gas/oil/steam | |
Stentering type | Hot air circulating | |
Chain type | Pin+Clip | |
Rail type | Pitch 60mm;Oil-free lubricated | |
Holding type | Carbon Steel+Polymer wearing strip | |
Working type | Horizontal return chain | |
Working width | 1000~3600mm | |
Working speed | 5-60m/min | |
Chamber width | 3000mm | |
Insulating board thickness | 150mm | |
Pinning & brush overfeed ratio | 20%~40% | |
Temp.& Breadth adjustment type | Adjustment on each chamber | |
Standard machine power supply | 380V/3PH/50HZ | |
Control power supply | 220V/24V | |
Steam specification of steam box | 3-6kg/cm² | |
Steam consumption of steam | 100-150kg/h | |
Main Features
Functions of Stenter Machines
Heat setting is done by the stenter for lycra fabric, synthetic and blended fabric.
Width of the fabric is controlled by the stenter.
Finishing chemical apply on fabric by the stenter.
Loop of the knit fabric is controlled.
Moisture of the fabric is controlled by the stenter.
Spirility controlled by the stenter.
GSM of the fabric is controlled by stenter.
Fabric is dried by the stentering process.
Shrinkage property of the fabric is controlled.
Curing treatment for resin, water repellent fabric is done by the stenter.
