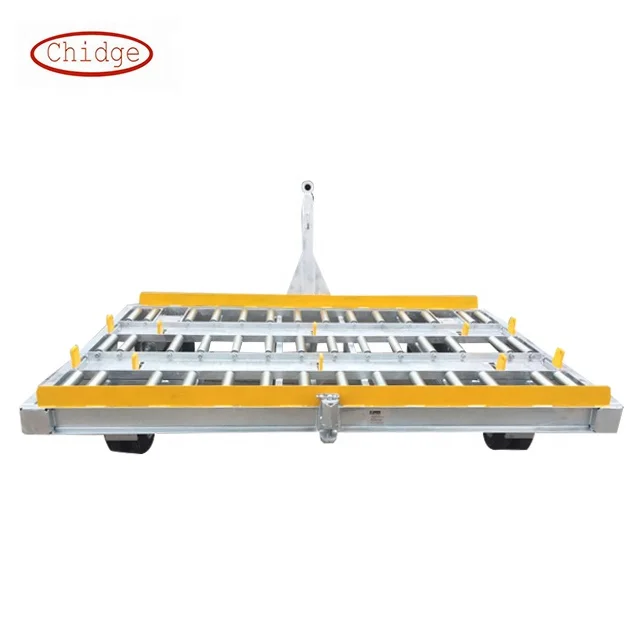

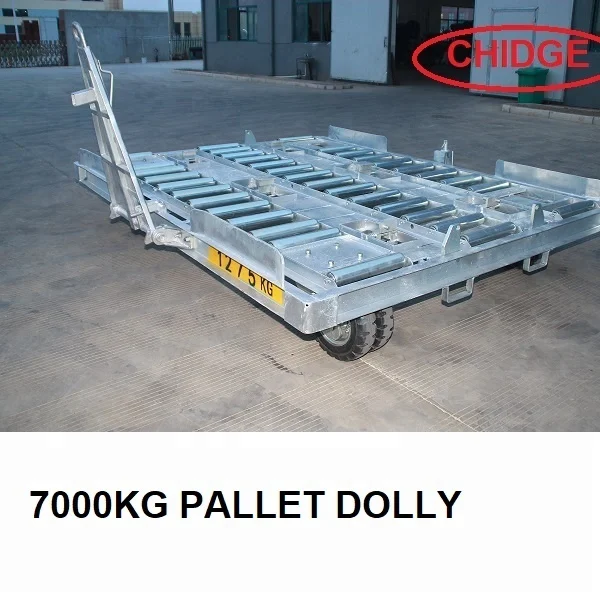

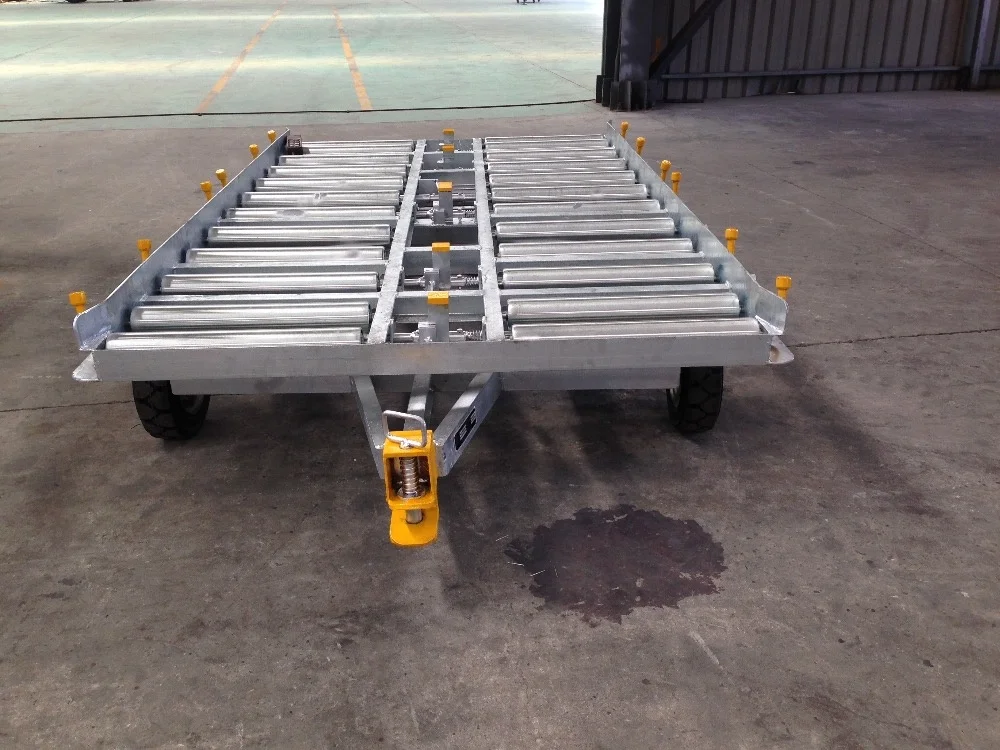

7T airport tow pallet dolly for pallet P1, P2 and LD7 LD8

Loading

Two sides loading

Weight

≥1050KG

Use

Transporting for P1P,P6P,LD1,LD2,LD3

Feature

Ø  Brake:The brake using the existing use of good double brake mechanism;

Ø  Rear hook: it is more convenient and safer

Parameter

Size:4076mm×3400 mm×620 mm

Length (put down the drawbar ):4076mm           Working height:508-520mm

Loading weight≥7000kg

Speed:25km/h

Front wheel:Two wheel universal wheel

Rear wheel:Two wheel fixed wheel

Min turning radius≤4500mm

Parts instruction

Frame

The main frame adopts national standard 16# channel steel

Roller

76*3 Seamless steel tube

Drawbar & braker

The  drawbar  is welded by national standard 120x60x5 rectangular tube, the mop is put down to brake, and the good double brake mechanism is adopted, which is safer and more reliable.

Front wheel

The front wheel adopts 2 sets of universal wheels, two wheels and solid rubber wheels, with a specification of 320-8

Rear wheel

2 sets of fixed wheel, two wheel, solid core rubber wheel, specification 350x100

Surface treatment

Using the most effective automatic rotary closed shot blasting machine rust, surface treatment for painting or zinc plating.
