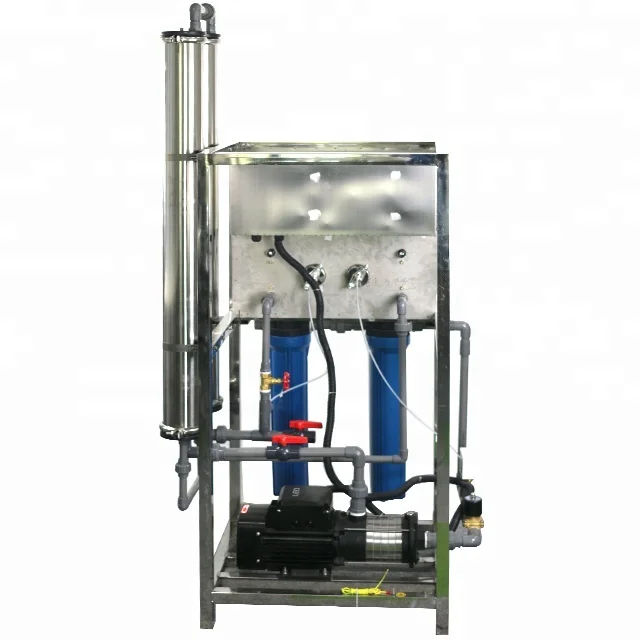

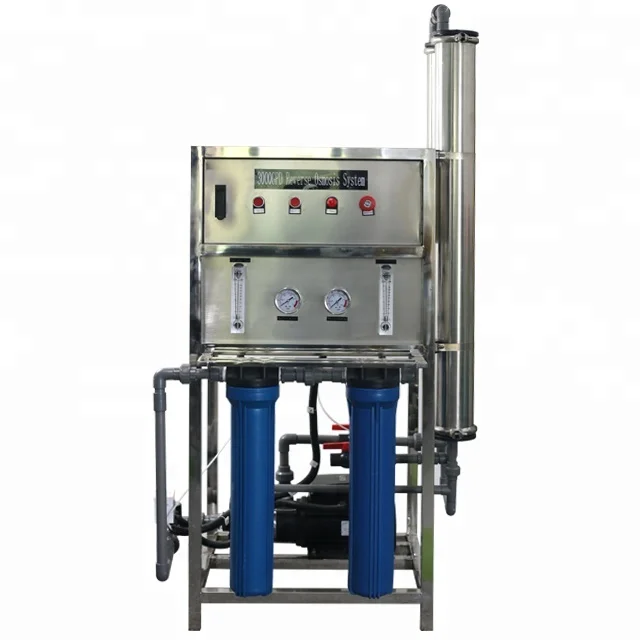

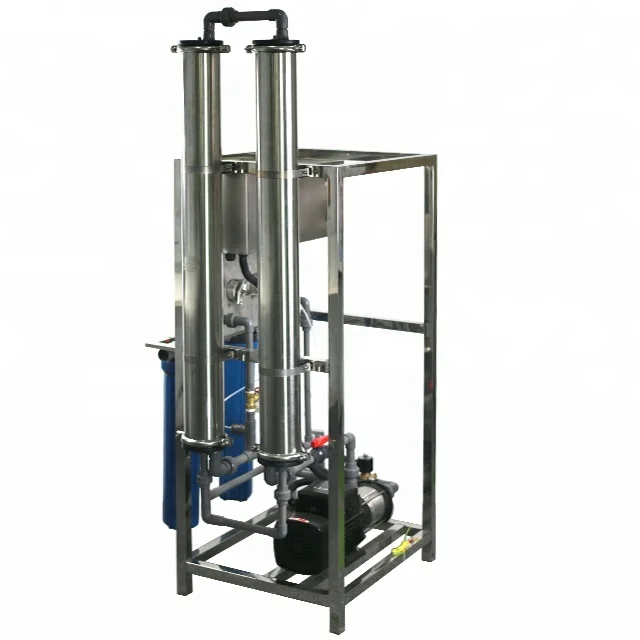

3000GPD 500LPH borehole RO membrane commercial small Industrial water treatment Reverse Osmosis System main machine

3000 GPD Industrial Water Filtration Membrane Purifier Reverse Osmosis System

Flow chat
Raw water→ 1. Booster pump→ 2. Sand(multi-medium) filter→3. Active carbon filter→4. Softener (optional)→ 5. Security(micron) filter→6. High pressure pump→7. Reverse osmosis system→ 8. UV sterilizer(optional) →Pure water storage tank

Function of each part of water treatment plant
1.Booster pump– provide the pressure to quartz sand filter/active carbon filter
2.Multi-medium filter– get rid of turbidity, suspended matter, organic matter, colloid, ect.
3.Active Carbon filter–Remove the color, free chloride, organic matter, harmful matter, ect.
4.Softener–exchange "ions" of calcium and magnesium with the most common and easiest method.
5.Security filter–prevent large particles, bacteria, viruses into RO membrane, accuracy is 5um
6.High pressure pump– Provide the high pressure to RO membrane
7.RO system– main part of the plant. The RO membrane's desalting rate can reach 99%, removing over 99% ions
8.UV sterilizer or ozone generator- kill bacteria
