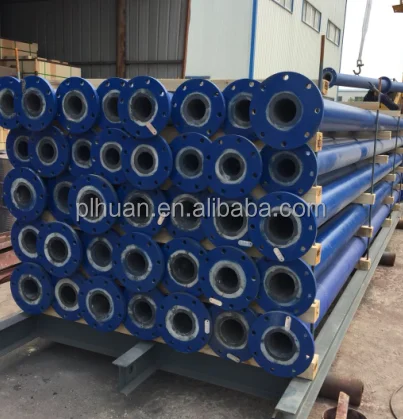

excellent Cast Basalt Lined Steel Pipes

Product Overview

Description

Cast basalt products - physical and chemical performance

Category	Attribute
Specific Gravity	3g/cm3
Compressive Strength	686 MPa or higher
Bending Strength	60 MPa or higher
Impact Strength	1.76KJ/M2
Abrasion Strength	0.07g/cm3
Vickers Scale	720kg/ or higher
Thermal Expansion Coefficients	60 max 8.92*10 -6
Elasticity Modulus	1.67*105MPa
Chemical Attack Resistance
95%-98%H2SO4	98% or higher
20% H2SO4	94% or higher
20%NaOH	98% or higher



Cast basalt lined steel pipe

Cast basalt lined steel pipe is consisted of steel pipe, cement mortar and cast basalt pipe. The excellent performance of cast basalt lined steel pipe is that it sets the tenacity of steel pipe, abrasive resistance of cast basalt pipe and concreteness of cement mortar in one. This greatly improves the products` adaptability in complicated operation conditions.



It can be used in higher working pressure and also easy to install and transportation. We can offer the straight pipes,bends and tees with nominal diameter of 40mm and above. The connection of the pipes and fittings will be of flange connection,easy-fitting and flexible joint connection or by welding. The diameter of the bend & tee serices will be the same as the straight pipe,the radius of curvature and central angle of the bend will be made according to the client's requirement. The parameters of the outside steel pipe will be decided according to the working pressure of the system.



Applications:

Cast basalt pipes have an excellent performance of abrasive resistant and corrosion resistant, can be used as the pipeline lining in conveying wearable materials and corrosion materials. Such as: electric power station, chemical plant, metallurgy industry, mining industry and so on.





Main specifications.

NO. Dn t L ZFG100 100 10 4000,6000, 8000 ZFG125 125 ZFG150 150 6000 8000 12000 ZFG175 175 ZFG200 200 ZFG225 225 ZFG250 250 ZFG275 275 ZFG300 300 ZFG350 350

NO. Dn t L ZFG400 400 12 6000 8000 12000 ZFG450 450 ZFG500 500 15 ZFG550 550 ZFG600 600 20 6000 ZFG650 650 ZFG700 700 25 ZFG750 750 ZFG800 800
