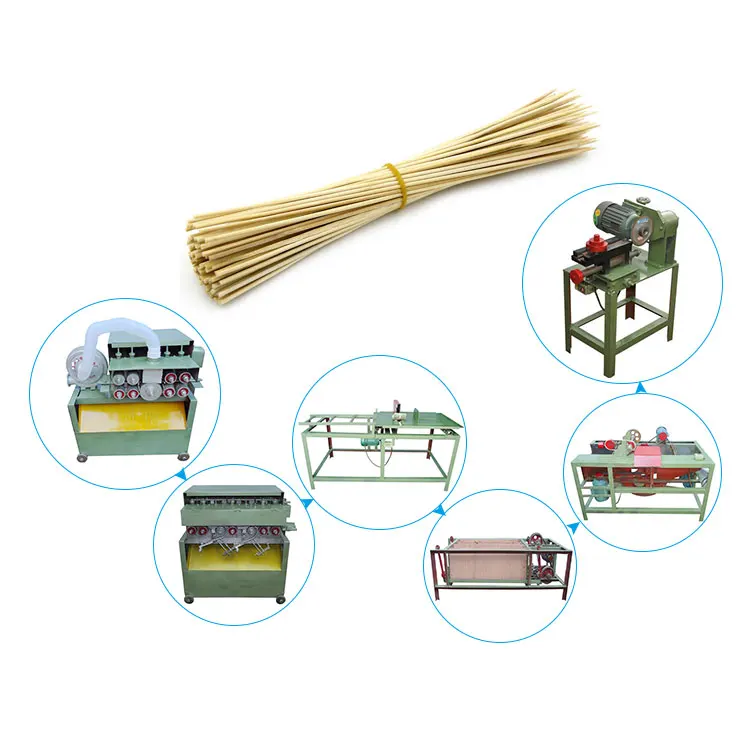

Линия по производству деревянных зубочисток, машина для разделения бамбука на продажу
- Category: Toothpick Making Machines >>>
- Supplier: Zhengzhou Shuliy Machinery Co. Ltd.
Share on (60802353068):
Product Overview
Description
Product Information
1.The above 10 machine made up a complete line for making which capacity is 800,000/8hours(this capacity is for TWO HEAD SHARPENED TOOTHPICK,) , need 3-5 workers. add 1 set NO.9 Toothpick Sharpening Machine, the output will be double, that is 1600,000/8hours.
2.If you want to produce One Head Sharpened Toothpick, capacity is 600,000/8hours. add 1 set NO.9 Toothpick Sharpening Machine, the output will be double, that is 1200,000/8hours.

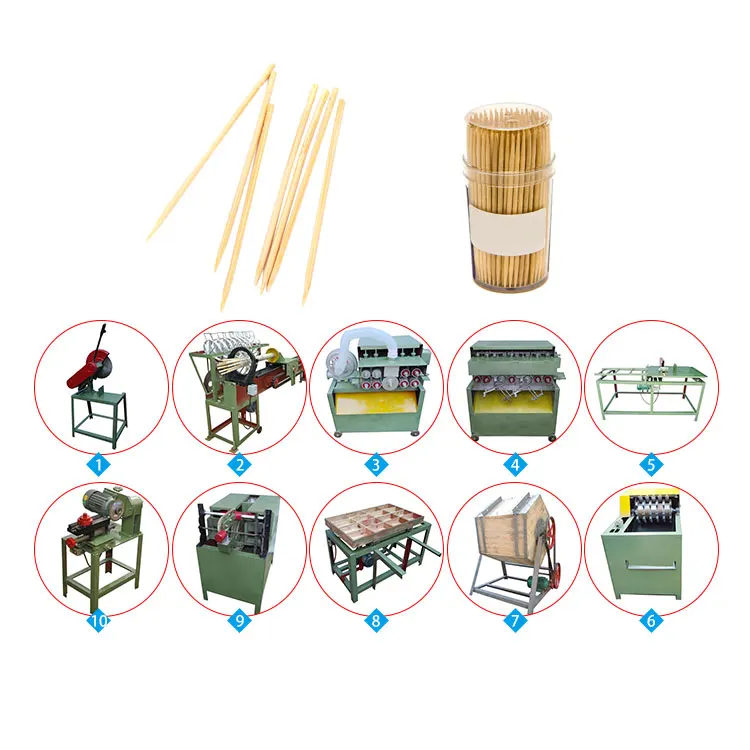

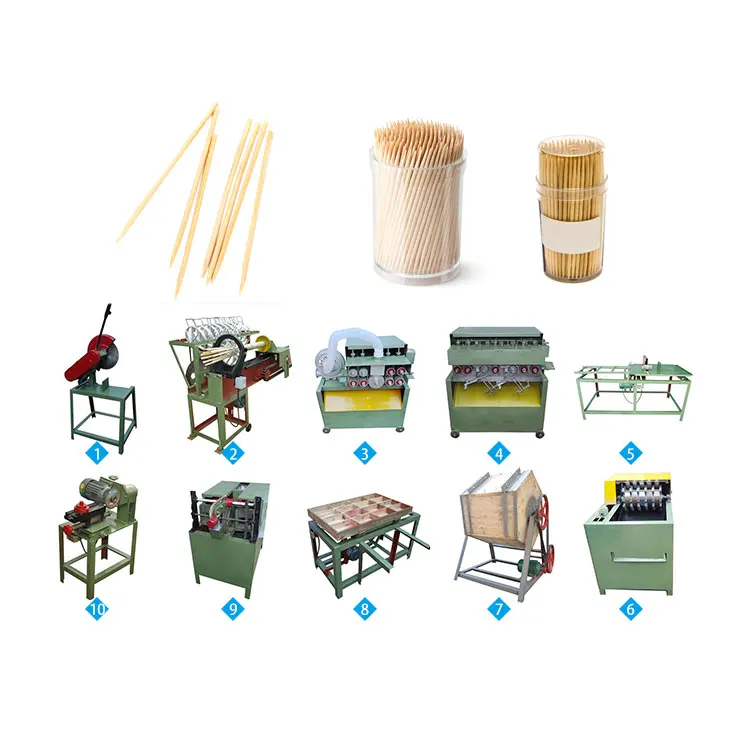

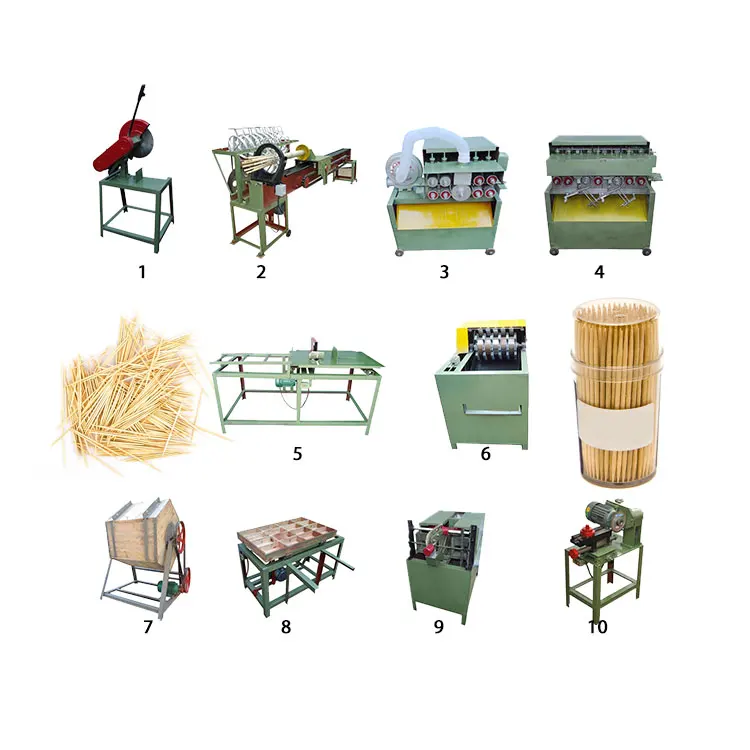

Type of Toothpick Machine
name | type | power | weight | size | |
1 | sawing machine | SL-111 | 1.5 | 60 | 750*600*1300mm |
2 | bamboo dissection machine | SL-102 | 3.0 | 530 | 3000*950*1200mm |
3 | Flaker | SL-103 | 3.0 | 260 | 1180*680*1100mm |
4 | filament shaping machine | SL-104 | 9.1 | 400 | 1020*690*1050mm |
5 | filament set-size machine | SL-105 | 0.75 | 75 | 800*700*900mm |
6 | toothpick set-size machine | SL-114 | 2.57 | 140 | 900*700*950mm |
7 | polishing machine | SL-80 | 1.1 | 110 | 1050*1050*1200mm |
8 | toothpick finishing machine | SL-113 | 0.37 | 65 | 1050*900*850mm |
9 | toothpick mincing machine | SL-268 | 1.65 | 160 | 950*650*1050mm |
10 | Multi-sharpen machine | SL-108 | 0.37 | 50 | 450*400*870m |

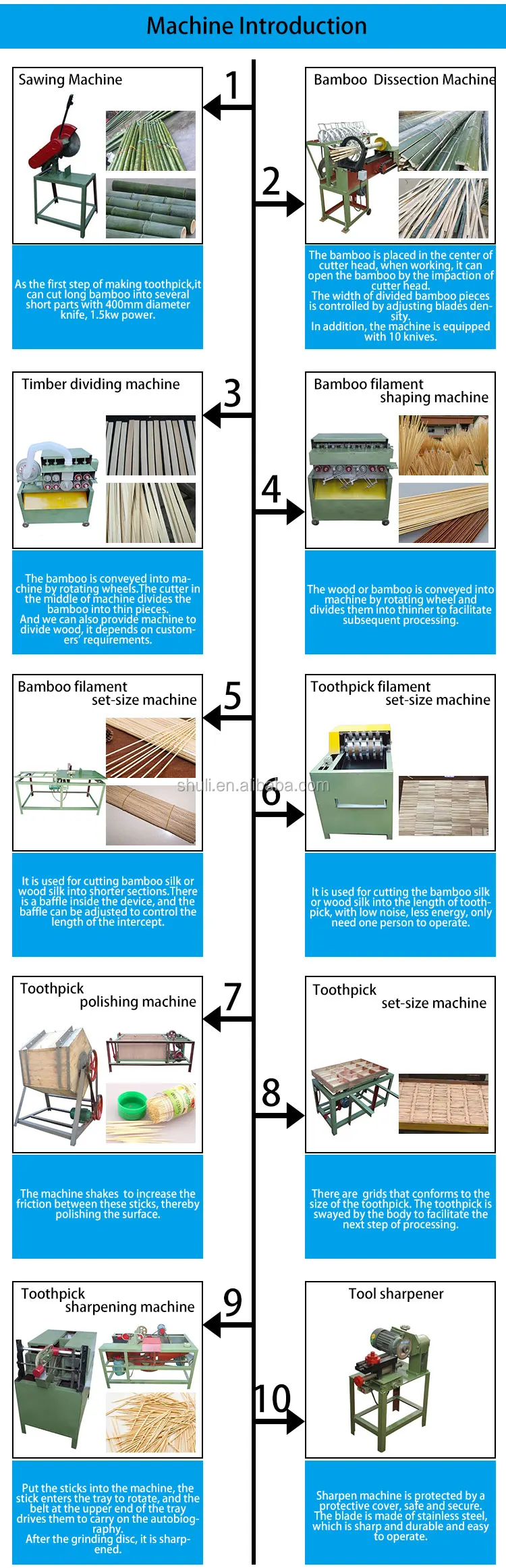

Machine Function
1.sawing machine (bamboo)
sawed 400mm*160T,used for feeding and cutting bamboo, better length is 1-1.2m
2. Bamboo split machine
dissection cutter head(9-18heads)total 10,put the finished bamboo into the suit cutter headaccording to the size and polish them into bamboo flakes, width from 20mm to 22mm,speed of feeding is 57m/min
3. fix thick and definitely wide flaker
put the polished bamboo flakes into this machine and make it to be square and straight every side, width from 18-20 mm, width of flaker is 3-4mm,speed of feeding is 87m/min
4. Bamboo filament shaping machine
molding the diameter of the bamboo filament as your request ,speed of feeding is 87m/min
5. Bamboo filament set-size machine
set uniform length of the stick ,as usual 5 or 6times of toothpick length
6.toothpick set size machine
cut the long stick into 65mm ,standard length of toothpick
7.Polishing machine
polish the raw stick after set-size
8.orderting machine
Order the stick from polishing machine ,easy for worker to pick them into sharpen machine
9.toothpick sharpen machine
Sharpen two tips or one sharpen one carve head
10 . Multi-sharpen machine
Sharpen the cutter and saw
Company Information
Zhengzhou Shuliy machinery Co., Ltd. was found in 2000. Our company specializes mainly produce wood bamboo processing machine. We not only provides customers with cost-effective products, but also provides first-class service support and solutions.
Shuliy has passed SGS, ISO, TUV, CE, BV and other certifications. Our products have been exported to countries and regions such as Arabia, India, Russia, Central Asia, Africa and Mongolia. Perfect after-sales service system allows you to worry-free.

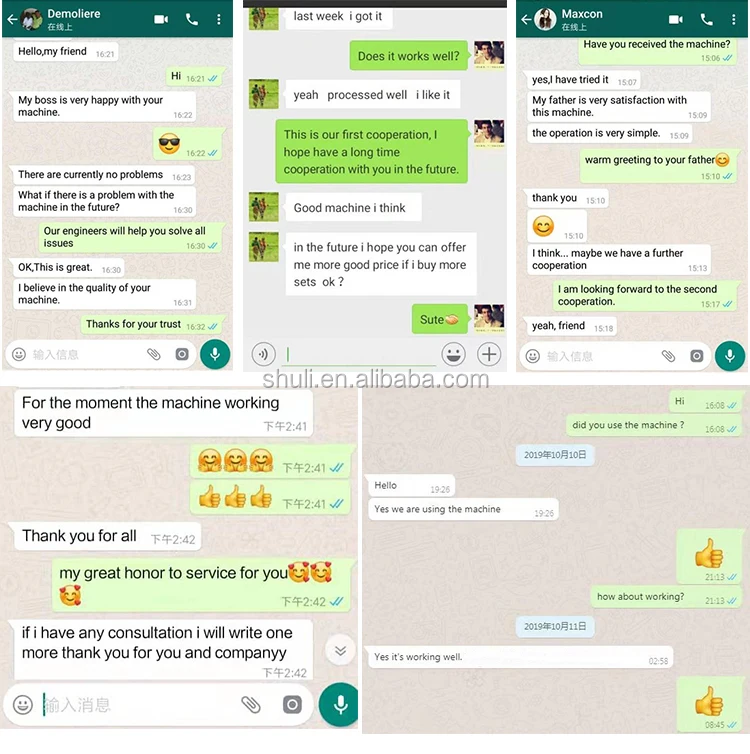

Customer evaluation
FAQ
Q: Why Choose Us?
1). More than 15 Year's Experience
We have rich experience in equipment manufacturing. Our machines have high reputation both at home and abroad (Such as the Middle East, Southeast Asia, Africa and so on more than 10 countries and regions.)And often visit customers to provide services to customers.
2). Manufacturer
Not Dealer Factory direct sale makes price more competitive.Customers are always welcome to visit our factory for machine test.
Q: How do I know the quality of your machine?
You can send your sample scrap materials to us and we will test the machine for you without charging the fees. And we can send the machine test video to you. We also warmly welcome you to visit our factory to test our machine personally.
Q: Will you dispatch the engineer to guide installation?
Yes, according to the customer's requirement, we will dispatch engineers to guide installation and traning about the operation of the machine.
3). What services do we have?
If the customer comes to China, we will pick you up at the airport or the high-speed rail station, and then send you to the hotel.
