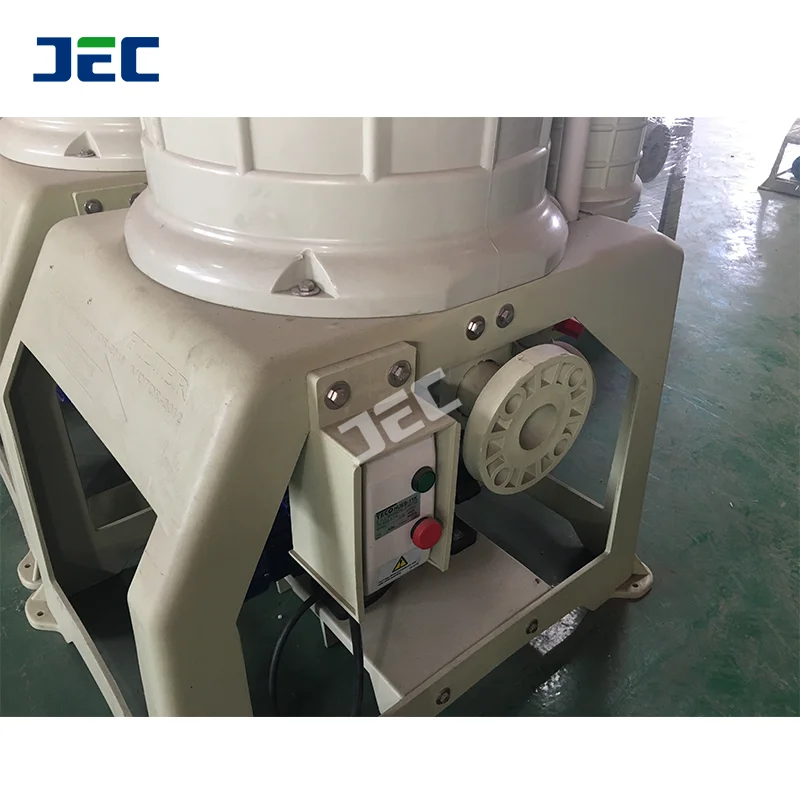

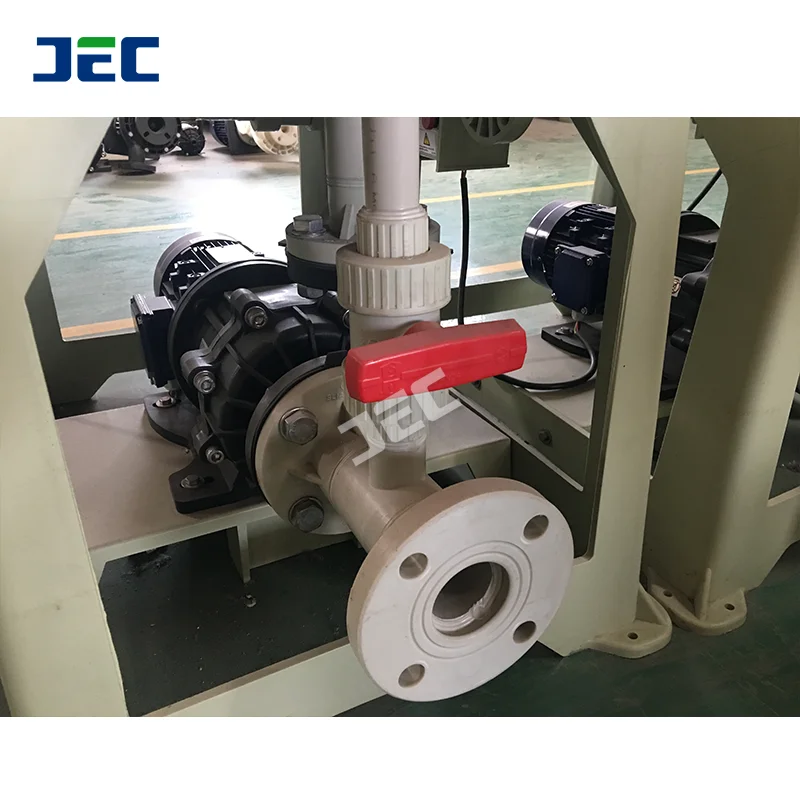

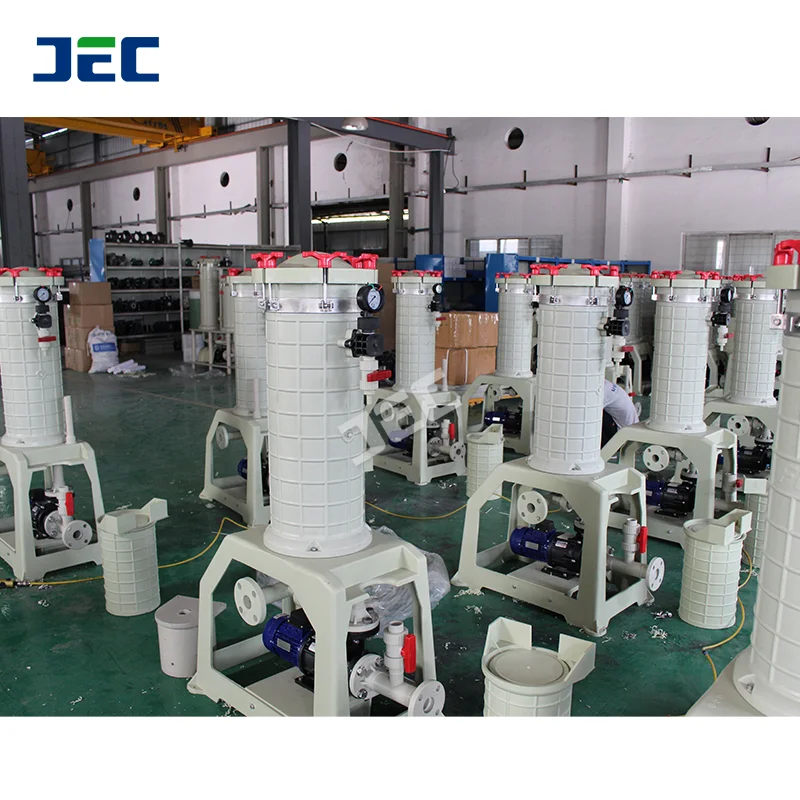

2023 new function ShuoBao high precision industrial electroplating filtration units machine
- Category: >>>
- Supplier: Dongguan Shuobao Industrial Equipment Co. Ltd.
Share on (60802384598):
Product Overview
Description
Product Description
A: Features
B: Filter Type Details
| Model | SA-2001 | SD-2004 | SK-2006 | SK-2008 | SL-2012 | SL-2018 | |
| Type of Pump | SMD-55R | SMD-100R | SPH-440 | SPH-441 | SPH-452 | SPH-453 | |
| Pump Motor (50Hz/60Hz) | 65W | 255/265W | 1/2-1HP | 1HP | 2HP | 3-5HP | |
| Filter Media | Filter Cartridge | 20"*1 | 20"*4 | 20"*6 | 20"*8 | 20"*12 | 20"*18 |
| Filter Paper | - | 129*46pcs | 195*45pcs | 232*45pcs | 300*40pcs | 370*40pcs | |
| Filter Bag | - | φ4"*15"L | φ7"*16"L | φ7"*16"L | φ7"*16"L | φ7"*16"L | |
| Applicable Electrode Plated Tank | 400L | 800L | 1-2Ton | 1.5-3Ton | 2.5-4Ton | 4-6.5Ton | |
| Filtering Capacity (L/min) | 30 | 80 | 150 | 180 | 220 | 330-500 | |
| Filtering Area (m2) | Filter Cartridge | 0.25 | 1 | 1.5 | 2 | 3 | 4.5 |
| Filter Paper | - | 0.6 | 1.5 | 2.2 | 3.6 | 5.4 | |
| Filter Bag | - | 1 | 2 | 2 | 2 | 2 | |
| Outlet/Inlet dimensions (inch) | 3/4 | 1 | 1.5 | 1.5/1.5*2 | 1.5/1.5*2 | 2 | |
| Dimensions (L*W*H mm) | 500*312*1100 | 573*360*1185 | 785*487*1510 | 785*487*1510 | 865*625*1555 | 865*625*1555 | |
| Weight (kg) | 17 | 30 | 70 | 77 | 97 | 117 | |

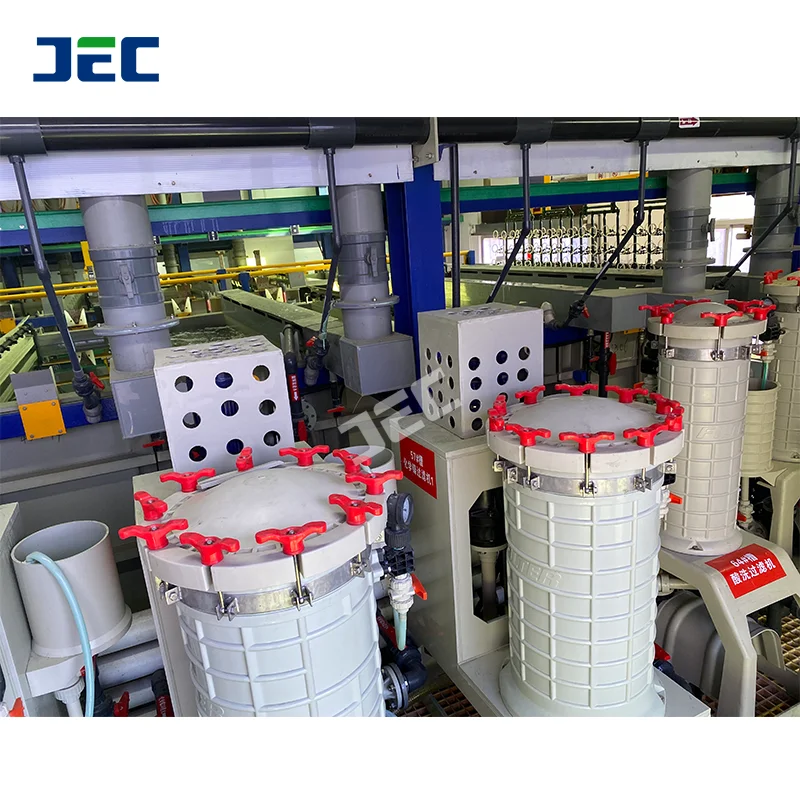

C: Filter Applications
JEC chemical filter series are widely used in electroplating, surface treatment, metal finishing and other fields.
E: Quality and Raw Materials
1. 100% pre-tested on each item before shippment;
2. Through the QC inspection many times;
3. Strict production operation ;
4. Environmental protection material;
5. Made from A grade PP or PVDF material.
Company Information
Why JEC
Filter Series
Certifications
Packaging & Shipping
FAQ
Q: Are you a factory or not?
A: 100% sure we are manufacturer which located in Dongguan City.
Q: Are you molding injection the equipment by yourself?
A: Yes, we have filter and pump molding injection equipment to make the mould by ourselves.
In order to give best price to client.
Q: How long is the warranty?
A: One year. Excluding the artificial damage.
Q: How to get the right model quotation regarding to the filter unit and pumps?
A: Only just the flow capacity/tank liter, also the chemical details are enough.
