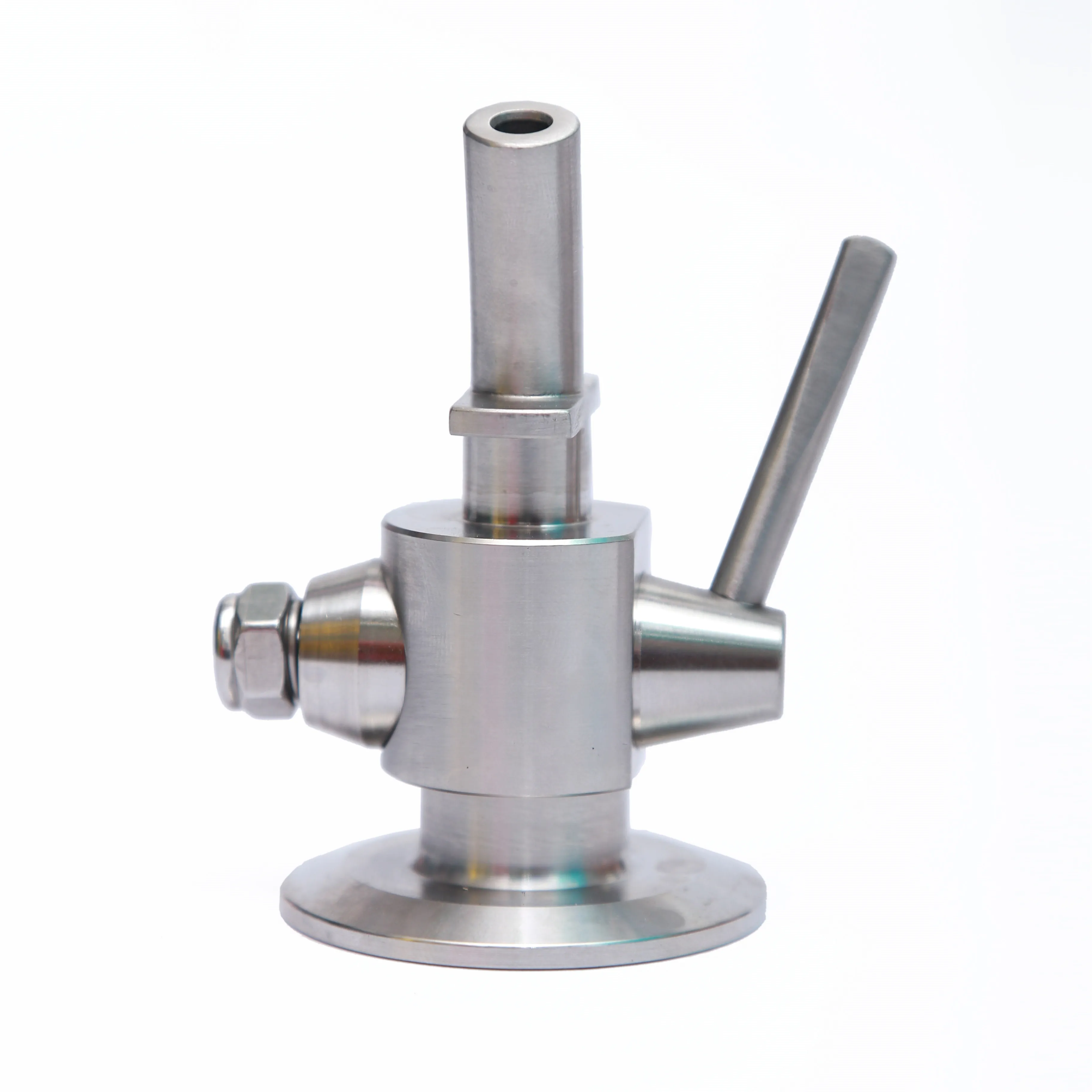

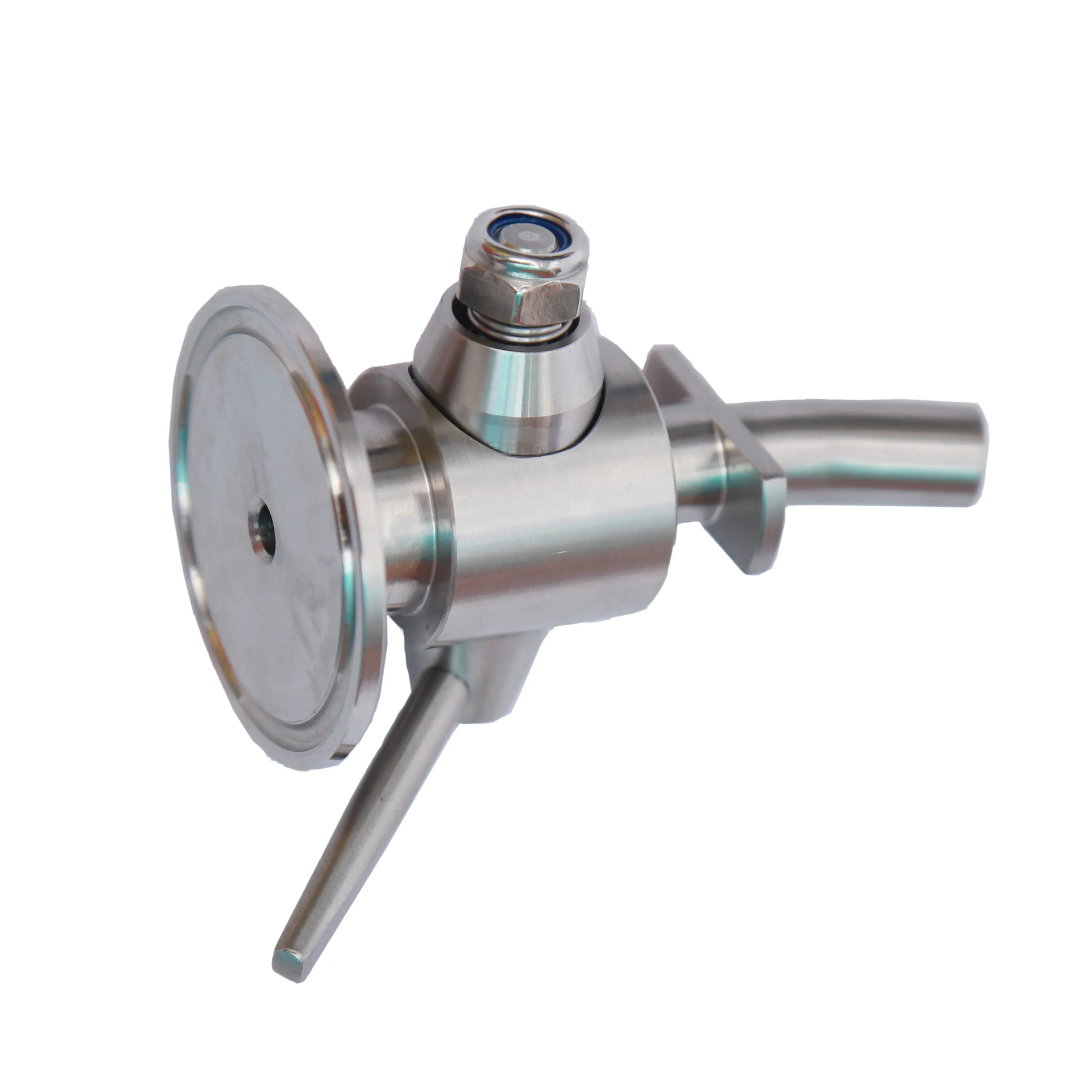

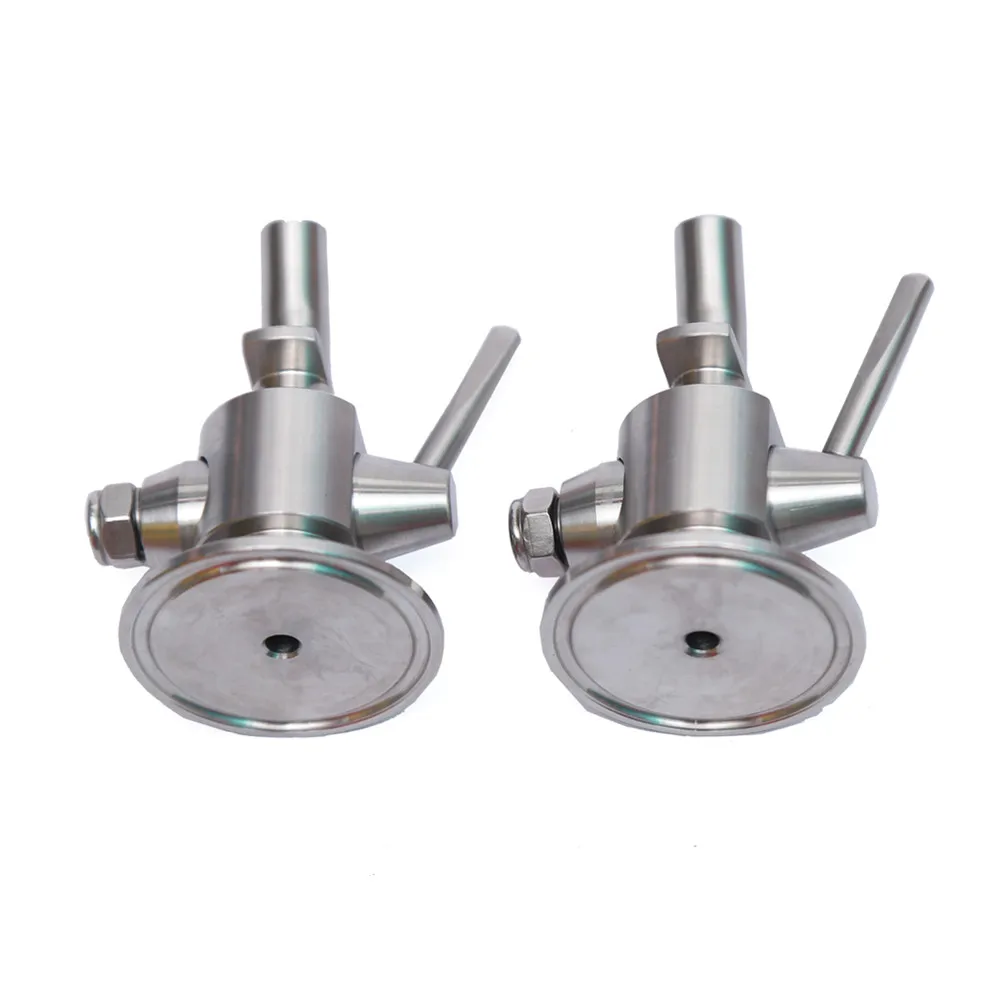

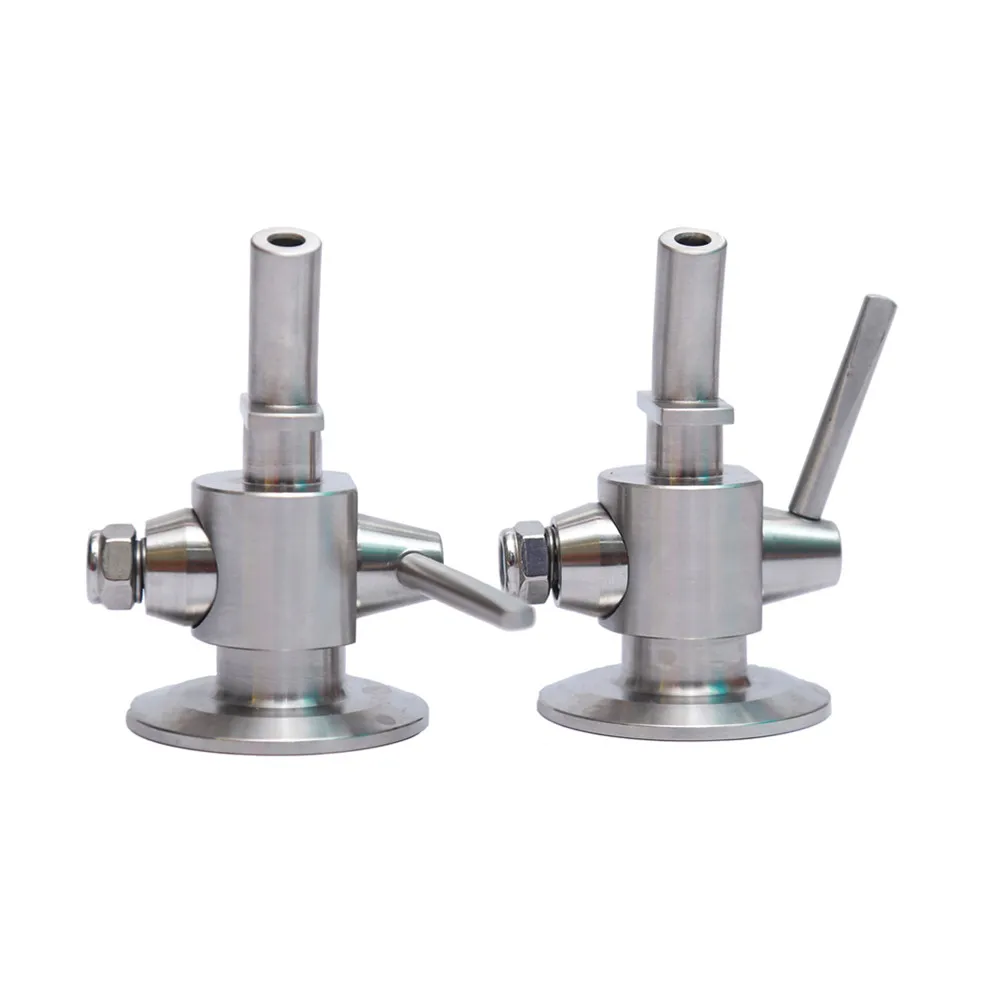

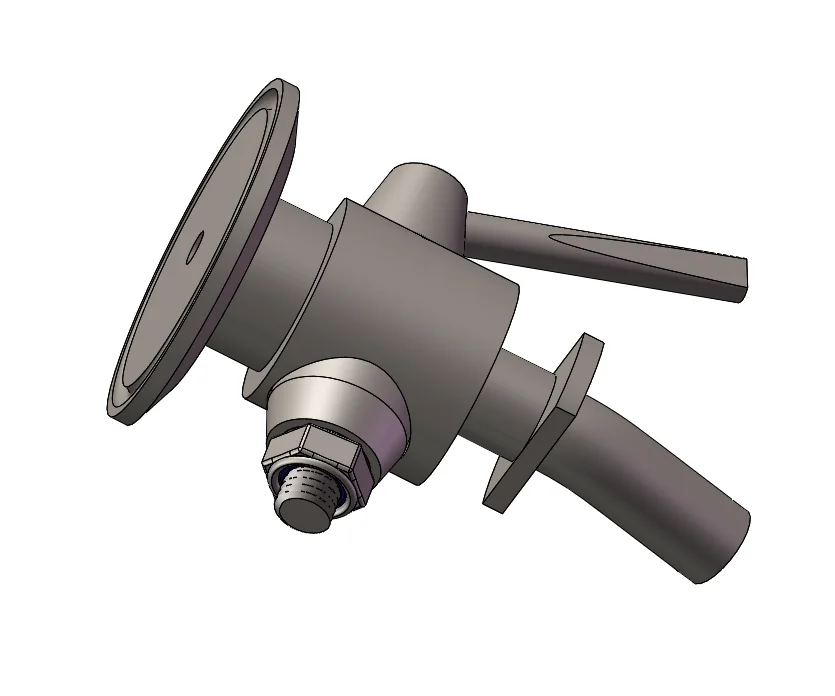

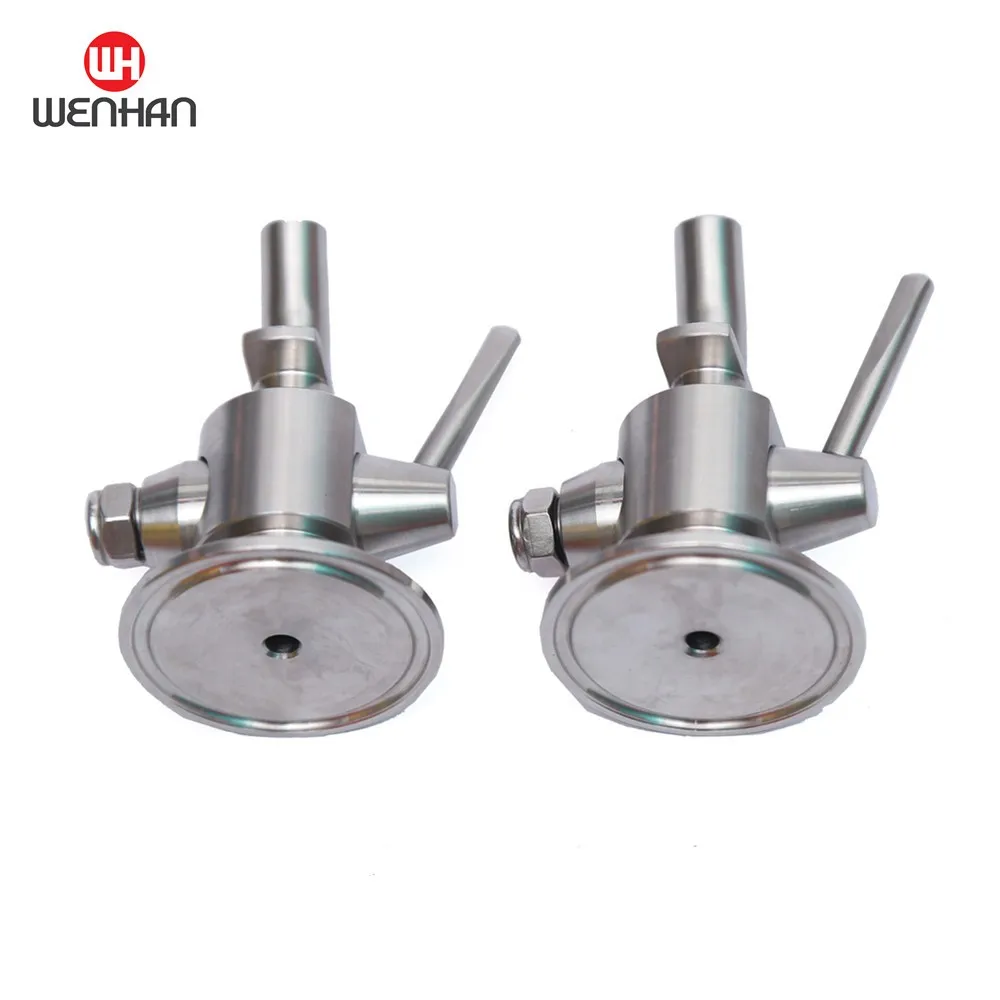

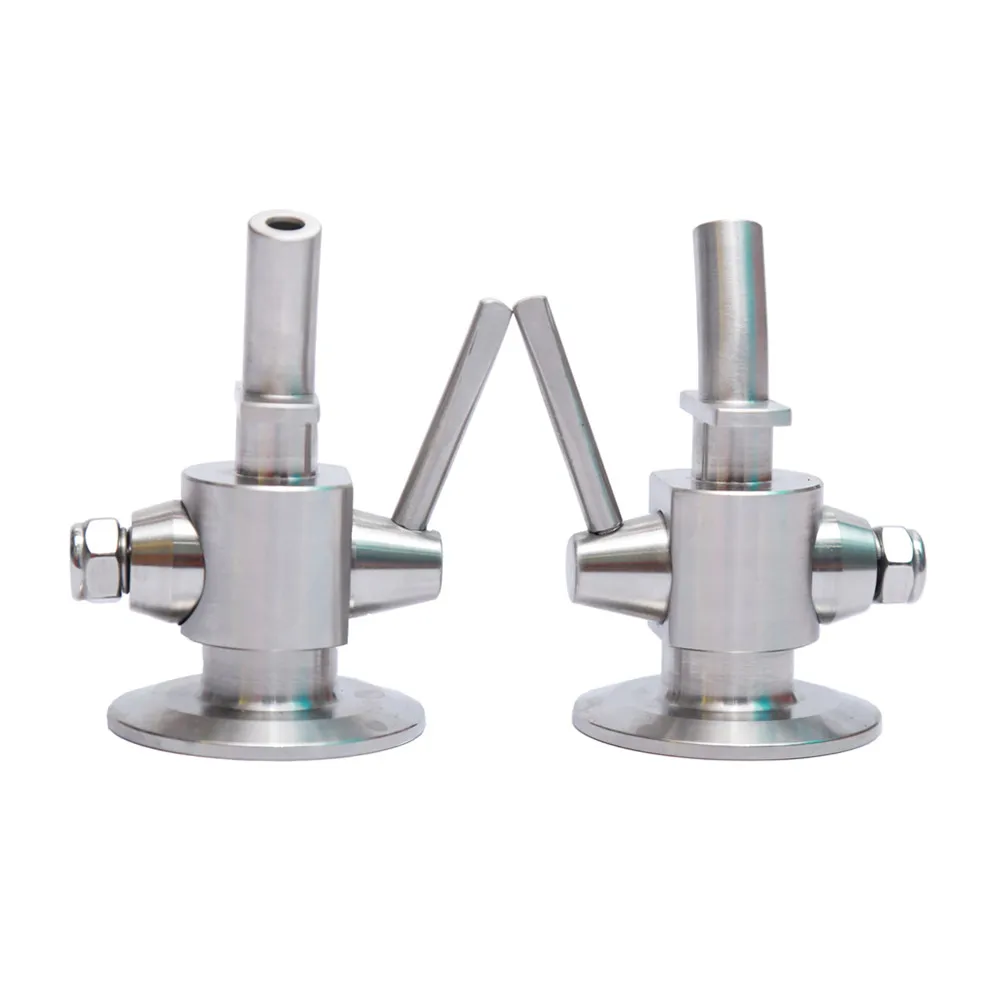

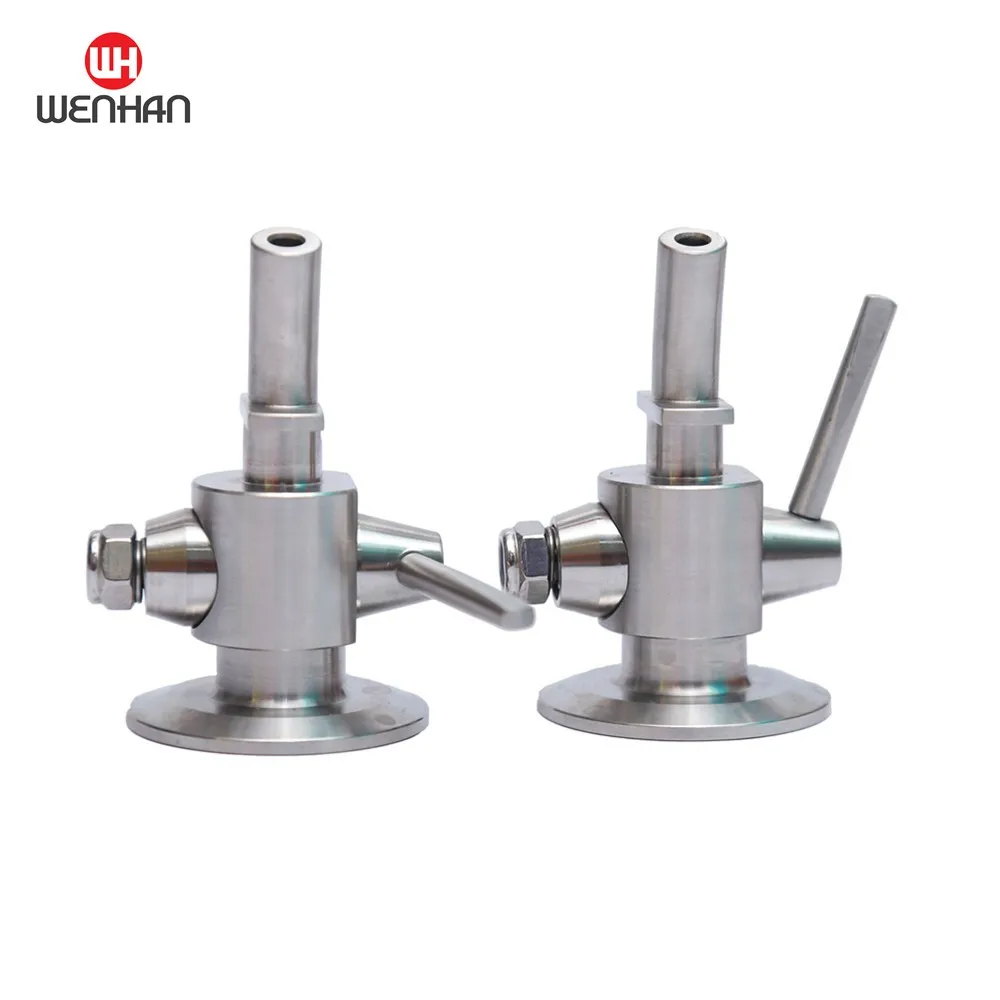

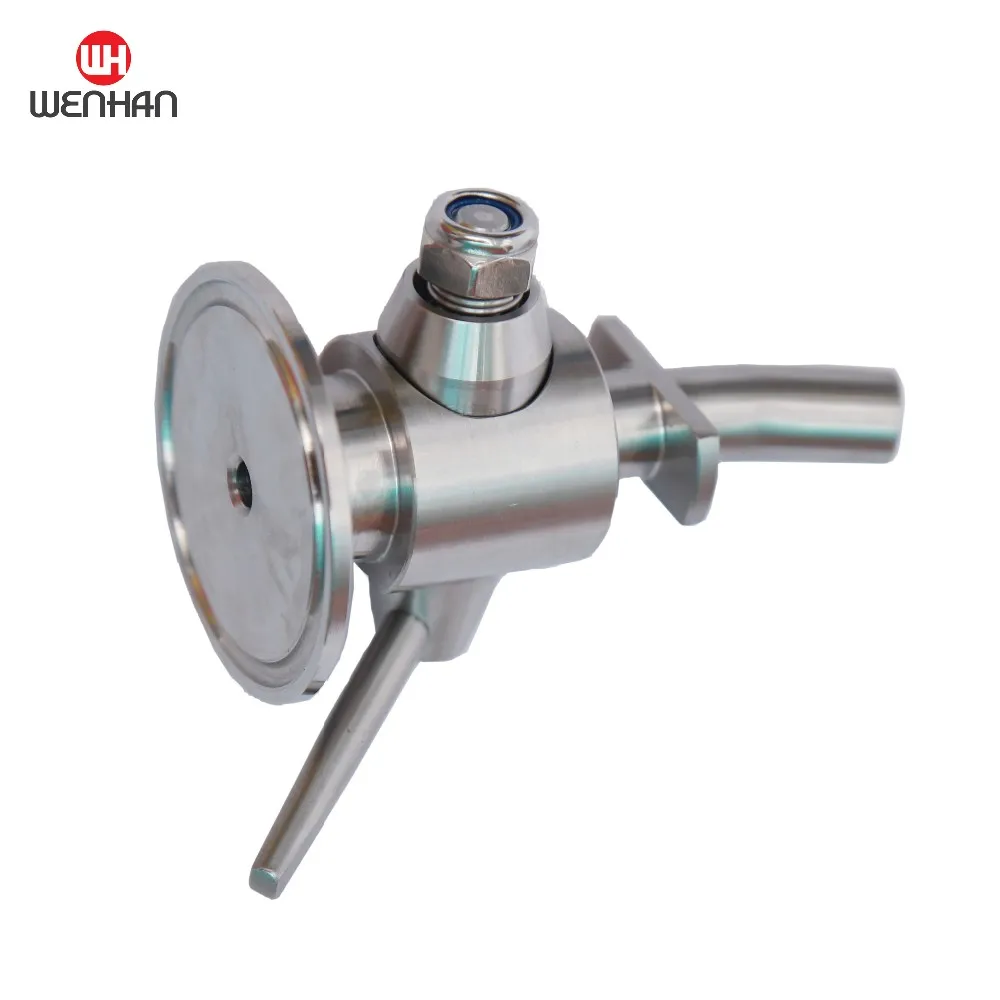

Stainless steel plug type sampling valve, sanitary design, straight diameter, no rubber inside, taper seal, suitable for beer, beverage, container equipment sampling.
Product Name | Beer sampling valve |
Material | Stainless Steel 304 |
Color | Nickel white |
Connection | Clamp |
Operation temperature | -30℃~150℃ |
Pressure | 0.2Mpa |
Working medium | Gas/Liquid |
Used | Beer,food,dairy,pharmaceutical,chemial equipment etc. |

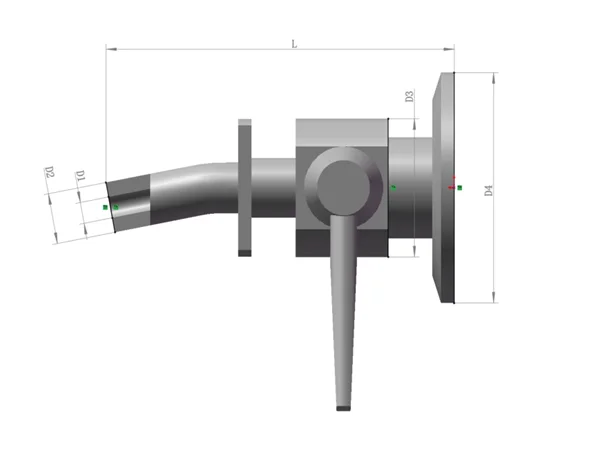

Size | D2 | D1 | D3 | D4 | H |
1.5'' | Φ11.4 | Φ5 | Φ30 | Φ50.5 | 83 |
2'' | Φ11.4 | Φ5 | Φ30 | Φ64 | 83 |

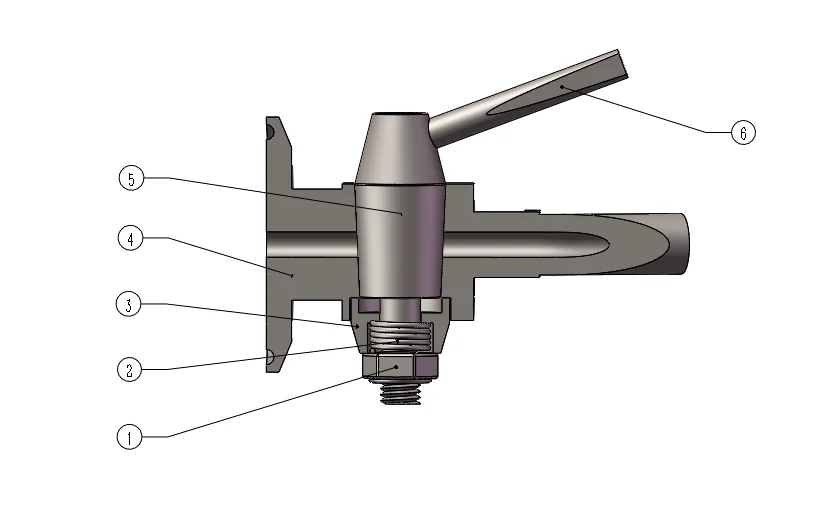

NO. | Name | Material | ||
1 | Nut | SS304 | ||
2 | Core Cover | SS304 | ||
3 | Spring | SS304 | ||
4 | Valve Body | SS304 | ||
5 | Valve Element | SS304 | ||
6 | Hand Shank | SS304 | ||




Xiangshan wenhan fluid equipments co.,ltd. is located in xiangshan Economic development zone,ningbo,zhejiang,the company specializing in the production of fermentation tank valves,safety valves,pressure valves,breathing valves,exhaust valves sampling valves,adjusting pressure valves,other kind of high precision valves and other products,our products are widely used in the field of obeverages,beer,food,dairy,pharmaceutical,chemical etc.





Packing Details : individually wrapped in bubble bag,then in carton box,wooden case for sea shipping
Delivery Details : 1-3 days if have stock items,30days standard production




A: We are factory.
A: Generally it is 1-3 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
A: Yes, we could offer the sample
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
