Anern solar inverter spare parts
- Category: >>>
- Supplier: Guangzhou Anern Energy Technology Co. Ltd.
Share on (60802404776):
Product Overview
Description
Product Description
We have been in the solar energy industry for 14 years, and our products cover solar inverters, solar panels, solar panels, solar charge controllers, etc. We are a provider of solar energy solutions. For more detailed information, please contact me!
Features of Module
Pure Sine Wave Solar Inverter.
Self-consumption and feed-in to the grid.
Inverter running without battery.
One-key restoration to factory settings.
Built-in Lithium battery automatic activation.
Bulit-in 120A MPPT solar controller.
Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge.
High PV input voltage range(90-450VDC).
Built-in anti-dusk kit for harsh environment.
Smart battery charge design to optimize battery life.
Dual output.
WIFI available for IOS and Android.
Specification：
Features of Module
Pure Sine Wave Solar Inverter.
Self-consumption and feed-in to the grid.
Inverter running without battery.
One-key restoration to factory settings.
Built-in Lithium battery automatic activation.
Bulit-in 120A MPPT solar controller.
Max 6200W(for 4.2KW) & 6500W(for 6.2KW) solar charge.
High PV input voltage range(90-450VDC).
Built-in anti-dusk kit for harsh environment.
Smart battery charge design to optimize battery life.
Dual output.
WIFI available for IOS and Android.
Specification：

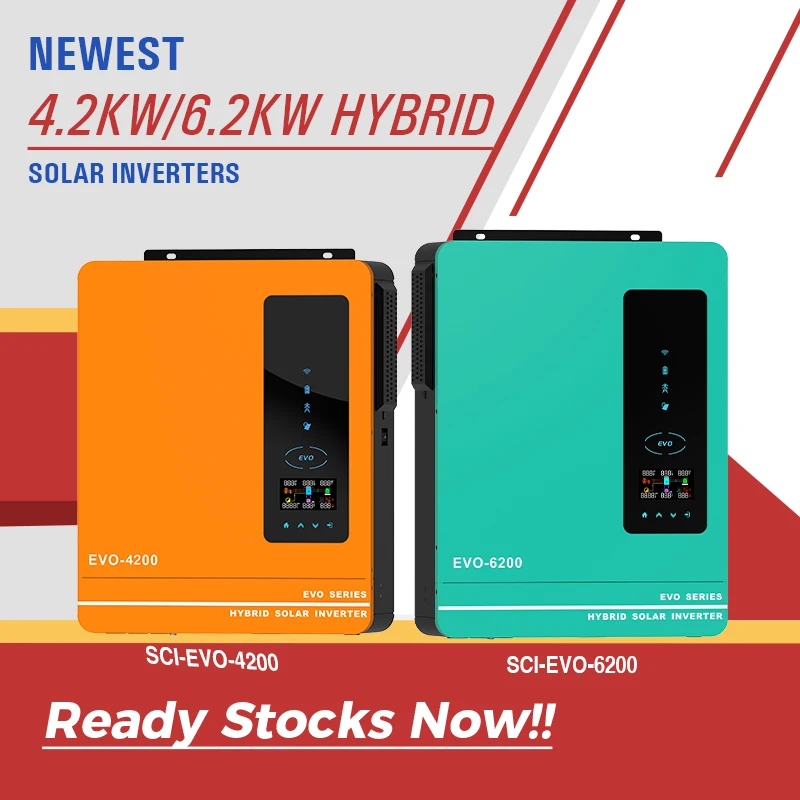

Model | SCI-EVO-4200 | SCI-EVO-6200 | ||||
RATED POWER | 4200W | 6200W | ||||
Maximum PV Input Power | 6200W | 6500W | ||||
PV INPUT (DC) | ||||||
Nαninal DC Voltage/Max DC Voltage | 360VDC/500VDC | |||||
Maximum DC Voltage | 90-450VDC | |||||
GRID OUTPUT (AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Voltage Range | 195.5-253VAC | |||||
Nominal Output Current | 15.7A | 27.0A | ||||
Power Factor | >0.99 | |||||
EFFICIENCY | ||||||
Max Conversion Efficiency(Solar to AC) | 98% | |||||
TWO LOAD OUTPUT POWER | ||||||
Full Load | 3600W | 6200W | ||||
Maximum Second Load(battery mode) | 1200W | 2067W | ||||
Main Load Cut Off Voltage | 22VDC | 44VDC | ||||
Main Load Return Voltage | 26VDC | 52VDC | ||||
AC INPUT | ||||||
AC Start-up Voltage/Auto Restart Voltage | 120-140VAC/180VAC | |||||
Maximum AC Input Current | 30A | 40A | ||||
Nominal operating frequency | 50/60Hz | |||||
Surge Power | 7200W | 12400W | ||||
BATTERY MODE OUTPUT(AC) | ||||||
Nominal Output Voltage | 220/230/240VAC | |||||
Output Waveform | Pure sine wave | |||||
BATTERY & CHARGER | ||||||
Nominal DC Voltage | 24VDC | 48VDC | ||||
Max Charging Current(Solar to AC) | 120A | |||||
Maximum AC Charging Current | 100A | |||||
PHYSICAL | ||||||
Dimension, D x W x H (mm) | 420*350*110mm | 450*350*110mm | ||||
Net Weight (kgs) | 9 | 10 | ||||
INTERFACE | ||||||
Communication interface | WIFI | |||||

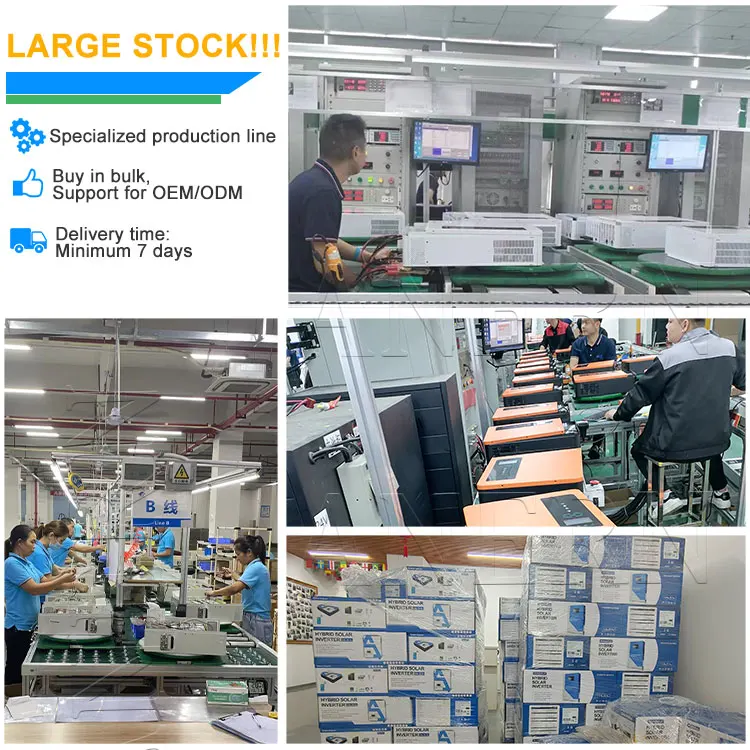

Anern Factory
Anern Group company, owning three factories, big production capacity, OEM/ODM available. Anern is a reputable and famous trademark in China and abroad. Business scope covering diversified models of solar panels, hybrid inverters, lithium battery, solar power systems, etc.

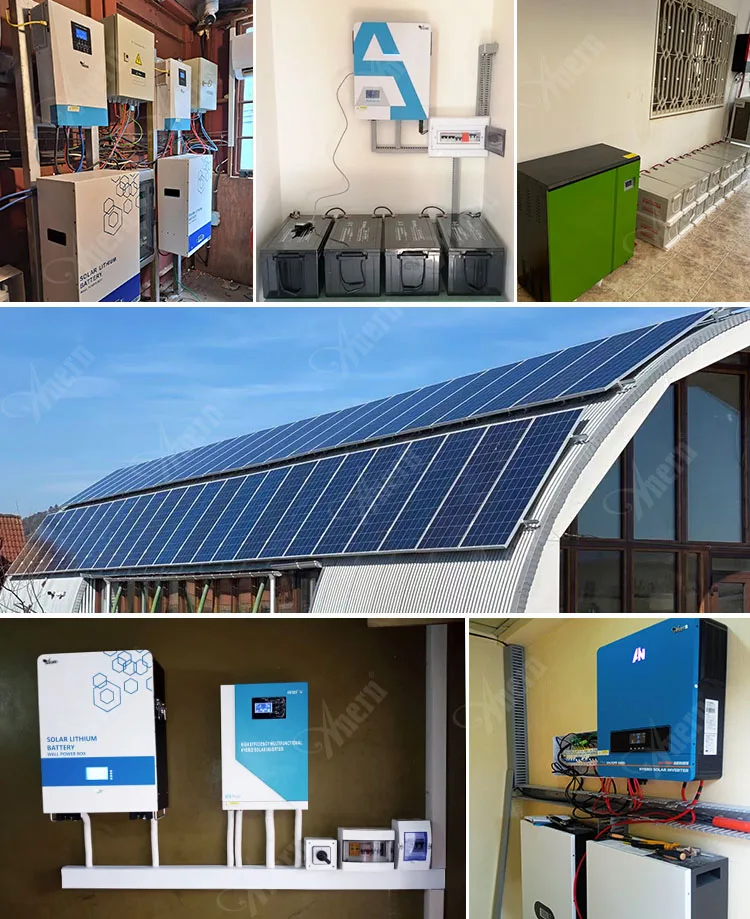

Our Project
One-stop new energy solution provider! we are the one of the most professional solar module manufacturers and whole solar energy system supplier. Anern has excellent after-sales service, with professional guidance for installation.
Certificate
Anern products are ISO9001, CE, ROHS,TUV, ISO, FC approved, meeting various certification requirements for different countries,Our products have been exported to more than 200 countries and regions.We also have participated in many important governmental projects over the world.
