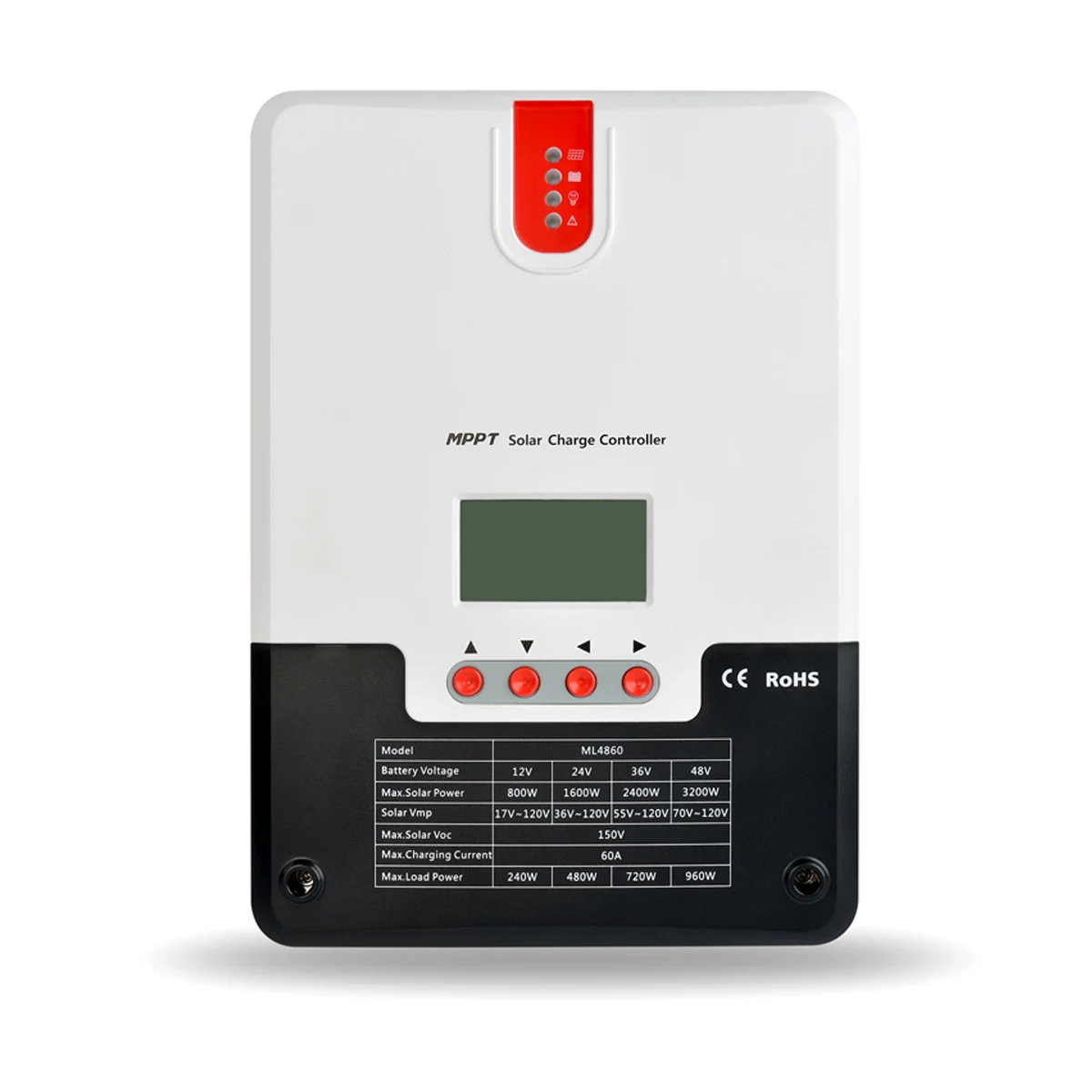

MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A
MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A

MPPT Solar Panel System Charge Controller 20A, 30A, 40A ,50A, 60 amp 12V 24V 48V 60A

Share on (60802429478):


Price:$156.00 - $162.00

Quantity:


Product Overview

Description

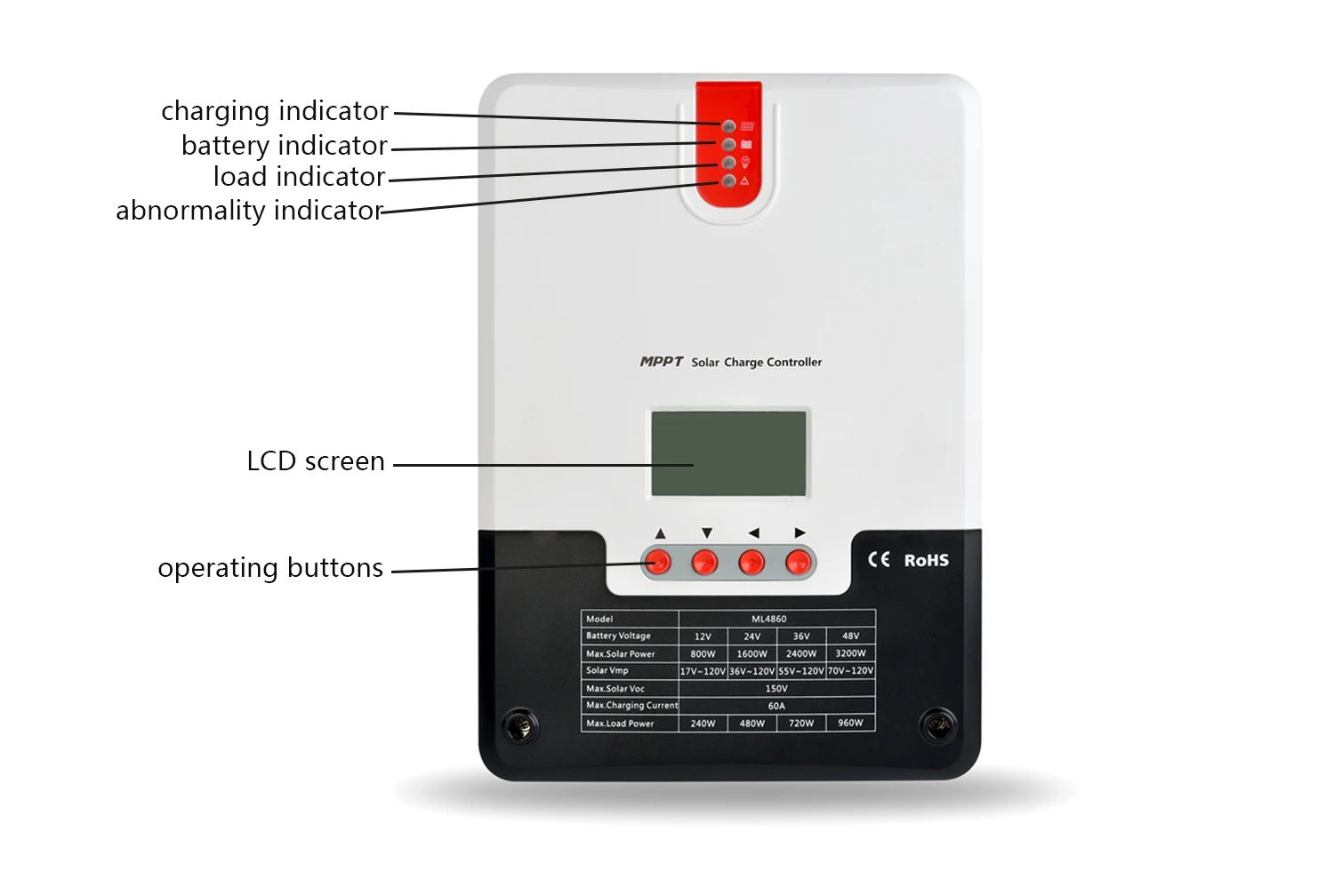

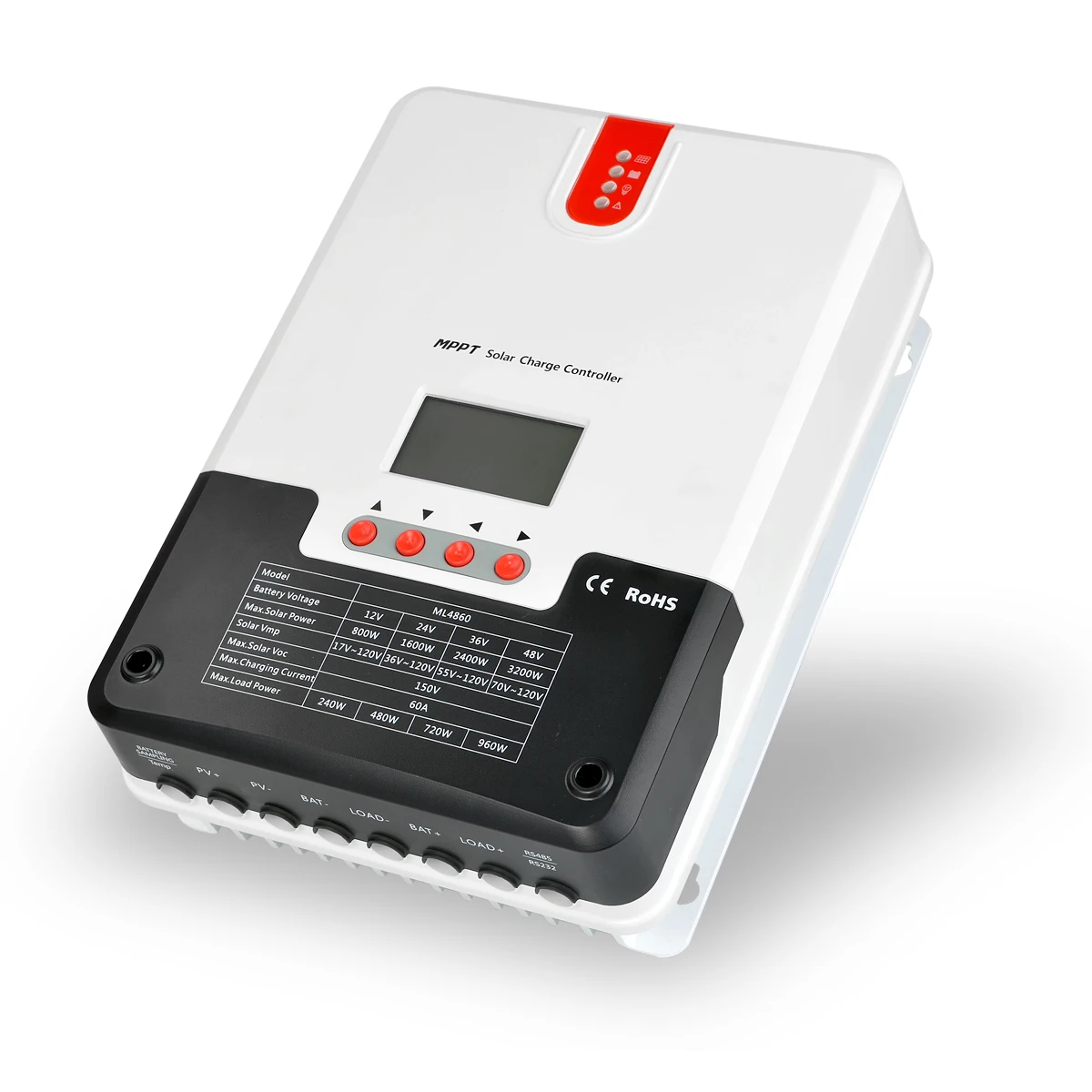

48V 60A MPPT Solar Charge Controller



















































































Product Model ML4860
System voltage12V, 24V, 36V, 48V auto
Battery voltage9V~70V
Max solar panel voltage150V(25°C), 145V(-25°C)
Max input power800W/12V, 1600W/24V, 2400W/36V, 3200W/48V
Max capacity load capacity10000uF
No-load loss0.7W-1.2W
Charging current60A
Discharging current20A
Conversion efficiency≤98%
MPPT tracking efficiency>99%
Operating temperature-35°C~+45°C
Temperature compensation factor-3mv/°C/2V(default)
Waterproof IP32
Communication methodRS232/RS485
Altitude≤3000m
Product dimensions285x205x93mm
Weight3.6kg

60A-





-_02

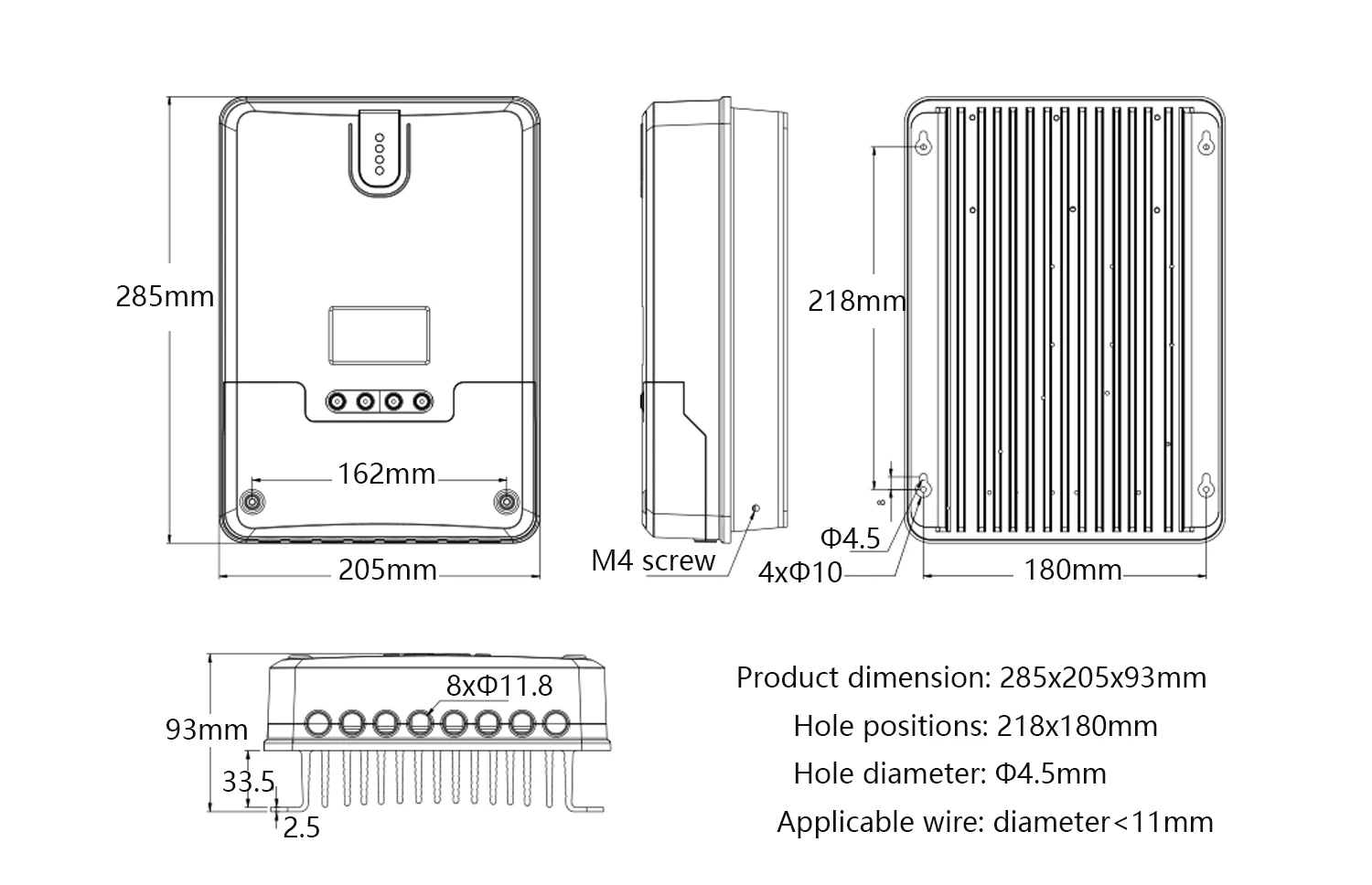

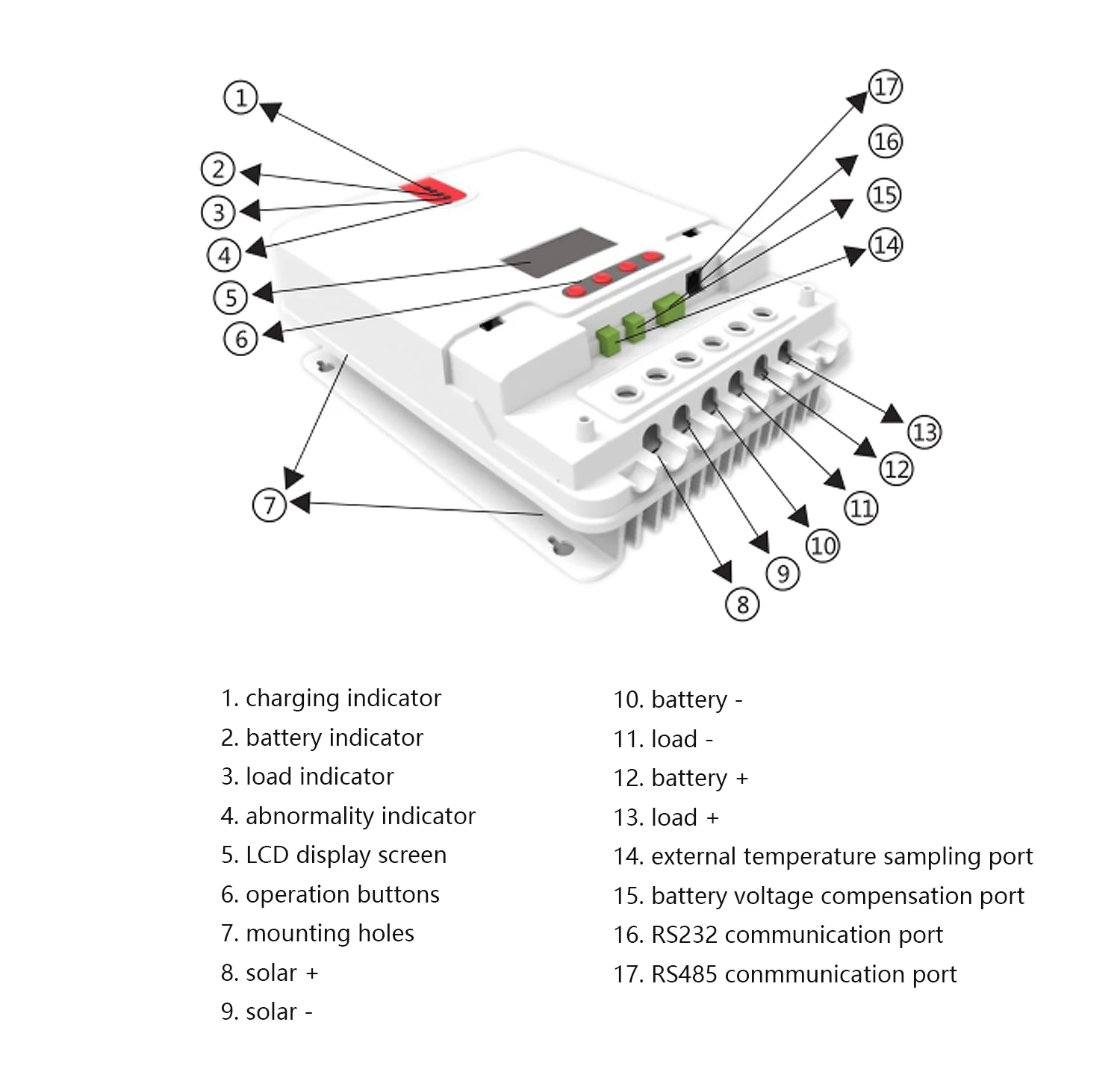

1- 4860 2 - 4860 MPPT 4860 dimension

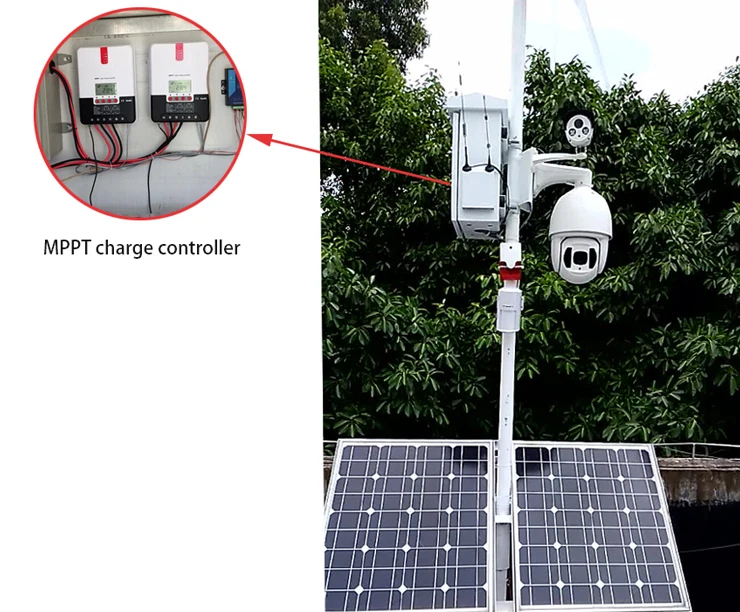

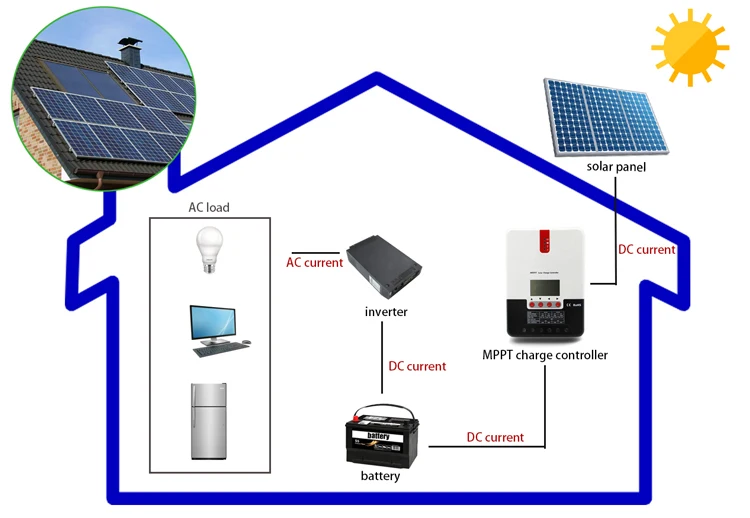

application homeapplication outdoor

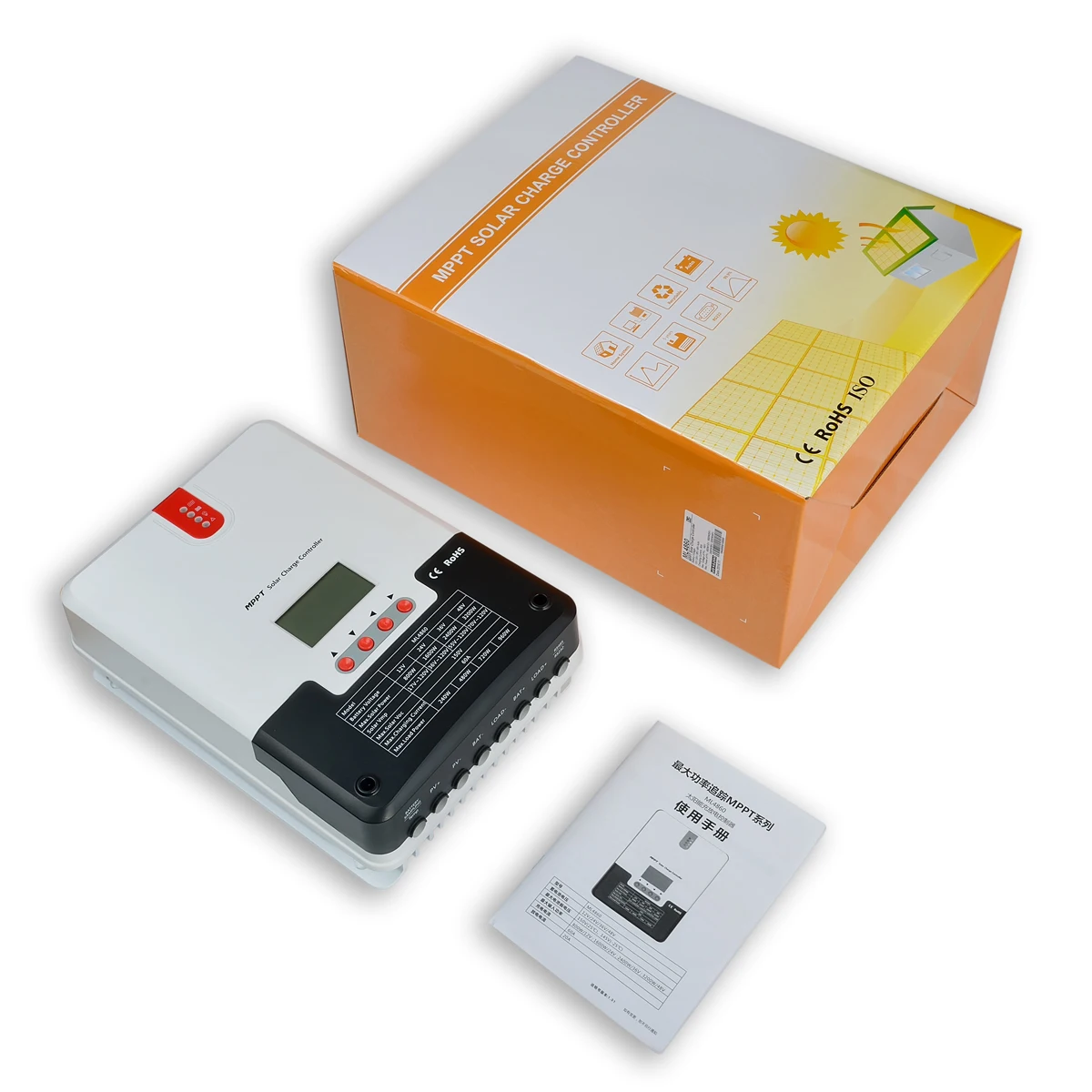

packing-_10-_09-_08-_12
