M8 Connector Short Body Inductive Proximity Sensor Switch NPN/PNP 5V/12V/24VDC Metal Detector IP67 Water Resistant (IBEST)

Product Overview

Description

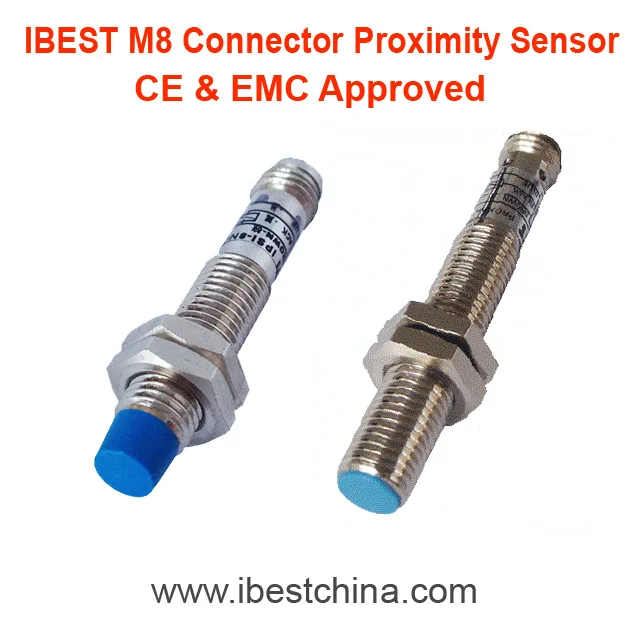

IBEST M8 Connector Inductive Proximity Sensor/Switch

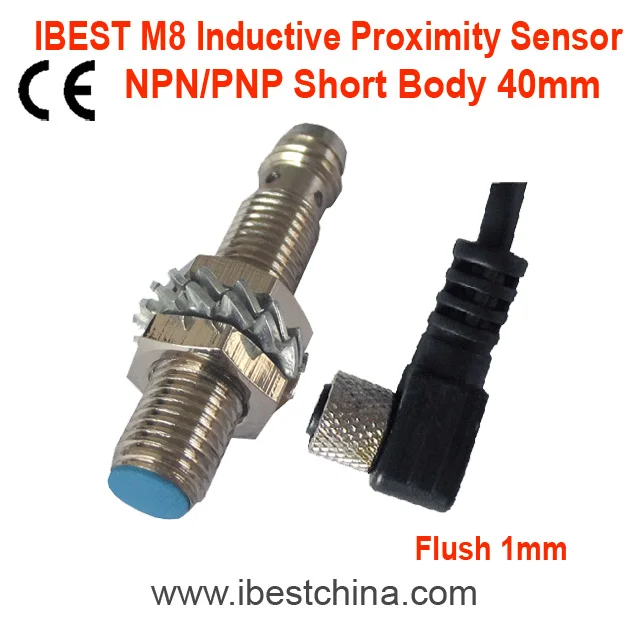

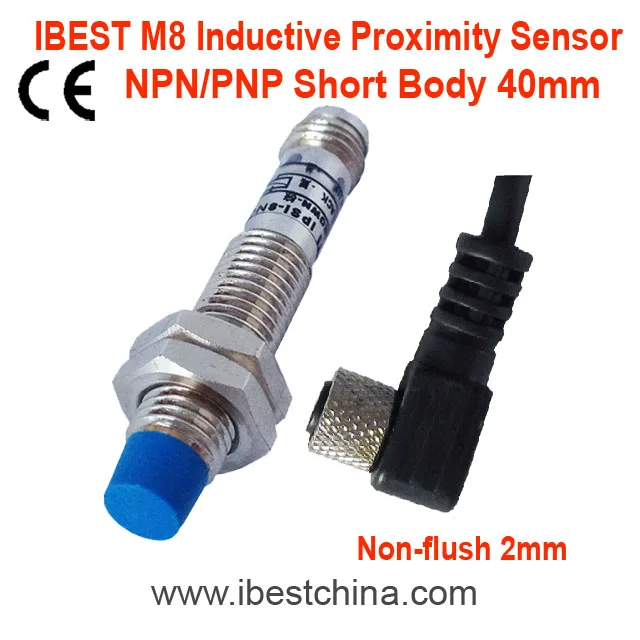

Short Housing Body 40mm / PNP or NPN NO or NC output



1.Features:
*     M8 Cylinder size, M8*1mm thread .

*     With M8 connector, short body, housing=40mm.
*     Power: 10-30V DC. (or DC5V special ordered)

*     NPN or PNP output, NO or NC output optional.

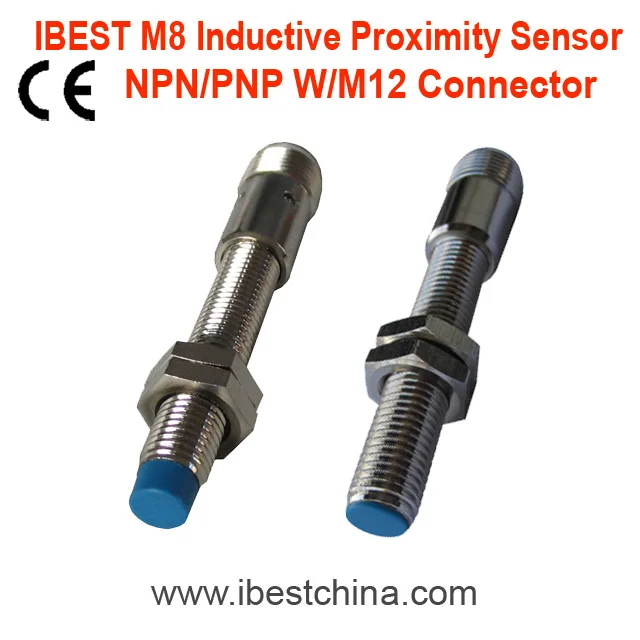

*     Connection mode: 3 wire cable or 3 pin connector. (with M8 connector or M12 connector)
*     Mounting distance: shielded (1mm), unshielded(2mm). (Extended double distance can be specially ordered)
*     With LED operation indicate lamp, easily identifiable
*     Brass chrome plated, proof of oil, water acid, alkaline
*     Standard sensing object: iferrous metals;
*     Protection rate: IP67, water resistant
*     Over-current protection

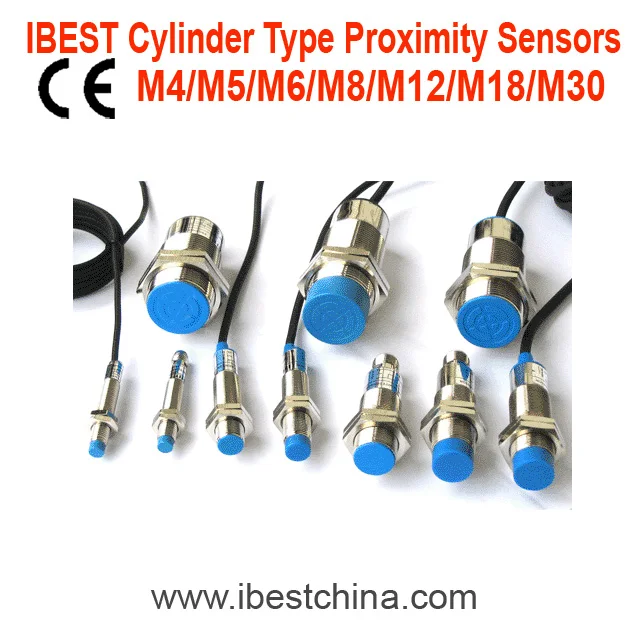

--    Various other shapes: M5/M6/M8/M18/M30, square types and pancake types.
--    Widely applied in measuring, Counting, Rpm measuring in mechanism, chemical, paper manufacture light industry, etc . --    Reliable quality to replace famous brands .



 2. Ordering Code:

odel and Type	Output type	Mounting distance	Cureent output	Power supply	Connector model	Buy
IPS-8NO1A-S	NPN NO	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8NC1A-S	NPN NC	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8NO2A-S	NPN NO	2mm,unsheilded	≤100mA	DC 10-30V	3 Wire
IPS-8NC2A-S	NPN NC	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPSI-8NO1A-S	NPN NO	1mm,shielded	≤100mA	DC 10-30V	M18 Plug-in connector
IPSI-8NC1A-S	NPN NC	1mm,shielded	≤100mA	DC 10-30V	M8 Plug-in conne
IPSI-8NO2A-S	NPN NO	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI(L)-8NC2A-S	NPN NC	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPS-8PO1A-S	PNP NO	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8PC1A-S	PNP NC	1mm,shielded	≤100mA	DC 10-30V	3 Wire
IPS-8PO2A-S	PNP NO	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPS-8PC2A-S	PNP NC	2mm,unshielded	≤100mA	DC 10-30V	3 Wire
IPSI-8PO1A-S	PNP NO	1mm,shielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI-8PC1A-S	PNP NC	1mm,shield	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI-8PO2A-S	PNP NO	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector
IPSI-8PC2A-S	PNP NC	2mm,unshielded	≤100mA	DC 10-30V	M8 Plug-in connector

 3.Technical specification:

Property project	Specific parameter
Mounting distance	shielded (1mm)/unshielded(2mm)
Sensing distance	shielded(0-0.8mm)/unshielded(0-1.8mm)
Power supply	DC 10-30V
Frequency	≤1KHz
Current output	≤100mA
Ambient temperture	-15°C~+65°C
Protection	over-load/short circuit protection
IP rating	IP67 Water resistant

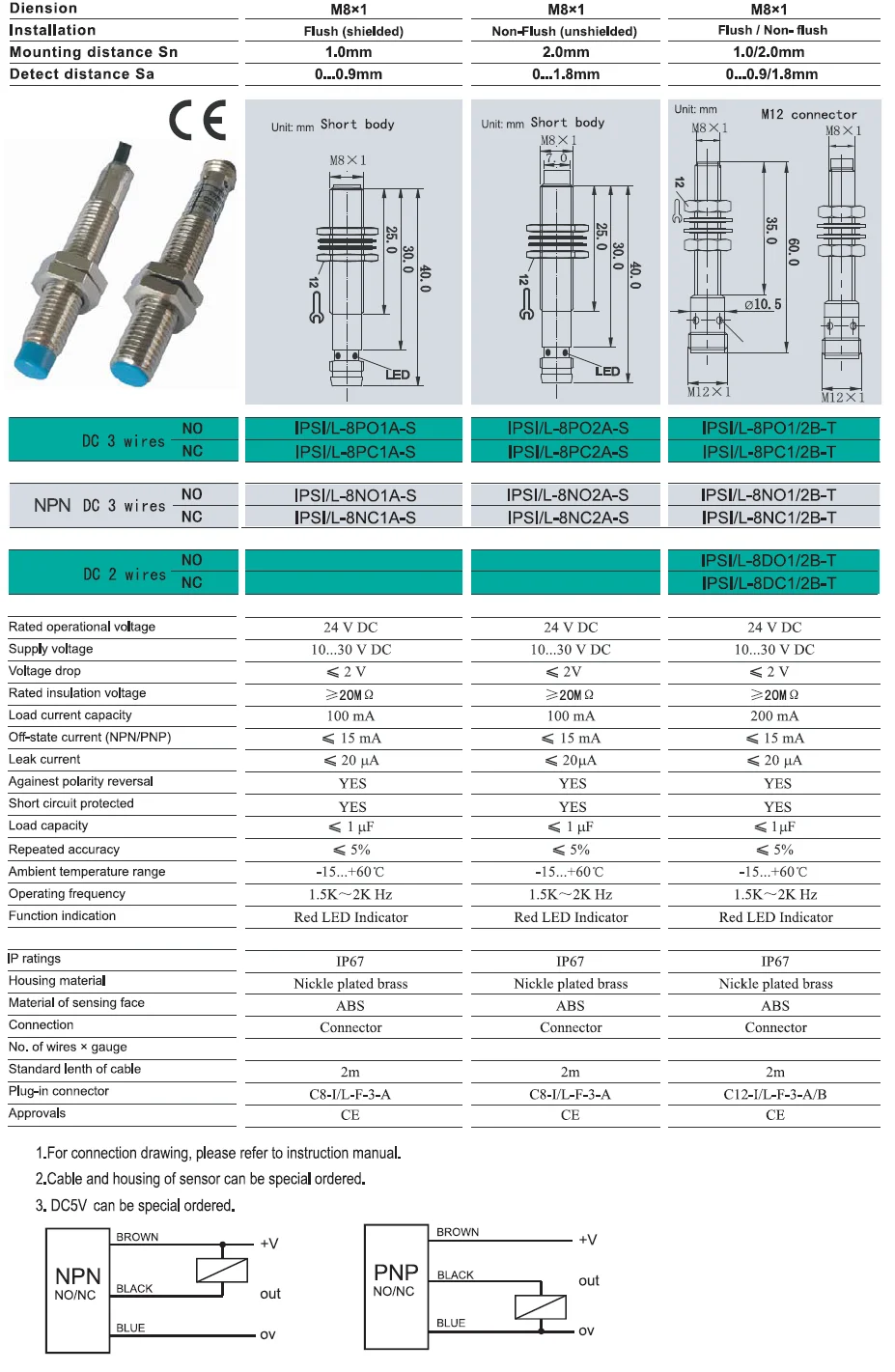

 4. Dimensions & Size & Specifications:
