| H55 LGA1156 DDR3 MOTHERBOARD |
| Processor (CPU) |
| Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors
/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package.
L3 cache varies with CPU. |
| Chipset |
| Intel® H55 Express Chipset |
| Memory |
| 2 x 1.5V DDR3 DIMM Sockets Supporting up to 8 GB of System Memory,
Support for DDR3 1600/1333 MHz Memory Modules. |
| Slots |
- 1 * PCI Express x16 Slot - 1 * PCI Express x1 Slot - 2 * PCI Slot
|
| Storage |
| - 6 * Serial ATA 2.0 devices |
| Internal I/O Connectors |
| - 1 * 24-pin ATX Power Connector
- 1 * 4-pin ATX 12V Power Connector
- 2 * USB Connector Support Additional 4 USB Ports
- 1 * Front Panel Audio Connector
- 1 * System Panel Connector |

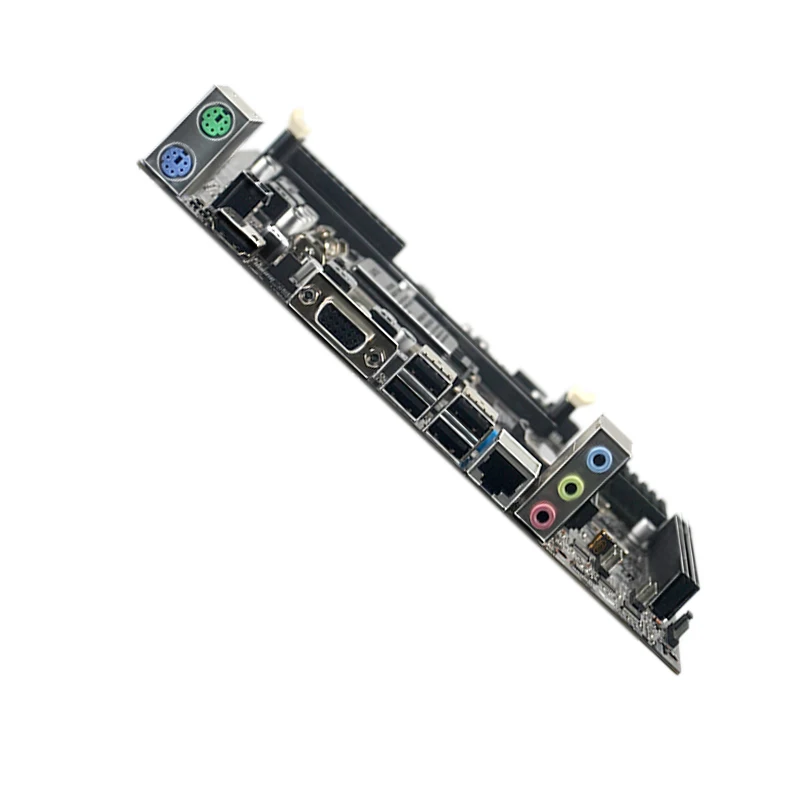

| Back Panel I/O Ports |
| - 1 * PS/2 Mouse & Keyboard
- 1 * VGA
- 1 * HD
- 4 * USB 2.0
- 1 * LAN Port (RJ45)
- 3 * Audio Jacks |
| LAN |
| Realtek® GbE LAN Chip (10/100/1000 Mbit) |
| Audio |
| Chip Integrated by Realtek ALC661, Supports 5.1-channel Audio-out |
| Form Factor |
| - Micro ATX (235*168 mm) |
| Accessories |
| - User Manual
- Drive CD
- SATA Cable
- Baffle |
