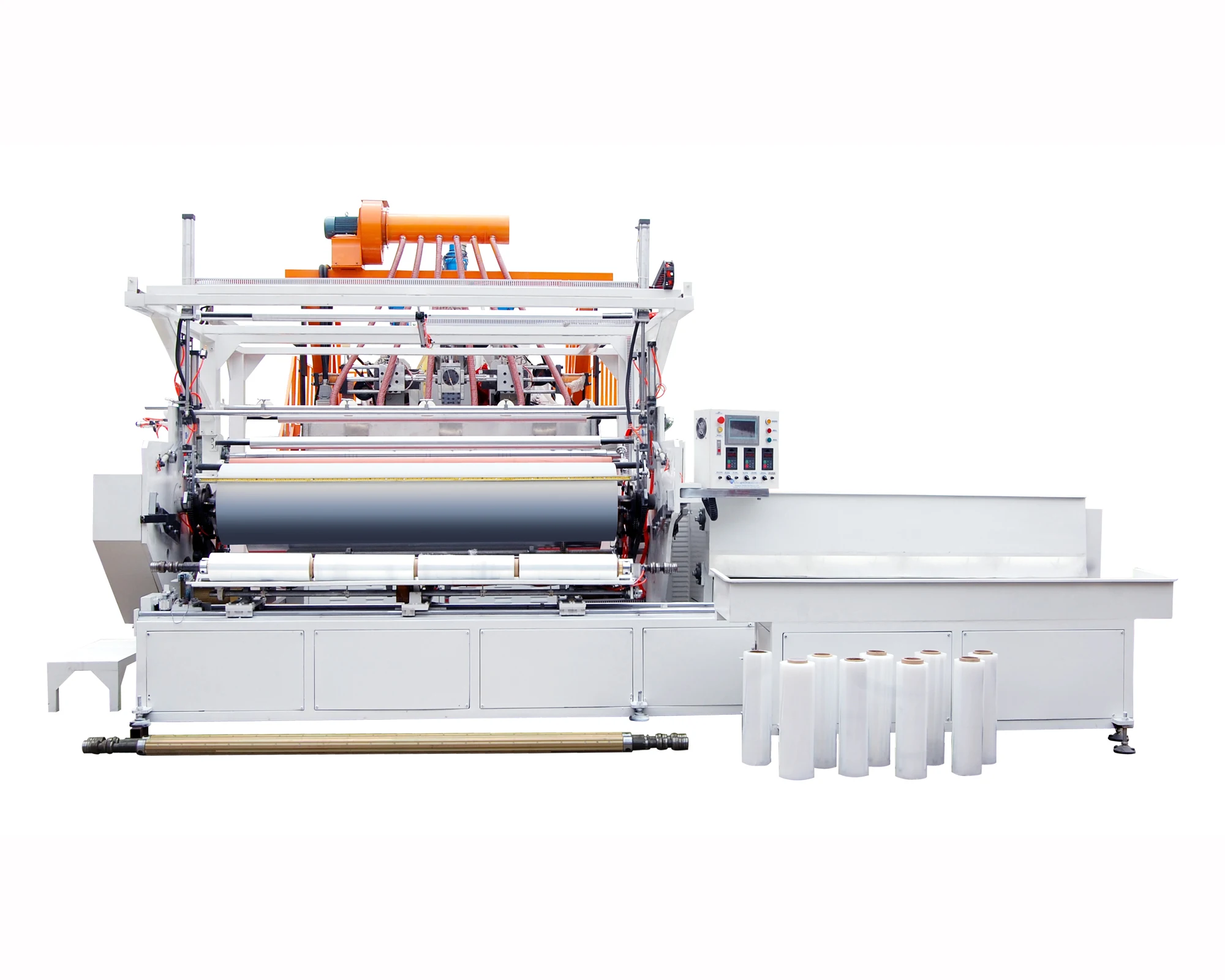

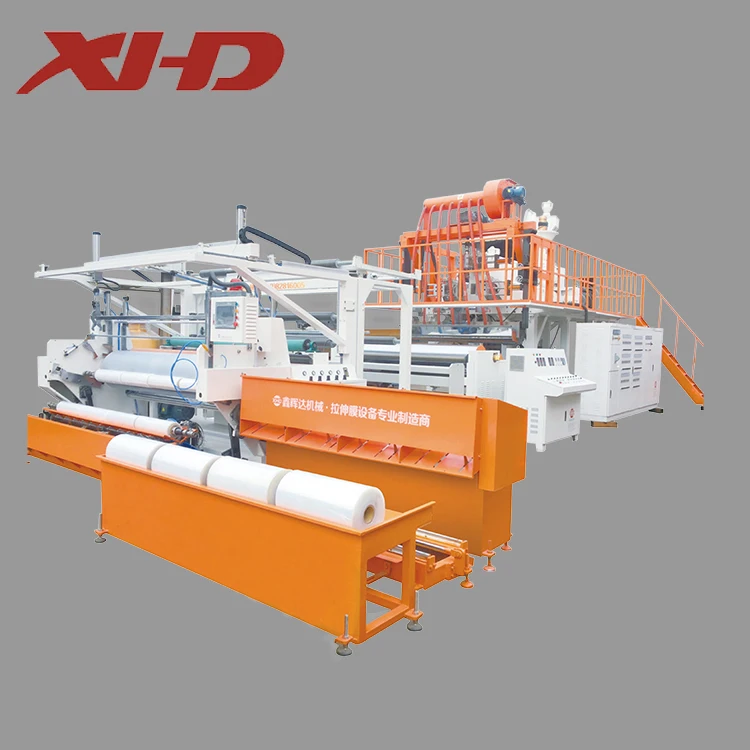

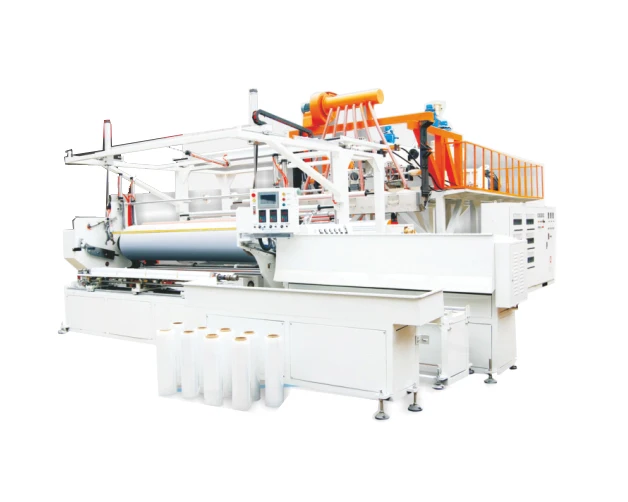

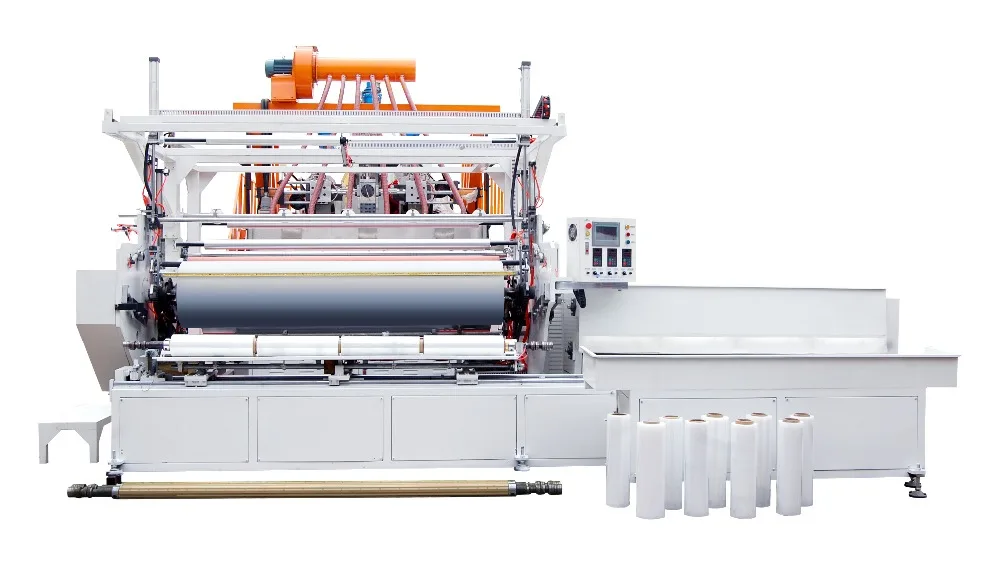

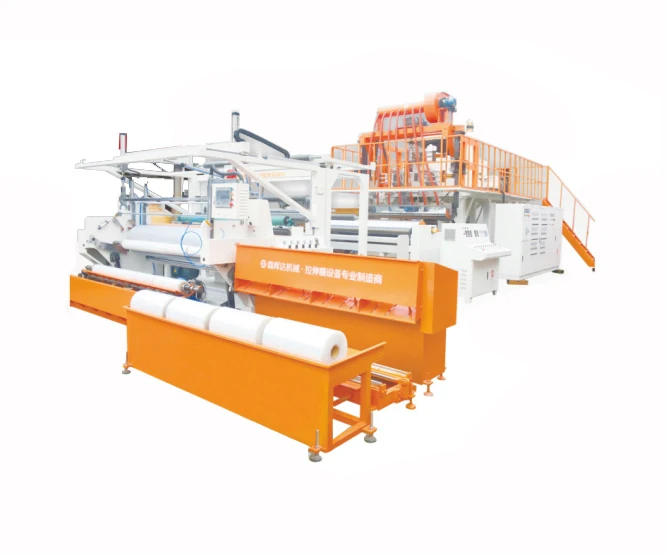

2000mm 3 layers 5 layers cast production line for stretch film
- Category: >>>
- Supplier: Guangdong Xinhuida Machinery Technology Co. Ltd.
Share on (60802607271):
Product Overview
Description
Fully automatic PE stretch film production line stretch film making machine
Product Description
HD picture
Parameters of fully automatic PE film making machine
No. | Item | Specs | Remarks |
1 | Voltage/Frequency/Phase | Customized | / |
2 | Total Installation Power | 220 KW | For the machine only. |
3 | Consumption Power | 160 KW | For the machine only. |
4 | Main Raw Material | LLDPE & MLLDPE | / |
5 | Thickness of Film | 10-50 μm | tolerance≤±5% |
6 | Width of the Useful Film | 2000 mm/4×500 mm | / |
7 | Film Layer Structure | ABC or ACBCA | ratio: 30%40%30% |
8 | Designed Linear Speed | 200 M/min | / |
9 | Output | 65-350 Kg/h | / |
10 | Dimensions (L×W×H) | 14×4.8×4.5 M | for ref. only |
11 | Gross Weight | 15000 Kg | for ref. only |

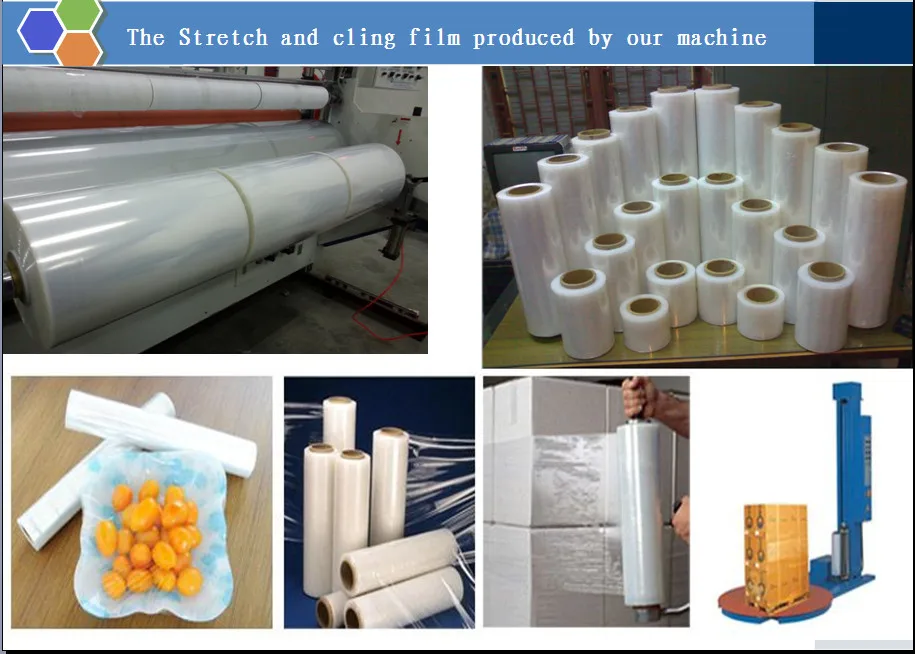

Films produced by stretch film making machine
ILLUSTRATION

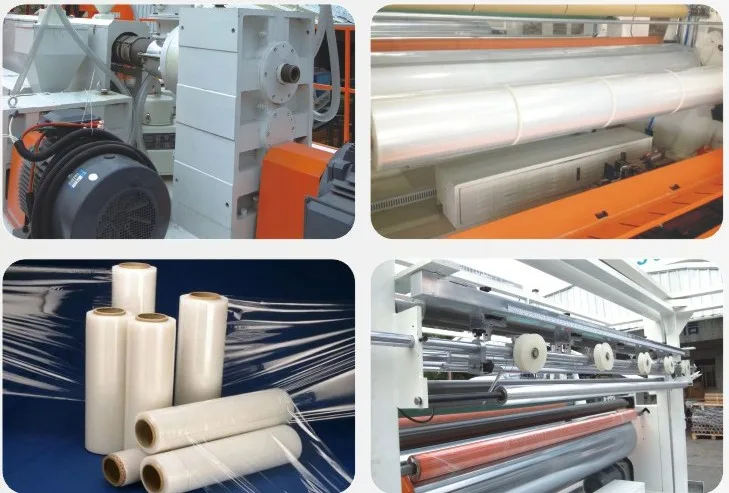

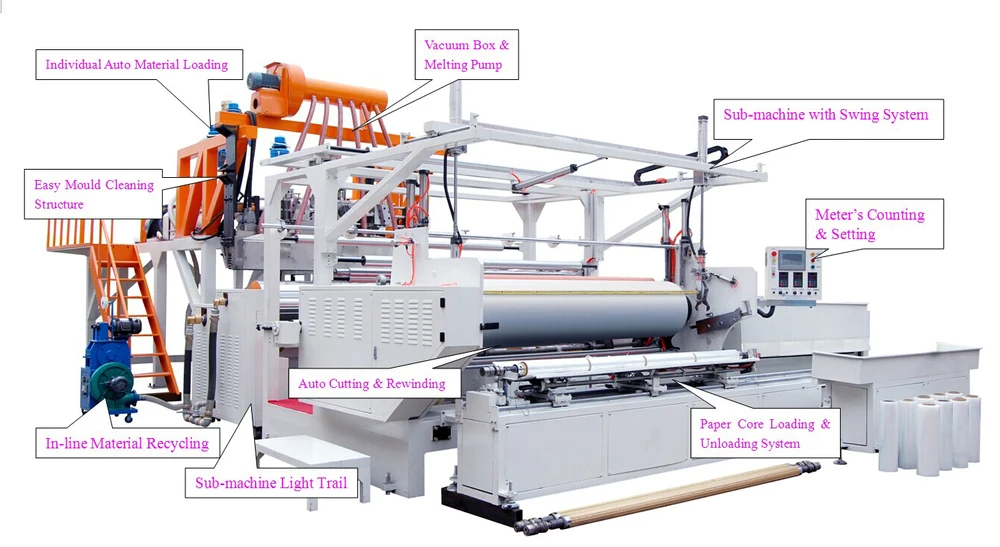

Details of the fully automatic PE stretch film making machine
Features of fully automatic PE stretch film making machine
1. High output due to
> high plasticization design alloy screws;
> imported static mixer;
> high quality T-die which is made of imported top quality mould steel.
> high speed winding design
2. Quality Films due to
> cooling rollers with two-way circulation design and built-in spiral flow;
> advanced torque motor with four-axis automatic tension control;
> quality edge pinning system & swinging system.
3. Energy Saving (30% less than competitors’ machine) due to
> imported inverter and good system design.
Related Products
Packaging & Shipping
Packing information for customer's reference
>1. Packed with stretch film;
>2. The machine is fastened to the walls of the container;
>3. Dimensions: 14X4.8X4.5 M;
>4. Gross weight: 15 T;
>5. Containers needed: 1X40 HQ+1X20 GP.

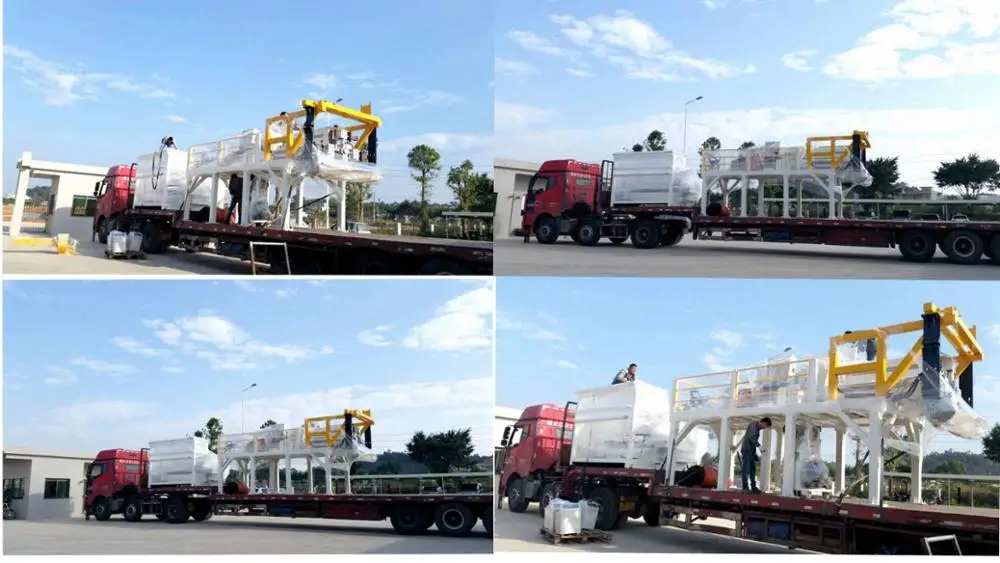

Pictures of loading & shipping
Customer cases
XINHUIDA had sold High Quality Cast Pe Stretch Film Extrusion Line all around the world.
We can provide our customer information for your evaluation!
You can even visit our customers' factories to check the machine running!
Our Services
>1. 24 hours after-sale hot line 400-833-5568.
>2. High quality stretch film recipe free sharing.
>3. 1 year warranty for all system and free technology support.
>4. Engineer dispatched to install the machine with travelling cost borne by the buyer.
Company Information
Established in 2000. With years’ experience in stretch film making machine & cling film making machine manufacturing.
Avenue in 2014: around 60 million RMB (US$ 10 million)
Domestic market share: 40%
Exported machines to 50+ oversea cities
No. of technicians: 30+
No. of sales team: 10
No. of after-sale service team: 10
About XHD Machinery
Exhibitions and certificates
FAQs
>1. Q: Can your machine produce other kinds of film?
A: Yes. Our machine also can produce:
>silage film machine
>2. Q: What's the thickness arrange of the film produced by your machine?
A: For stretch film, the thickness is from 0.01mm to 0.05 mm;
For cling film, the thickness is from 0.008 to 0.01 mm;
For silage film, the thickness is from 0.012 to 0.05 mm;
Please note, the thickness of silage film sold in the market is 0.015 to 0.035 mm.
>3. Q: Can we customize some components of the machine?
A: Yes.
Most of our components are from China or worldwide famous suppliers.
You don't have to worry about the replacement of broken parts or the after-sale service.
>4. Q: When can you send the engineers for installation, debugging and training of our workers.
A: It depends, but we usually arrange the engineers before the shipment.
The buyer can have his machine running once he receive it.
We also have some agents around the world to provide installation service or technical support.
All traveling cost of the engineer the such as air tickets, food and shelter cost will be borne by the buyer.
....
