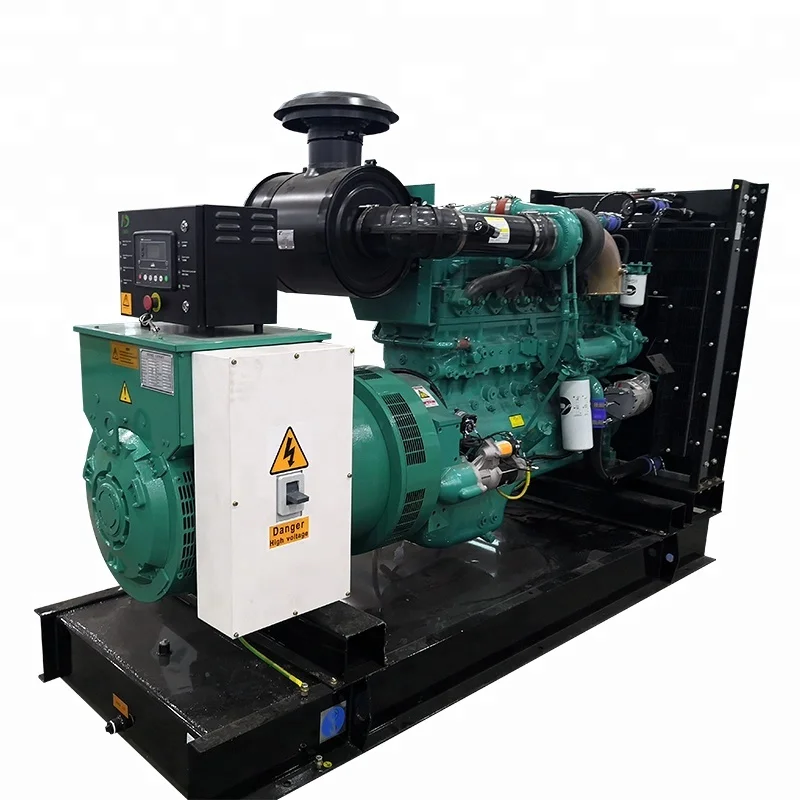

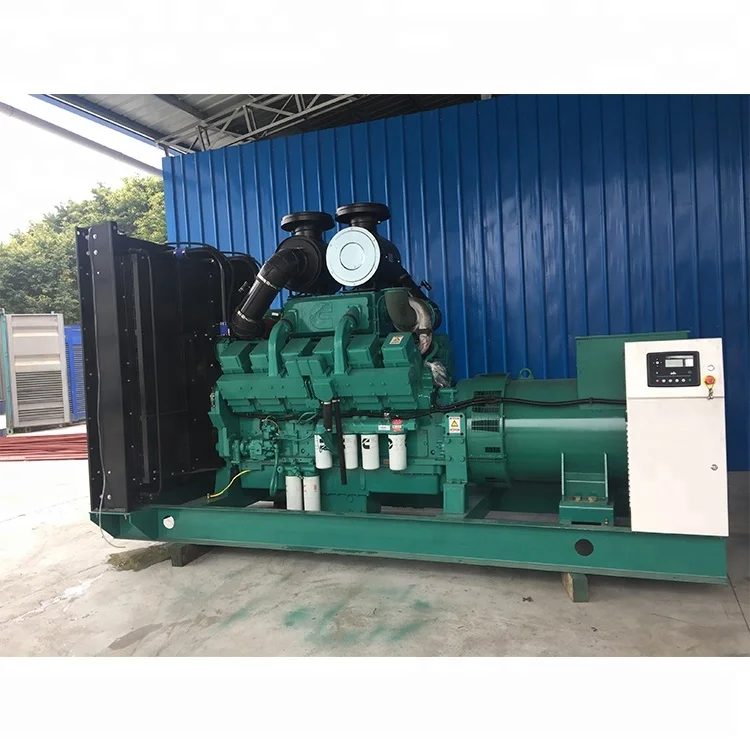

Factory price high quality 880kw silent diesel generator with Cum mins engine passed ISO and CE
- Category: >>>
- Supplier: Camda New Energy Equipment Co. Ltd.
Share on (60802646474):
Product Overview
Description
Factory price 880kw silent diesel generator with Cummins engine from china
Ratings
Standby Power | kVA | 1100 |
kW | 880 | |
Prime Power | kVA | 1000 |
kW | 800 | |
Voltage type | 50Hz,380/220V, 3 phases and 4 wires | |
Performance Data
Engine Brand & Model | Cummins KTA38-G5 |
Alternator Brand & Model | Leroy somer LSA49.3L10 |

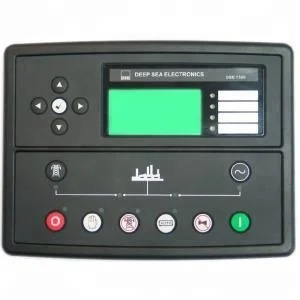

Control System | Deepsea DSE6120 |
Standard Noise Level@7m (Soundproof Sets) | 80 dBA |
Circuit Breaker Type | 3 Poles MCCB |
Frequency & Phase | 50Hz, 3Phases + 4Wires |
Engine Speed (RPM) | 1500 |
Fuel Consumption (L/hr) 100% Load
| 209 |
Dimensions and Weights
Content | Open type | Soundproof Sets | |
Dimensions: (mm) | L | 4500 | 6058 |
W | 2080 | 2438 | |
H | 2480 | 2591 | |
Weights (kg) | 7350 | 12435 | |
Standard Cummins Engine Data: Cummins KTA38-G5
No. of Cylinders | 12 V |
Gross Engine Power(kW) | Prime | 880 |
Cycle | 4 Stroke | Standby | 970 | |
Bore / Stroke | 159mm / 159 mm | Compression Ratio | 13.9:1 | |
Induction | Turbocharged and Air-air cooled | Displacement (L) | 37.8 | |
Cooling Method | Charge Air Cooling | Governing Type | Electronic | |
Starting method | 24V DC motor | Coolant capacity, not including radiator (L) | 124 | |
Lubricant Oil | 15W40-CF4 or above grade | Lube System Capacity(L) | 135 | |
Standard Leroy Somer Alternator Data:LSA49.3L10
Continuous power | 1000kVA/800kW | Efficiencies(%) | 95 |
Power factor | 0.8 | Insulation class | H |
Excitation system | self-excited | Temperature rise | 125K |
A.V.R. | R450 | Enclosure protection | IP23 |
Voltage regulation | ± 0.5 % | Winding leads | 6 |
Bearing number | 1 bearing | Ambient temperature | 40°C |
