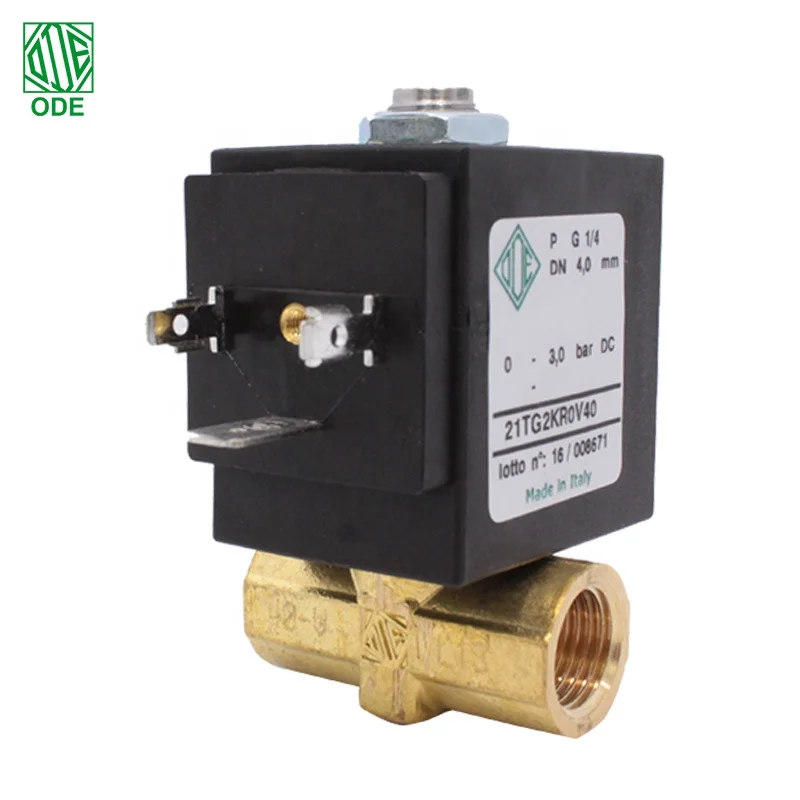

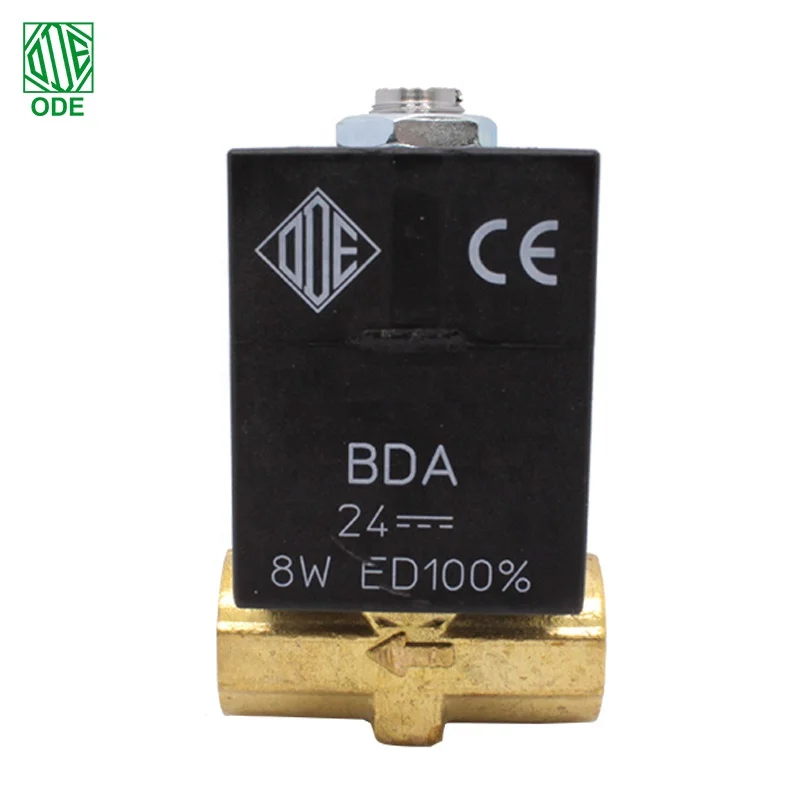

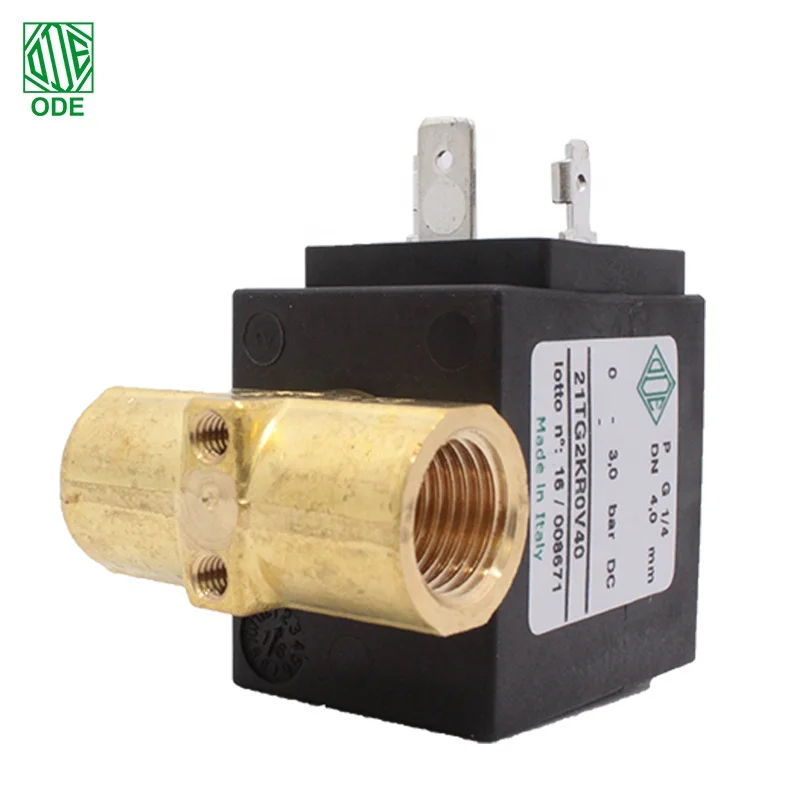

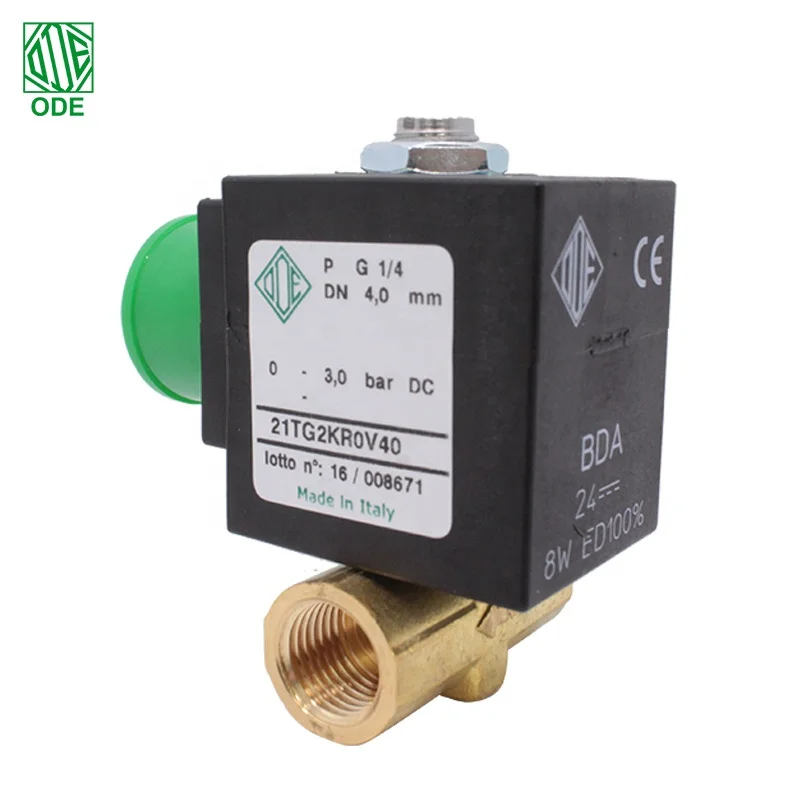

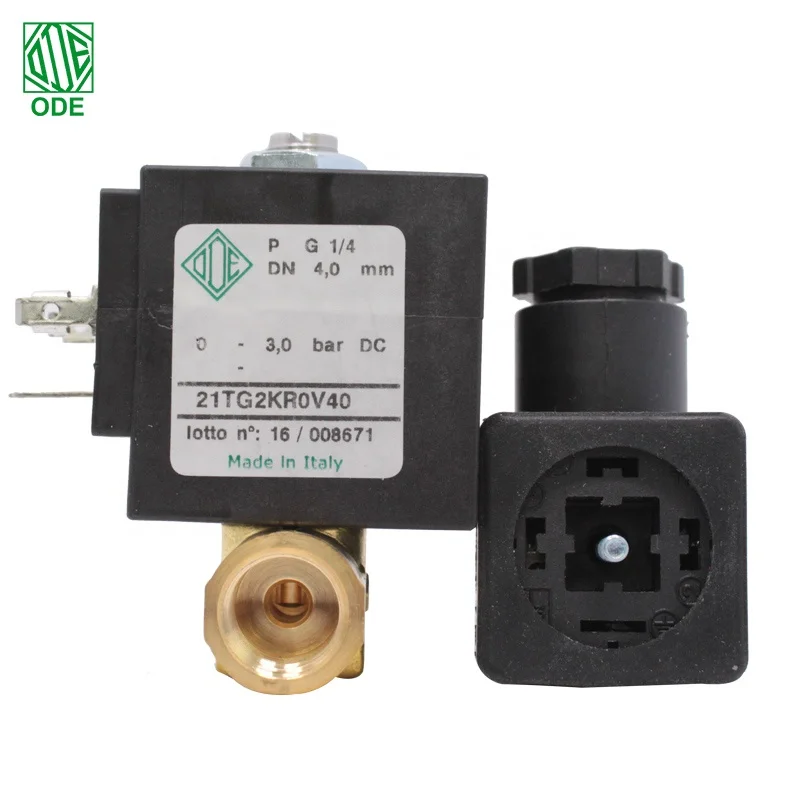

Wholesale Italy ODE 21TG2KR0V28/21TG2KR0V40 General purpose solenoid valves

 FEATURES

1. Compact design
2. Minimim pressure is not required
3. Version DVGW approved for gas application

TECHNICAL SPECIFICATION

1. Body material: Brass UNI EN 12165 CW617N
2. Armature tube: Brass UNI EN 12165 CW617N
3. Plungers: Stainless Steel AISI 400 series
4. Spring: Stainless Steel AISI 300 series
5. Media: mineral oils, gasoline, diesel, fuel oils, water, air, inert fluids, inert gases,combustible gases
6. Ambient temperature: See coils catalogue page for its compatibility
7. Fluid temperature: -10°C +140°C with seals FKM
                                  -10°C +90°C with seals NBR
8. Working temperature for S.V. approved: -15°C +80°C
9. Design pressure PS: 30 bar
10. Protection class: IP 65 (complete with electric plug)
11. Electrical conformity: IEC 335
12. Switching time: 20 msec (depending on pressure conditions)

AVAILABLE ON REQUEST

 Explosion proof coil Ex nA (see Atex section)
