Horizontal votator for margarine/ puff pastry margarine/ table margarine

Product Overview

Description

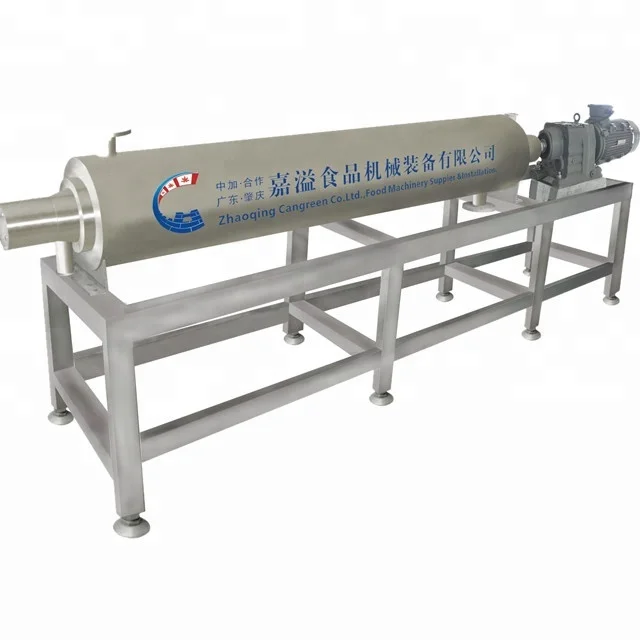

Top quality horizontal votator

for margarine/ puff pastry margarine/ table margarine





Product Description



Our SSHE could be used as a heater using steam inside the jacket or chiling using either chilled water or direct refrigerant evaporative cooling.The process of heating and sterilization is continuous and stable. The effiency is 3-5 times higher than other similar products. It's not only suitable for low viscosity fluid as well as high viscosity fluid or granular fluid with sensitivity to heat exchanging.

The SSHE can achieve instant high temperature sterilizaiton and quick cooling, meanwhile, avoid surface charring and liquid crystallization when dealing with high viscosity materials.

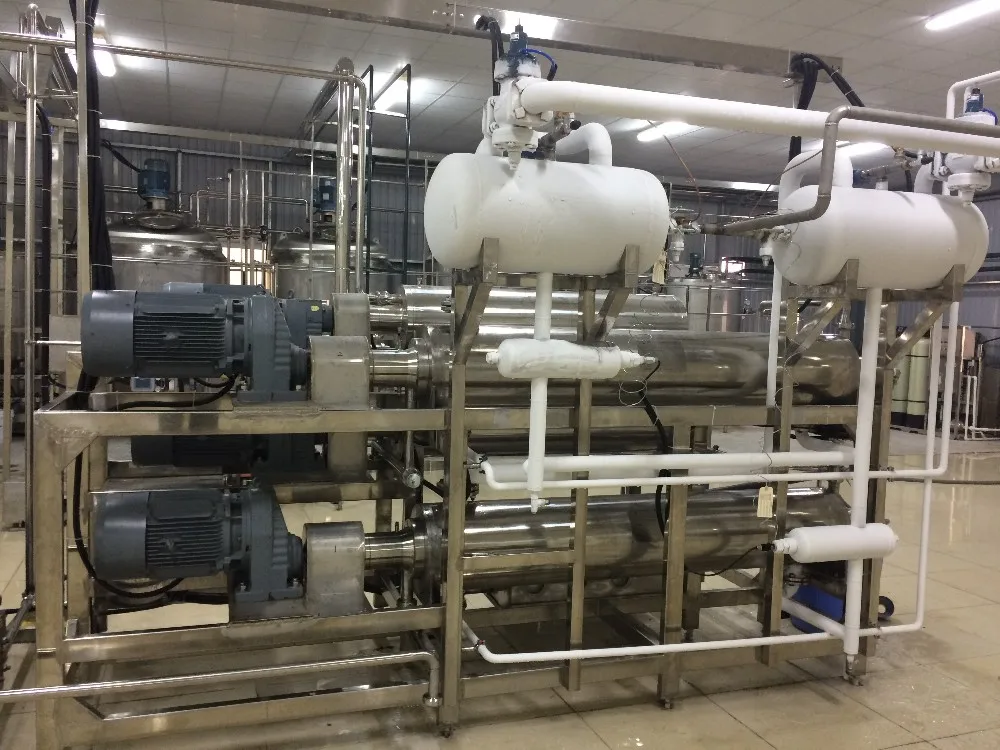

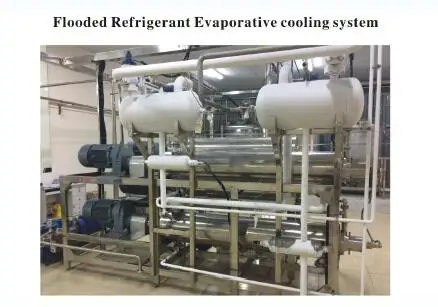

 The SSHE oil slurry exit temperature is directly controlled by the direct evaporative cooling system for precise process control. Flooded direct evaporative cooling is much more efficient than normal cooling using thermal expansion valve. Boiling effect with the heat transfer surface submersed in liquid refrigerant significantly increase the heat transfer by several times. The system consists of liquid refrigerant level control  (Parkers LMC liquid controller), evaporation pressure regulating valve (Parkers refrigerant valve), sophisticated computer control module and electronic components. The system is perfectly designed for ammonia or Freon for safety and reliabity.

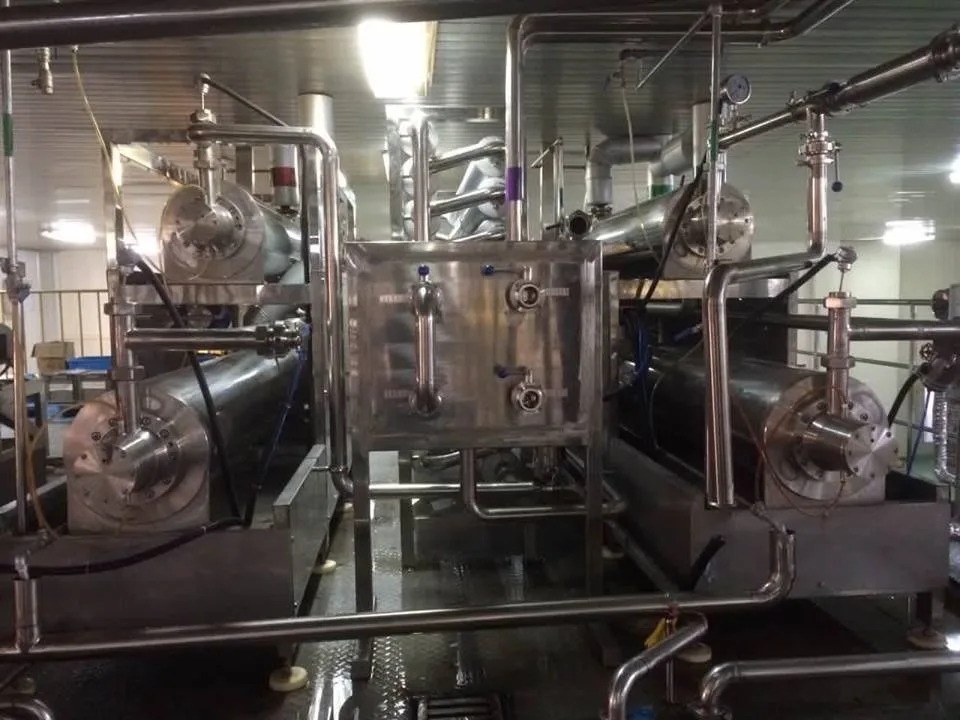

Detail Image





Structure Diagram

Product Spercification

All product contact parts are made of stainless steel. Standard blades are made with long lasting PEEK or inexpensive POM.

Mechanical seal and scraper blades are typical interchangeable parts.Each rotating shaft is concentrically mounted within the cylinder and has 4 rows of floating type scraper blades in a maximum configuration.



Application

Proud to serve food processing industries including margarine, shortening, puff pastry margarine, ghee, custard cream, peanut butter, tomato paste, banana paste, dipping sauce, non-diary cream, ice cream and flavor spreads etc.



Company Information

• Located in Zhaoqing, Guangdong, P.R China, Cangreen.Co.Ltd., Food Machinery Supplier& Installation is a top leader in the highly specialized field of equipment for processing margarine/ shortening since 2006.
•   We manufacture all major equipment with advanced and dedicated CNC, computer-controlled automatic machinery.
• Sold over 100 margarine/shortening production lines in China, including brand names like Unilever China, Fuji Oils China, and China Cereals and Oils.
• Sold overseas countries including the US, New Zealand, Russia, Indonesia, Vietnam, and Eastern Block countries, etc.
• Our company success is built on honesty and innovation in selling low-cost equipment manufactured in China and designed with advanced western knowledge.

OUR SERVICE

• Turnkey complete line for one-stop shopping and complete guarantee of all items supplied.
• All major equipments are manufactured to meet customer requirements.
• We have experienced teams to assist in field installation, testing, commissioning and training for our customers to help ensure the product QUANTITY & QUALITY.
• The complete line will be layout and set up in our China factory available for customer’s factory acceptance test at no extra charge.
• Changes and modifications will be made prior to shipping to customers.
•  A complete one year warranty to our equipment with free replacement.
