DTECH high frequency HD 1080p vga to hdmi audio video data converter

Product introduction

VGA to HDMI signal converter, can convert VGA analog video signal and 3.5 mm stereo audio signal to HDMI digital signal, make ordinary DVD, video cameras and other analog audio and video signals to high-definition HDMI output, facilitate connection with LCD TV, HD display, etc.

Connection instructions

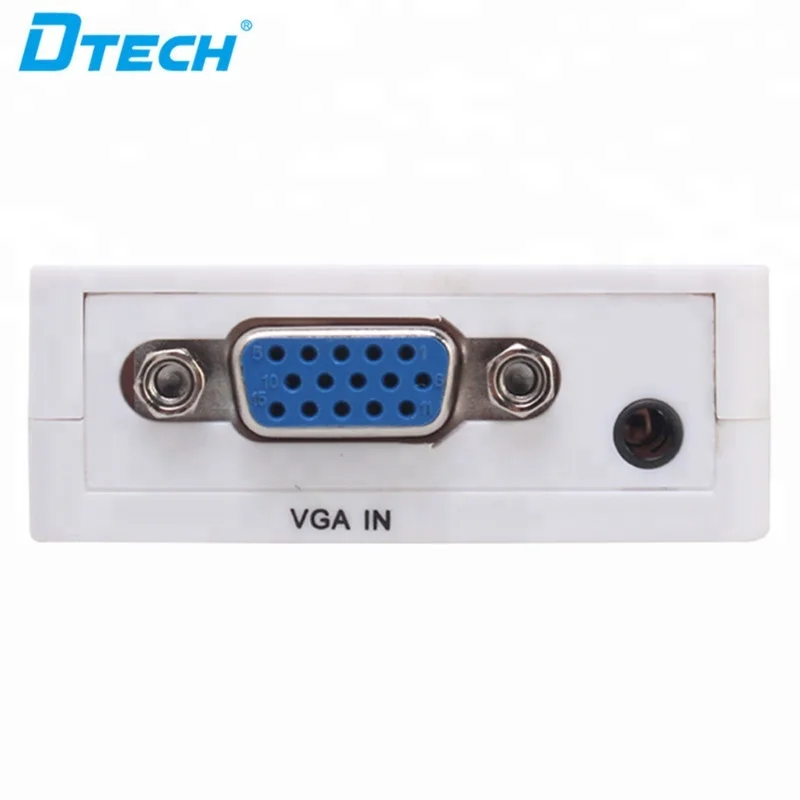

1. Connect the VGA cable  and 3.5 mm audio cable to "VGA IN”related devices, such as: desktop computers, laptops, etc.;

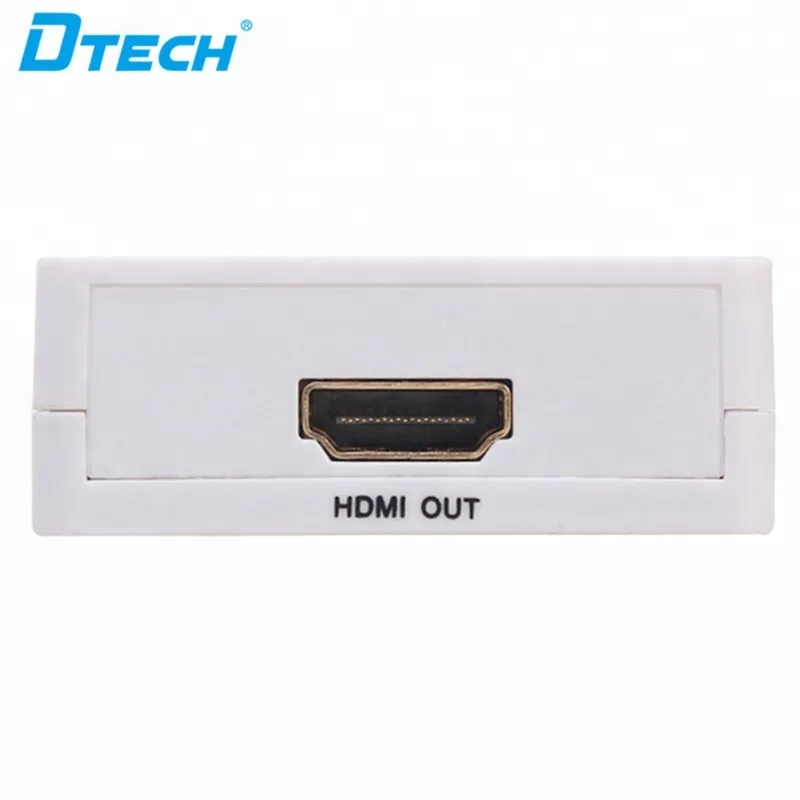

2. Connect the HDMI cable to the "HDMI OUT",  high-definition TV and other equipment;

3. If power supply is insufficient, can be externally powered through the Mini USB power supply interface;

Basic parameters

1, Input signal format: 800*600,1024*768,1280*720,1280*960,1280*1024,1360*768,1600*900,1920*1080

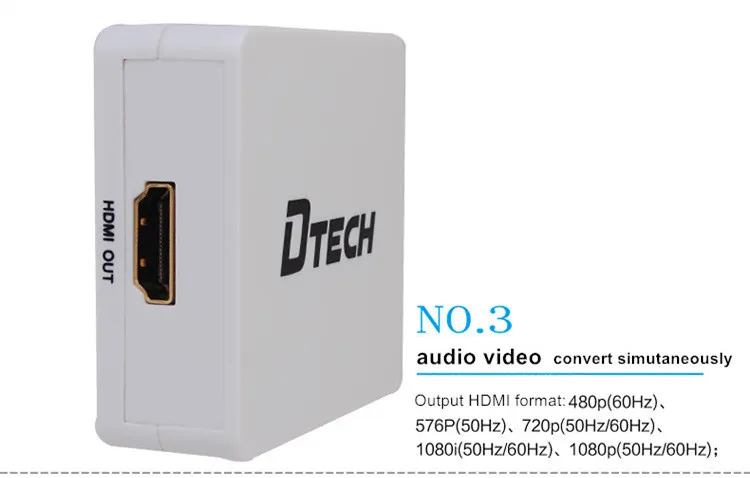

2, Output HDMI formats: 480p(60Hz),576P(50Hz),720p(50Hz/60Hz),1080i(50Hz/60Hz),1080p(50Hz/60Hz);

3, output video signal impedance: 75Ω.

4, working environment temperature: 25 ℃ ~ 75 ℃;

5, work environment humidity: 10% to 60%;

6, the product size: 66 * 55 * 20 mm (length*width*highly)

7, maximum working current 750mA

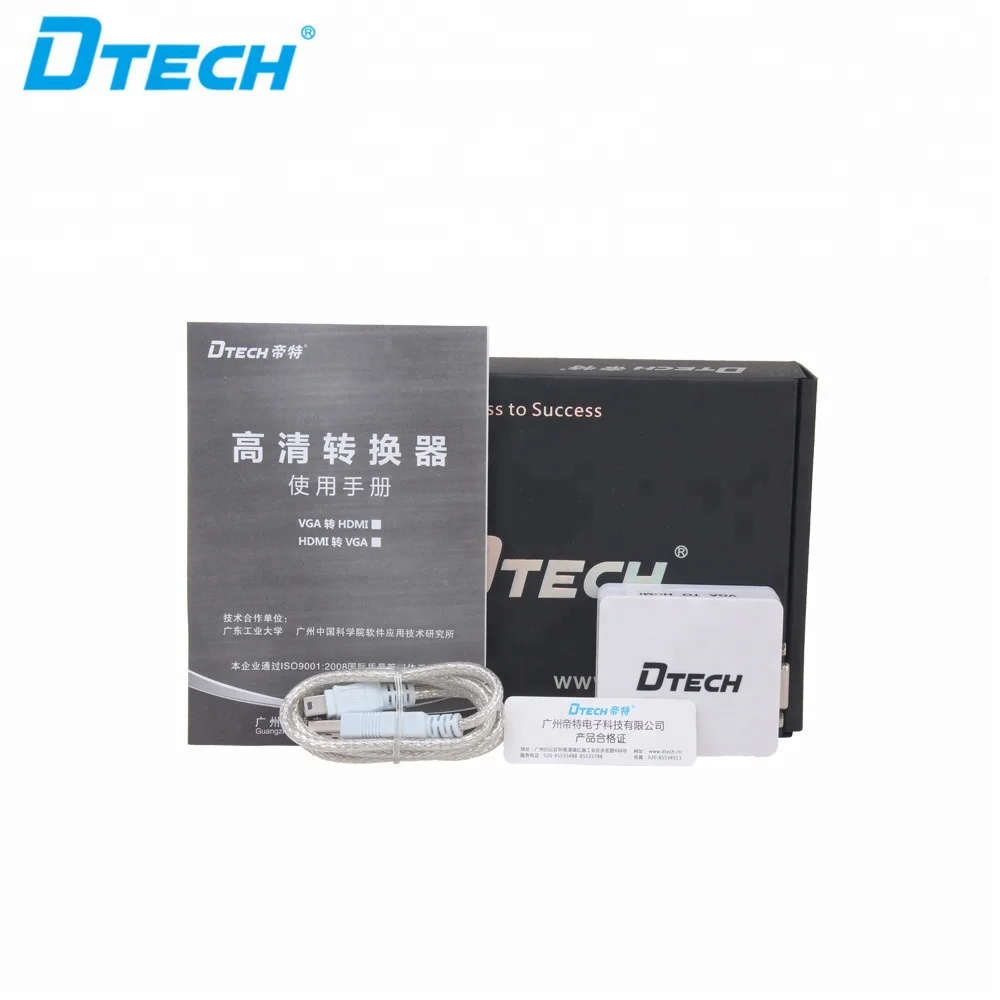

Package and accessories

1.Video converter *1PC

2. Mini USB power supply cable *1PC

3. Manual *1PC

Note: Please check the accessories when you open the package, if accessories incomplete, please consult your supplier. (please use our supporting power adapter, if use other power adapter result in product damage, does not belong to the warranty scope.)

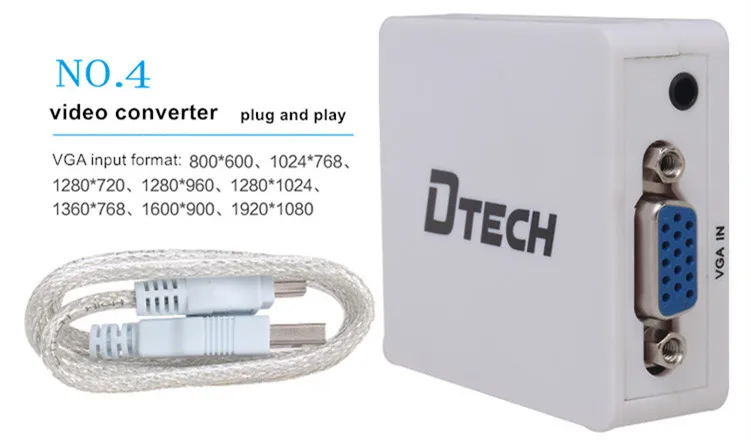

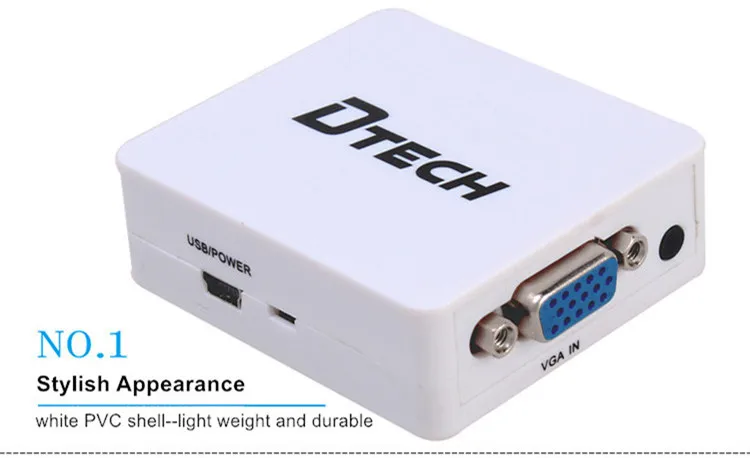

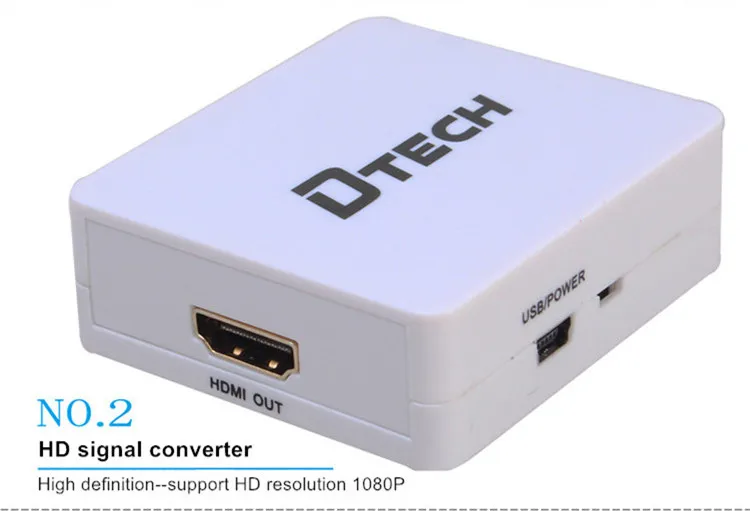

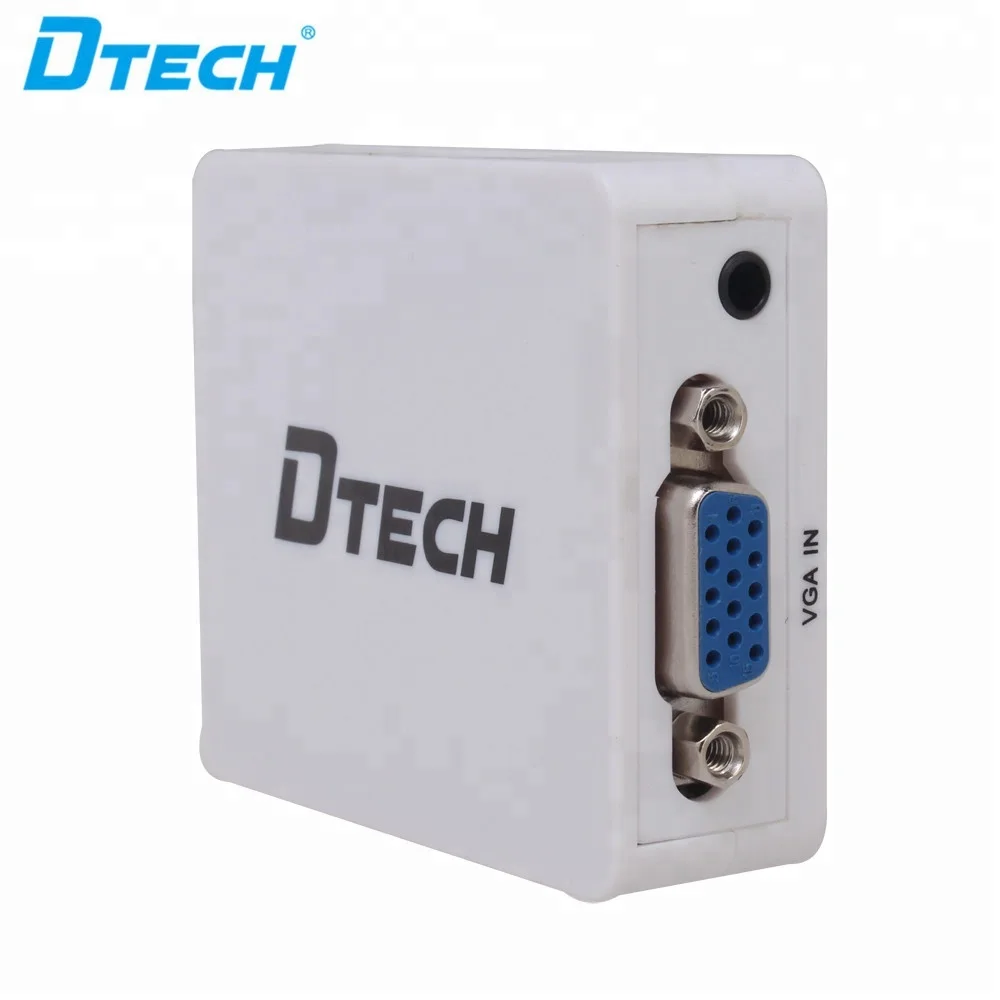

Product Show

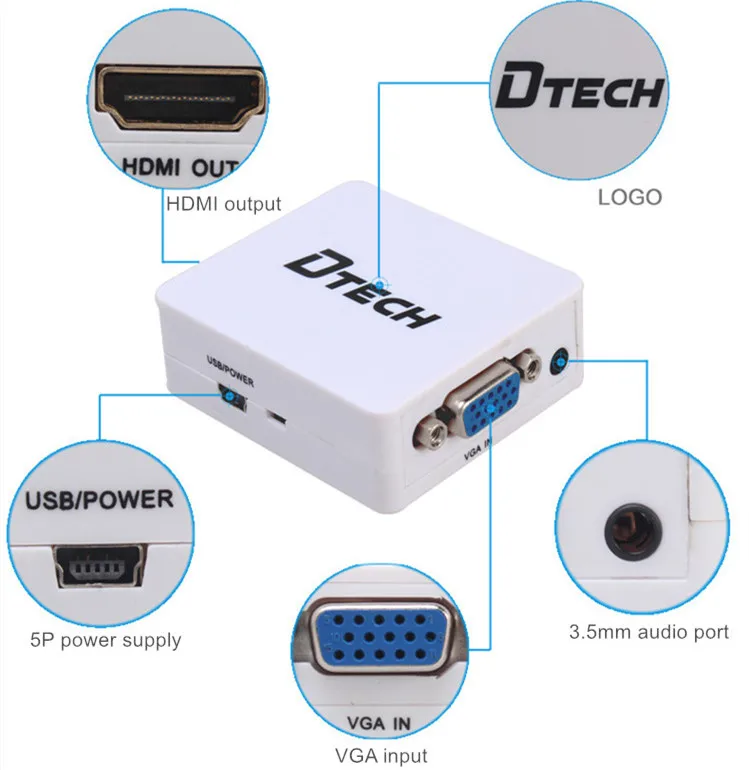

Product Details

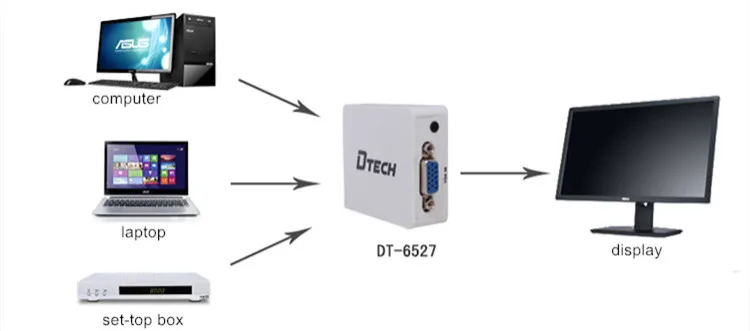

Connection

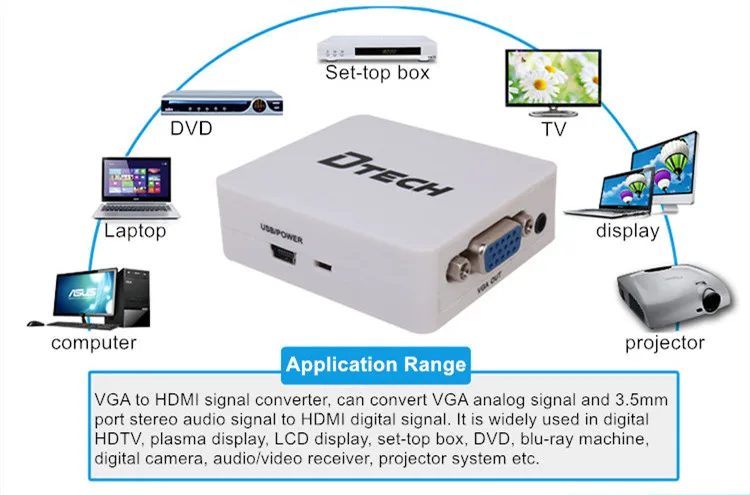

Applicaiton
