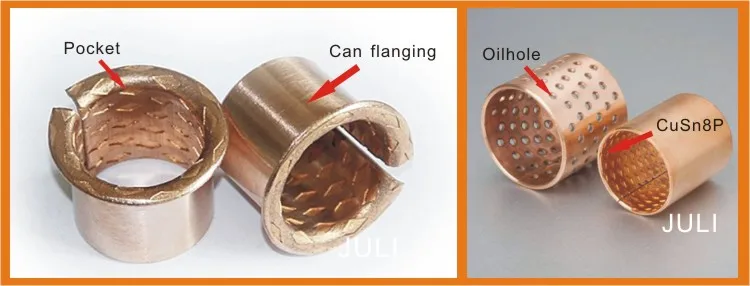

High load capacity and stability at low abrasion. Because of perforations lubrication clearances are reduced to a minimum!

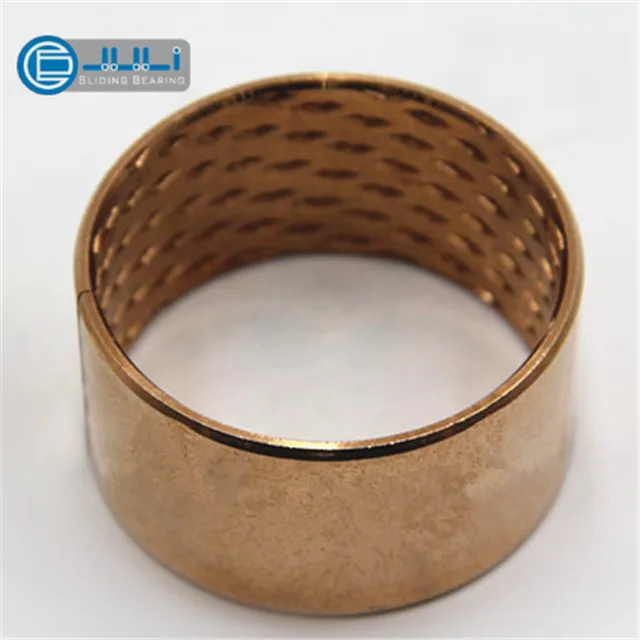

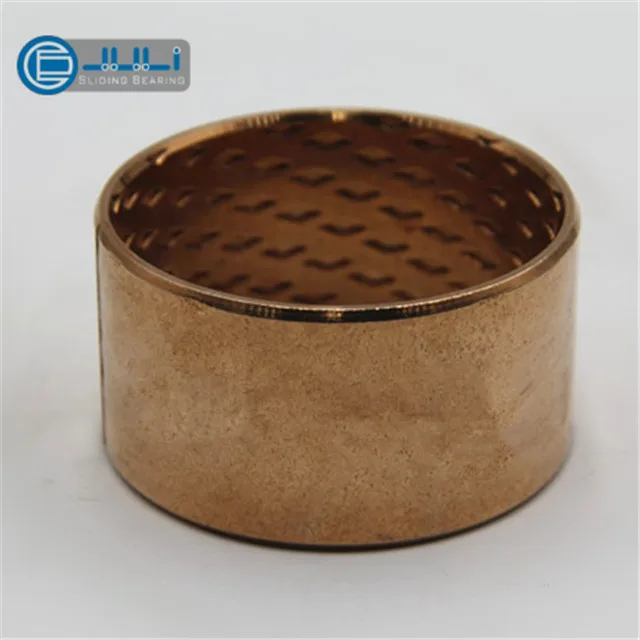

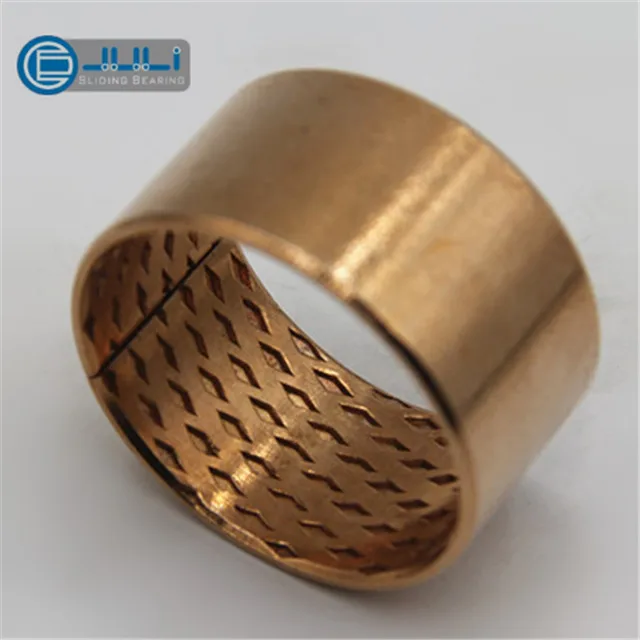

***Wrapped bronze sliding bearing ***CuSn8P (DIN 17662) ***DIN 1494 / ISO 3547 ***Low-maintenance ***Available on request
Technical Data
Max Move Load Capacity 100 N/mm2
Max Sliding Speed dry 0.3 m/s / oil 1 m/s
Max PV Value Limit 3.25 N/mm ·m/s
Density 8 g/cm3
Tensile Strength >750 N/mm2
Elongation >12 %
Hardness 210 HB
Working Temperature - 40 ~ +200 ℃
Our other products
Machining Show
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept payment by L/C,D/A,D/P,and so on. If you have another question, pls feel free to contact us as below:
