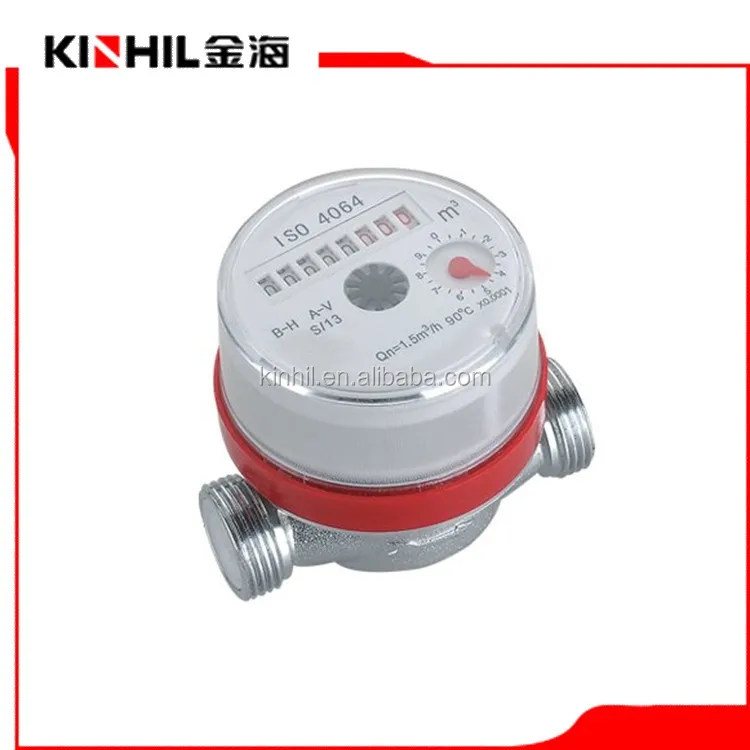

Одномерный струйны сухой крыльчаткой счетчик для воды

Article:

MXSG-80MM

Application:

Measuring the volume of potable water passing through the pipeline

Feature:

This kind of water meter is small, light; Magnetic drive, lower transmission resistance; Sealed dry dial register ensure clear reading; With antimagnetic function, register can rotate more than 360 degrees for easily reading in any position; Compact structure; High precision, low starting flow rate, good appearance with reliable performance.

Main Technical Data:

Temperature rating: Cold style T30; Hot style T90

Pressure rating: MAP 10

Pressure loss rating: IP63

Maximum Permissible Error:

a) Low Partition: (Q1≤Q<Q2) ±5%

b) High Partition: (Q2≤Q≤Q4) ±2%

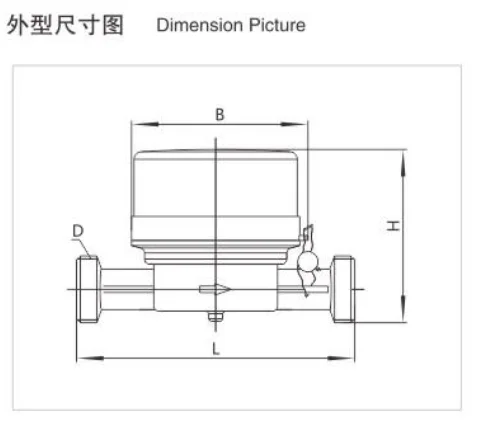

 Dimension Picture:

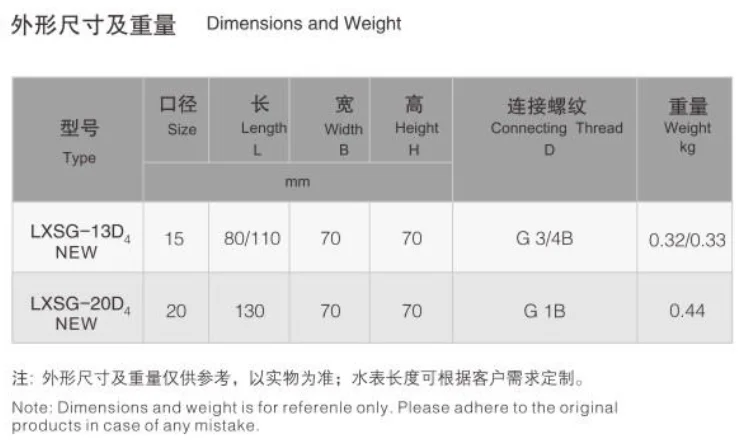

 Dimensions and Weight
