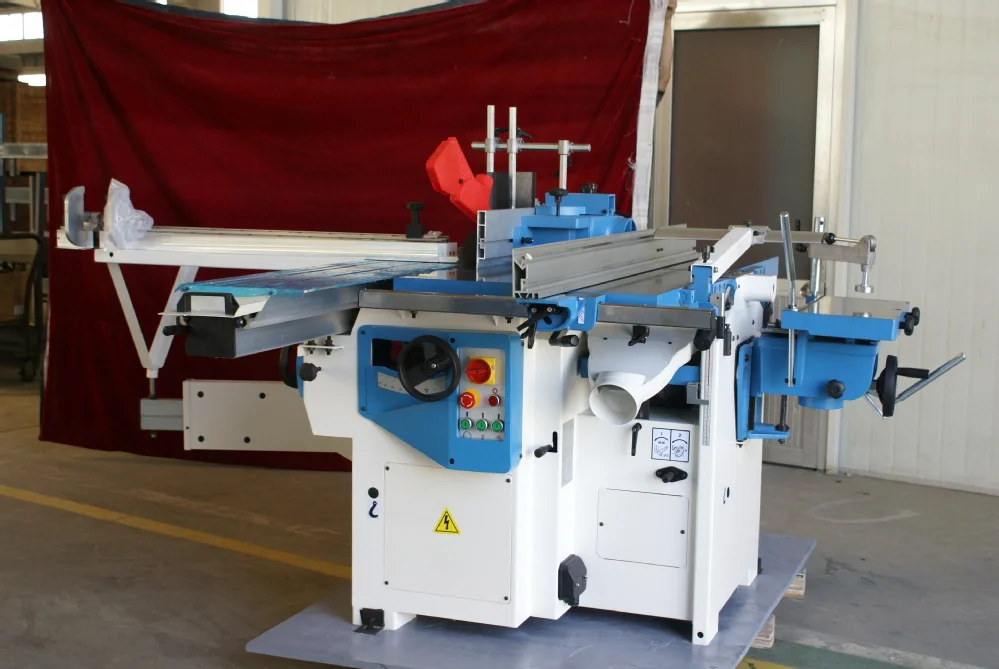

ZICAR ML310K multifunction combination woodworking machine with 6 functions
ZICAR ML310K multifunction combination woodworking machine with 6 functions
ZICAR ML310K multifunction combination woodworking machine with 6 functions
ZICAR ML310K multifunction combination woodworking machine with 6 functions

ZICAR ML310K multifunction combination woodworking machine with 6 functions

Share on (60802766087):


Price:$3,595.00 - $3,954.00

Quantity:


Product Overview

Description


Product Description

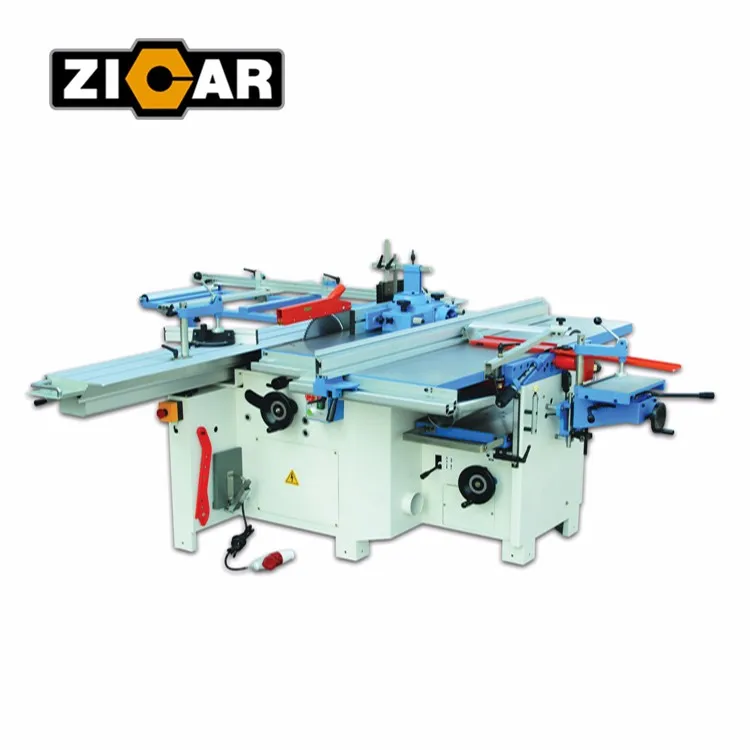

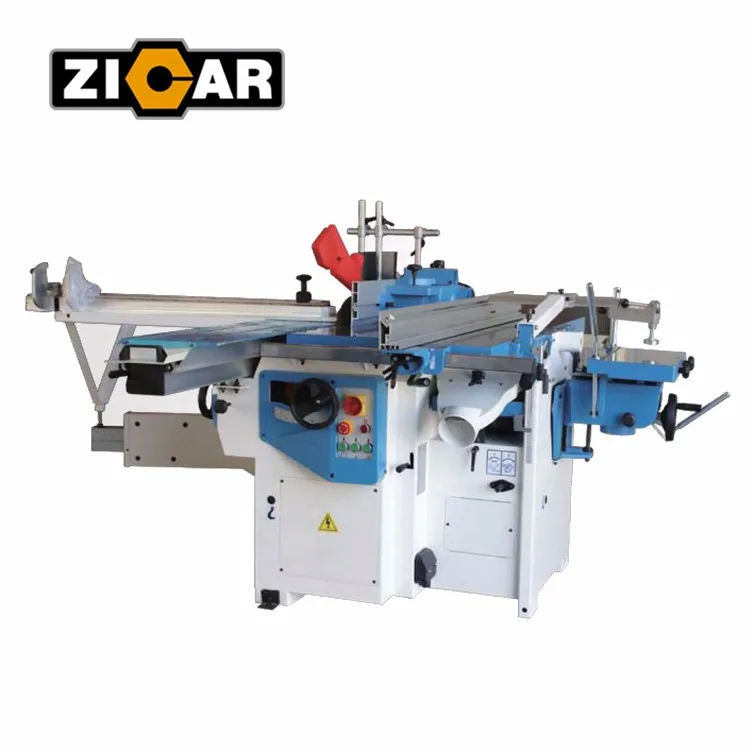

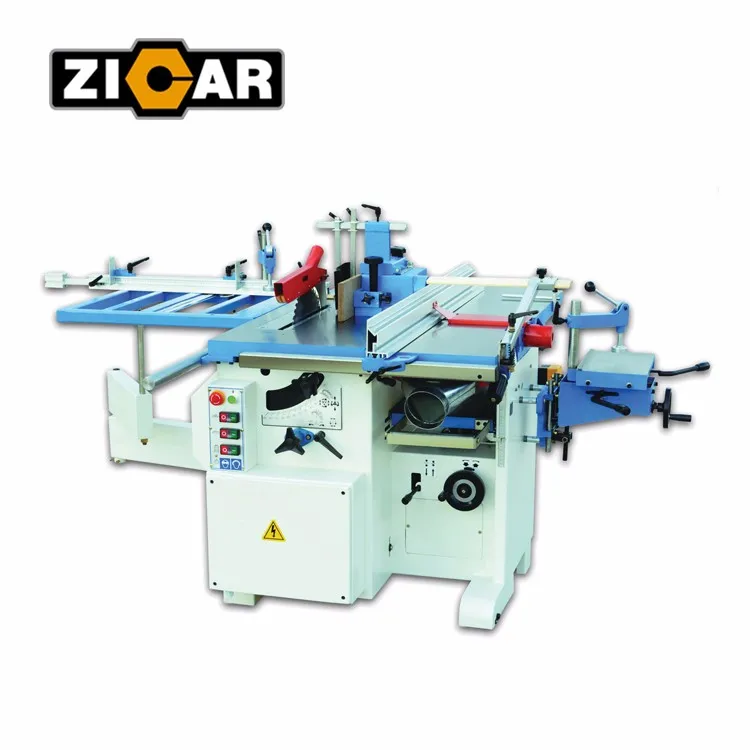

ZICAR ML310K multifunction combination woodworking machine

\t
SPECIFICATION FOR ZICAR ML310K multifunction combination woodworking machine
\t
1.1.   Surface Planing
\t
Cutterblock(with 3 blades)
\t
Φ72mm
\t
Size of blade
\t
304x30x3mm
\t
Max. planing width
\t
300mm
\t
Max.removal
\t
4mm
\t
Fence tilting
\t
90°~45°
\t
Motor power
\t
2.2kw
\t
1.2.  Thickness planing
\t
Max. planing width
\t
300mm
\t
Work height
\t
6~220mm
\t
Driving speed
\t
7m/min
\t
Max.removal
\t
4mm
\t
Motor power
\t
2.2kw
\t
1.3.   Saw
\t
Saw blade dia.
\t
Φ305mm
\t
Hole dia.
\t
Φ30mm
\t
Shaft stop time
\t
≤10sec
\t
Max.cross cut width
\t
650mm
\t
Max.cross cut lenghth
\t
1800mm
\t
Motor power
\t
2.2kw 220v(380v) 50Hz
\t
1.4 Scorer assembly
\t
Scorer blade dia.
\t
Φ80mm
\t
Hole dia.
\t
Φ20mm
\t
Rotation speed
\t
8000rpm
\t
1.5 Moulder
\t
Router spindle dia.
\t
Φ30mm
\t
Max.shaft protrusion from table
\t
155mm
\t
Spindle rotation speed
\t
1400,3500,6000,8000rpm
\t
Motor power
\t
2.2kw 220v(380v) 50Hz
\t
1.6.Drilling
\t
Drilling dia.
\t
Φ3~16mm
\t
Max.Drilling depth
\t
105mm
\t
Packing Size
\t
1600x1140x1100mm 2200x350x280mm
\t
Weight
\t
530/645kg

Main Features

Combination machine for the demanding craftsmen and carpentries looking for a compact machine, but requiring a top quality finished product.
A perfect cut result is guaranteed by the saw unit consituted by a might, cast iron structure.
•Functions including planer , thicknesser ,sawing ,morting, spindle moulder ,profiling .More compact frame structure design,top quality               requirements for the products finishing.
•Tilting saw unit diameter 315mm with scoring saw blade ,max cutting depth 90mm
• Aluminum alloy sliding table length 1800mm ,max cross cut width 650mm
• New improved carriage : stronger carriage ,bigger carriage support
• Four speed of spindle : 1400,3500,6000,8000r/min

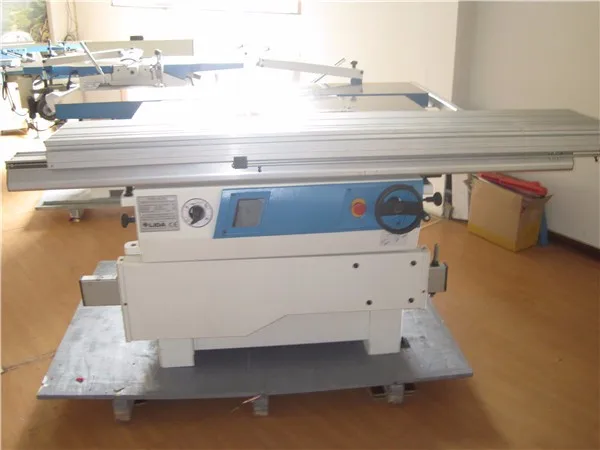

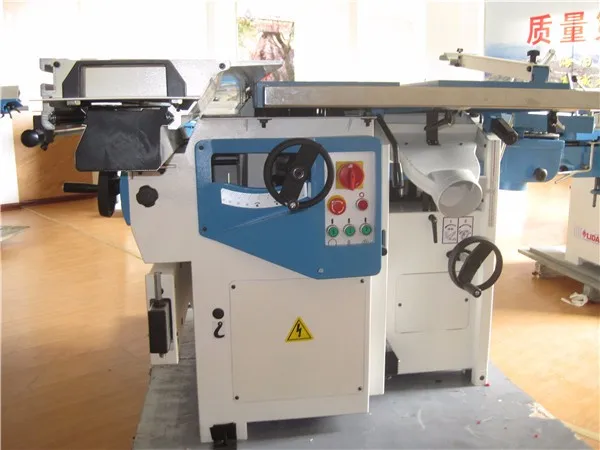

Detailed Images
Our Service
Related Products

ML410

91.8% Response Rate

ML310

93.3% Response Rate

ML310G

73.2% Response Rate

Trade Assurance

Alibaba has provided powerful protection for every purchaser,it give each customers 3 protections:

(1)Product quality protection.
(2)On-time shipment protection.
(3)Payment protection.

This Mchine is Trade Assurance Product(It means that it is one Sincerity Product)and so it is Credible Production of Quality,so every purchaser can buy it with 0 Risk.With our hard work,our Trade Assurance Limit has reached TOP 10 in woodworking machinery,our current TRADE ASSURANCE LIMIT has came to USD565,000.

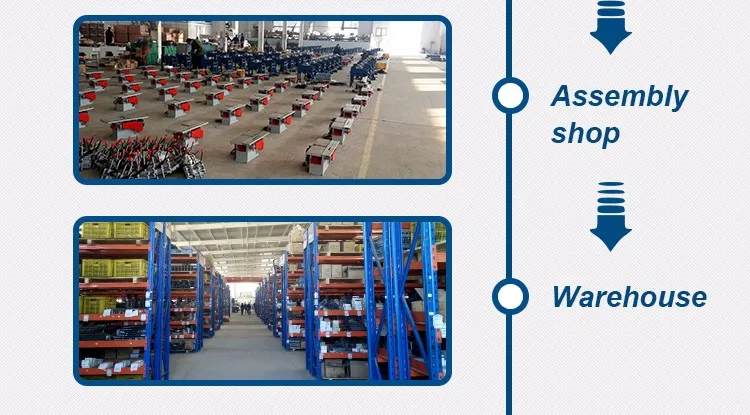

Our Company
