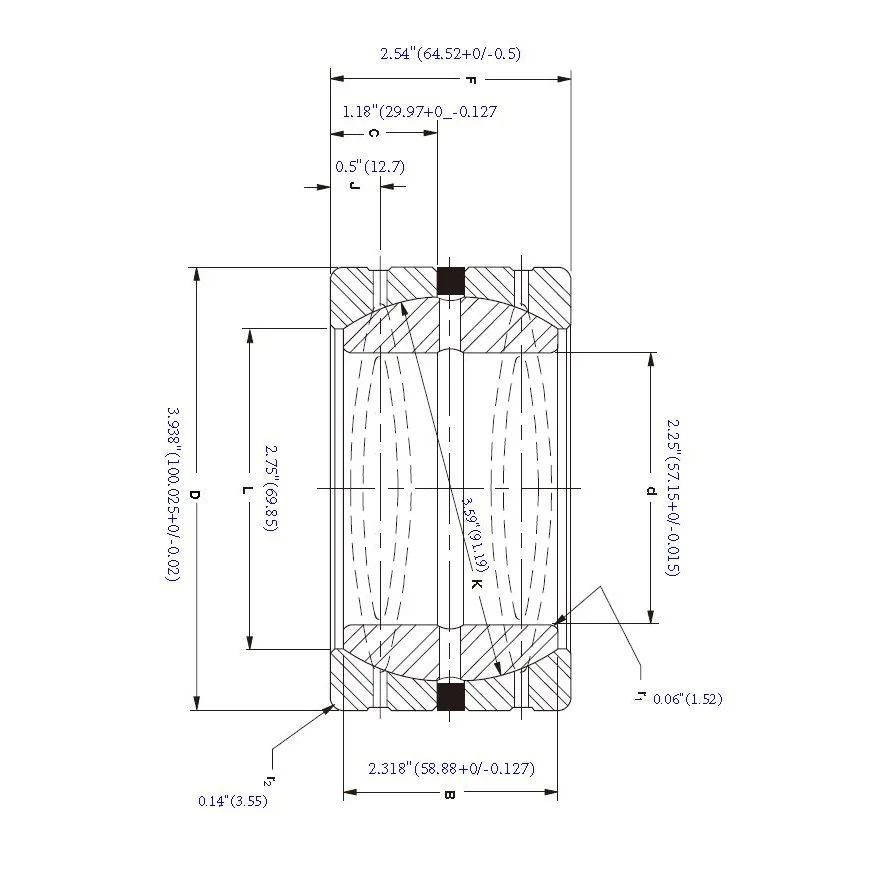

B3640 DSA3 2.25" x 3.938"x 2.318" ShimPack double acting angular contact spherical plain bearing
- Category: Sliding Bearings >>>
- Supplier: Shanghai Chenghui Bearing Co. Ltd.
Share on (60802790705):
Product Overview
Description
Product Description
| Bearing type: | Angular Contact | |
| Lubrication type: | Requires Relubrication | |
| Inner ring material: | Chrome steel 52100 | |
| Outer ring material: | Chrome steel 52100 | |
| Bore diameter: | 2.25 in | 57.15 mm +0/-0.015 |
| Outside Diameter: | 2.318 in | 58.88 mm +0/-0.127 |
| Overall width: | 2.54 in | 64.52 mm +0/0.5 |
| Inner ring width: | 2.318 in | 58.88 mm +0/-0.127 |
| Outer ring width: | 1.18 in | 29.97 mm +0/-0.127 |
| Shaft fillet max: | 0.06 in | 1.52 mm |
| Housing fillet max: | 0.14 in | 3.55 mm |
| Spherical diameter: | 3.59 in | 91.19 mm |
| End to hole: | 0.5 in | 12.7 mm |
| Outer ring bore: | 2.75 in | 69.85mm |
| Approx weight: | 5.65 lb | 2.565 kg |
| Ref shimpack compression: | 65700 lbf | 292 kn |
| Radical static load capacity: | 266200 lbf | 1184 kn |
| Axial static load capacity: | 146300 lbf | 650 kn |
| Radial dynamic load capacity: | 66600 lbf | 296 kn |
| Axial dynamic load capacity: | 36600 lbf | 162 kn |
| Operating temperature range: | -60 to +500°F | -30 to + 250°C |
| Axial clearance: | 0.003-0.007 in | 0.076 -0.178 mm |
| Shaft diameter-ISO g6-slip fit: | 2.2496 - 2.2489 in | 57.14 - 57.122 mm |
| Shaft diamter-ISO m5-press fit: | 2.2510-2.2505 in | 57.175-57.163 mm |
| Housing bore-ISO N7-press fit: | 3.9371-3.9357 in | 100-99.967 mm |
| Applications: | Articulating joints,Linkages | |
