Zimbabwe chicken farm automatic poultry feeder

Product Overview

Description

                        Zimbabwe chicken farm automatic poultry feeder

                                                      (Brand:U-Best)

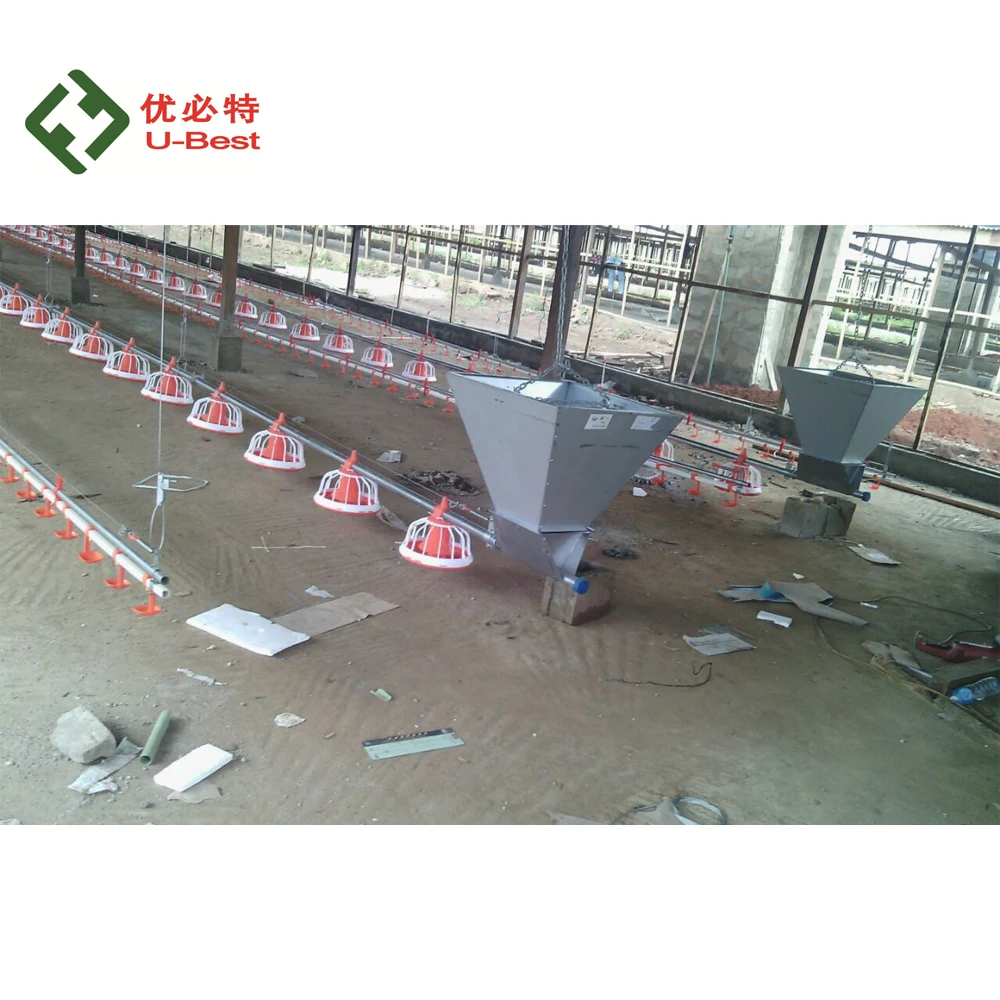

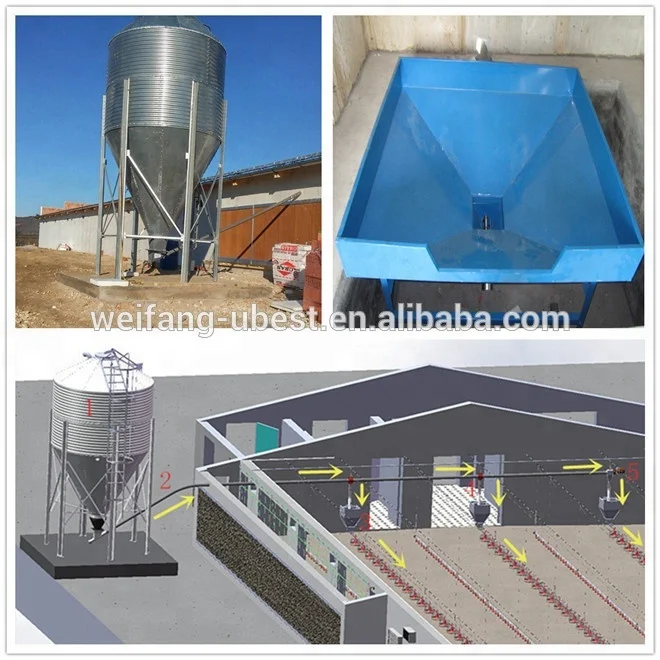

Silo/manpower hopper is the beginning of main feed line. There is a feed sensor at the end of main feed

line which controls motor on and off to achieve automatic feed delivery.

You can choose silo or manpower hopper according to your chicken shed size.

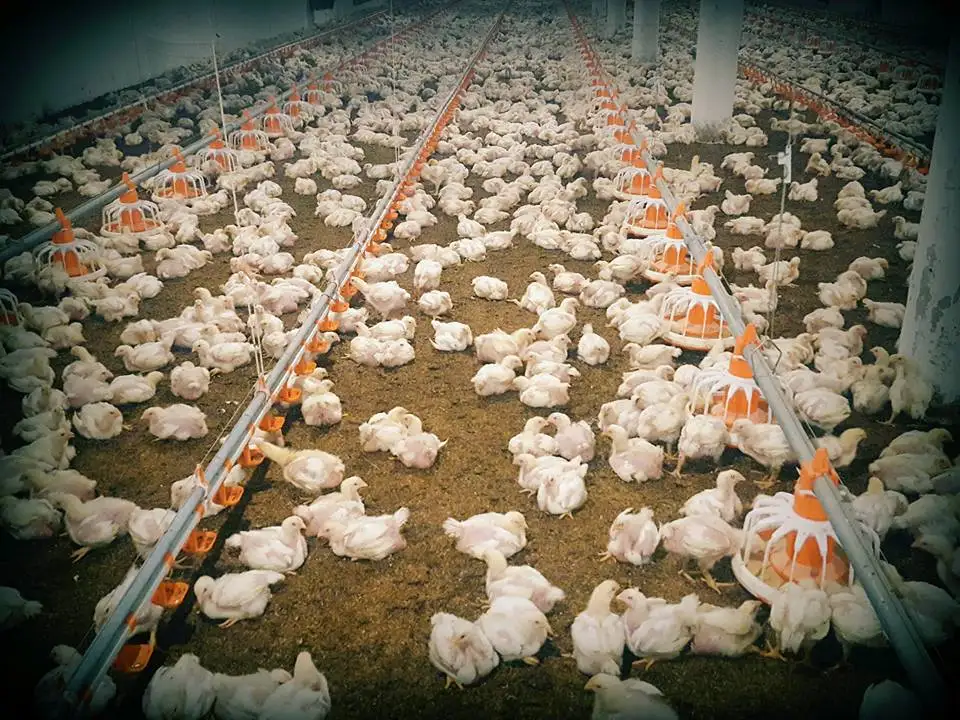

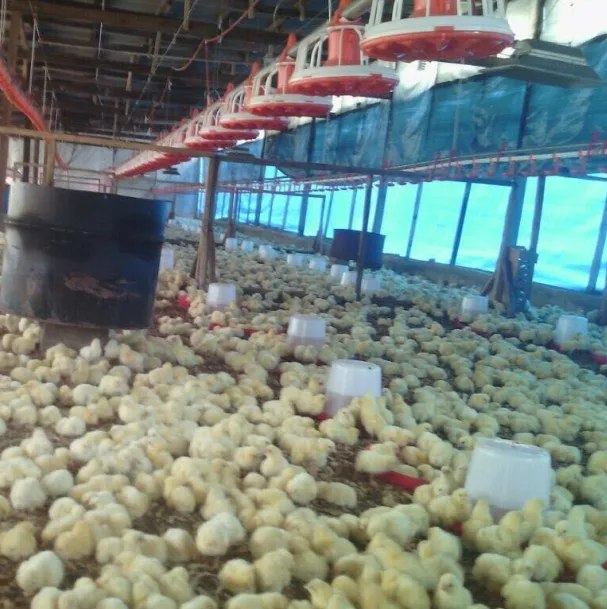

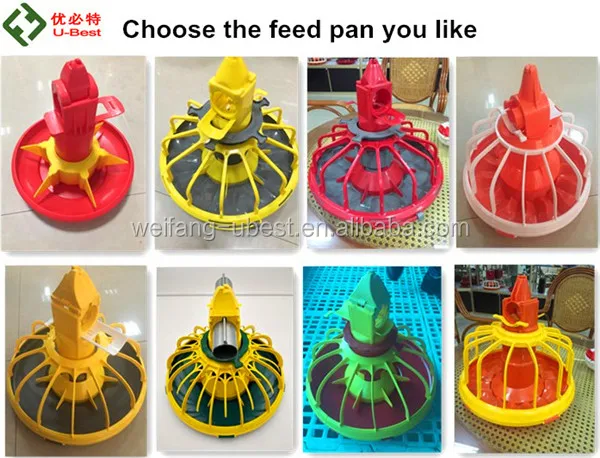

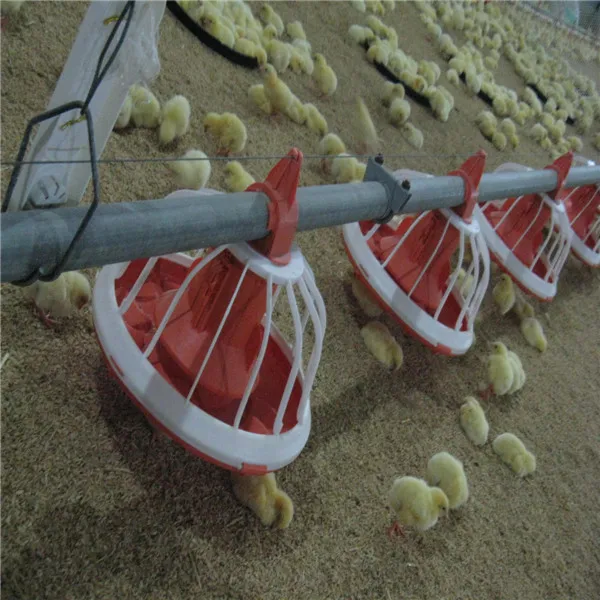

2.Automatic Pan Feeding line system

Pan feeding system can convey the feed from hopper to every feed pan aotomaticly.Weifang U-Best

series pan feeding system is reasonable and worth your trust.The quality of every part is very good.

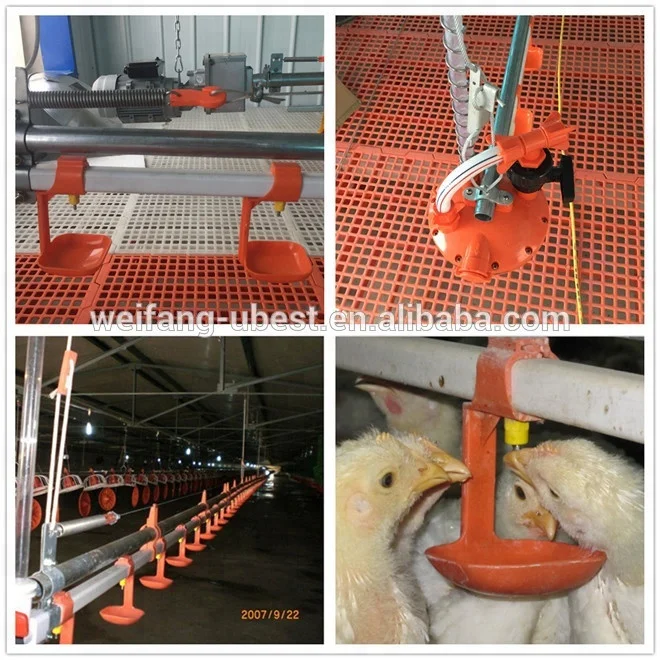

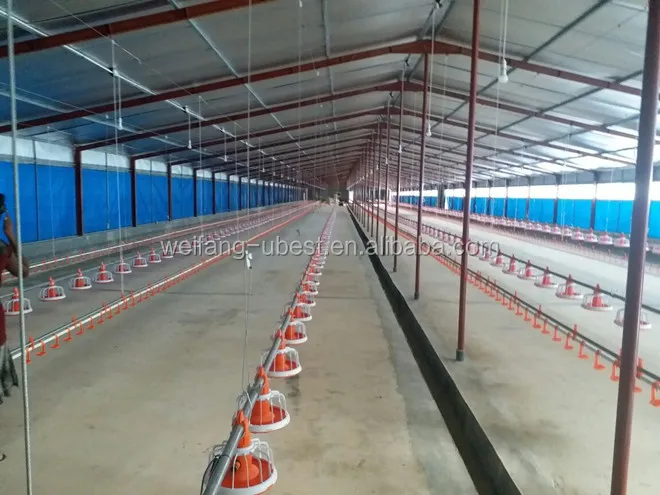

3.Automatic nipple drinking line system

Nipple drinking system can provide fresh and clean water for poultry which is crucial for the growth

of poultry. The drinkers can be triggered from 360 degree which helps young birds start well and

makes drinking easier.

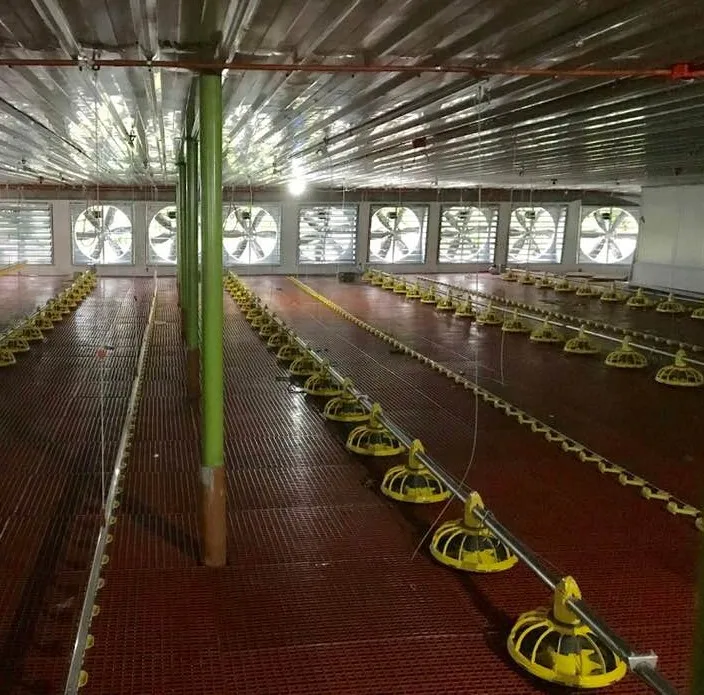

4.Automatic ventilation system:

In a ventilation system,air is exhausted from the livestock house through chimneys or wall fans.

We provide the most robust and efficient ventilation systems , and we will be happy to create a

solution to fit your needs exactly.

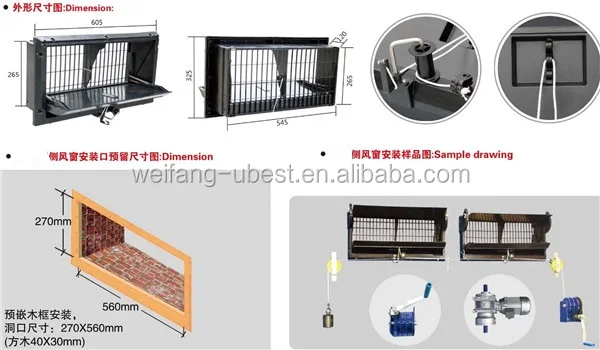

Airinlet window parameters

The wall of installed windows must keep the same level.

Within 15cm below the window must be soild wall which could be fixed with eapansion bolt, hollow

brick not available.

To prevent water flow backward, the window hole of inside is higher than outside.

Pre-embedded wood frame is same level with inside wall of chicken house.



Exhaust fan

Model: Centrifugal box fan;Hanging fan;Shutter/Butterfly cone fan;Speed vaiable fan.

Size: 24'',36'',50''

Motor: Chinese brand and Siemens Brand available

Blade: Stainless Steel







5.Cooling pad system

Water is pumped across these pads and fans draw air through them. The resulting airflow makes the

water evaporate and cools down the hot air. This cooler air is then drawn through the building.

Cooling pad parameters

Thickness	100mm;150mm
Width	300mm;600mm
Height	1660mm;1960mm;2160mm
Frame	Galvanized sheedt and Aluminium alloy
Aluminium alloy frame	High strength, good corrsion resistance, water distribution uniformity,beautiful and practical.






6.Spray & disinfecting system

Function

It is effectively tools for cooling, damping, dedusting, disinfecting the house.

Characteristics

-Instant cooling but not wet.

-Large flow high pressure, good atomization, and corrosion resistance.

-Increase the humidity to the preset range according to the requirements--60 to 70 percent of the maximum

relative humidity.

-Effectively prevent the dust, and reduce respiratory diseases of livestock and poultry.

-Disinfect with chickens.





7.Environment control system

(1).Environment controller

Israel T607, T616, Image II/China brand UBT-2000 are optional.

For example of T607, it has 8 outputs for fans,heaters, cooling pad alarm,2 outputs for regulating fans

speed and lighting system, 2 output for alarm of feed and water, minimum ventilation curve and temperature

reduction curve are built inside T607 for reference.

(2).Power distribution box

UPS power outage alarm is including,the alarm function is that, for example,

the motor for feed line get trouble. it will trip, responsible for that part of the motor feed line gate will jump,

does not effect other part's running.

(3).Main power box

it will receive the signal from T607 (or other controller) and sends signal to vice power control

box, the vice power control box will executive action.







8.Heating system

Heating poultry house when it is needed to satisfy the temperature demand of chickens at different

growth stage. Hot-blast heater of coal and diesel, poultry gas heater and infrared gas brooder,

3 different kind at your option.

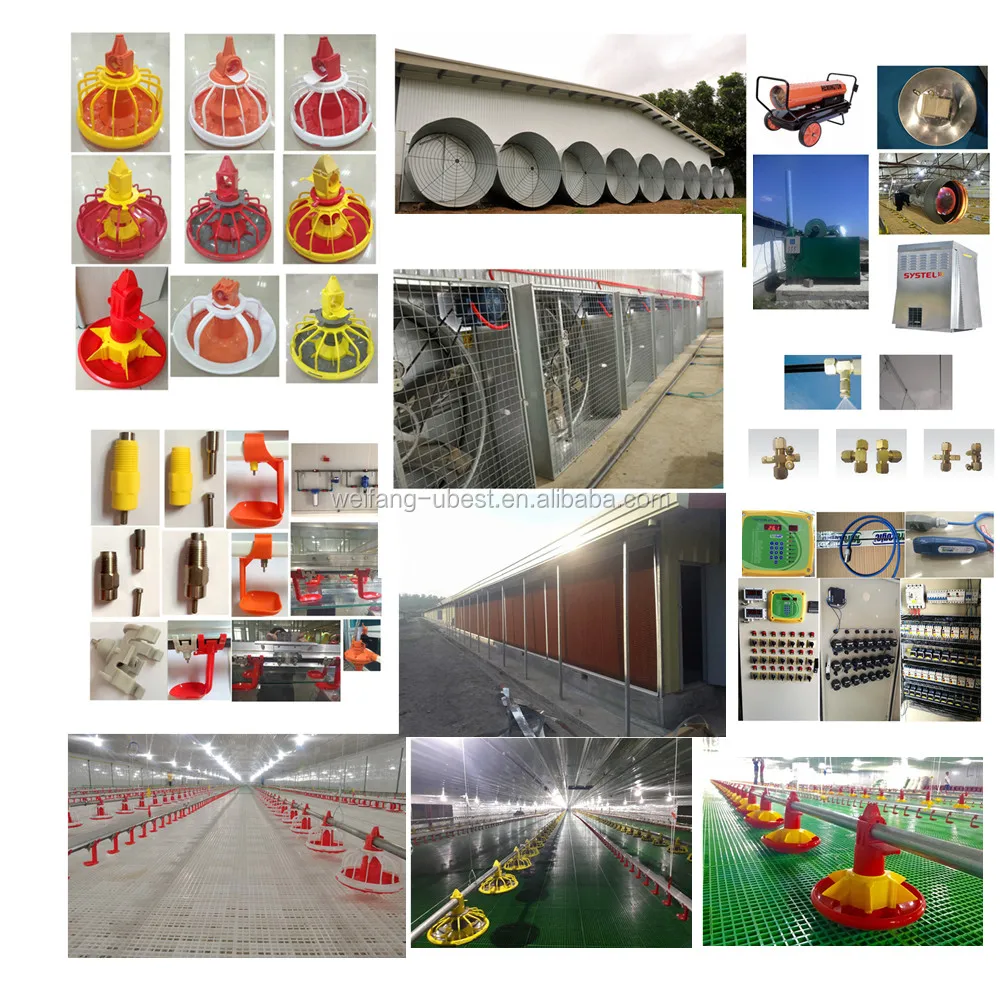

 hot sale flooring complete poultry farming equipment for breeders and broilers

 Package&Shipment:

• Feeder pan: unassembled, in carton box;


• Feeding pipe: 20pcs per bunch, in bulk;


• Hanging system: in carton box;


• Watering pipe fitted with nipple, in plastic bag, 20pcs per each;


• Water spare parts like medicator, regulator,cup in carton box.


• Silo,Manpower hopper ,main feed line pipe in nude


• Cooling pad paper in cartons,Cooling pad with Frame, in nude


• 36"/50"Exhaust fan in carton box, 50"tunnel fan in nude,50" fiberglass cone fan in bulk


• Environment control box in carton box, environment controller in carton box


• Curtains in plastic bags, curtain system spare parts


• Gas space heater /Gas infarred heater/Electric heater in Carton box,diesel/Oil/Coal heater in nude



If you want to view more related products or have any question, please feel

free to  contact us! We will give you the most professional suggestion for your

poultry farm.
