1.The price is based on standard product. Usually we produce the coupling according to customer's specs.
2.Marking your logo(word) according customer's authorization.
3.No MOQ for the first cooperation.
4.Any question feel free to ask. 24 hours service online.

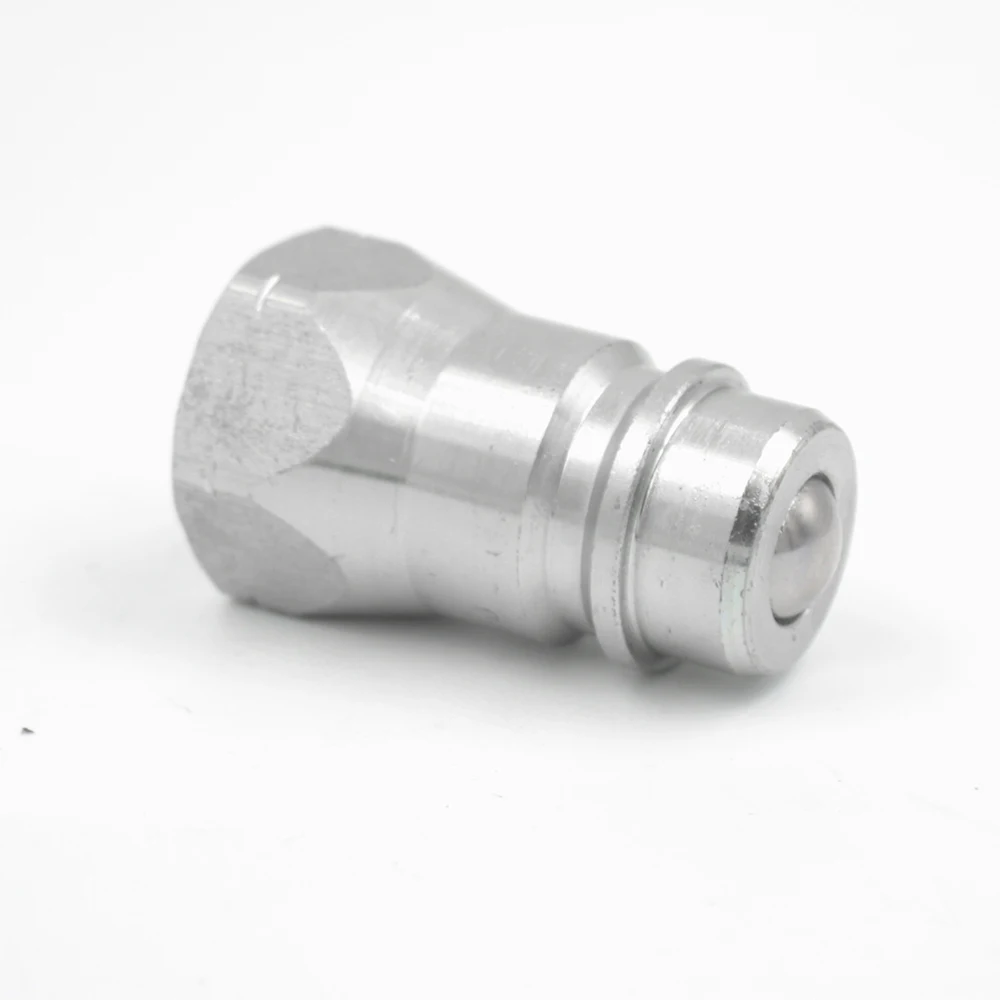

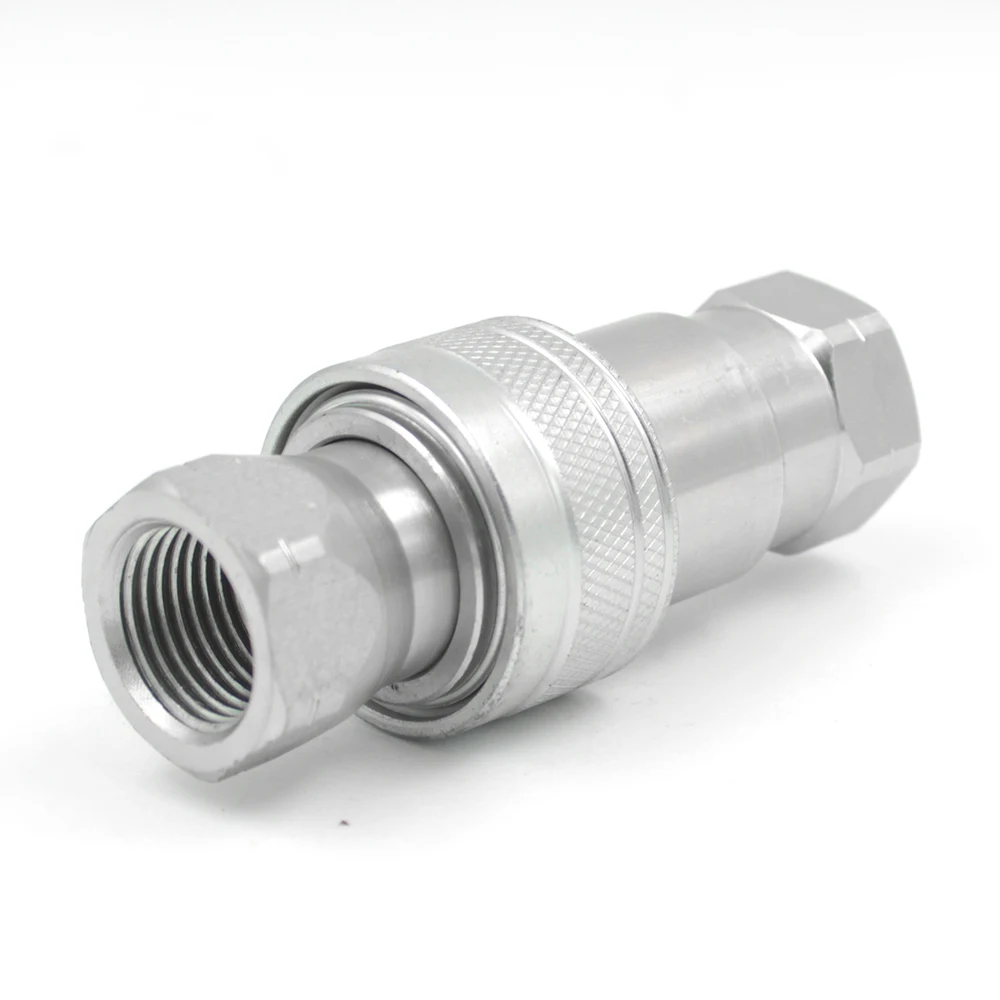

Specification:
Socket: Steel( zinc-chrome plating)
Plug: Hardened steel( zinc-chrome plating)
Standard: ISO5675
Valve type: Ball tip
Interchange: Parker/Pioneer 4000 series, Safeway S20/40/70 series, Dayco QD2/QD4 series, Snaptite 21 series, Perfecting R series, and Aeroquip FD76 series
Feature:
1. Poppet valves available to prevent uncoupled leakage.
2. Poppet valves open automatically when connect, within rated working pressure, to keep the expedite flowing.
3. Hard, chrome alloy balls are used for valving, It be loaded on the valve seat by the springs.
4. The valve provides a metal-to-metal seal between the ball and coined seat.
5. Critical parts are hardened for durability.
6. Durable ball-locking mechanism holds the mating halves together.
7. Socket and plug are precision machined from solid bar stock.
8. GT-C1 hydraulic quick connects conforms to the standard of ISO5675.
Application:
These quick connects most commonly used in agricultural applications; also suitable for use in construction, forestry equipment and mineral oil hydraulic systems.
