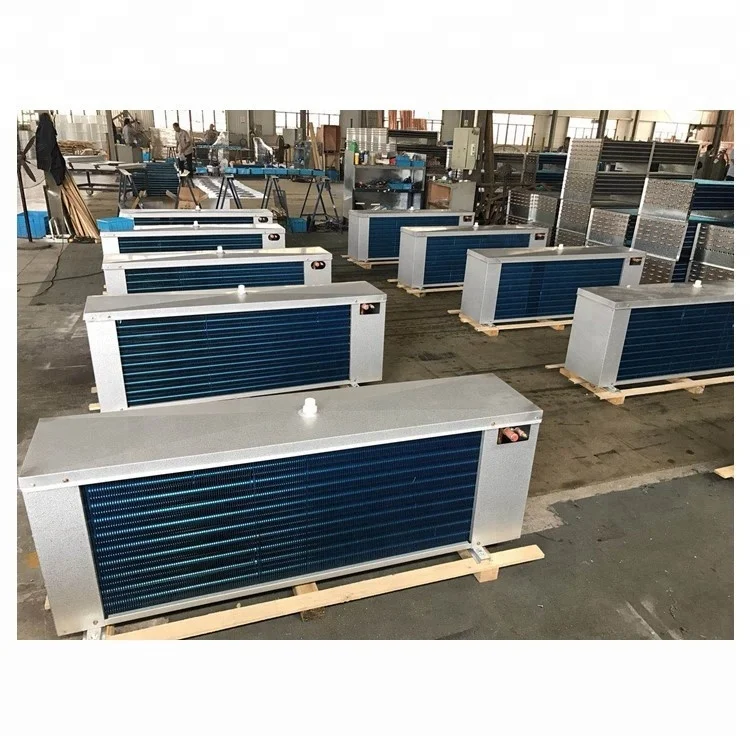

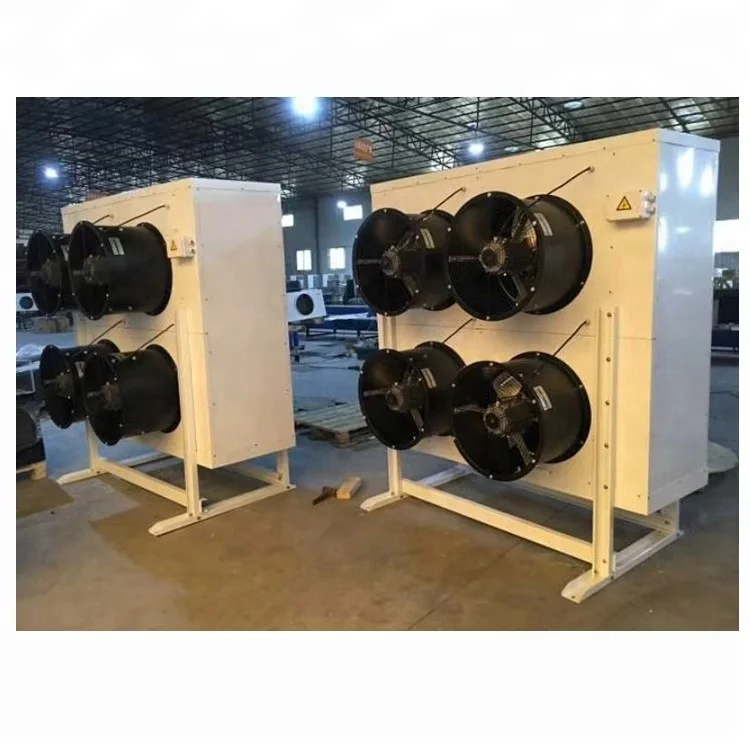

DD Series industrial price air cooler unit cold storage room evaporator
- Category: >>>
- Supplier: Taizhou Chengshun Refrigeration Equipmment Co. Ltd.
Share on (60802824387):
Product Overview
Description
Product Description
Product Application

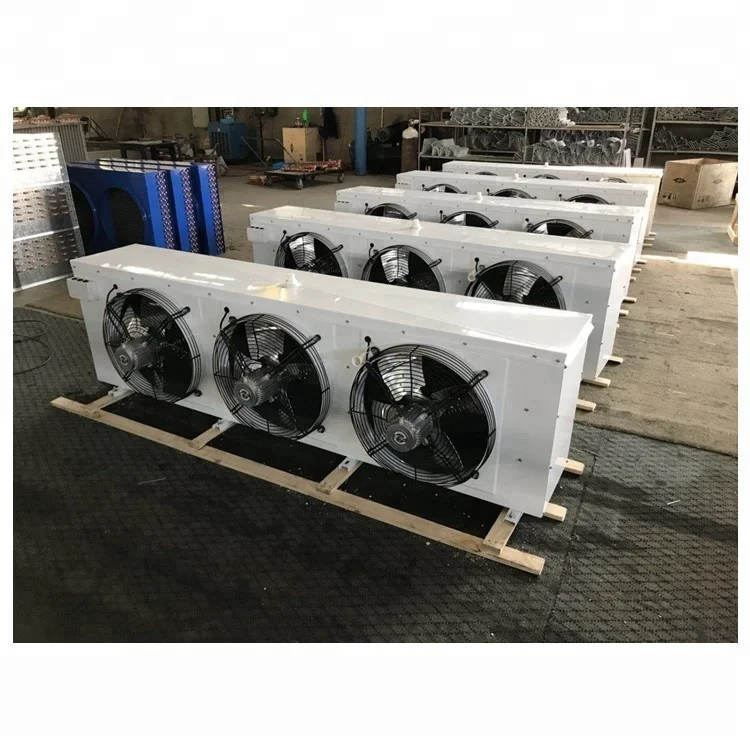

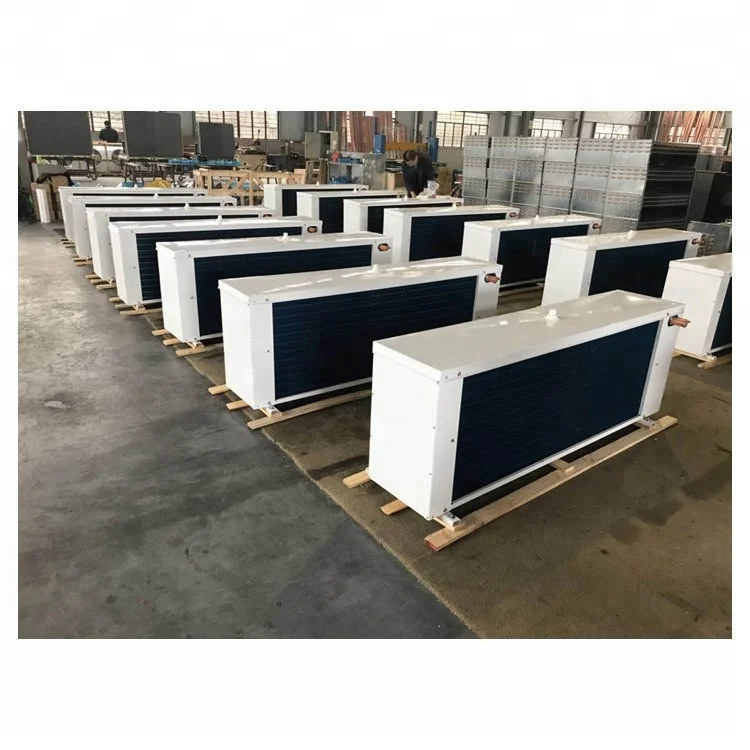

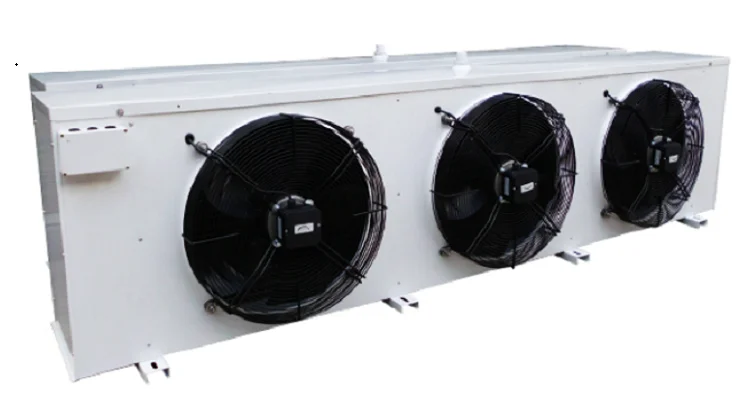

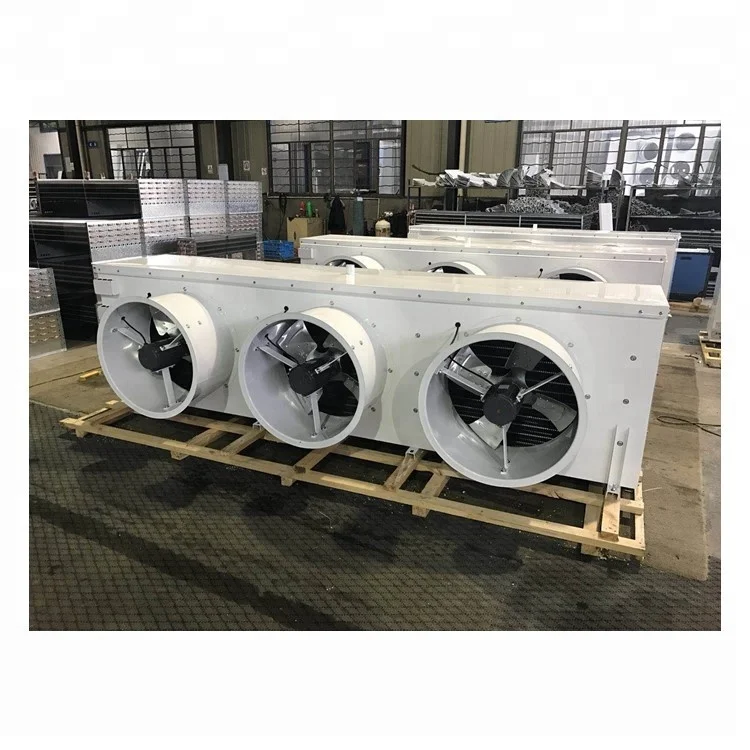

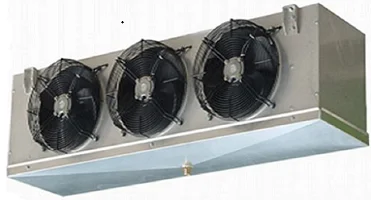

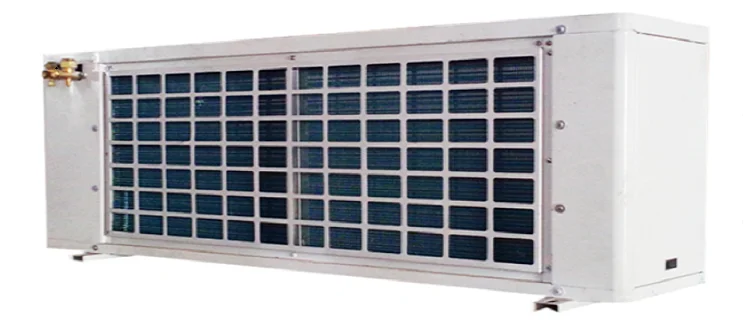

Cold storage room evaporator DD Series industrial price air cooler unit cold storage room evaporator
| Cold Room Evaporator Technical Parameter | |||||||||
| Cold Room Evaporator Model 380V/3/50HZ | Main Technical Data | Fan Technical Parameter | Tube | Defrost | |||||
| △t=15k (KW) Cooling Capacity | Heating Transfer Area | Fan Diameter | Qty | Total Air Volume | Power | Connect Pipe Diameter | Defrost Fin Power | Defrost Pan Power | |
| W | m² | mm | N | m²/h | W | mm | W | W | |
| DD-2.6/15 | 2625 | 10 | 300 | 2 | 3126 | 2×75 | 12/16 | 1800 | 900 |
| DD-3.9/22 | 3850 | 18 | 300 | 3 | 4689 | 3×75 | 12/16 | 2400 | 1200 |
| DD-5.3/30 | 5250 | 28 | 400 | 2 | 6800 | 2×180 | 16/25 | 2000 | 1000 |
| DD-7.0/40 | 7000 | 33 | 400 | 2 | 6800 | 2×180 | 16/25 | 2400 | 1200 |
| DD-11/60 | 10500 | 42 | 500 | 2 | 12000 | 2×550 | 19/32 | 4200 | 1400 |
| DD-14/80 | 14000 | 52 | 500 | 2 | 12000 | 2×550 | 19/32 | 7000 | 1400 |
| DD-18/100 | 17500 | 60 | 500 | 3 | 18000 | 2×550 | 19/38 | 8000 | 1600 |
| DD-21/120 | 21000 | 70 | 500 | 3 | 18000 | 3×550 | 19/38 | 8500 | 1700 |
| DD-25/140 | 24500 | 80 | 500 | 4 | 24000 | 3×550 | 2542 | 10000 | 2000 |
Notice
1.Copper pipe diamter: 16mm x 0.45mm Aluminum fin space 4.5mm DL 6mm DD 9mm DJ 18mm DDS series
2.Cold room evaporator fan motor brand EBM weiguang Dayang Dunli etc 220V 380V 460V 50HZ 60HZ R404A R134a
FAQ
1.Where is your factory? Jiangsu China Shanghai Sea Port About 3 hours by car from our factory to Shanghai
2.What is leading time? 7 to 10 working days to finish cold room evaporator
3.What is min order? 1 Set
4.What is the payment? 30% TT deposit and balance money paid before shipment
5..What is your main product? Cold storage room evaporator with 3 fans
Certifications
Detailed Images
Machine Parts
Name: High Speed Full Hermetic Fin Making Machine
Brand: SIEMENS
Original: Germany
World famous High Speed full hermetic Machine
Main Features
Name: Full Automatic Copper Straight Machine
Brand: Yangduan
Original: China
Domestic famous full Automatic copper straight machine
Machine Parts
Name: High speed full automatic punch machine
Brand: Yangduan
Original: China
World famous High Speed full hermetic fin making Machine
Main Features
Name: High Precision Laser Cutting Machine
Brand: ZKL50
Original: China
High Precision Laser Cutting Machine
Our Service
After-Sales Service
Pre-Sales Service
* Inquiry and Technical support for cold room evaporator
After-Sales Service
* Training how to instal cold room evaporator

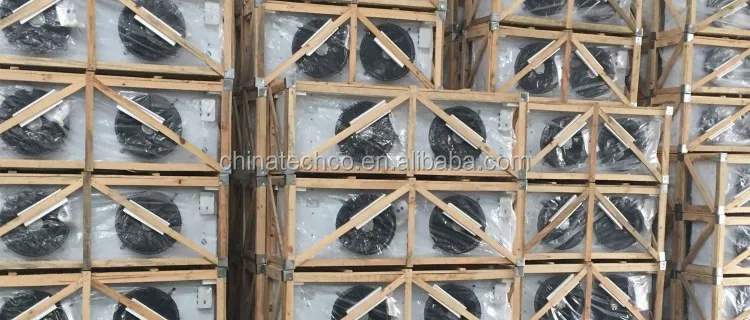

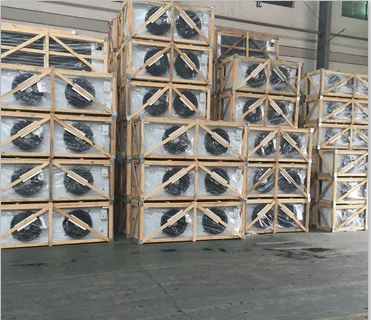

Packing & Delivery
| Packaging | |
| Size | L1500xW500xH700mm |
| Weight | 60kg |
| Packaging Details | wooden case |
| Packaging | |
| Size | L1400xW450xH1100mm |
| Weight | 48kg |
| Packaging Details | wooden case |
