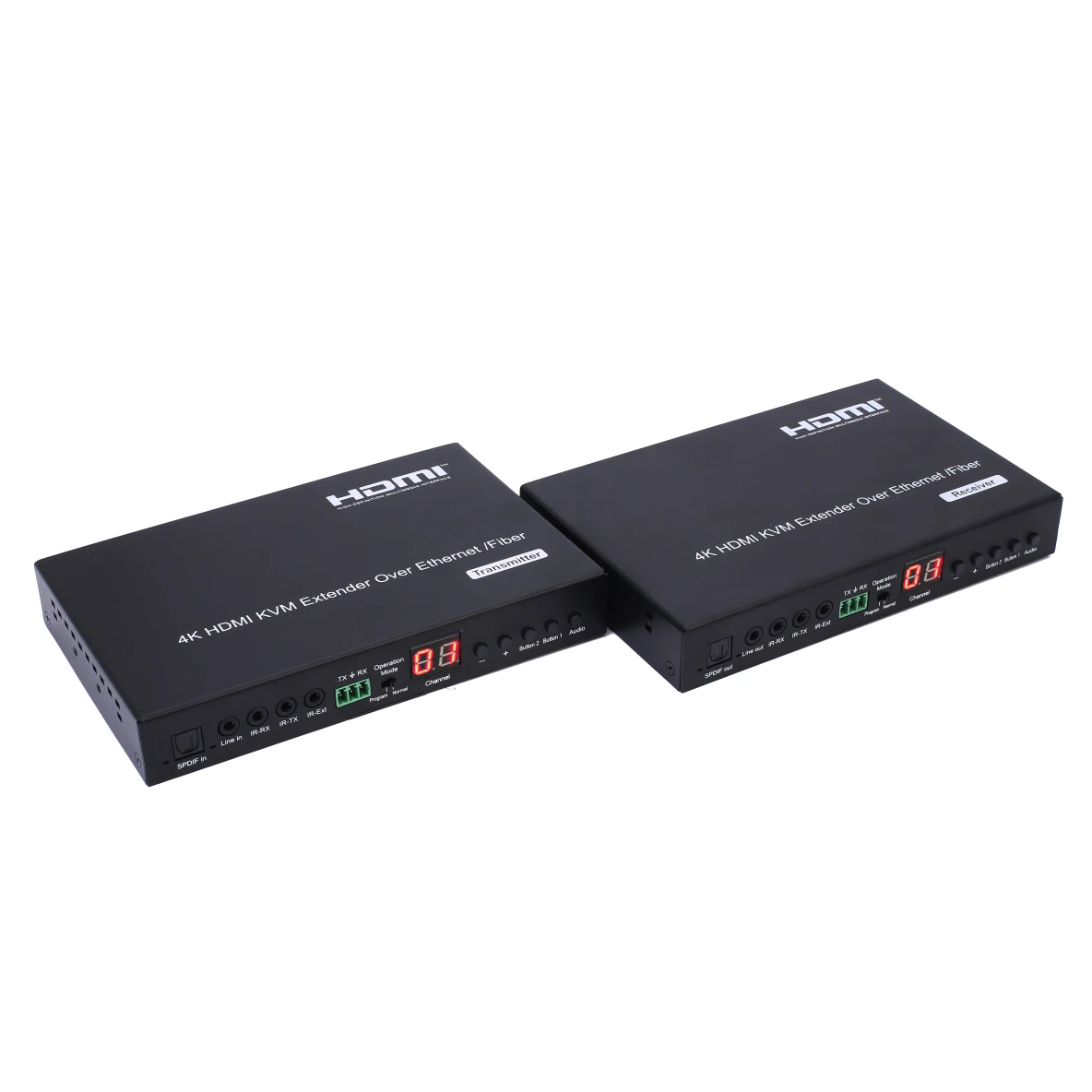

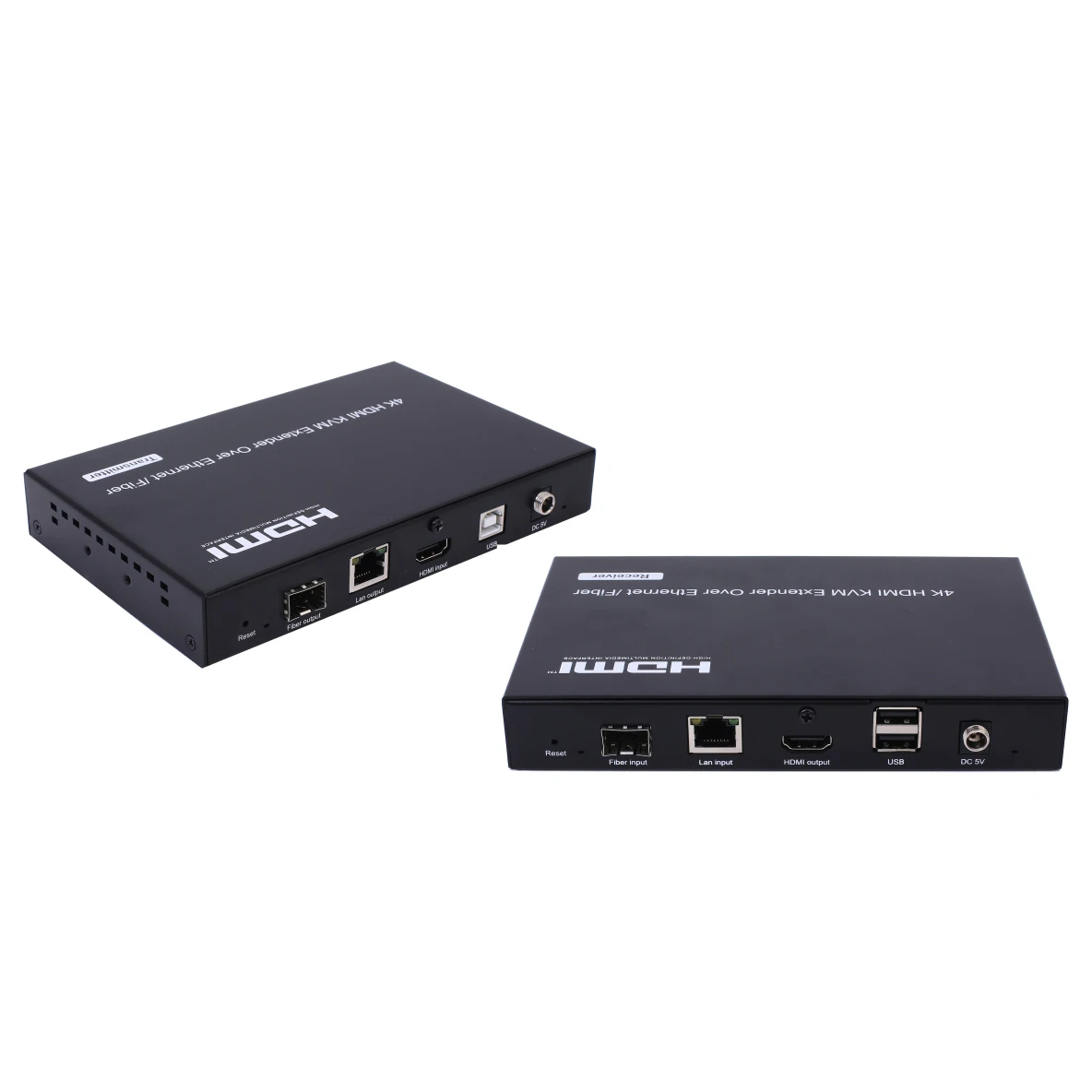

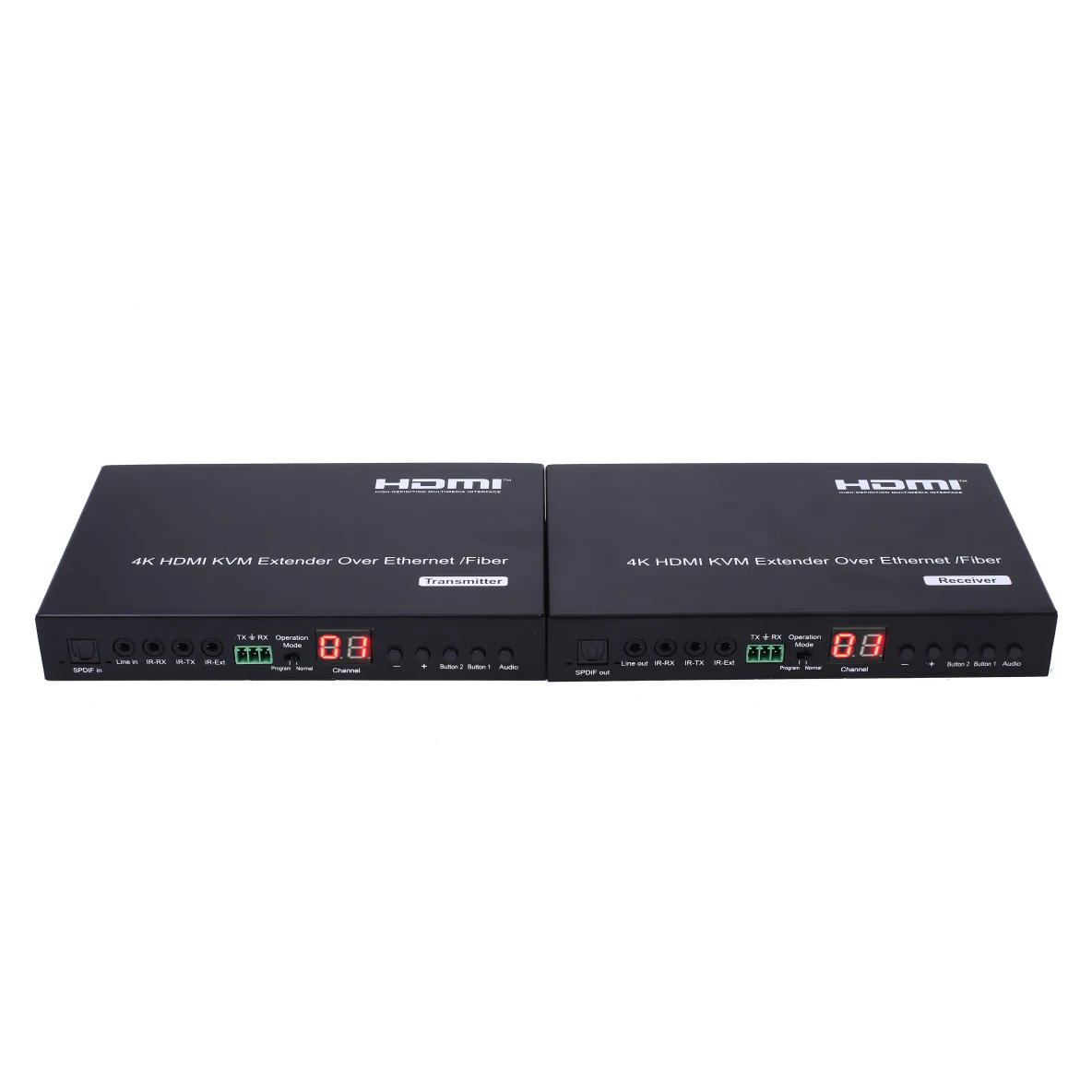

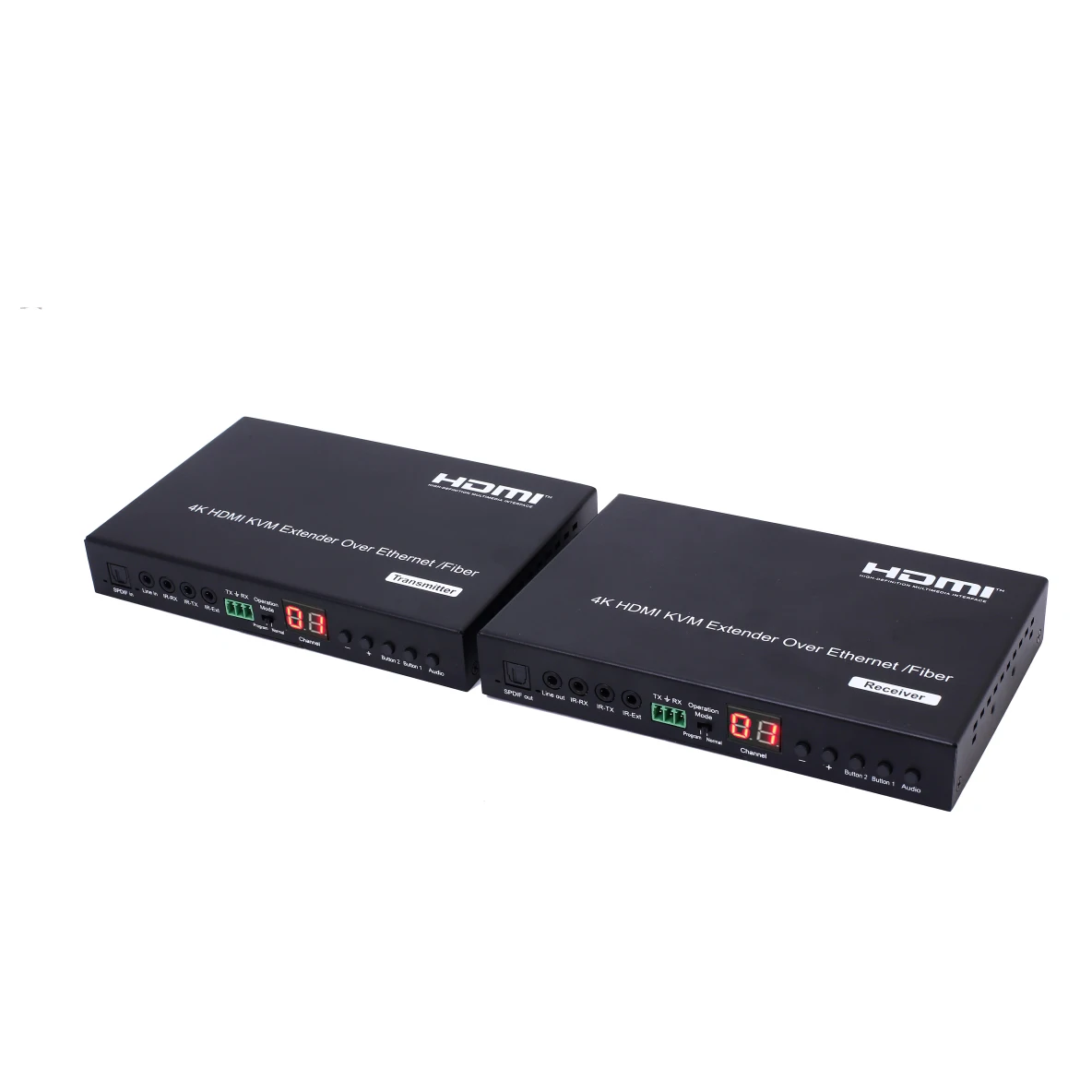

FOXUN 4K Low latency KVM HDMI Extender over IP/Fiber,With RS232, Remote, LED Support Bi Directional Wide Band IR
- Category: >>>
- Supplier: Shenzhen Shunxun Electronics Co. Ltd.
Share on (60802832734):
Product Overview
Description

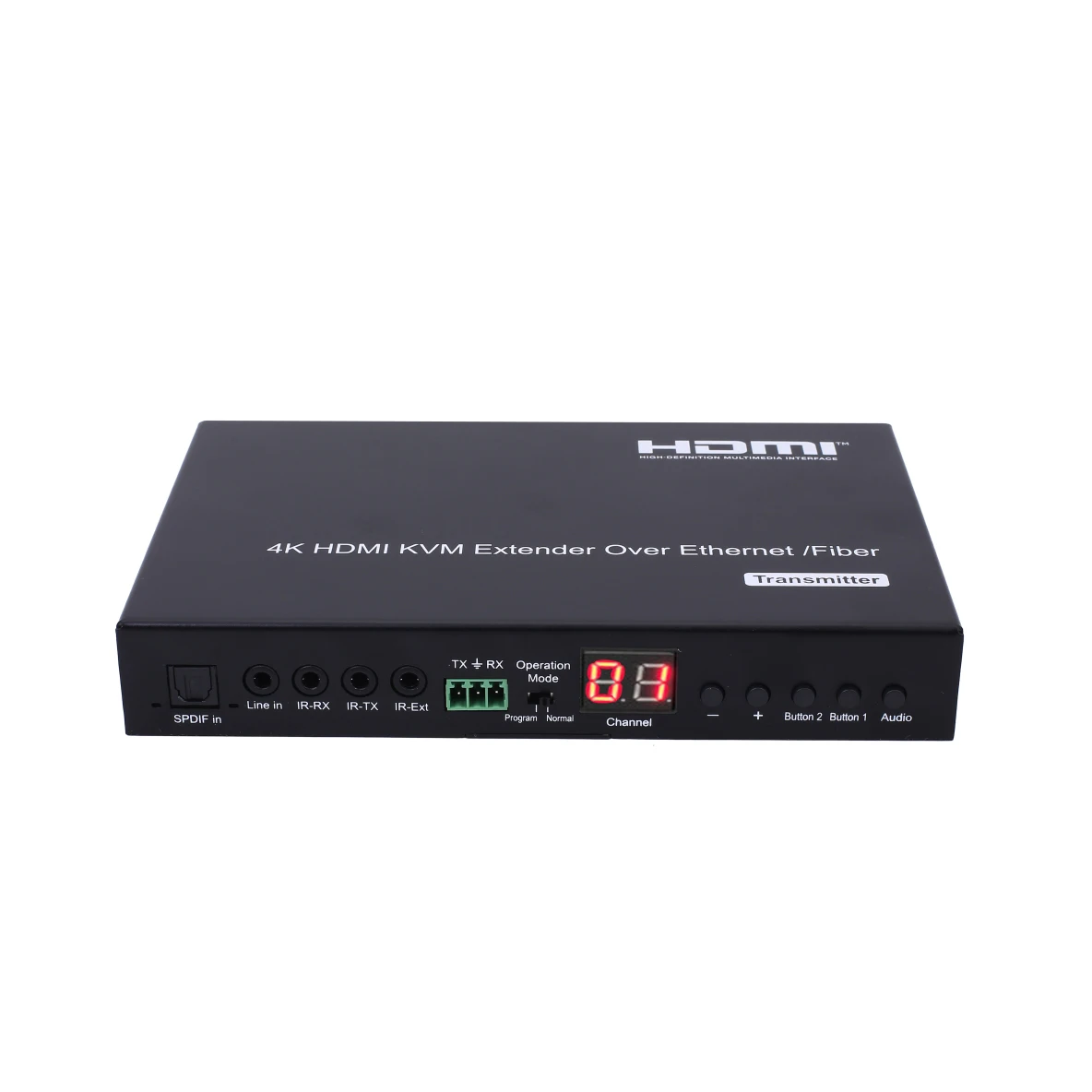

4K HDMI+USB KVM Extender over IP / Fiber
Features
* Support transmission distance 120m over single Cat5e/6 cable
* Support Fiber optical up to 60KM (Single Mode)
* Support input 4k@60hz YUV 420 (Max), output 4k@30hz (Max)
* HDCP 2.2 / HDCP1.4 compliant
* Support Bi-Directional Wide Band IR (38KHZ-56KHZ) Pass through
* Support RS232 pass through and control, Telnet command
* With IR remote/Button to control the Group ID, with LED to show the Group ID
* Support Dolby True HD, DTS-HD Master Audio
* Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
* Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction
* Support Unicast, Multicast, Video Wall system (Max 8x16), Output video Rotation
* 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
* Support 3D
* Support 5V-18V
* 4k UHD HDMI over IP/Fiber Extension
* USB2.0 over IP extension* Support transmission distance 120m over single Cat5e/6 cable
* Support Fiber optical up to 60KM (Single Mode)
* Support input 4k@60hz YUV 420 (Max), output 4k@30hz (Max)
* HDCP 2.2 / HDCP1.4 compliant
* Support Bi-Directional Wide Band IR (38KHZ-56KHZ) Pass through
* Support RS232 pass through and control, Telnet command
* With IR remote/Button to control the Group ID, with LED to show the Group ID
* Support Dolby True HD, DTS-HD Master Audio
* Input audio: SPDIF 5.1 and L/R Stereo analog Line mixed
* Output audio: SPDIF 5.1 and L/R Stereo Analog audio extraction
* Support Unicast, Multicast, Video Wall system (Max 8x16), Output video Rotation
* 10-Gigabit IGMP Ethernet Switch can be cascaded for many layers
* Support 3D
* Support 5V-18V
Specification
Performance | ||
Protocol | TCP, UDP, RTSP, RTP, DHCP, IGMP, Multicast, IPV4 | |
Support Video format | 4K@30HZ, 1080P/1080i/720P/576P/576i/480P/480i | |
Support Audio format | Stereo 192Kbps | |
HDCP | HDCP 2.2 Compliant | |
IR Frequency | 38 -56 KHZ | |
RS232 Baud rate | Default 115200bps, total 8 kinds optional | |
IP setting &Group ID setting | ||
Default IP | Automatic allocation | |
Group ID | Group 00 ~ group 99 | |
Request for Switch/Router | Support IGMP, support DHCP | |
Connectors on Transmitter | ||
Input | 1xHDMI Female port, 1xUSB B type, 1xanalog Audio line in, 1xSPDIF Audio input | |
Output | 1x RJ45 output, 1x Fiber output | |
RS232 | Phoenix RS232 port | |
IR | IR TX Port (Support 38K-56KHz) IR Ext Port (Support 38KHz) | |
Connectors on Receiver | ||
Input | 1xRJ45 input, 1x Fiber input | |
Output | 1x HDMI Female port, 2x USB A type, 1xSPDIF Audio output, 1xAnalog Audio output | |
RS232 | Phoenix RS232 port | |
IR | IR TX Port (Support 38K-56KHz) IR Ext Port (Support 38KHz) | |
Environmental & Power Requirements | ||
Operating temperature | -5 to +35 ℃ （ +23 to +95℉） | |
Operating Humidity Range | 5 to 90%RH (No Condensation) | |
Power supply | DC 5V | |
Power consumption | Max 3 watt | |
Physical | ||
Dimension | TX: 170x109x26mm; RX: 170x109x26mm | |
Net Weight | TX: 472.8G ; RX:472.3G | |

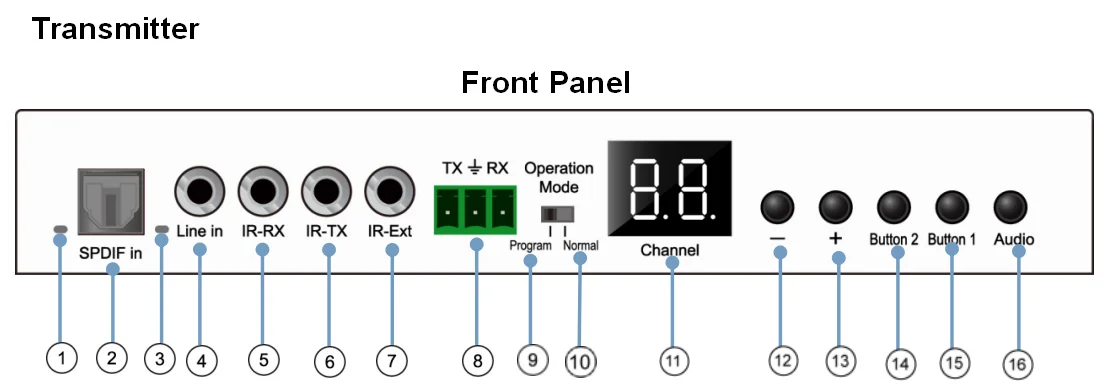

① Indicator of SPDIF Audio ② SPDIF Audio in
③ Indicator of analog Audio ④ Analog Audio line in
⑤ IR-RX ⑥ IR-TX
⑦ IR for group control ⑧ RS232 by pass
③ Indicator of analog Audio ④ Analog Audio line in
⑤ IR-RX ⑥ IR-TX
⑦ IR for group control ⑧ RS232 by pass
⑨ Program: RS232 control ⑩ Normal: RS232 by pass
⑪ LED for group ID ⑫ Group down picking
⑬ Group up picking ⑭ Functional button
⑮ Functional button ⑯SPDIF/Analog Audio switch

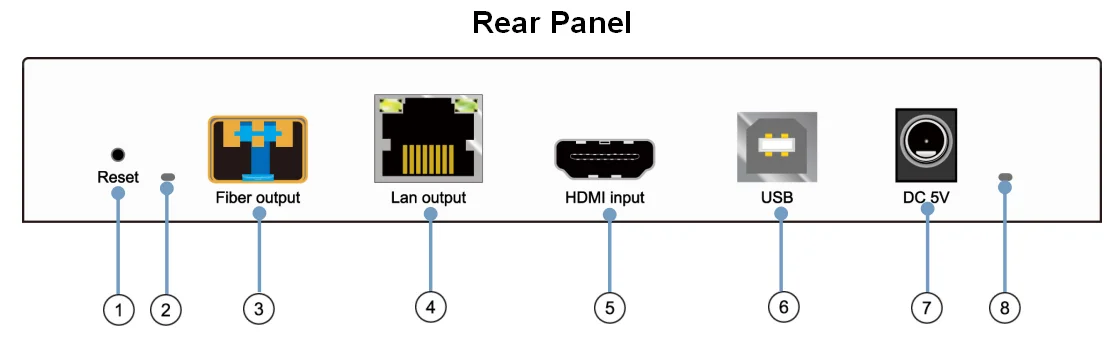

① Reset ② Indicator of Fiber output
③ SFP fiber output ④ CAT5e/6 output
⑤ HDMI input ⑥ USB type B input
⑦ DC 5V input ⑧ Indicator of Power input

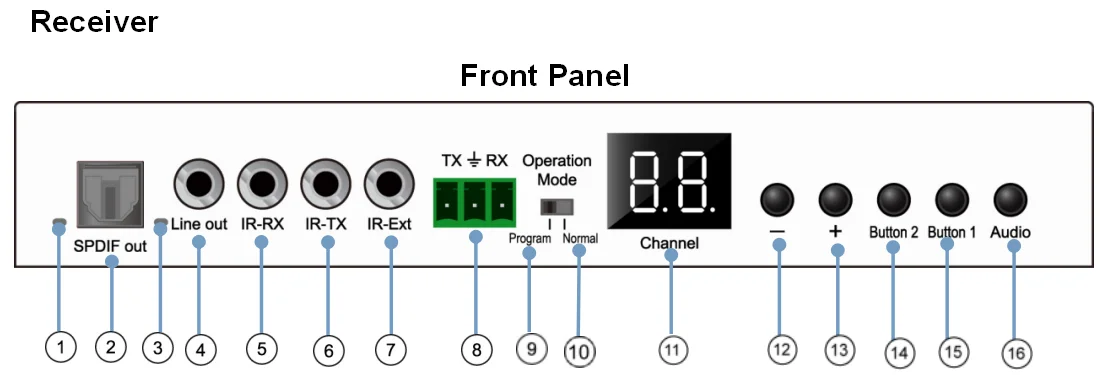

① Indicator of SPDIF Audio ② SPDIF Audio output
③ Indicator of analog Audio ④ Analog Audio output
⑤ IR-RX ⑥ IR-TX
⑦ IR for group control ⑧ RS232 by pass
③ Indicator of analog Audio ④ Analog Audio output
⑤ IR-RX ⑥ IR-TX
⑦ IR for group control ⑧ RS232 by pass
⑨ Program: RS232 control ⑩ Normal: RS232 by pass
⑪ LED display group ID ⑫ Group down picking
⑬ Group up picking ⑭ Functional button
⑮ Functional button ⑯SPDIF/Analog Audio switch
① Reset ② Indicator of Fiber output
③ SFP fiber input ④ CAT5e/6 input
⑤ HDMI output ⑥ USB type A output
⑦ DC 5V input ⑧ Indicator of Power input

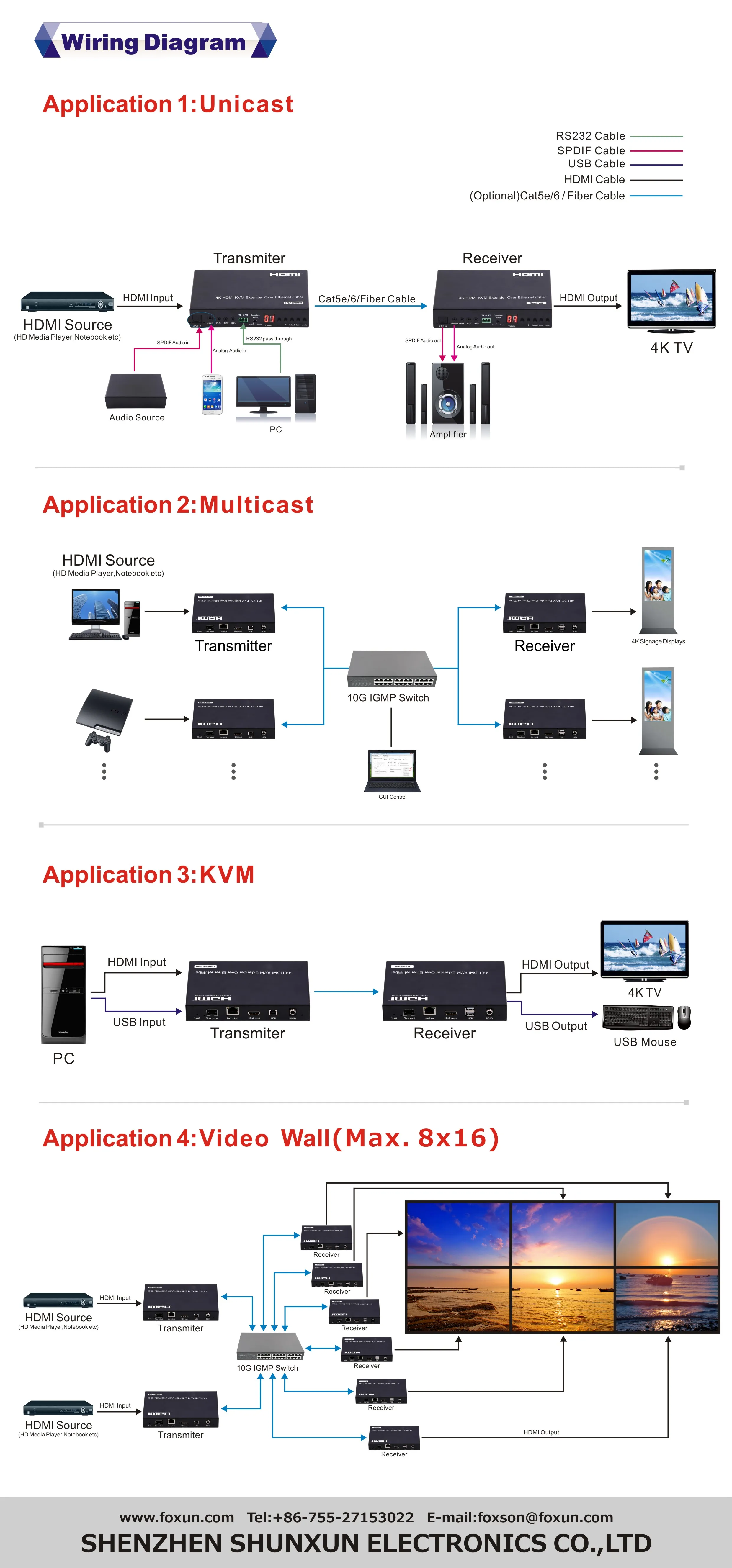

Connection Diagram
Package Contents
1). Main Unit. HDMI Extender (Transmitter & Receiver)
2). 2x Power adapter DC 5V
3). 2x IR TX cables, 4x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 8x screws
6). 4x detachable mounting ears
7). Operating Instruction manual
8).2x Remote controller
2). 2x Power adapter DC 5V
3). 2x IR TX cables, 4x IR RX cables
4). 2x Phoenix plugs for RS232 cable termination
5). 8x screws
6). 4x detachable mounting ears
7). Operating Instruction manual
8).2x Remote controller
