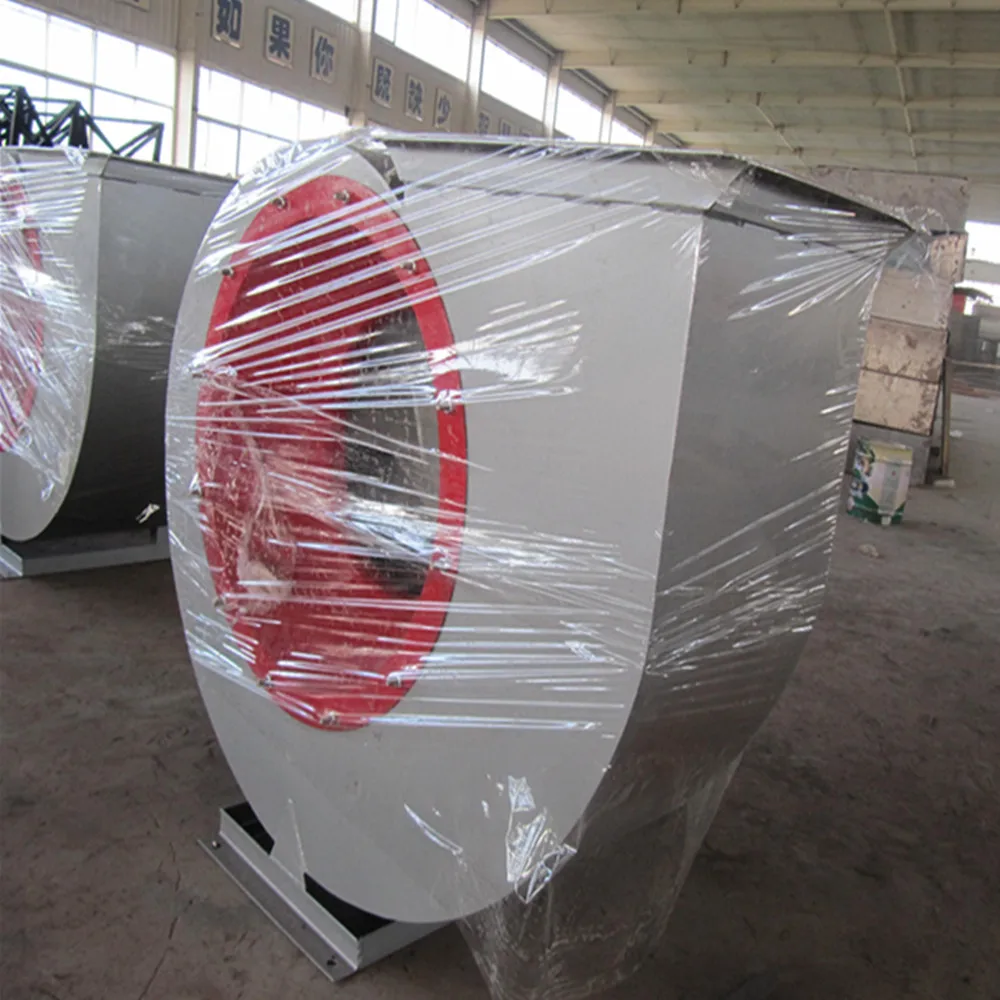

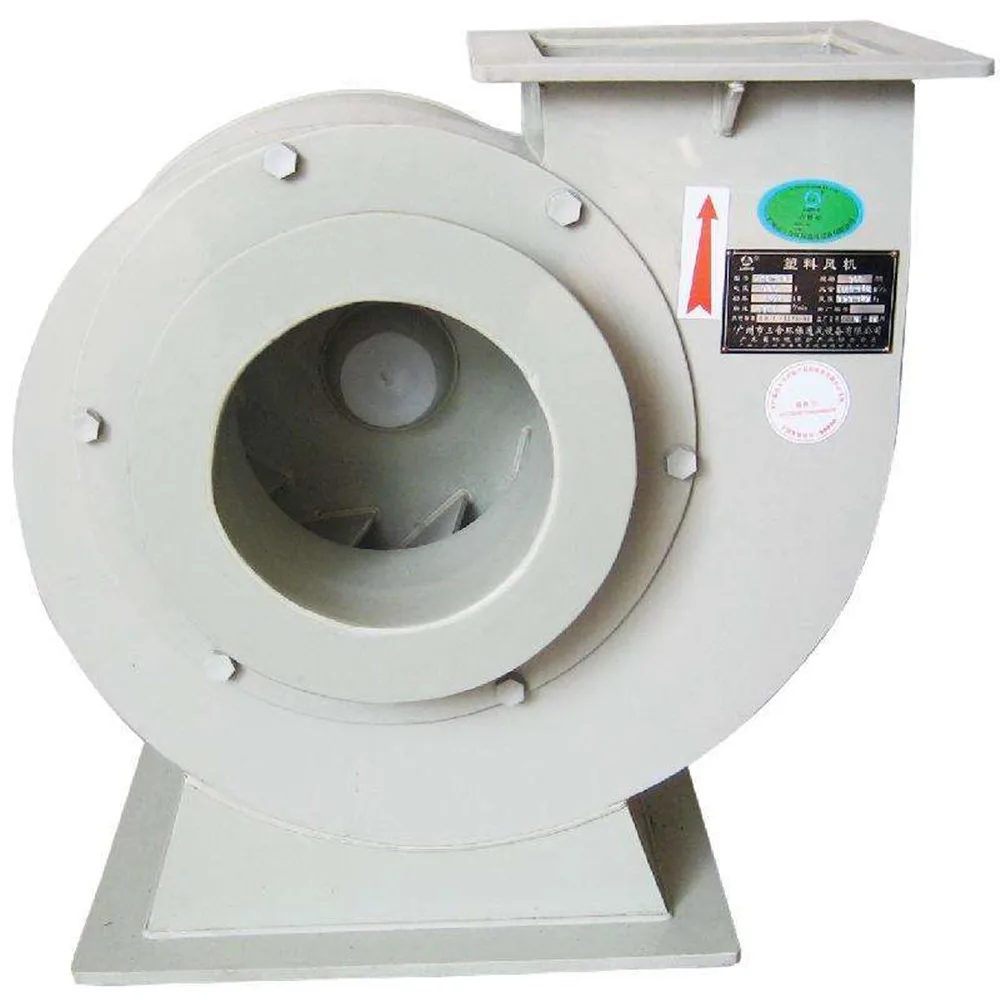

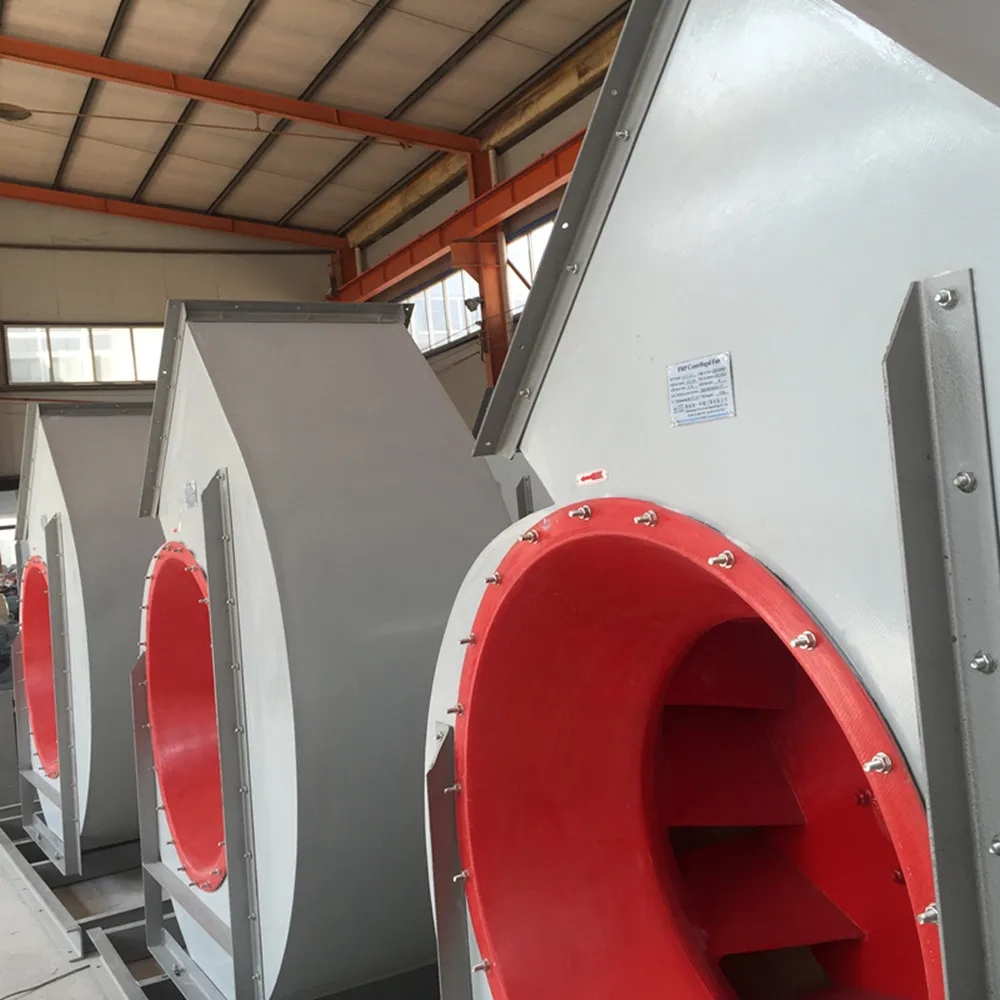

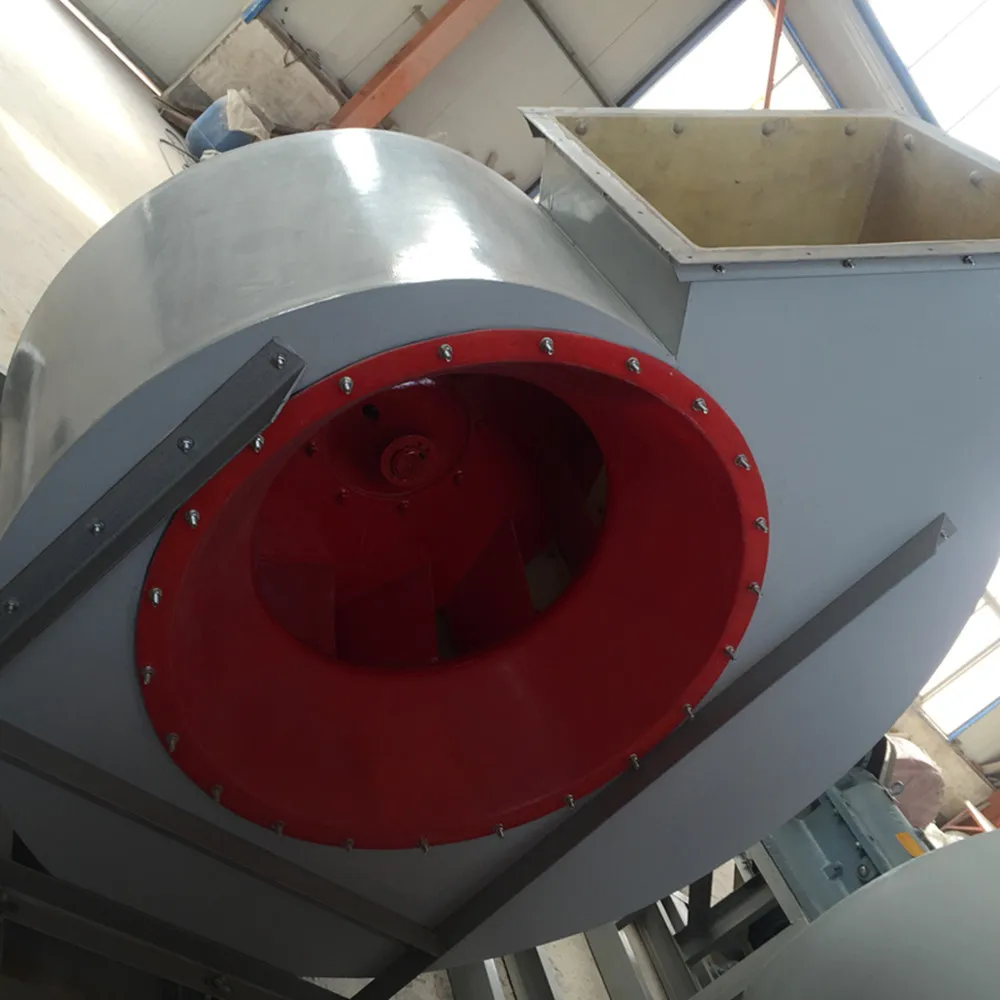

Backward Curved Blades High Quality Centrifugal Fan With Siemens Electrical Motor

Product Overview

Description

Backward Curved Blades Centrifugal Fan



1. Application:

4-72 centrifugal ventilators are suitable for Petroleum, Chemical industry, metallurgy, Electroplating, Sewage treatment, Brewing, Textiles, Electronics and other area. This fans are used for ventilation and air-change.



2.Advantage.

This ventilator has the features such as:high efficiency, low noise, stable pressure curve and anti-corrosion and energy saving, convenient installation, wide application.



3. Model

This kind of centrifugal fan are divided in to A\\C\\D three connect way, type A means the motor connect with the impeller directly, the C type means the motor and the impeller connected by the belt, type D means connected by the coupler.



4.Material

The fans can be made of FRP material, steel material, stainless steel material, aluminum material, PP/PVC material.



5.Structure:

Centrifugal fan consists of motor, cabinet, principal axis, impeller, bears, transmission mechanism, support frame etc.

Besides of centrifugal fans with low pressure, medium pressure, and high pressure, we also produce customs-made products to get the beat match between economy and performance.

Features

1.Applying optimizing design method, modular design, quality process control, and customs-made etc. different way to meet the different needs of the customs.

The Max. Efficiency can be 90%, which is 5% higher than the competitors.

Wide range of technical parameter ensures the fans run at its best efficiency at the specified applications.



Duty:

Flow:1~800m3/s,

Pressure:300~50000Pa.





A type :















C type:





No	Speed r/min	Full press Pa	Air volume m3/h	Power kw
6C	2240	2726-1883	10600-19600	18.5
	2000	2177-1500	9500-17600	11
	1800	1715-1216	8520-15800	7.5
	1600	1393-961	7560-14000	5.5
	1250	843-579	5920-11000	3
	1120	686-471	5300-9800	2.2
	1000	539-373	4730-8750	2.2
	900	411-304	4250-7850	2.2
	800	333-226	3780-7000	1.1
8C	1800	3119-2363	20100-34800	30
	1600	2471-1844	17920-31000	22
	1250	1510-1138	14000-24200	11
	1120	1206-912	12500-21650	7.5
	1000	961-726	11200-19300	5.5
	900	775-588	10050-17400	4
	800	618-461	8960-15500	3
	710	481-373	7920-13710	2.2
	630	382-284	7040-12200	2.2
10C	1250	2344-1863	34800-50150	37
	1120	1883-1491	31200-45000	22
	1000	1500-1187	27800-40100	18.5
	900	1216-961	25050-36100	15
	800	961-765	22150-32100	11
	710	755-598	19780-28500	7.5
	630	598-471	17540-25280	5.5
	560	471-373	15600-22470	3
	500	382-294	13910-20100	3
12c	1120	2717-2148	53800-77500	75
	1000	2167-1716	48100-69300	55
	900	1746-1383	43200-62200	32
	800	1383-1098	38600-55700	22
	710	1089-863	34200-49500	18.5
	630	863-686	30400-43900	15
	560	677-539	27000-38900	7.5
	500	539-432	24100-34800	5.5
	450	411-343	21650-31200	4
	400	353-275	19280-27800	3
14C	1000	3224-2400	82658-120000	110
	900	2605-2061	74391-104125	75
	800	2055-1626	66126-92555	55
	710	1617-1280	58687-82143	37
	630	1271-1007	52074-72887	30
	560	1003-795	46288-64789	18.5
	500	800-634	41328-57847	15
	450	647-512	37196-52062	11
	400	512-405	33063-46278	7.5
	355	402-319	29344-41071	5.5



Impellers
