Hydraulic actuated single plate hot screen changer on sale
- Category: Plastic & Rubber Machinery Parts >>>
- Supplier: Zhengzhou,Bate,Melt,Pumps,Co.,Ltd.
Share on:
Product Overview
Description
Products Description
Introduction of Single plate double screen cavities screen changer:
●This series use overall structure with small dimension and short flow channel. It can be used with kinds
standard extruders.
●Adopt pressure-driven sealing system design. Sealing gap can be compensated automatically. It
can meet any polymer high production capacity with no stop and leakage.
●Screen changing process can complete in 2 seconds with pressure accumulator.
●Atthe condition of 25- 30Mpa pressure and high temperature 300C, it can work well.
●Filtration area diameter range C 50- C 360mm
●Itcan be used for sheet, plate, pipe , film, blown film, wire, cable, profile, granulation and most of
thermoplastic materials.
standard extruders.
●Adopt pressure-driven sealing system design. Sealing gap can be compensated automatically. It
can meet any polymer high production capacity with no stop and leakage.
●Screen changing process can complete in 2 seconds with pressure accumulator.
●Atthe condition of 25- 30Mpa pressure and high temperature 300C, it can work well.
●Filtration area diameter range C 50- C 360mm
●Itcan be used for sheet, plate, pipe , film, blown film, wire, cable, profile, granulation and most of
thermoplastic materials.
Technical Parameter

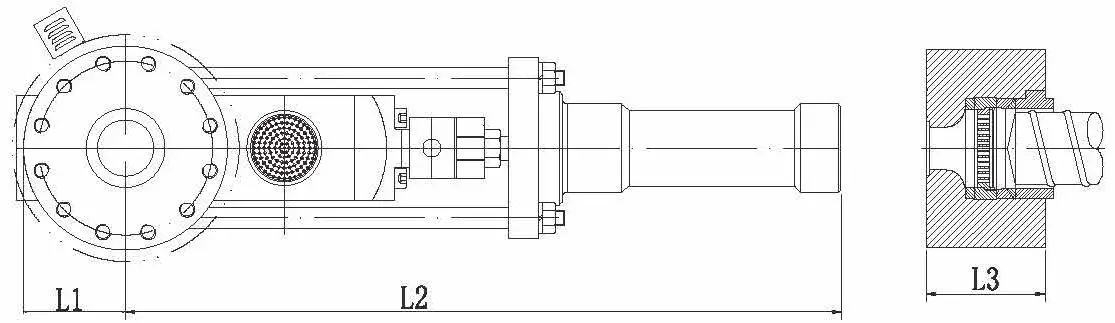

Structure of A series single plate screen changer
Type | Capacity (kg/h) | Dimension (mm) | Screen size | Heater | ||||||||||
L1 | L2 | L3 | L4 | Diameter (mm) | Area (cm2) | Voltage (v) | Power (w) | |||||||
ZB-SSP-A-70 | 75-200 | 100 | 715 | 170 | 240 | 70 | 38 | 230/400 | 3500/5800 | |||||
ZB-SSP-A-100 | 130-350 | 110 | 815 | 185 | 280 | 100 | 78 | 230/400 | 4500/6800 | |||||
ZB-SSP-A-120 | 200-550 | 130 | 880 | 205 | 320 | 120 | 113 | 230/400 | 5200/7200 | |||||
ZB-SSP-A-150 | 350-800 | 150 | 990 | 235 | 360 | 150 | 176 | 230/400 | 6500/8500 | |||||
ZB-SSP-A-180 | 450-1250 | 160 | 1035 | 245 | 360 | 180 | 254 | 230/400 | 7600/9500 | |||||
ZB-SSP-A-200 | 550-1500 | 180 | 1155 | 280 | 420 | 200 | 314 | 230/400 | 8500/11000 | |||||
ZB-SSP-A-250 | 800-2500 | 225 | 1260 | 300 | 430 | 250 | 490 | 230/400 | 9500/12000 | |||||
ZB-SSP-A-300 | 1200-3500 | 260 | 1440 | 380 | 500 | 300 | 706 | 230/400 | 11500/15500 | |||||
ZB-SSP-A-320 | 1500-4000 | 300 | 1660 | 400 | 560 | 320 | 803 | 230/400 | 13000/17500 | |||||

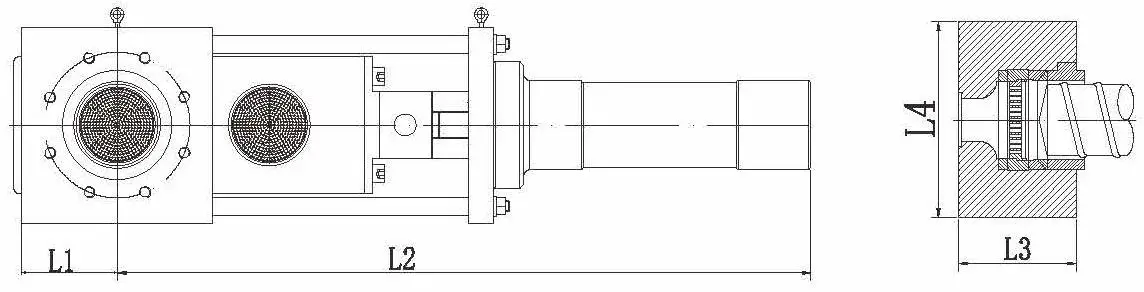

Structure of B series Hydraulic screen changer
Type | Capacity (kg/h) | Dimension (mm) | Screen size | Heater | ||||||||
L1 | L2 | L3 | Diameter (mm) | Area (cm2) | Voltage (v) | Power (w) | ||||||
ZB-SSP-B-70 | 75-200 | 115 | 715 | 170 | 70 | 38 | 230/400 | 3500/5800 | ||||
ZB-SSP-B-100 | 130-350 | 135 | 815 | 185 | 100 | 78 | 230/400 | 4500/6800 | ||||
ZB-SSP-B-120 | 200-550 | 150 | 880 | 205 | 120 | 113 | 230/400 | 5200/7200 | ||||
ZB-SSP-B-150 | 350-800 | 170 | 995 | 235 | 150 | 176 | 230/400 | 6500/8500 | ||||
ZB-SSP-B-180 | 450-1250 | 185 | 1120 | 245 | 180 | 254 | 230/400 | 7600/9500 | ||||
ZB-SSP-B-200 | 550-1500 | 225 | 1255 | 280 | 200 | 314 | 230/400 | 8500/11000 | ||||
ZB-SSP-B-250 | 800-2500 | 260 | 1325 | 300 | 250 | 490 | 230/400 | 9500/12000 | ||||
ZB-SSP-B-300 | 1200-3500 | 285 | 1470 | 380 | 300 | 706 | 230/400 | 11500/15500 | ||||
ZB-SSP-B-320 | 1500-4000 | 300 | 1660 | 400 | 320 | 803 | 230/400 | 13000/17500 | ||||
What are the benifits of melt pump on extruder?
What are the benifits of screen changer on extruder?
1, improve the quality of the final products
2,greatly improve the plasticizing of the raw material
3, make the product structure more homogeneous and product surface smoothness
4, protect the down stream equipments, such as Gmach melt pumps and the extrusion dies
What are the benifits of melt pump on extruder?
1, to improve the stability of the product size
2,melting quality control
3, increase output
4, reduce the raw materil consumption
5, improve the flexible of the extruder
6, protect the extrusion die ,extend the service life of the extruder

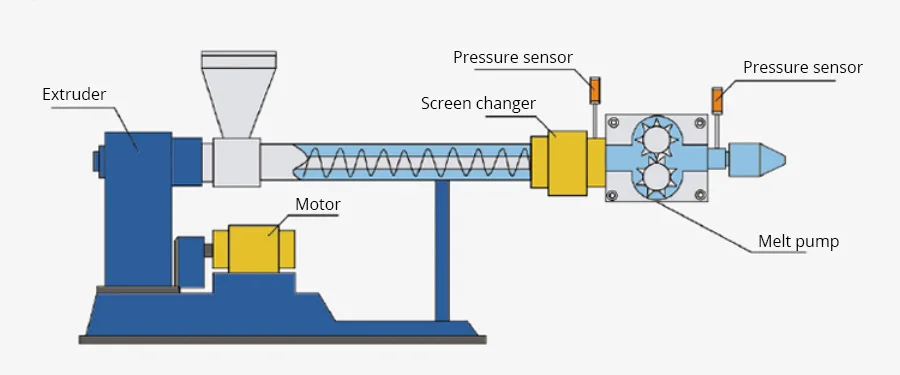

What are the benifits of installation the screen changer and melt gear pump together?
1, improve the melt plasticaction
2, improve the quality of the products
3, extend the service life of the extruder
4, greatly increase the output of the products
5, reduce the labor interference
6, reduce the unqualified products
What do we need to pay attention when using the screen changer nad melt pump?
1, we should operate the screen changer and melt gear pump as the safety manual, prevent an electrical shock
2, To prevent ourself scald
3, do not disassemble the screen changer and the melt gear pump, any questions, please contact with the supplier.
1, improve the quality of the final products
2,greatly improve the plasticizing of the raw material
3, make the product structure more homogeneous and product surface smoothness
4, protect the down stream equipments, such as Gmach melt pumps and the extrusion dies
What are the benifits of melt pump on extruder?
1, to improve the stability of the product size
2,melting quality control
3, increase output
4, reduce the raw materil consumption
5, improve the flexible of the extruder
6, protect the extrusion die ,extend the service life of the extruder
What are the benifits of installation the screen changer and melt gear pump together?
1, improve the melt plasticaction
2, improve the quality of the products
3, extend the service life of the extruder
4, greatly increase the output of the products
5, reduce the labor interference
6, reduce the unqualified products
What do we need to pay attention when using the screen changer nad melt pump?
1, we should operate the screen changer and melt gear pump as the safety manual, prevent an electrical shock
2, To prevent ourself scald
3, do not disassemble the screen changer and the melt gear pump, any questions, please contact with the supplier.
Certifications and Exhibition
Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer and exporter for screen changer, automatic screen changer products in China. Being a professional supplier for melt pump products, it has been awarded CE Certificate since 2011.
Company Profile
1). OEM services provided;
2). Excellent quality assurance;
3). Fast delivery;
4). Worldwide dealer or agent wanted.
Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for melt pump, gear pump or metering pump products in China.
Being a professional supplier for melt pump products, we have been accumulating adequate experience on the application-specific
technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for
melt pump produced by other manufacturers.
Batte melt pump is mainly used for metering, transfer and pressure boosting of low or high viscosity polymer melt. The pump parts
can be selected to counteract abrasion and conform to various materials characteristics of the pumped media.
2). Excellent quality assurance;
3). Fast delivery;
4). Worldwide dealer or agent wanted.
Batte Melt Pump Zhengzhou Co., Ltd is one of the biggest manufacturer for melt pump, gear pump or metering pump products in China.
Being a professional supplier for melt pump products, we have been accumulating adequate experience on the application-specific
technique. In addition to providing services and spare parts for our own pumps, we also provide comprehensive service packages for
melt pump produced by other manufacturers.
Batte melt pump is mainly used for metering, transfer and pressure boosting of low or high viscosity polymer melt. The pump parts
can be selected to counteract abrasion and conform to various materials characteristics of the pumped media.
shipping
Batte will choose the most reasonable packing material and packing dimensions for our product, all wooden case package is fumigated, and dimensions are designed to be economical to container shipment. For shipping, we usually work on FOB/CFR/CIF.
We will supply related report and packing pictures of products before shipment to customers.
We will supply related report and packing pictures of products before shipment to customers.
FAQ
1. Which screen changer size we can use?
Before recommending our proper screen changer model for you, we need to confirm with you the following points:
1.1. The materials you use, are they raw materials or recycled ones?
How much percent is your recycled material?
1.2. The hourly output;
1.3. The final products;
1.4. Is it single screw extruder or twin screw one?
How much is your extruder's diameter?
1.5. Do you use screen changer before? If it is, please tell us the filtration fitness and screen diameter;
1.6. How often you need to change screen;
1.7. The max. Operating pressure;
1.8.What's problem with your before used screen changer?
2. What is your MOQ;
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free
damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0.
Before recommending our proper screen changer model for you, we need to confirm with you the following points:
1.1. The materials you use, are they raw materials or recycled ones?
How much percent is your recycled material?
1.2. The hourly output;
1.3. The final products;
1.4. Is it single screw extruder or twin screw one?
How much is your extruder's diameter?
1.5. Do you use screen changer before? If it is, please tell us the filtration fitness and screen diameter;
1.6. How often you need to change screen;
1.7. The max. Operating pressure;
1.8.What's problem with your before used screen changer?
2. What is your MOQ;
At present, our MOQ is 1 set;
3. How long is the delivery time?
In general, the delivery time is 4-5 weeks.
4. What is your guarantee term?
The warranty period for our products is one year.During the warranty period, the seller is responsible for replacing free
damageable parts , while the buyer pays for freight.
5. How about the oversea installation and debugging?
Our engineer can be assigned for installation and debugging. Or we can use long-distance technical assistance based on Industry 4.0.
Quality Control System
• Fixed Q/C Equipments;
• Materials Qualified before Reaching Warehouse;
• Randomly Checking before Shipment.
• Materials Qualified before Reaching Warehouse;
• Randomly Checking before Shipment.
Our Value-added Service Package
1. Installation Services: During the period of installation and debugging, we shall offer training about effective operation and maintenance.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
2. Technical Services: We can assist our clients to solve all kind of technical problems with our capable technical team, and we own adequate experience for production line transformation project.
3. Warranty Services: We offer free after sale service except the engineers' traveling expense for any quality problem occurs during our 12 months warranty period.
