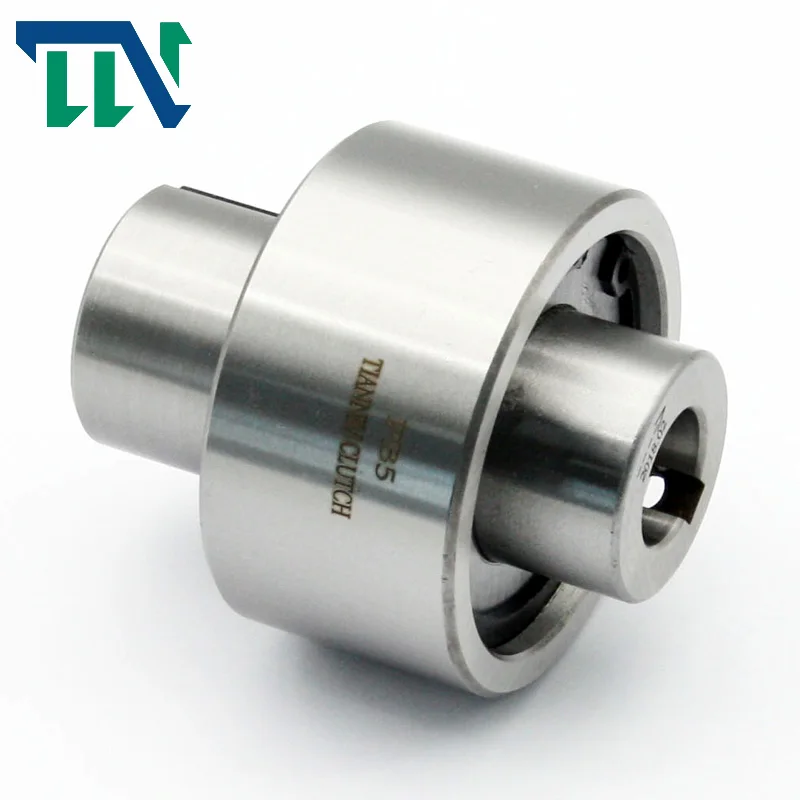

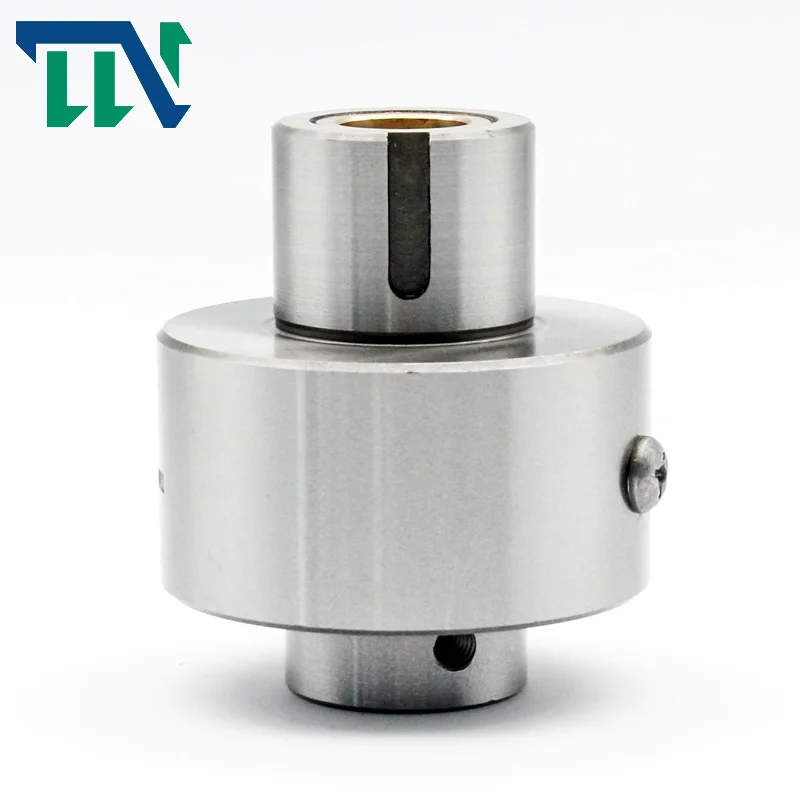

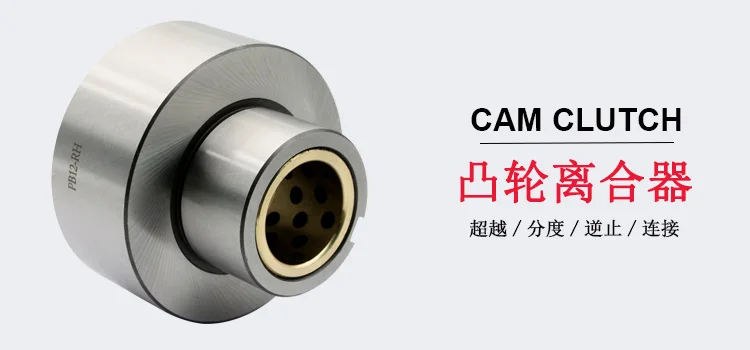

PB Cam Cluth Bearing Sprag One Way Clutch 2021

Model

Torque Capacity

(N·m)

Drag

Torque

(N·m)

Max. Overrunning (r/min)

Max.

indexing

(cycle/min)

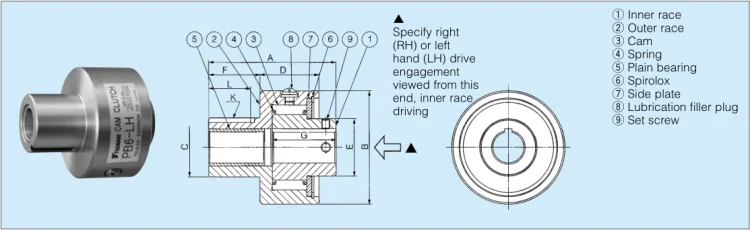

Bore Size

A

B

C

(h7)

D

E

F

G

Outer Race

Keyway

Weight

(kg)

Lubrication

Filler Plug

SizexPitch

Inner Race

Outer Race

Dia.(J7)

Keyway

K

L

PB 3

29.4

0.20

1,800

900

150

10

4x1.5

50

50

23

22

25

21

25.7

4× 2.5

16

0.23

M6× P1.0

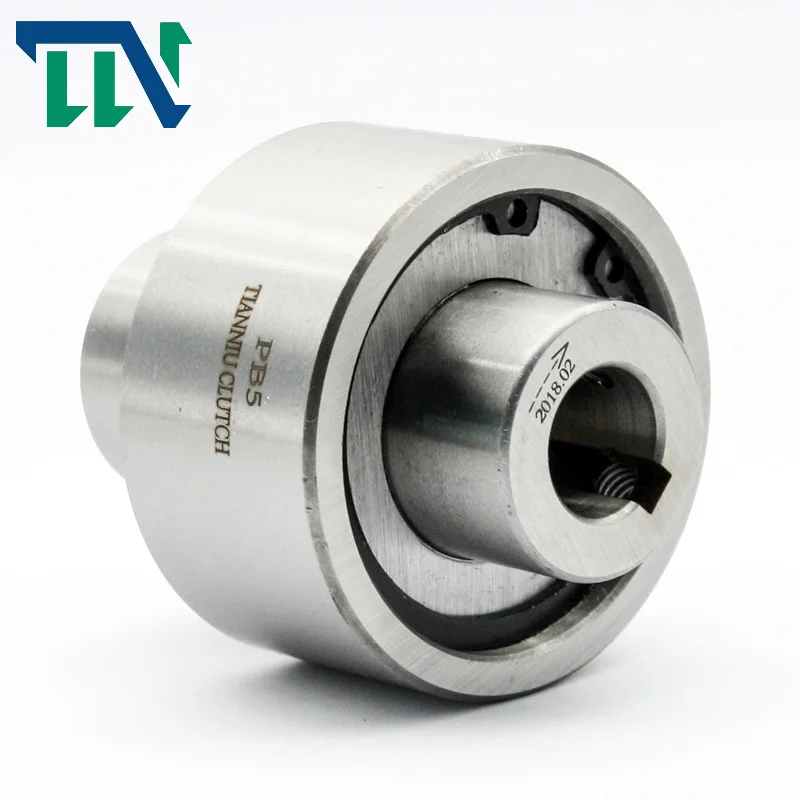

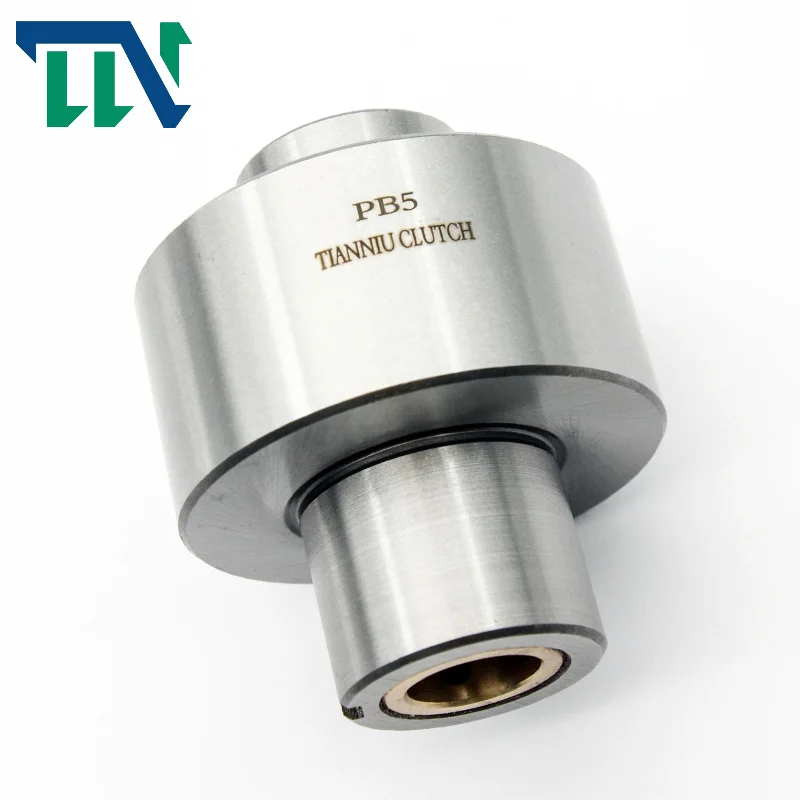

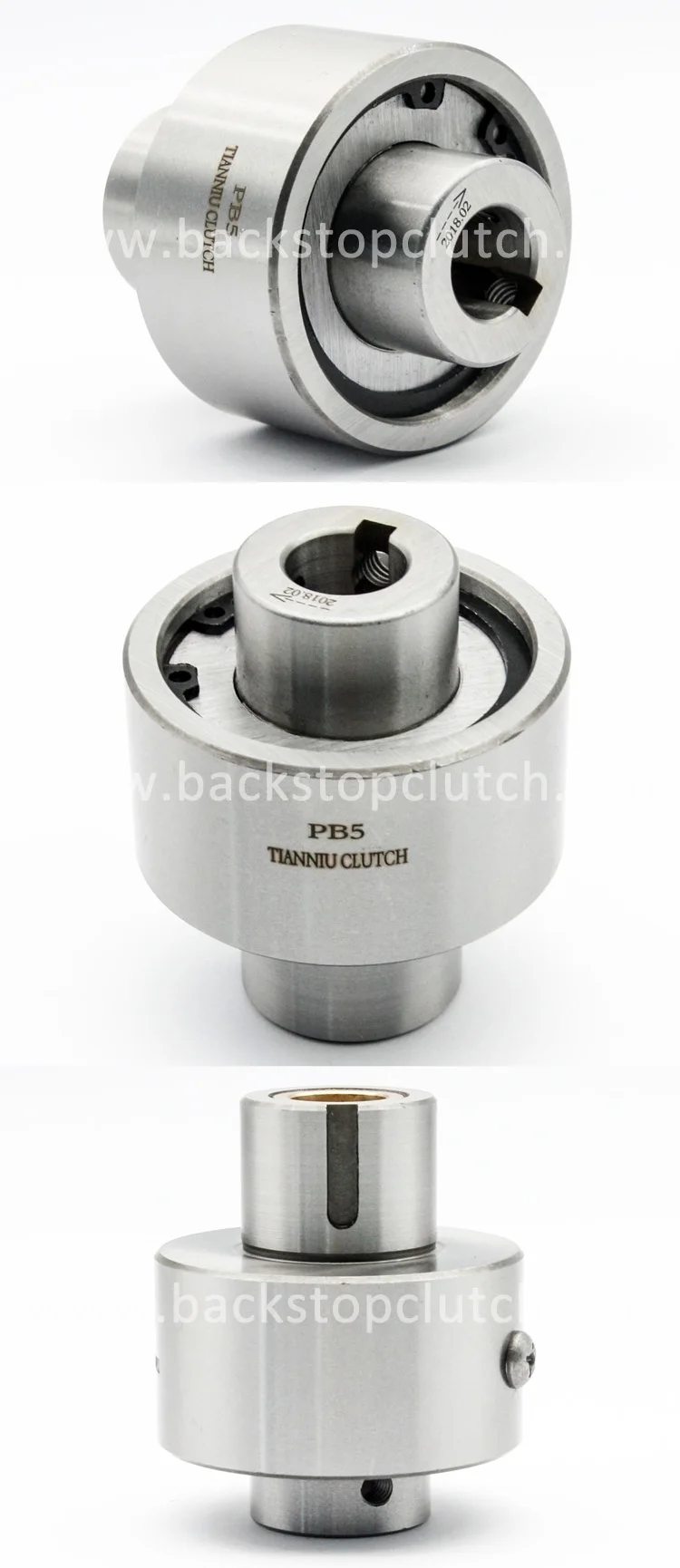

PB 5

147

0.20

1,800

900

150

16

5x2

70

60

32

32

35

25

38.8

5× 3.0

20

0.58

M6× P1.0

PB 6

382

0.20

1,500

800

150

20

5x2

82

73

38

38

37

33

41

5× 3.0

27

1.1

M6× P1.0

PB 8

568

0.29

1,200

650

150

25

7x3

85

83

45

40

45

33

42

7× 4.0

27

1.6

M6× P1.0

PB 10

843

0.39

1,000

400

150

31.5

10x3.5

92

95

60

41

56

37

44

10 × 4.5

28

2.5

M6× P1.0

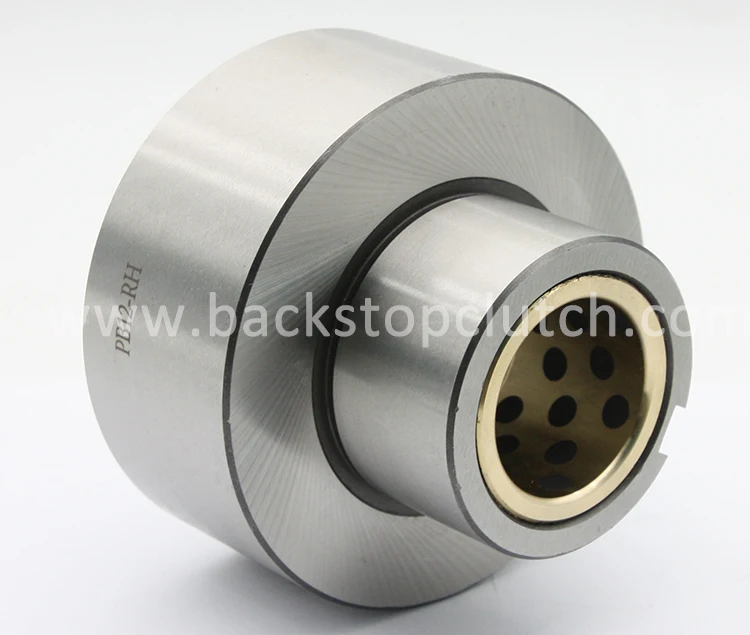

PB 12

1530

0.39

800

300

150

40

10x3.5

100

113

65

50

66

37

52.6

10 × 4.5

29

3.6

M6× P1.0

PB 14

2110

0.59

700

300

150

45

12x3.5

112

133

75

54

76

41

57.3

12 × 4.5

30

6.0

M6× P1.0
