Suitable for grease or oil lubrication and all kinds of movement, good load capacity, robust and insensible to dirt.

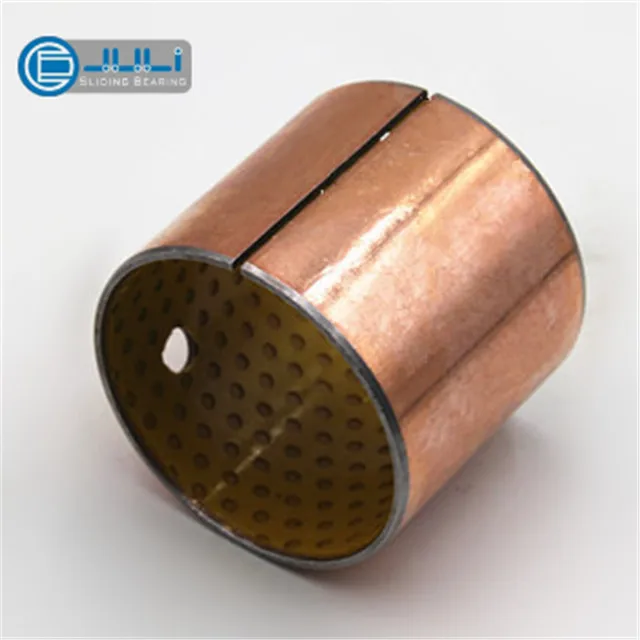

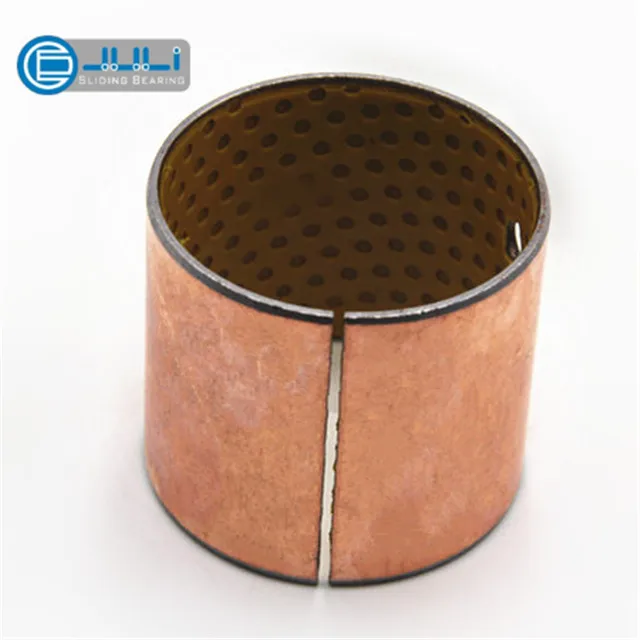

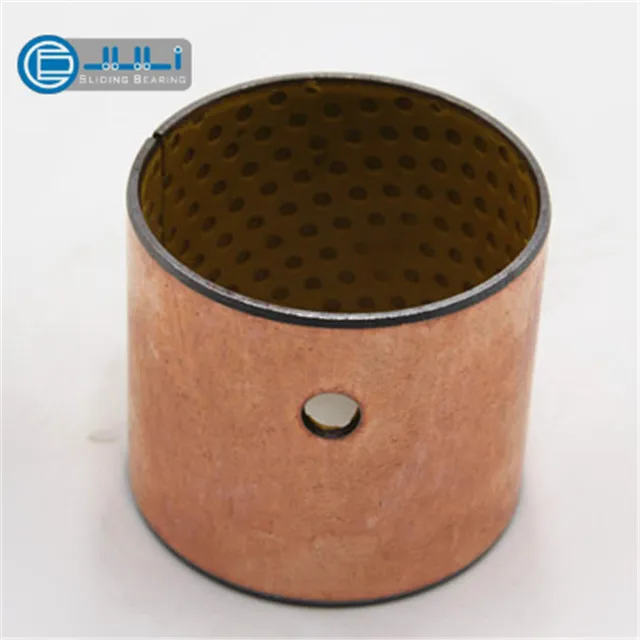

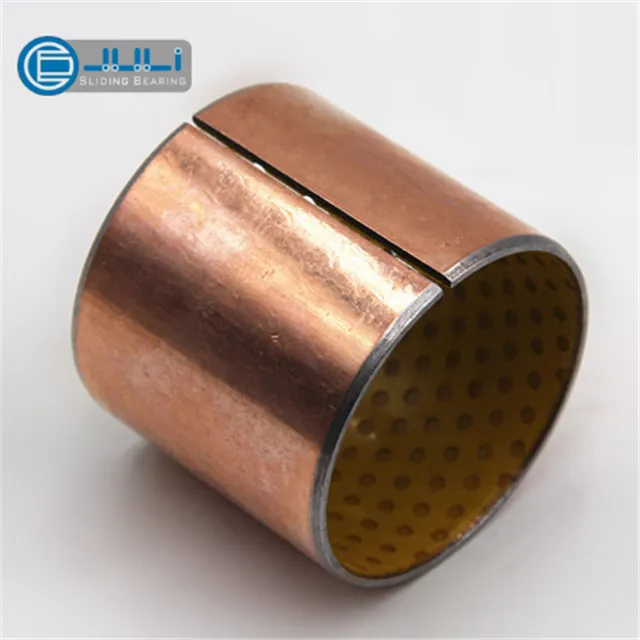

Wrapped composite sliding bearing steel / POM - with lubrication pockets TECHNISCHE DATEN POM-MET Wrapped composite sliding bearing Tin-plated steel / acetal resin (POM) DIN 1494 / ISO 3547 Low-maintenance With lubrication pockets Flanged sliding bearings on request
Technical Data
Max Move Load Capacity 250 N/mm2
Max Sliding Speed dry 2.5 m/s
Max PV Value Limit 2.8 N/mm ·m/s
Friction coe cient 0.05~0.20μ
Tensile Strength >750 N/mm2
Thermal conductivity 50W(m·k)-1 Coe cient of thermal expansion 11×10-6·K-1
Hardness > 270 HB
Working Temperature - 60 ~ + 120 ℃
Initial pre-lubrication at assembly is strongly recommended
Our other products
Packaging & Shipping
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 2-5 days if the goods are in stock. or it is 7-30 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. We also accept payment by L/C,D/A,D/P,and so on. If you have another question, pls feel free to contact us as below:
