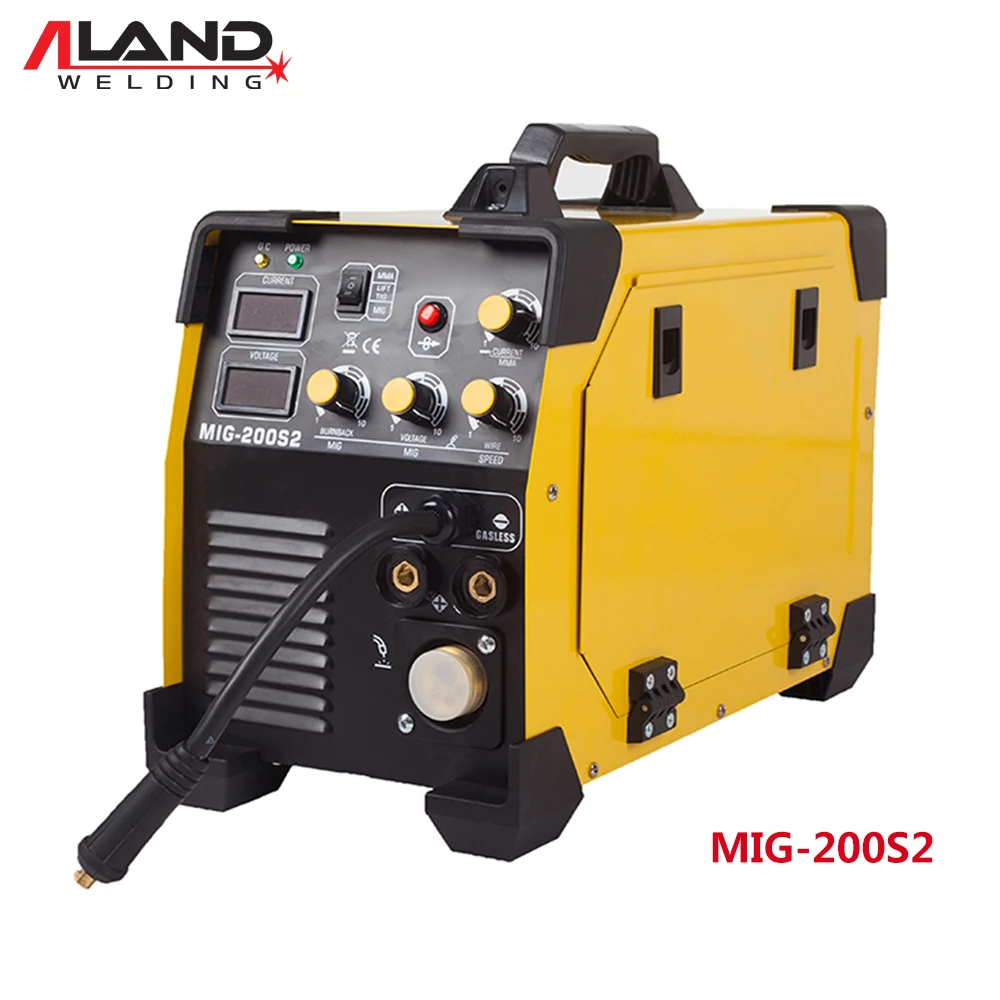

Portable IGBT Inverter MIG Lift TIG MMA Welding Machine MIG200S2 200A 3IN1 Multi Function Mig Welders Gas No Gas
- Category: >>>
- Supplier: Beijing Aland Welding Co. Ltd.
Share on (60802888459):
Product Overview
Description
Product Description
INVERTER AC/DC MIG/MMA WELDER MIG-160/180/200/250S
Model | MIG-160S2 | MIG-180S2 | MIG-200S2 | MIG-250S2 |
Welding Function | MIG TIG | MIG MMA | MIG MMA | MIG MMA |
Rate Input Voltage(V) | 220V-240V | 220V-240V | 220V-240V | 220V-240V |
Frequency(Hz) | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Input capacity(KVA) | 4.5KVA 4.3KVA | 4.5KVA 4.3KVA | 4.5KVA 4.3KVA | 7.2KVA 7.0KVA |
Current range(Amp) | 40-160A 20-140A | 40-180A 20-160A | 40-200A 20-170A | 40-200A 20-200A |
Rated duty cycle (%) | 60% | 60% | 60% | 60% |
Welding wire | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm |
Insulation class | F | F | F | F |
Protective class | IP21S | IP21S | IP21S | IP21S |
Dimension(mm) | 460*210*290mm | 460*210*290mm | 460*210*290mm | 460*210*290mm |
Weight(KG) | 10.5KG | 10.5KG | 11.0KG | 12.0KG |
● 110V/220V Dual input voltage can be optional. Adopt advanced IGBT inverter and PWM technology.
● All-around corner protection under high-strength plastic, innovative human engineering handle
● Easy operate front cable connector to change polarity conversion, can suit solid wire (Gas welding) or Flux wire (Gasless welding). MIG/MMA/LIFT-TIG 3 in 1 functions. Build-in arc force and hot start.
● Welding voltage setting, exactly match with the welding current, wire feeder speed also can be controlled.
● Digital display, effective spatters control, improved penetration and better welding performer
● 1kgs or 5kgs (Standard) spool holder can be optional. Inching wire function, easy o change wire
● Special bottom air duct can have better heat dissipation.
● Extra bumback function can remove tip ball, electronic induction (Wave Form) regulating.
MODEL | MIG-160S3 | MIG-180S3 | MIG-200S3 | MIG-250S3 |
Welding Function | MIG TIG | MIG MMA | MIG MMA | MIG MMA |
Input Voltage | 220V-240V | 220V-240V | 220V-240V | 220V-240V |
Frequency | 50/60HZ | 50/60HZ | 50/60HZ | 50/60HZ |
Rated Input Capacity | 4.5KVA 4.3KVA | 5.3KVA 5.1KVA | 6.1KVA 5.8KVA | 7.2KVA 7.0KVA |
Current Range | 40-160A 20-140A | 40-180A 20-160A | 40-200A 20-170A | 40-200A 20-200A |
Rated Duty Cycle | 60% | 60% | 60% | 60% |
Welding Wire | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm | 0.6/0.8/0.9/1.0mm |
Insulation Class | F | F | F | F |
Protection Degree | IP21S | IP21S | IP21S | IP21S |
Machine Size | 500*240*330mm | 500*240*330mm | 500*240*330mm | 500*240*330mm |
Machine Weight | 13.5KG | 14.5KG | 15.0KG | 16.0KG |
● 110V/220V Dual input voltage can be optional Adopt advanced IGBT inverter and PWM technology.
● All-around corner protection under high-strength plastic, innovative human engineering handle.
● Easy operate front cable connector to change polarity conversion, can suil solid wire (Gas welding) or a Flux wire (Gasless welding). MIG/MMA/LIFT-TIG 3 in 1 functions. Build-in arc force and hot start.
● Welding voltage setting, exactly match with the welding current, wire feeder speed also can be controlled.
● Digital display, effective spatters control, improved penetration and better welding performance.
● 5kgs or 15kgs (Standard) spool holder can be optional. Inching wire function, easy to change wire.
● Special bottom air duct can have better heat dissipation.
● Extra bumback function can remove tip ball, electronic induction (Wave Form) regulating.
Detailed Images

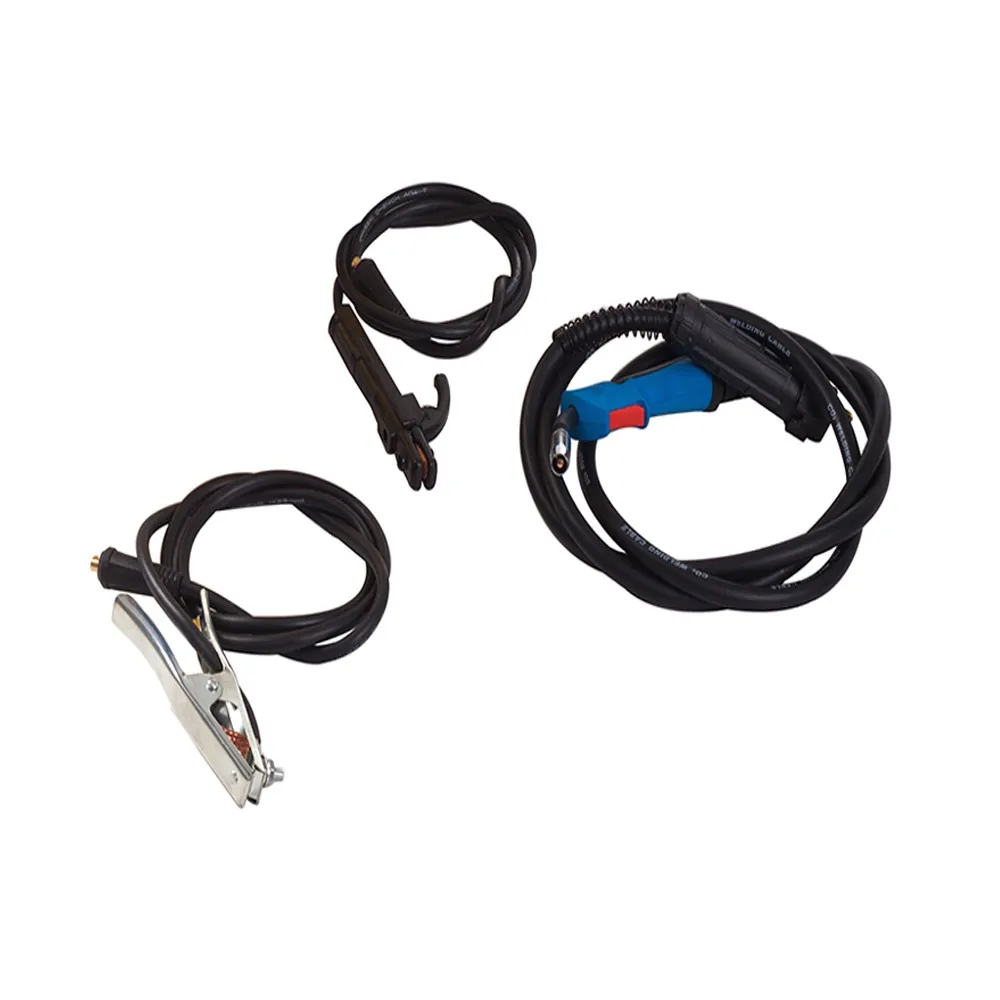

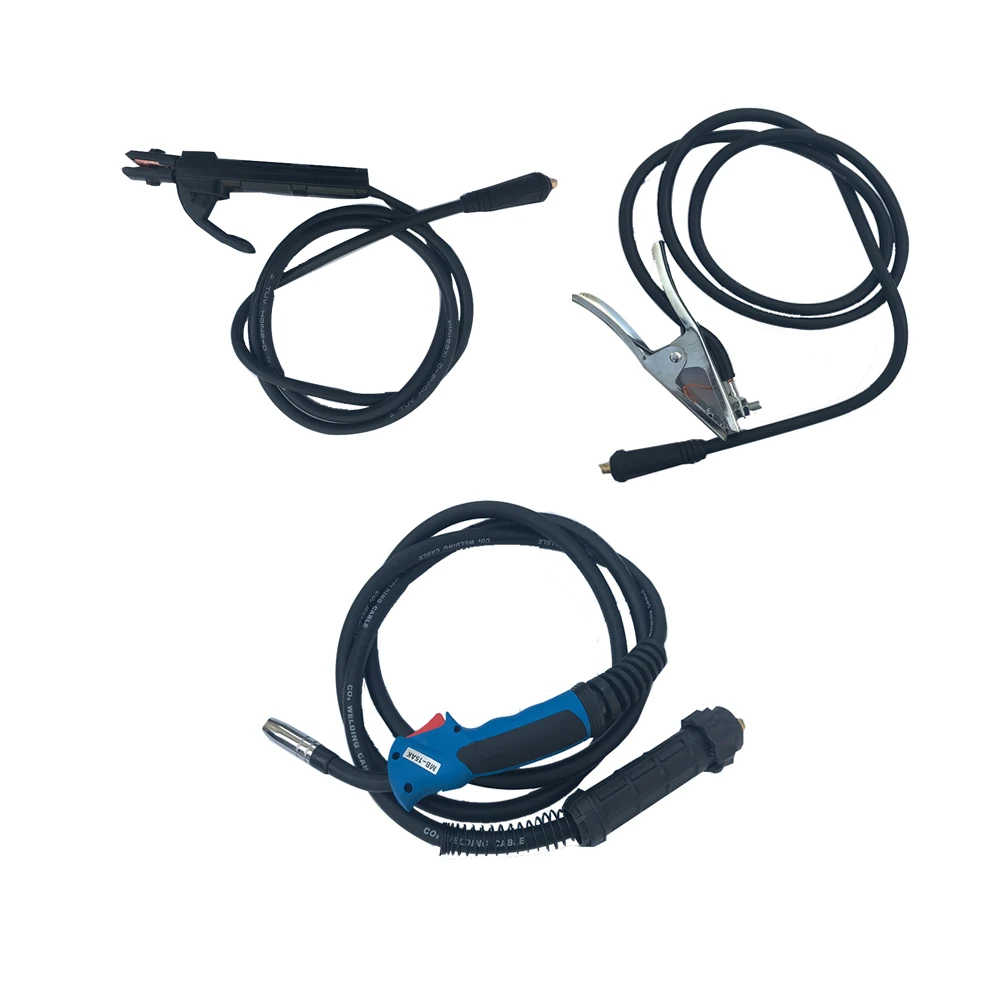

Standard Accessary
● 2 m welding cable + 300 A holder,
● 2 m welding cable + 300 A earth clamp
● M I G torch with 3 m cable
Packing & Delivery
Carton packing
Wooden packing
Packaging | ||
Model | MIG-200S2 | |
Size | 460*210*290mm | |
Weight | 11kg | |
Packaging Details | The normal package is carton packing(Size: L*W*H). If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
