Photovoltaic Solarpanel China tier 1 factory 330watt 335watt poly solar panels wholesale
- Category: >>>
- Supplier: Shenzhen Topsky Energy Co. Ltd.
Share on (60802902206):
Product Overview
Description

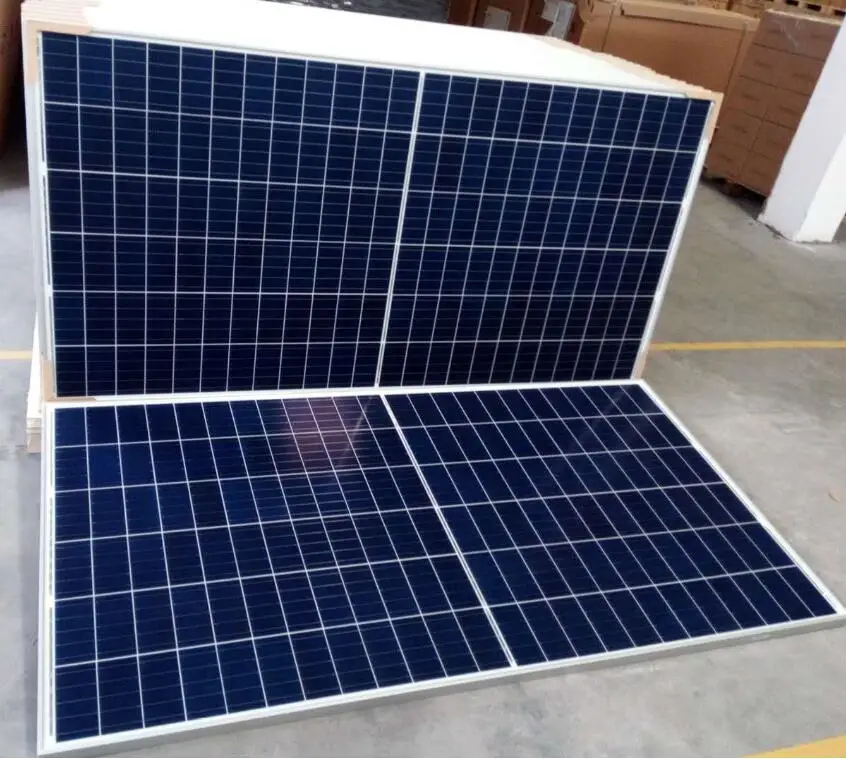

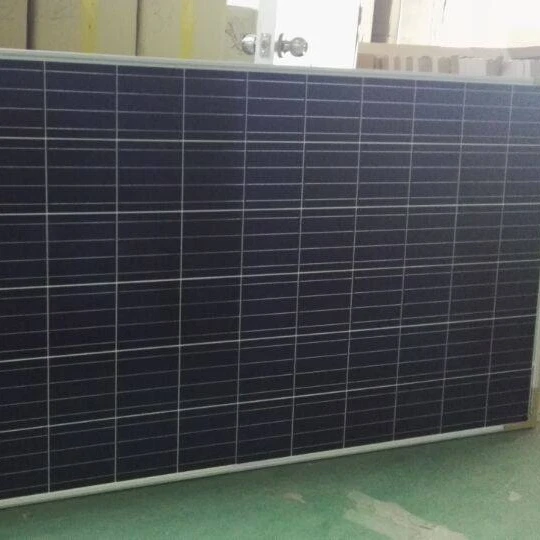

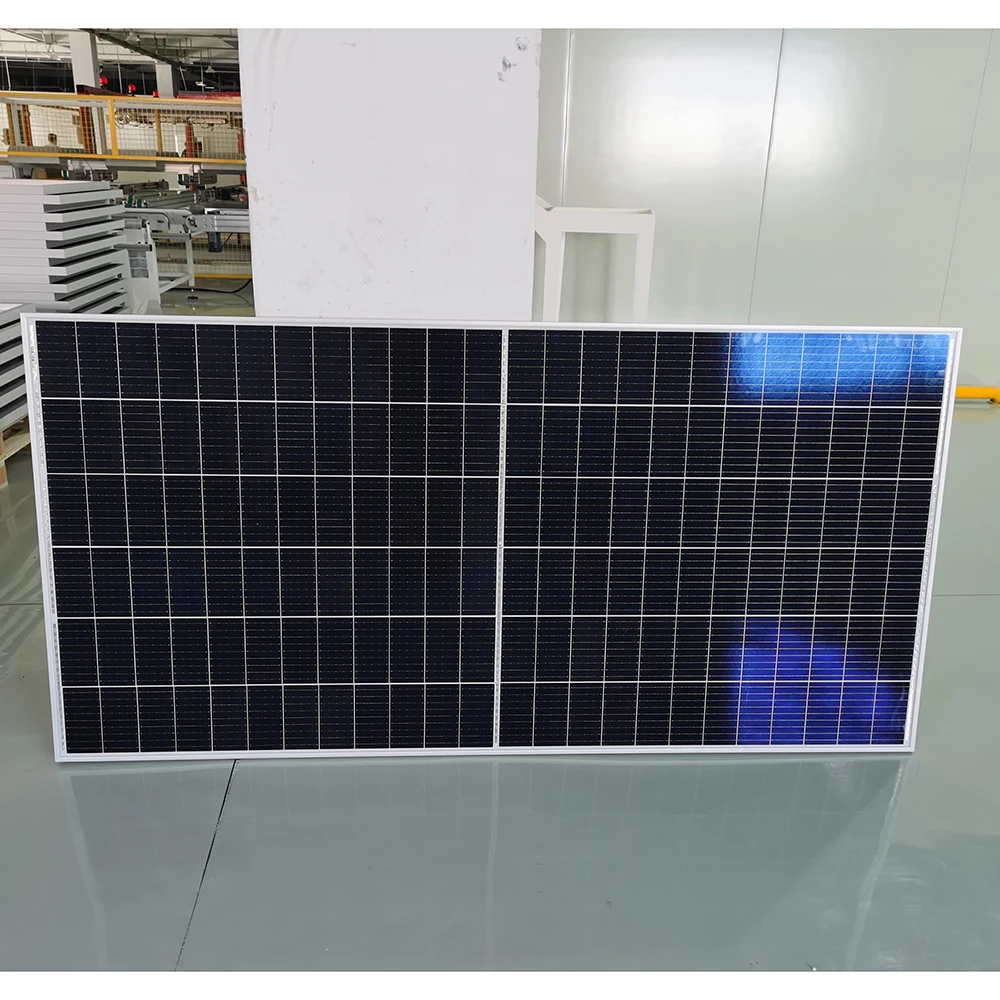

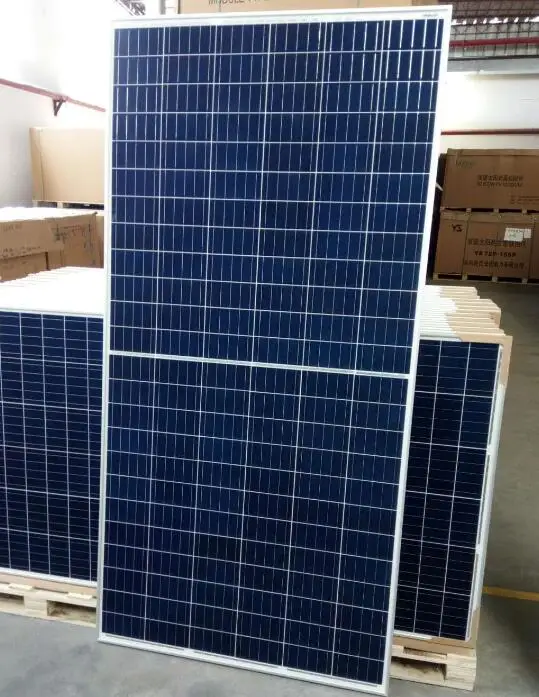

Photovoltaic Solarpanel China tier-1 factory 330watt 335watt poly solar panels wholesale
Product Description
| Electrical Characteristics of poly solar cell panel | |||||
| Rated Maximum Power(Pmax) [W] | 325 | 330 | 335 | 340 | 345 |
| Open Circuit Voltage(Voc) [V] | 45.56 | 45.83 | 46.10 | 46.39 | 46.68 |
| Maximum Power Voltage(Vmp) [V] | 36.90 | 37.18 | 37.45 | 37.74 | 38.04 |
| Short Circuit Current(Isc) [A] | 9.28 | 9.35 | 9.46 | 9.48 | 9.55 |
| Maximum Power Current(Imp) [A] | 8.81 | 8.89 | 8.98 | 9.02 | 9.07 |
| Module Efficiency [%] | 16.5 | 16.7 | 17.0 | 17.2 | 17.5 |
| Power Tolerance | 0~+5W | ||||
| Temperature Coefficient of Isc(α_Isc) | +0.058%/℃ | ||||
| Temperature Coefficient of Voc(β_Voc) | -0.330%/℃ | ||||
| Temperature Coefficient of Pmax(γ_Pmp) | -0.400%/℃ | ||||
| STC | Irradiance 1000W/m², cell temperature 25℃, AM1.5G | ||||

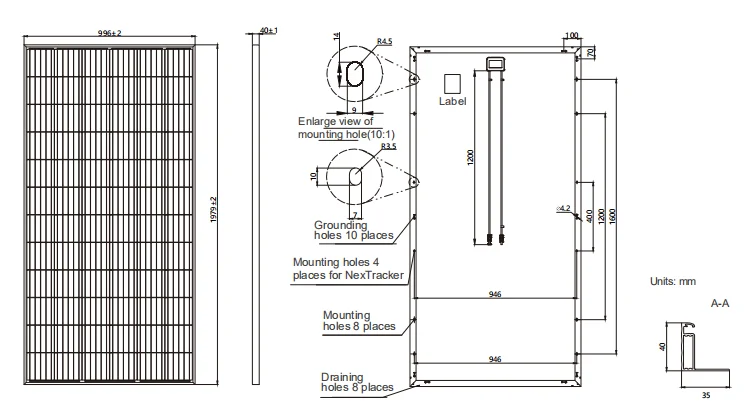

Diagram of polycrystalline solar panel

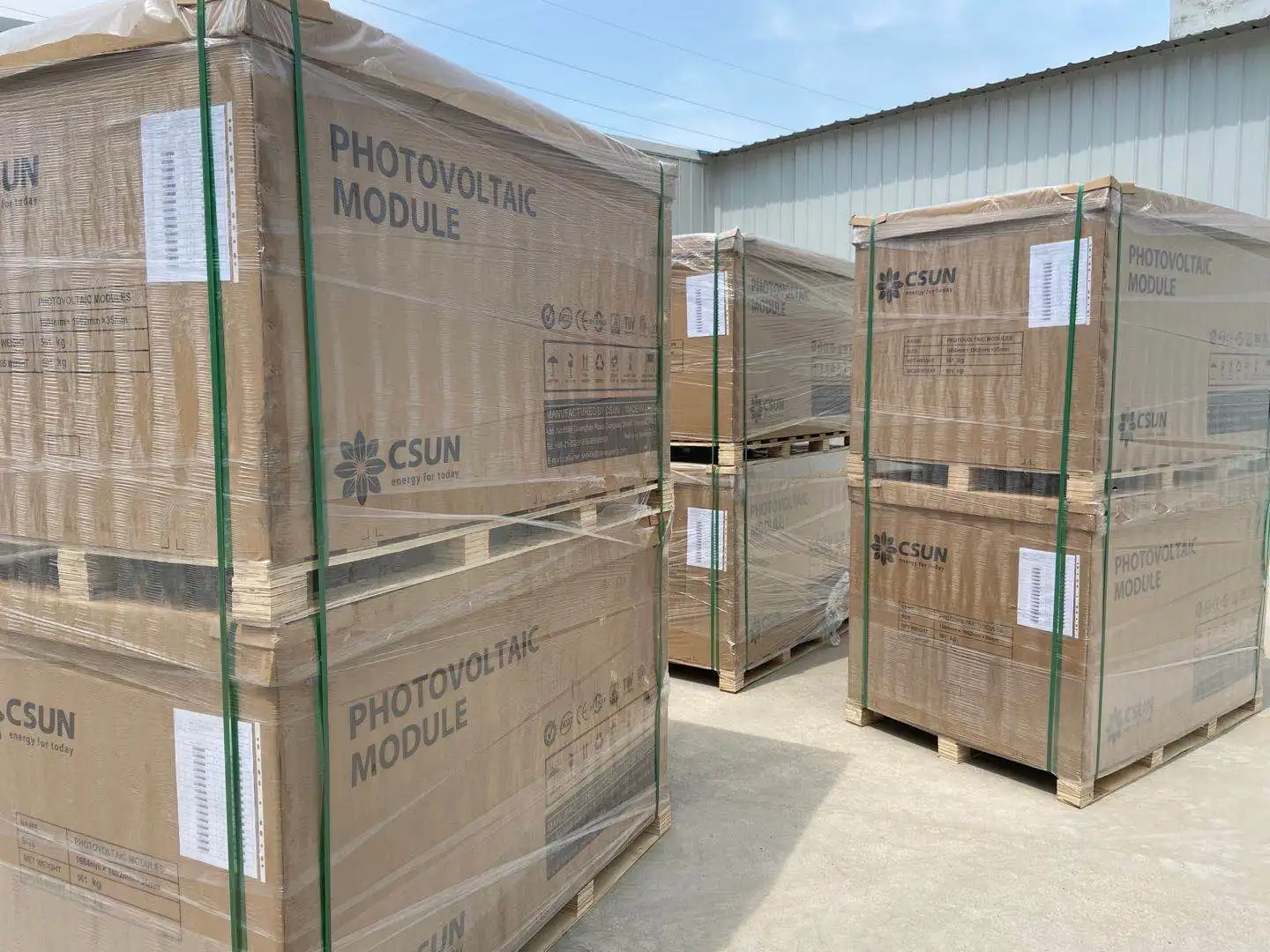

Packaging & Shipping
>>>>> Packaging
| No.of cells | Thickness of frame | PCS/Pallet | 20GP(PCS) | 40GP(PCS) |
| 60pcs | 35mm | 30 | 360 | 840 |
| 120pcs | 35mm | 30 | 360 | 780 |
| 72pcs | 40mm | 27 | 270 | 648 |
| 144pcs | 40mm | 27 | 270 | 594 |
| 156pcs | 35mm | 30 | 300 | 660 |

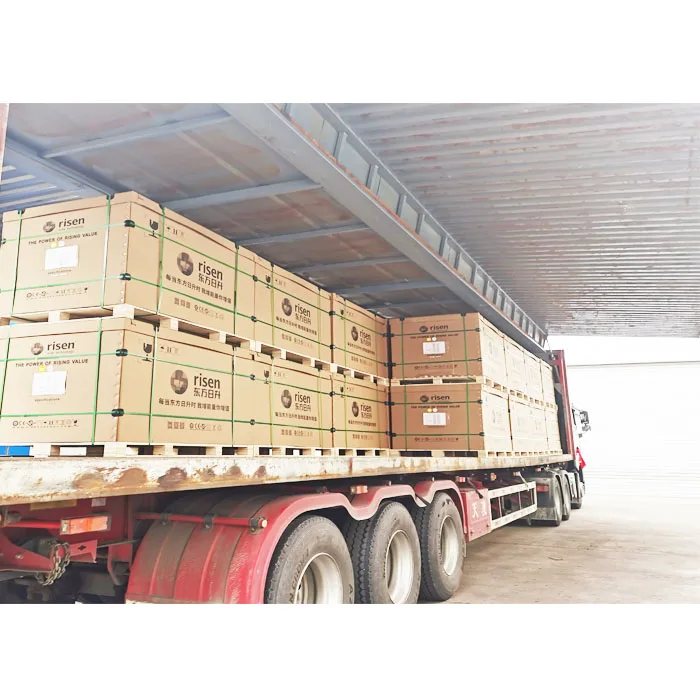

>>>>> Shipping
Company Information
TOPSKY ENERGY specializes in solar industry for providing solar cells,solar poly panels, solar mono panels and solar application products and Solar PV system solutions with experience over 10 years.
TOPSKY has set up two sole-funded companies in SHENZHEN ,two operating companies in HONGKONG and one Jointed Venture in JIANGSU province successively since 2005.TOPSKY is able to provide customers with annual capacity of 300MW solar cells,400MW solar panels and 60,000 sets of solar power systems.
Main products are as follows:
125mm 2BB mono solar cell, back-contact sunpower solar cells, 156mm/156.75mm poly and mono solar cells, 158.75mm/166mm polycrystalline and monocrystallline solar cells.
3W-500W standard monocrystalline and polycrystalline silicon solar panel, Mono PERC solar panels, Bifacial solar mono dual glass panel, HJT BIFI dual glass panels.
Solar cell panels, solar PET/Epoxy resin/Glass panels, small mini solar panels are offered OEM and ODM service as per customers’ request.
- Exclusive channel to get solar cells and solar panels from top quality brand at more competitive price,they are JA solar, Risen solar, Trina solar, Longi solar, Jinko solar,Canadian solar, Csun solar, SUN POWER ,URE,MOTECH,QCELLS, SUNTECH,BYD, GCL,etc.
TOPSKY always pursues the philosophy of people -oriented and energy-saving as well as cost effectiveness to create long term value for customers.
>>>>Workshop
FAQ
Q: What kind of certification of solar cell panel do you have?
A: Power from 3W to 500w panel solar with TUV,IEC61215/IEC61730,CEC,CE,UL,ETL,PID,ISO.MCS,etc.
Q: What is the warranty of solar panels?
A: 10 years warranty on material and workmanship, 25 years power warranty (90% power output in 10 years,80% in 25 years)
Q: Can you quote me the best price of solar cells solar panel?
A: We need more information about your demands, such as the power/material/Qty/etc, then We can suggest the suitable type and quote the best price for you.
Q: Can I just order some samples of small quantity?
A: Sample order in small quantity is acceptable.
Our Services
>>>>>Pre sale:
- Our sales representative and engineer work together to answer your questions and offer solution for free
- We choose the best product for you to make sure it worth its real value
- We design the best solution with good perfomance for you,manwhile save every cent of your money.
>>>>>After sale:
We provide 10 years Warranty for solar panels, 10 years warranty for 90% power production ,25 years warranty for 80% power production.
We Topsky Energy are authorized distributor of Suntech&Csun brand panels---Top brand manufacturer in the world. We welcome your any inquiry.
