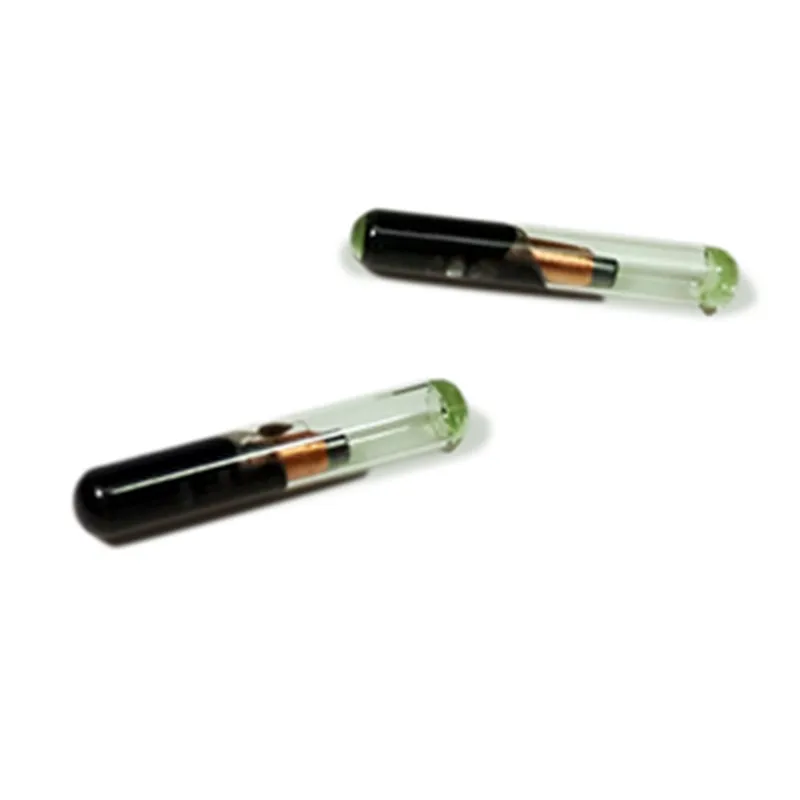

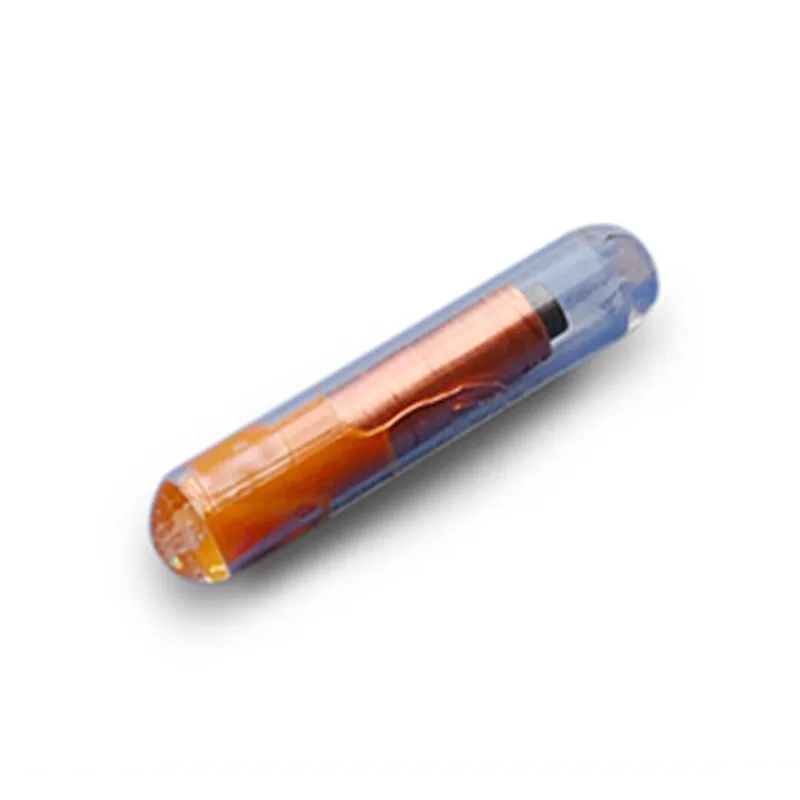

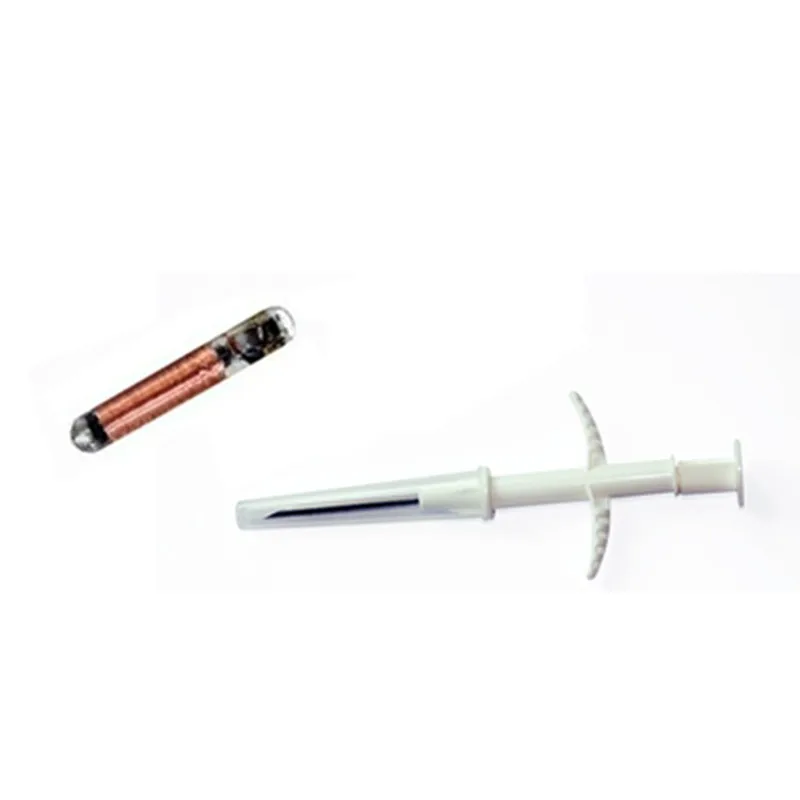

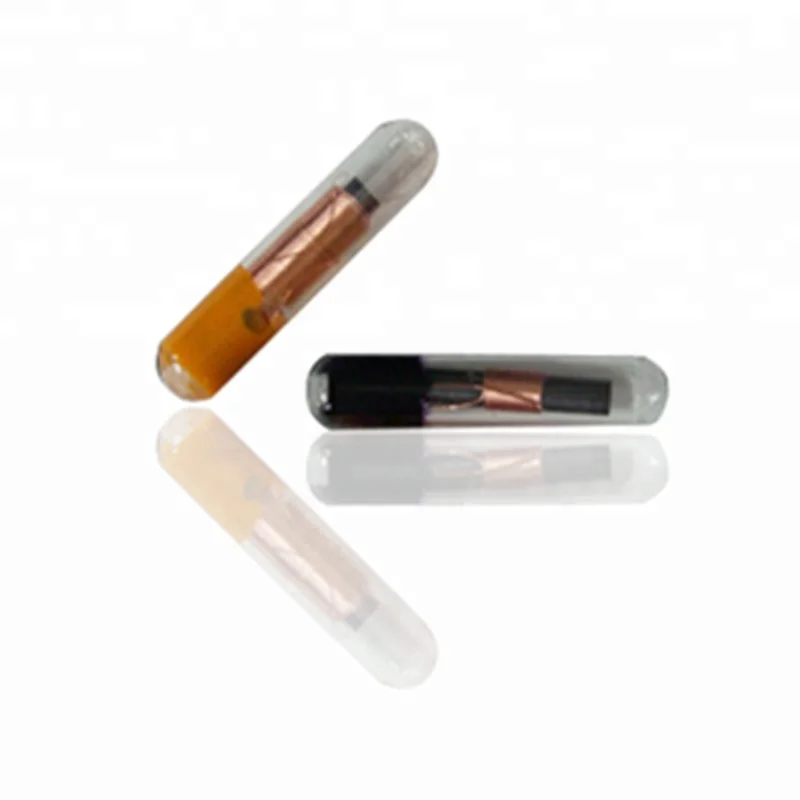

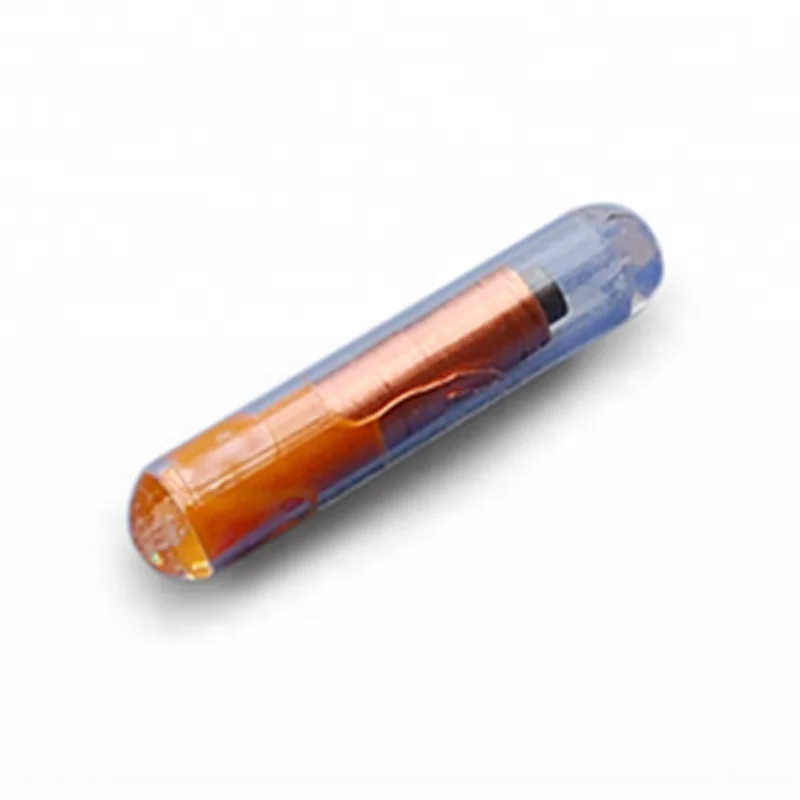

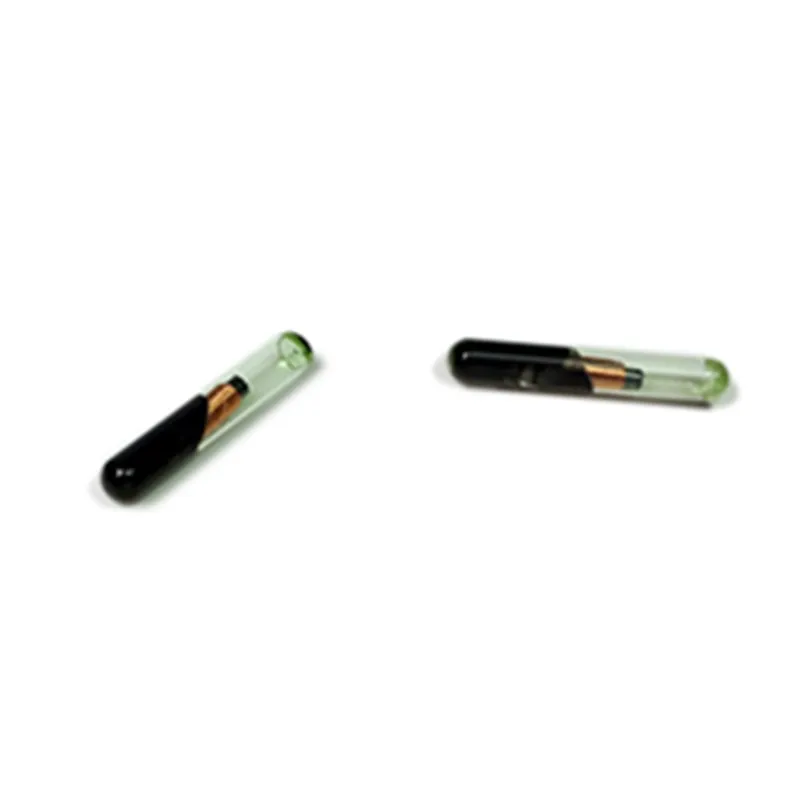

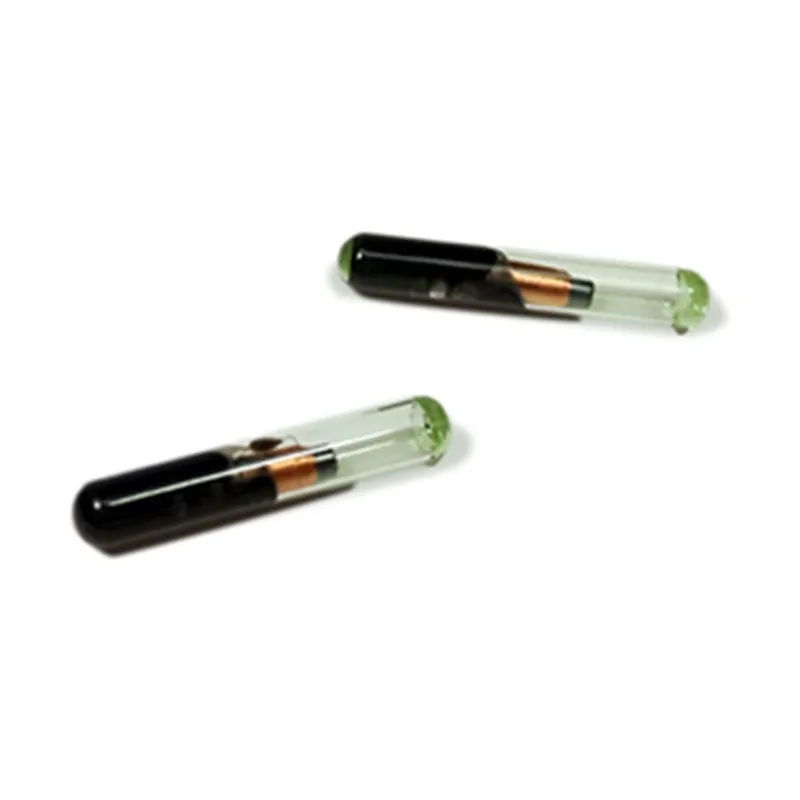

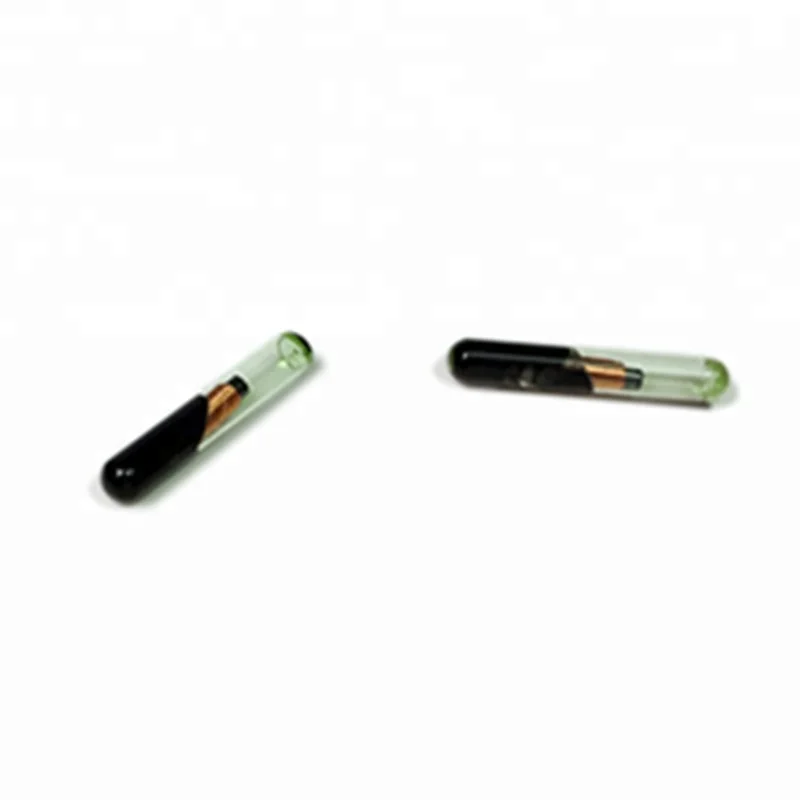

Wholesale miniature LF 125KHz microchip rfid animal tag EM4305 chip

Chip Description:

EM4305 is a CMOS integrated circuit intended for use in electronic Read/ Write RF transponders. It is suitable for low cost solutions like animal tagging applications.

The IC is powered by picking up energy from a continuous 125 kHz magnetic field via an external coil, which together with the integrated capacitor form a resonant circuit. The IC reads out data from its internal EEPROM and sends it out by switching on and off a resistive load in parallel to the coil using a large modulation index. Commands and EEPROM data updates can be executed by 100% AM modulation of the 125 kHz magnetic field.

The EM4305 supports bi-phase and Manchester data encodings. The EM4305 operating modes are stored in the EEPROM configuration word. All EEPROM words can be write-protected by setting protection bits. The IC contains a factory programmed 32 bit unique identifier number (UID).

Application:

    We are one of the most professional manufacturer of contact and contactless smart cards, smart tags and RFID reader. Since 2000, we provided billions of smart card/ RFID tag to our clients worldwide every year.

    We established the important partnership with the major semiconductor companies worldwide, such as NXP, EM, TI, ST, Impinj, ATMEL, INSIDES, JEWEL, as well as Fudan Microelectronics, Huahong Group.
