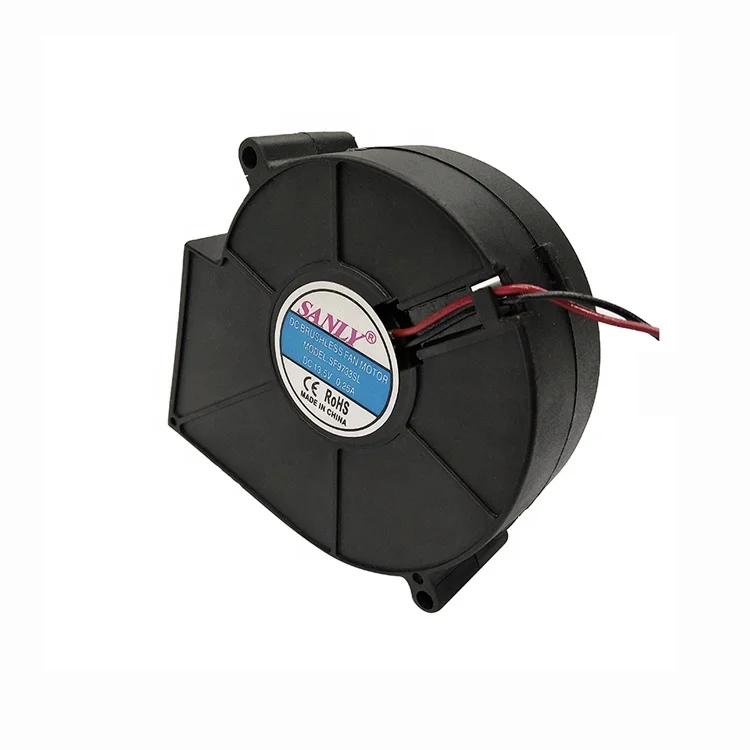

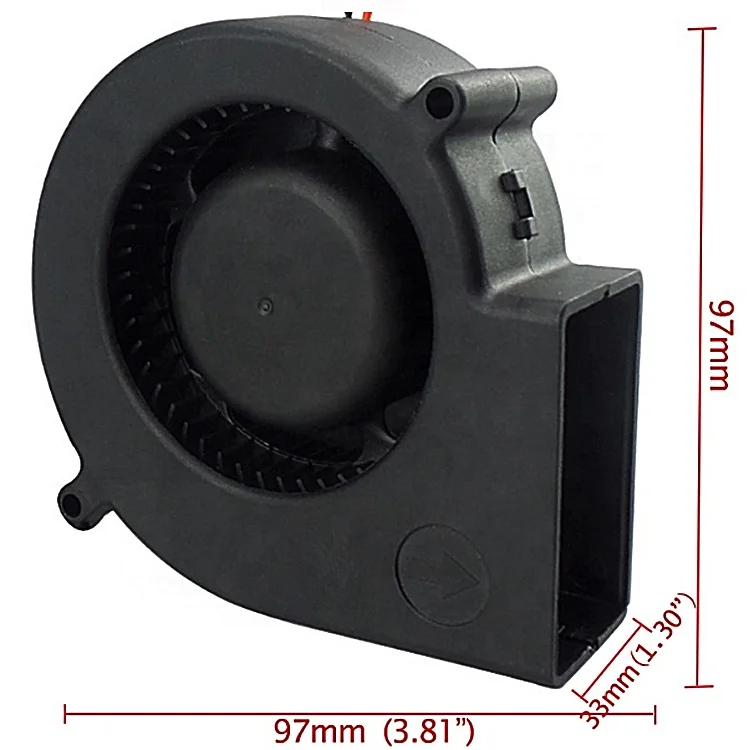

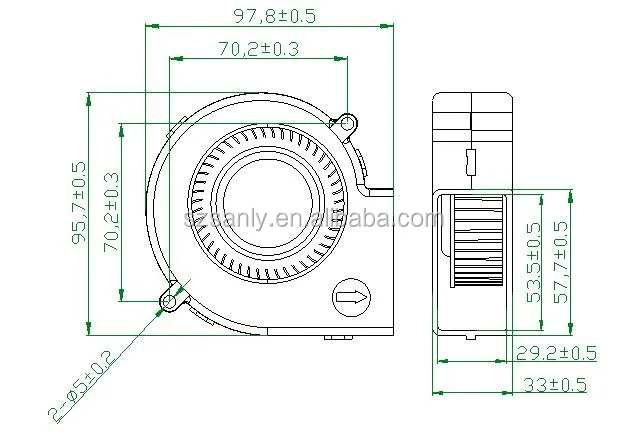

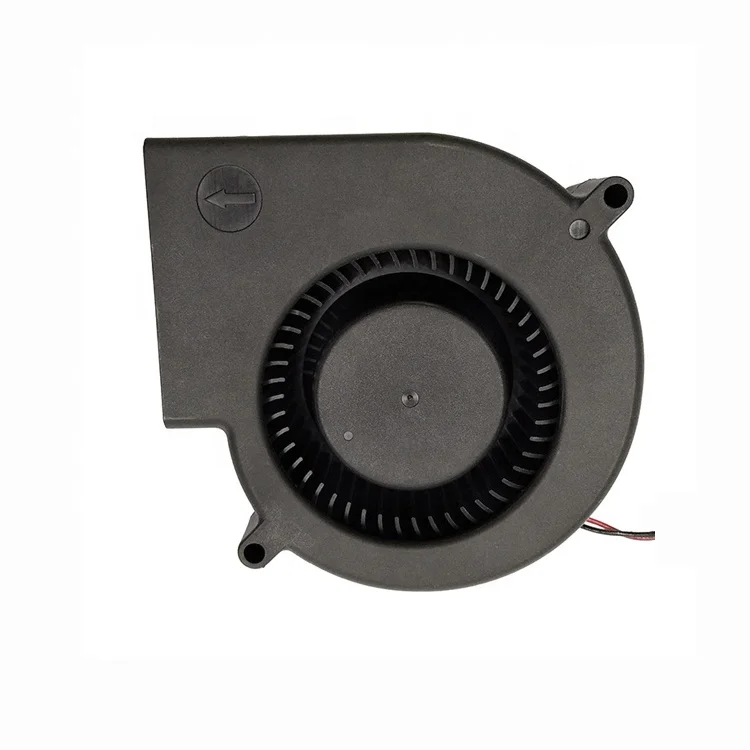

97X97X33mm 9733 12V DC Sleeve Bearing Centrifugal Blower fan
- Category: >>>
- Supplier: Shenzhen Sanly Electronic Co. Ltd.
Share on (60802922807):
Product Overview
Description
DC Blower Fan
Applications
3D Printer, Refrigerator, Freezer, Wine Refrigerator, Air purifier,Toy, Electric Equipment, Notebook, Laptop, Mini-projector, Humidifier, Medical Device, etc.
Introduction
1. Bearing Type: High precision Sleeve bearing
2. Frame & Impeller: Plastic
3. Operating Temperature: -10℃ ~ 60℃
4. Waterproof Grade: IP44
5. Insulation Grade: Class B
6. Motor: DC brushless motor
7. Fan Rotation: Clockwise or Counterclockwise
8. Lead Wire: 2PIN (+,-)
9. Protection: Reverse protection; Overcurrent protection, Lock rotor protection (Auto Re-start)
10. Certification: CE, RoHS

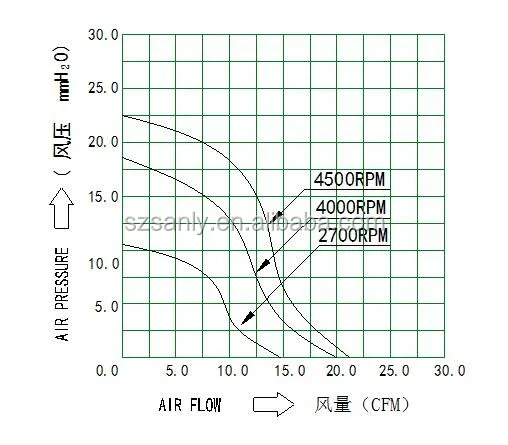

Model | Rated Voltage | Operating Voltage Range | Rated Current | Rated Input Power | Speed | Max Air Flow | Max Air Pressure | Noise |
PART NO | VDC | VDC | Amp | Watt | R.P.M | m3/min / CFM | mmH2O / INH2O | dB-A |
SF9733SL | 12 | 6to13.5 | 0.35 | 4.20 | 2700 | 0.42/14.8 | 10.4/0.37 | 42.0 |
SF9733SM | 12 | 6to13.5 | 0.60 | 7.20 | 4000 | 0.56/19.83 | 18.6/0.73 | 52.1 |
SF9733SH | 12 | 6to13.5 | 1.00 | 12.00 | 4500 | 0.6/21.23 | 22.48/0.88 | 54.0 |
* Bearing: Sleeve
#CLICK HERE TO CHECK BALL BEARING TYPE 97X97X33MM DC BLOWER FAN
Our Service
1. 100 % testing before the fan leave our factory
2. Good after services to every customer
3. We often give one-year warranty on quality of products, and will give your refund if any quality problems occurs when you receive our items.
Quality Control:
1.Incoming quality control
2.In process quality control
3.QA Inspection
4.100% testing before the packing
Why Choose Us
Brand:SANLY
Main products:
1. DC Axial Fans
2. DC Frameless Fans
3. DC Blower Fans
4. DC Centrifugal Fans
5. DC Cross Flow Fans
6. Small DC Brushless Motors
Certificate: CE, RoHS, ISO9001, etc.
Q1: Are you a factory or trading company ?
A1: We are a factory.
Q2: What is DC Fan and AC fan?
A2: DC fan is powered by DC voltage,normal voltage is 5V 12V 24V.
AC fan is powered by AC voltage,normal voltage is 110V,220V and 380V.
Q3:How about the lifetime of fan?
A3:
Bearing type | Lifetime |
Sleeve Bearing | 20000 hours |
Hydraulic Sleeve Bearing | 30000 hours |
Dual Ball Bearing | 50000 hours |
Q4: What effects the quoted price for the fan?
1 size of the fan,
2 voltage,
3 current,
4 speed,
5 air flow,
6 noise,
7 bearing type,
8 two wire or three wire,
9 cable length,
10 connector type,
11 function,
12 quantity
