Product Overview

Description


Product Description

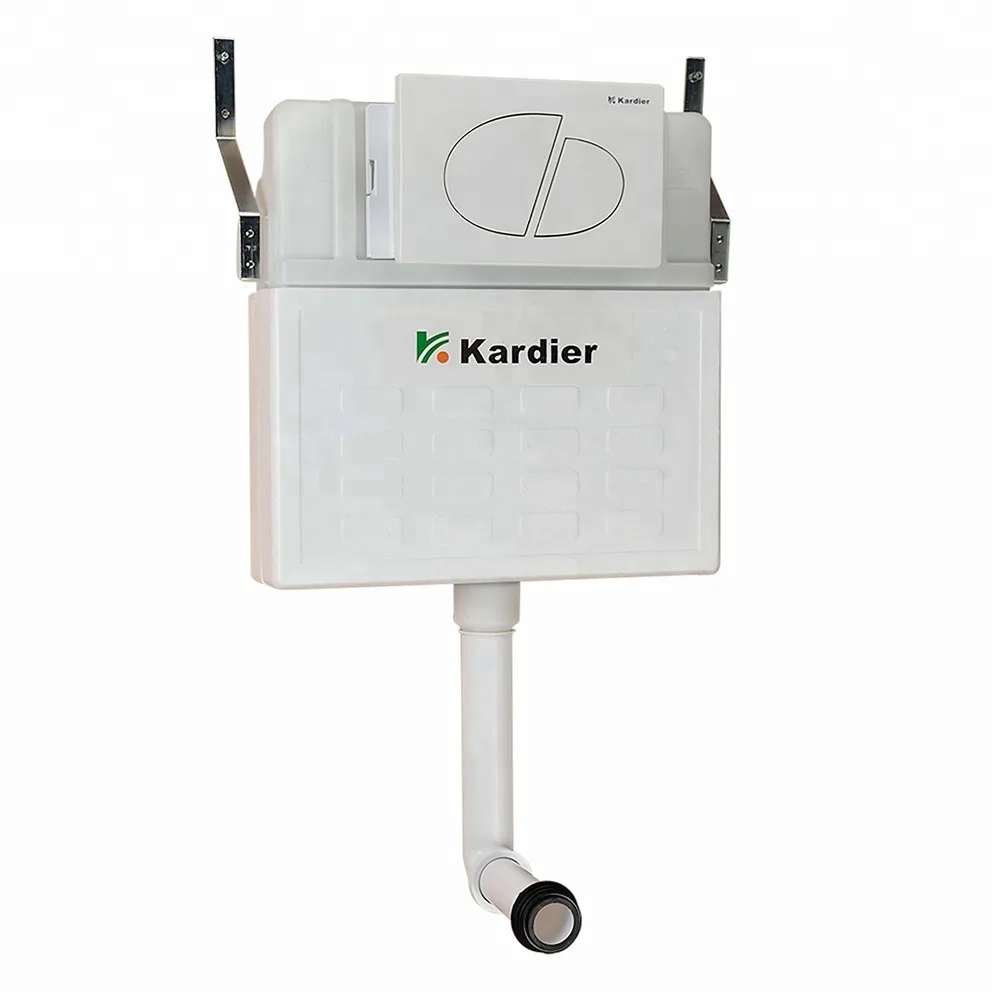

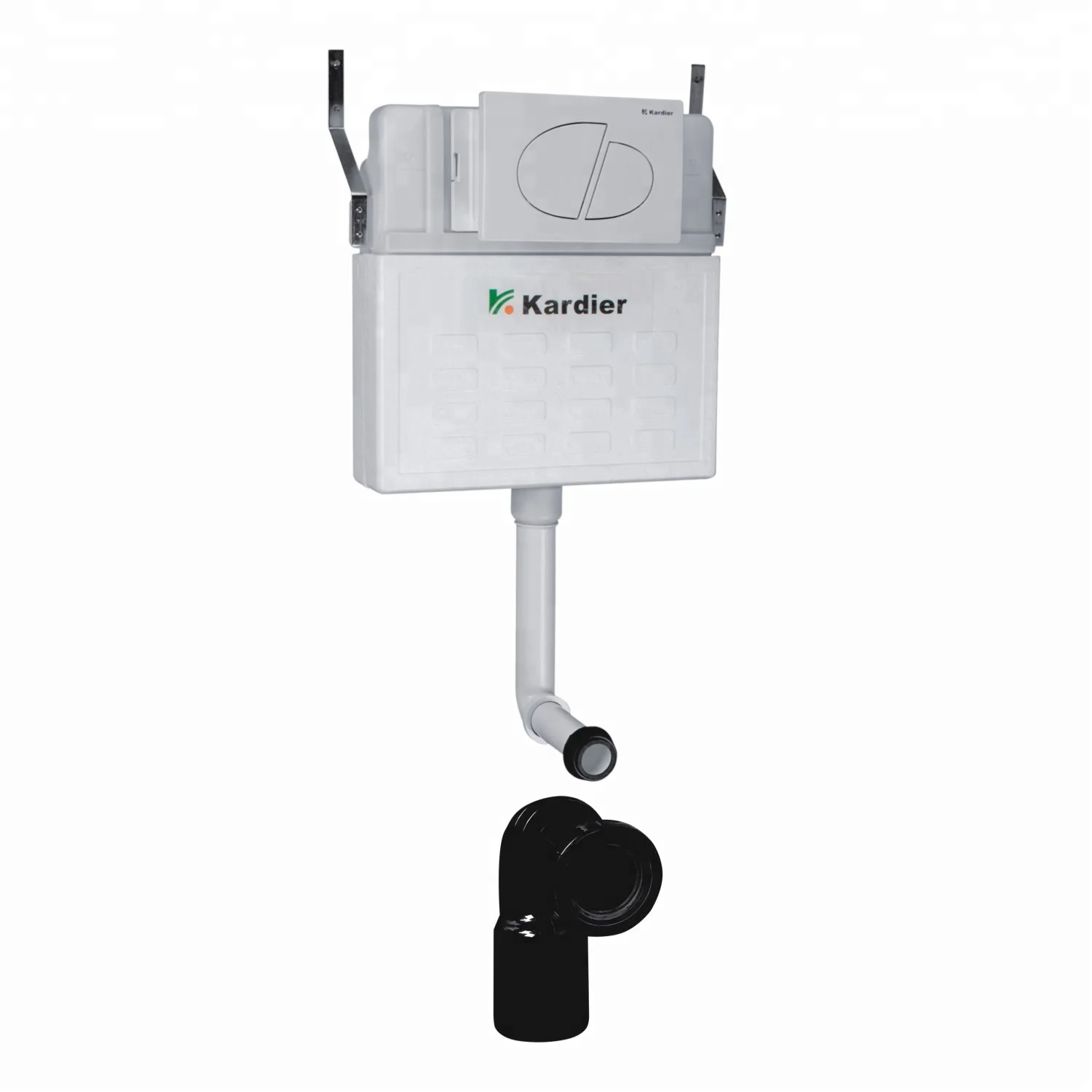

WRAS certificate enclosed cistern wall in toilet cistern for floor standing toilet
\t
Speical points
\t

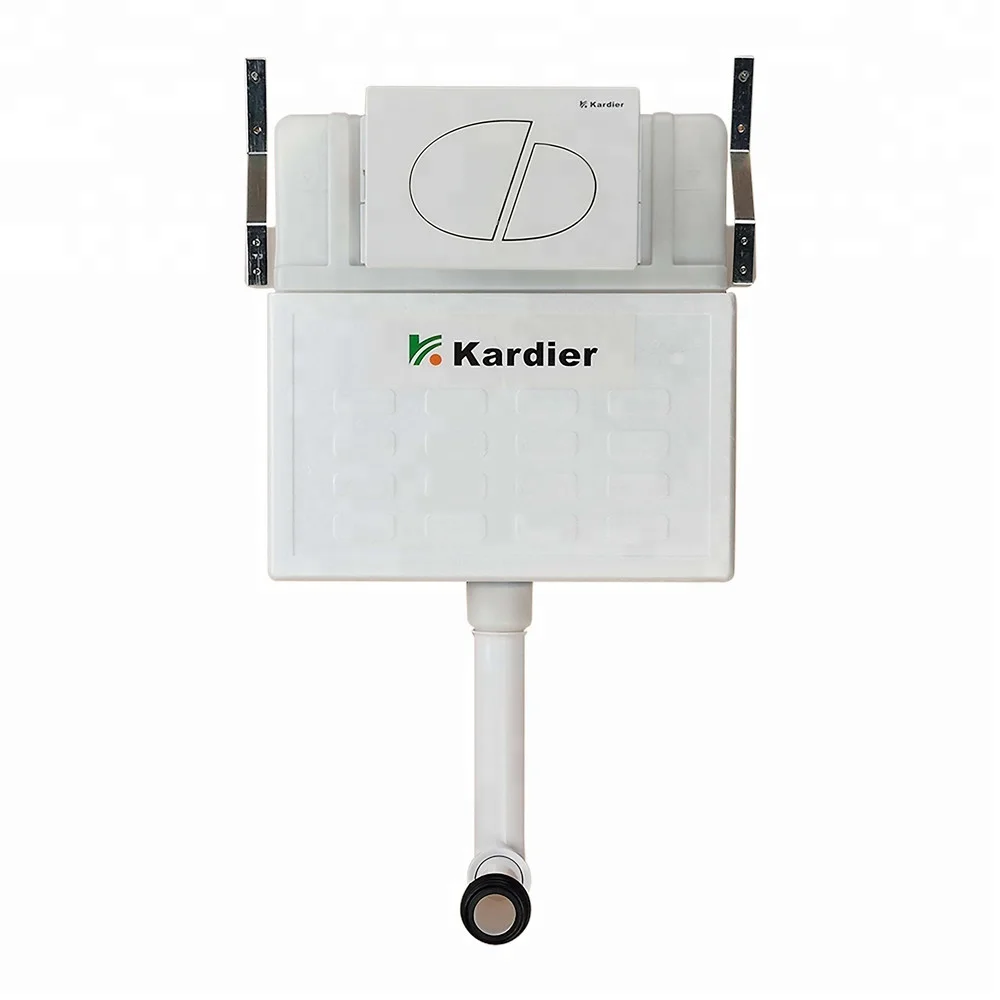

Without frame Concealed Flush Tank with 116mm tank body
\t
Model .
\t
009B1
\t
Certificate
\t
WRAS
\t
Dimension (mm)
\t
491x116x1074mm
\t
Flush pipe diameter
\t
110
\t
Carton Size (mm)
\t
500x127x750mm
\t
Suit for
\t
Floor mounted toilet
\t
Need wall thickness
\t
≥155mm
\t
Material
\t
HDPE
\t
For wall
\t
dry wall and pre-wall and dry half wall and pre-half wall
\t
Flushing volumn
\t
3L/ 6L max. 8L
\t
Panel size
\t
250x165mm
\t
Panel choices
\t
all choices except O plate
\t
Panel color
\t
white/black/gold/ silver/chrome /satin/ etc
\t
Flushing
\t
Dual flush
\t
Frame undertake(kgs)
\t
≥400kgs
\t
Delivery Time
\t
LCL 7-10 days ,20GP & 40HQ need 20-25days
\t
MOQ
\t
50 PCS
\t
Port of loading
\t
SHUNDE,CHINA / SHENZHEN,CHINE/ GUANGZHOU,CHINA
\t
Payment term
\t
TT and LC at sight
\t
Price term
\t
LCL-EXW SHUNDE,CHINA ;20GP & 40HQ : FOB SHUNDE,CHINA
\t
Package details
\t
Carton packing ,1set/box and 4sets/ctn ;All fittings, include flush plate ,tan body and inner fittings and flush pipe
\t
Loading qty
\t
0.21CBM/4SET (0.0525cbm/pc) 20GP: 530 sets 40GP: 1100 sets 40HQ: 1270sets

Special point  :

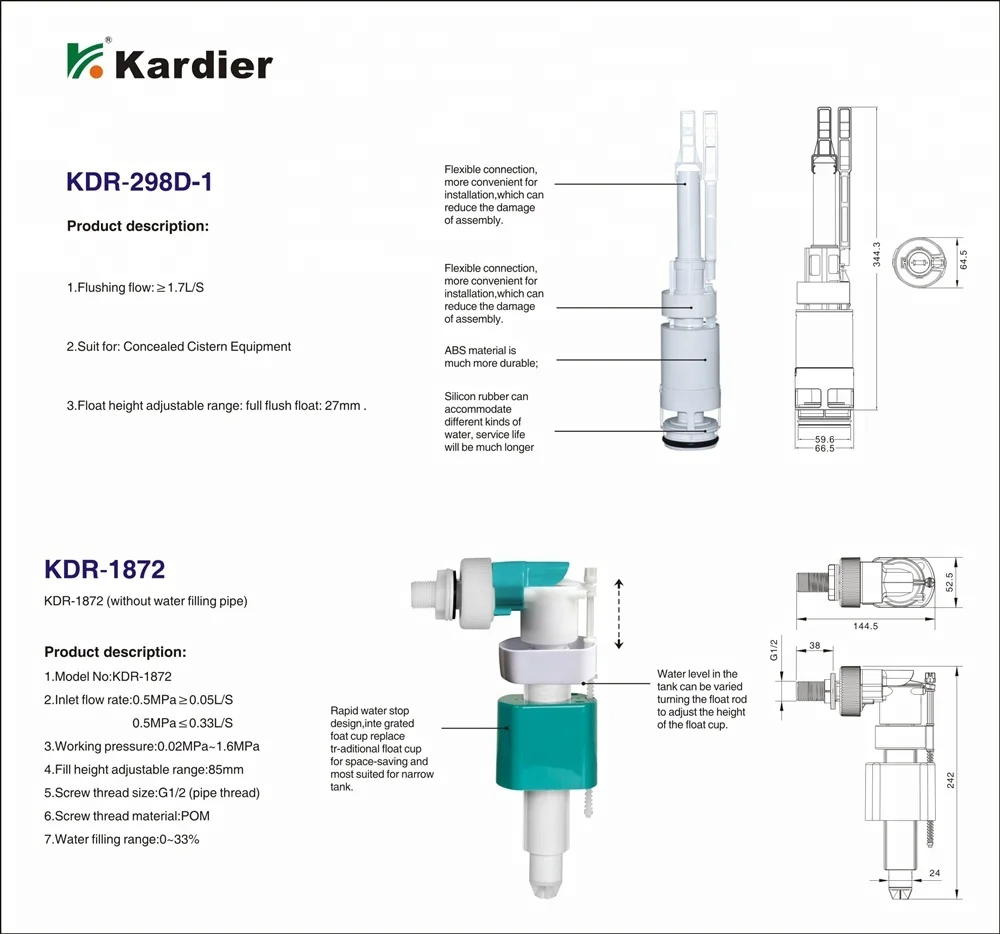

Malfunction and solve way of flush valve :

Problem 1 : cannot flush water

Reason 1 : The flush pole distortion or break , Solve way : replace the flush pole
Reason 2 : The working water level too low ,Solve way : Adjust the working water level

Problem 2: Appear Leak

Reason 1: The sealed rubber can not seal water ,Solve way : Replace the sealed rubber
Reason 2 :The movement of flush valve is blocked ,Solve way : Wash the dirt of flush valve

Malfunction                                                         Solve way
1.The water level too high or too low              Adjust water level
2.can not stop water                                         \tWash sealed rubber and mandrill
3.fill water speed slow                                      \tWash filter,adjust water stress to higher
4.other questions                                               \tPls consult with professional technician
Product Details

Concealed cistern installation guide

We have Multiple choices push panels to decorate your bathroom ,ABS & stainless steel & Aluminium & Acrylic etc material ;and have multiple colors for choice,detals as below

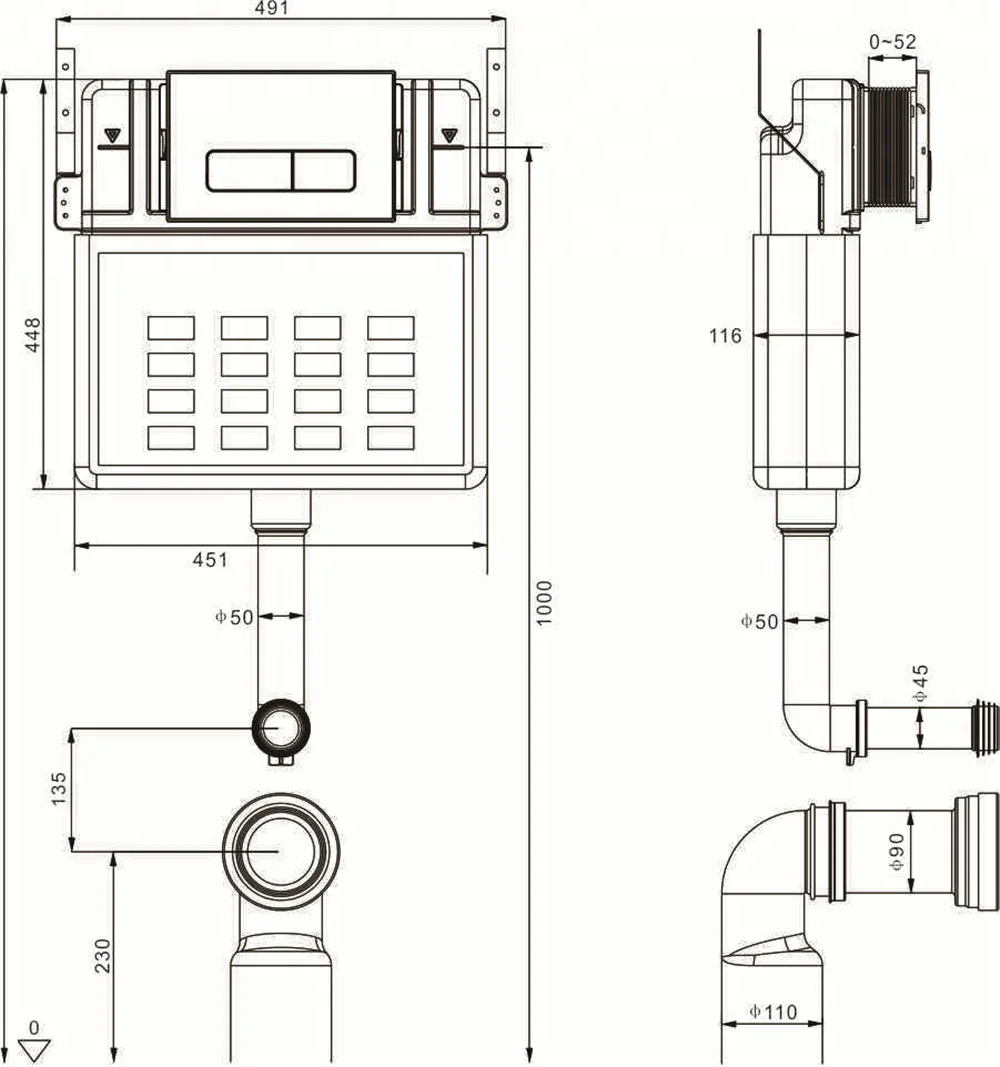

The Technical size standard requirement and installation guide of Standing floor toilet.

Concealed cistern installation effect

Recommend Item
Factory Introduce

Kardier Advantage

1.We are manufacturer factory ,mass production available .
2.One-stop procurement ,time and energy saving .
3.Founded in 1999 and now have export to 80 countries all over the world .
4.Fast delivery speed ,big enough storage space .
5.CE & WRAS & WATERMARK & WELS approval .
6.From material to finish products almost one shop production .
7.Quick response to inquiry .

Kardier New Showroom

Kardier Team

Kardier Fair & Customer Visit

Kardier CE/WRAS/Watermark/Wels Certificates

Kardier Warehouse & Delivery Arrangement

Kardier Products Range

\t\t\t\t\t\t\t\t\tWhy choose us \t\t\t\t\t\t\t
Why to choose Kardier concealed cistern ?

1. Clean: Pretty easy to clean the bathroom without missing corner.

2. Water saving: Save water by adjusting flush volume 3L-8L,even can be 3/4.5L .

3. Quiet : Tank body with foam & with silent fill valve & flush valve to debase noise.

4. Strong : Steel tube size 50x30mm ,frame undertake ≥400kg weight

5. Durable: HDPE tank body & painted metal frame is corrosion resistant and durable, using life over 50 years; fill valves & flush valves have 5 years guarantee and they can be easy buy after sales fittings and easy change .

FAQ
1.Do your concealed cistern suit with all types of toilets ?
A:The items with frame is for wall hung toilets ; item code include "B" is for standing floor toilet ; item code include "C" is for squatting pan .Glass cover cistern one for wall hung toilet ,one for standing floor toilet .

2.Do our concealed cisterns suit for all kind of size ceramic toilet ?
A:No ,the ceramic toilet size should be with international standard .pls kindly find above "The Technical size standard requirement for Wall hung toilet & standing floor toilet & Squatting pan " .

3. How to choose the item suitable for me ?
A: We have a table to tell you how to choose , pls kindly check or just contact with us to explain you .

4. What certifications do we have?
A: Most of our concealed cisterns with CE & WRAS & WATERMARK & WELS certificates approval .pls kindly check our certificate item table for your reference ,or just contact with us for more details .

5. Can you provide the free samples?
A: If you are overseas buyers, and the price of the product is less than USD 50, we can provide a free sample, but you need to pay the freight .
