Wheelchair trailer sports wheelchair 36V 350W with CE certification

Share on (60803011889):


Price:RUB 27,501.03

Quantity:


Product Overview

Description

Wheelchair trailer sports wheelchair 36V 350W with CE certification !

4 points -support provides more stability !

3 - .jpg

Application

 This electric handcycle is for manual wheelchairs converted to electric wheelchairs . It's detachable when you don't need a power assistance .

It is compatible with almost all wheelchairs without the need for any special adapters.



This handcycle can accommodate chairs of seat width 40 cm to 65 cm

The common frame tube diameter listed bellow :

1 inch(25.4mm)

1/8inch(28.6mm)

1.2 inch(30.5mm)

1.25 inch (32mm)

If your tubing is a different diameter, please order customized clamps from seller.



Before ordering, we just need to confirm :

1. Tube diameter of your wheelchair

2. Type of Charger plug


Product Description

E-trailer 1.jpg





Parameter :



Item

Electric wheelchair Handcycle

Model Number

WP-02

Brand

WISDOM POWER

Motor

36V 350W gearless brushless Aluminum-alloy hub motor

Tire

16" x 2.125" pneunatic tire

Fork

16" Steel

Brake

Eletronic and Disc brake

Handle bar

6061 Aluminum alloy

Frame

6061 Aluminum alloy

Max Speed

25km/h

Max Reverse speed

8km/h

Battery

36V 12Ah Lithium battery   (weight 4.4Kg)

Range

35km ( 10% hills, 70kg carry ), bigger battery offers longer range.

Charger

AC 85V-240V 50Hz/60Hz 2A  (CE Rohs Cert. )

Charging time

5-6 Hours

Max loading weight

100KG

Hill-holding

15°

Obstacle crossing

≥80mm

Cross bumps ability

80mm

Climbing ability

≤8°

Min turning radius

1200mm

Net weight

13KG  without battery  (17kg with battery )

Packing weight

17 KG without battery ( 21 kg with battery)

Packing size

92x52*30 CM   Carton (80% CKD )

20FT Container Qty

200

40HQ Container Qty

450

  3. Model

Detailed Images

 1. Foldable with quick-release .



Quick release .jpg



2. Easily attach or detach to wheelchair .



Installation Manual5302.pngInstallation Manual2758.png

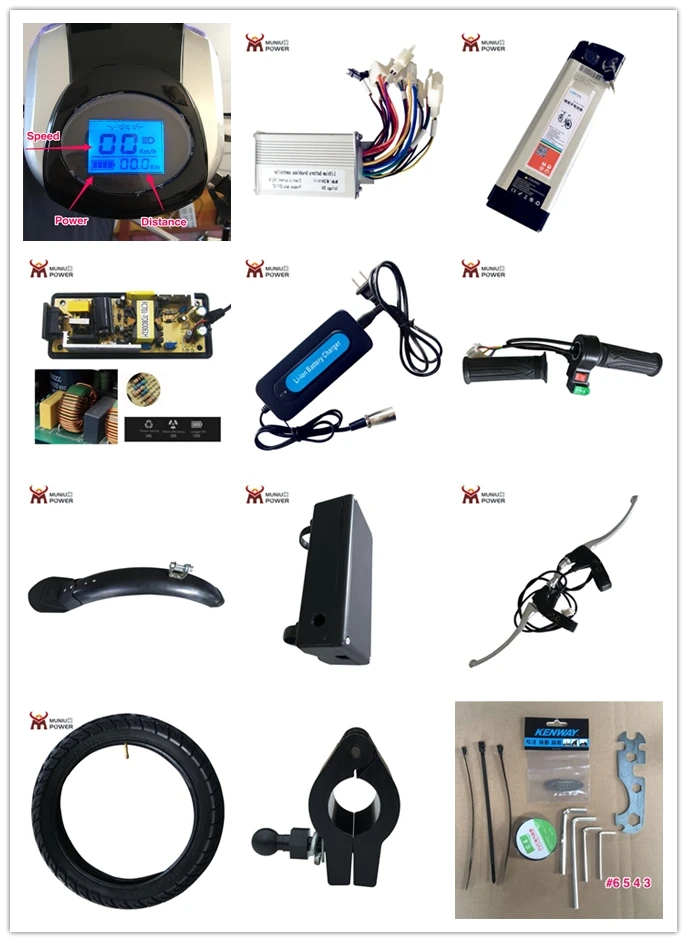

3. All the accessories are from  brand factories  . LED headlight displays Current Speed ,Battery power , Distance .

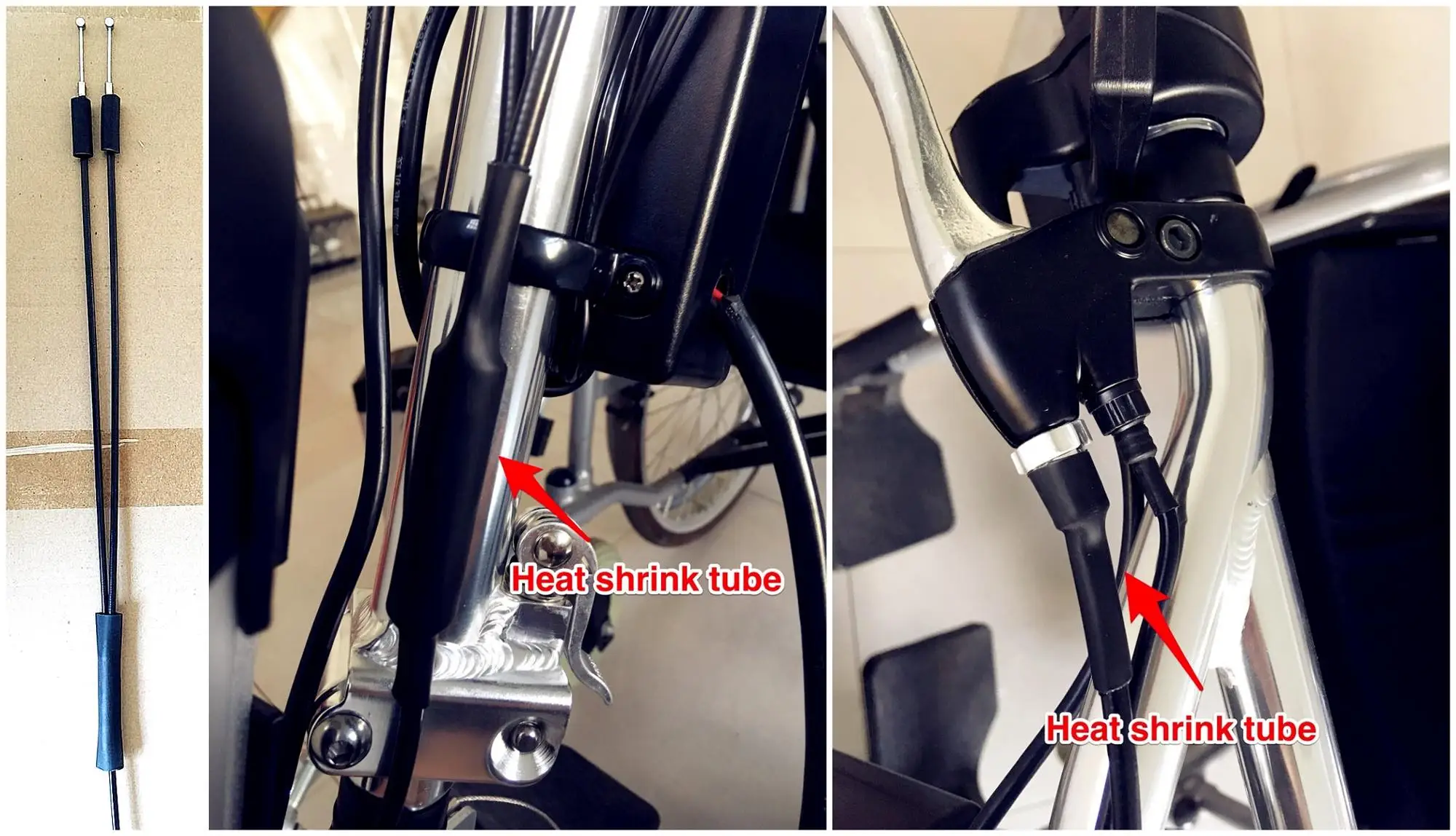

4. All the wires are well protected .    Two in one  brake cable connected to disc brake  ,both left and right hand could brake the bike.


5. The front casters  could be lift higher by rotating the upper wing .








How to Install



There are five installation steps:

1.Charge the Battery

2.Install the Clamps

3.Prepare the E-handcycle ( Assemble the handle bar )

4.Position the Wheel and Handlebar Adjust the Upper and Lower Arms

5.Install the Battery

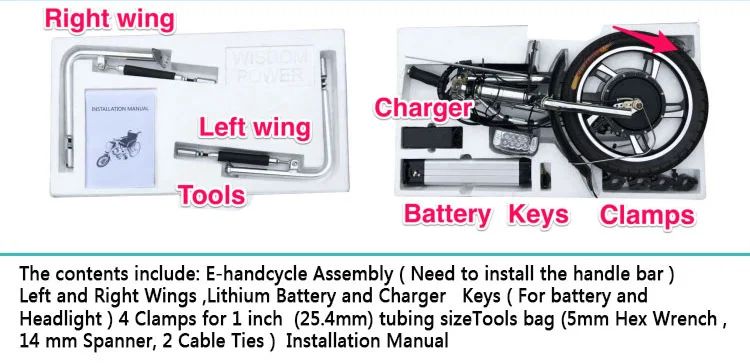

Packaging & Shipping






Our workshop & Lab

1000 units capacity each month !






Certificates



WP-01 , WP-02 with CE/EMC/ROHS certificates  and patents .



 CE certification_1_.jpg



FAQ





Q: Are you a factory or trading company ?
A: We are a trading company . But we own 40% of Yangzhou Flying Horse Gasoline Engine Factory . And partnership of Chongqing Yinggang Group ,Chongqing Maotian machinery which is well known in China.
Our testing lab is well equipped and capable to develop &design products for you .

Q: How about the delivery time ?
A: Sample order : 7days ;mass production: 15-30days

Q: Do you offer free samples ?
A: No. We require buyers paying for samples and freight . But we promise the fee will be returned to you while you place a bulk order. For example, sample cost $350 , freight cost $200 . You would get $550 discount while you place an order in 20FT or 40GP container.

Q: May I get some discount?
A: Distributor or bulk orders will get discount .

Q: What is your MOQ?
A: Our MOQ is 1 piece. Mixed different items into one order is available .

Q: How can I get my goods?
A: In trade term of CIF, usually we deliver goods to the port of destination in your country by sea. Our shipping agency will contact you to pick up the goods upon arrival.In trade term of FOB, you are supposed to inform your own shipping agency to take the goods to Shanghai port.Sample orders , we deliver the samples to your door by air express . For some markets, Russia , America, Europe,etc the tax and customs clearance duties are on us .

Q: What's your working time ?
A: Get online service in anytime . Leave massage or send emails . We will reply you within 6 hours .

Q: What's your policy for distributors ?
A: Only one distributor in one area . Distributors will get logo /packing/art work design, technical support ,after sales service and special discount for replace parts .

Q: How do I place an order ?
A: Click Start-order button -- turn to online store-- buy in Ali Trade assurance .Or contact us by email . We will issue an Invoice to you with contract details and bank account . Payment terms FOB , CIF by T/T , LC .

Q: What's your warranty ?
A: 12 month after date of B/L . For some products , we offer 18 month warranty .
