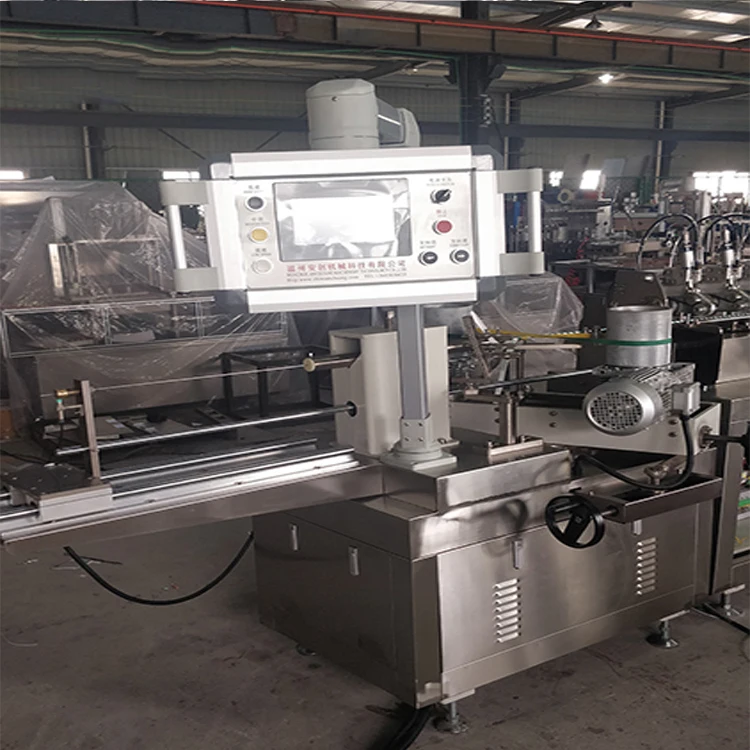

AC-12 this Machine is suitable for producing different sizes of paper straws and very small paper tubes.
[1] It adopted with PLC controller; main motor is equipped with variable frequency speed regulation; touch screen man-machine interface. Easy for parameters setting & operating.

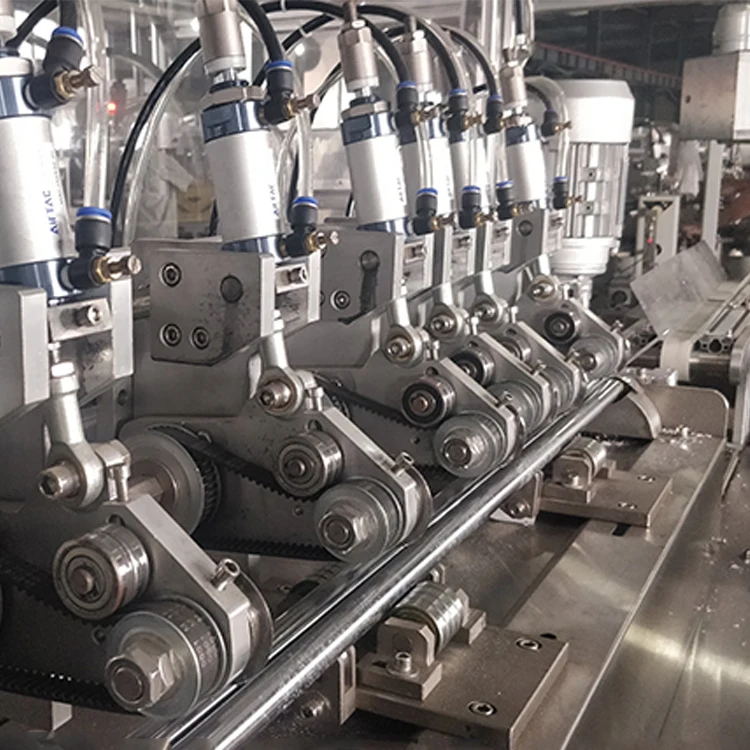

[2] Cutting section adopted with numerical multi-blades cutting system. Servo synchronous tracking cutting system makes it higher precision and multi-blades cutting makes it higher efficiency.
[3] Machine body and main spare parts made by stainless steel instead of painting. Ensure the hygiene and environmental protection of the products.
[4] Option device : Full stainless steel body.
Technical Parameter
SPECIFICATIONS FOR PAPER DRINKING STRAW MAKING MACHINE
Paper Layer
3 layers
Inner Diameter
6-12mm
Wall Thickness
0.5-2mm
Winding Speed
30-40 meters/min

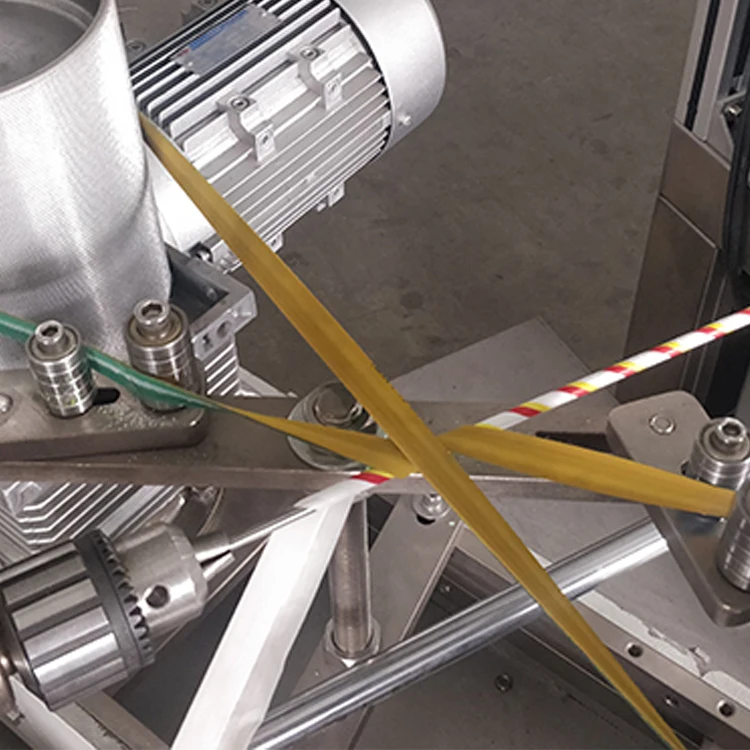

Winding Nose
Two noses single belt
Cutting System
Numerical Multi-blades (standard 5 pcs)
Synchronism tracking cutting system
Servo motor synchronism tracking
Working Air Pressure
0.6Mpa
Operator
1-2 person
Power Supply
380V/3Phase/50Hz
Measurement & Weight
Measurement
3500*1500*1200mm
Working Space
10000*4000mm
Weight
1200kgs
More Products
Application
Company Information
Production Process
Packaging & Shipping
FAQ
1.What can your machine do? Our paper straw making machine can produce Φ6-12mm diameter,197mm length paper straw,and the speed is 40-60m/min. 2.Are you a manufacturer? Yes,our company was built in 2013. 3.what about the payment term ? We accept T/T, L/C,cash and credit card(paypal) 4.What information should I offer if I want to get a quotaion? - Speed requirement - machines requirement -it is better you can show us the pictures of your sample 5.how to get to your factory? Our factory is located in No.8 Jingye road developed zone of ruian city Zhejiang province china,and we can pick up you from wenzhou airport and ruian railway station.
