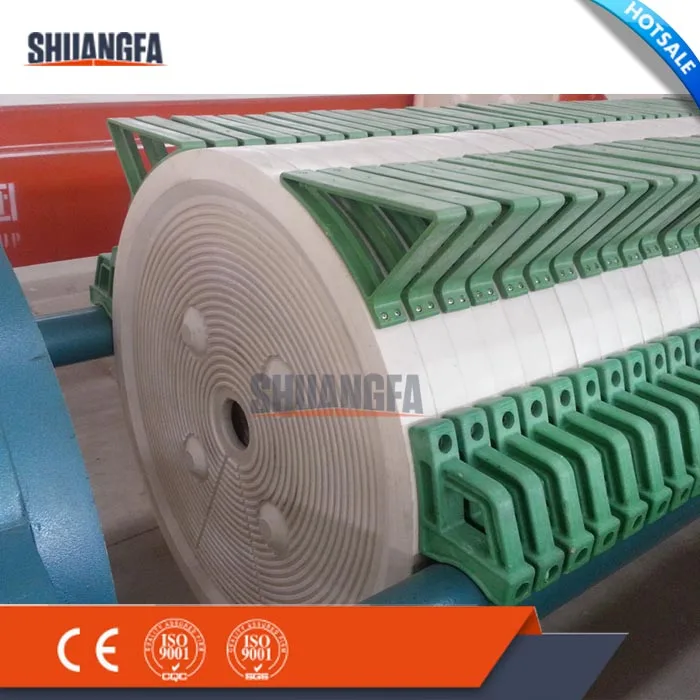

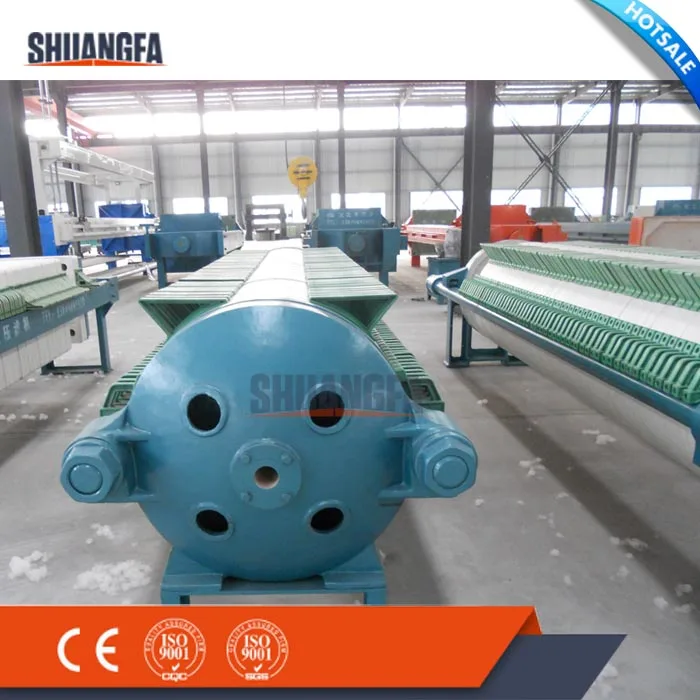

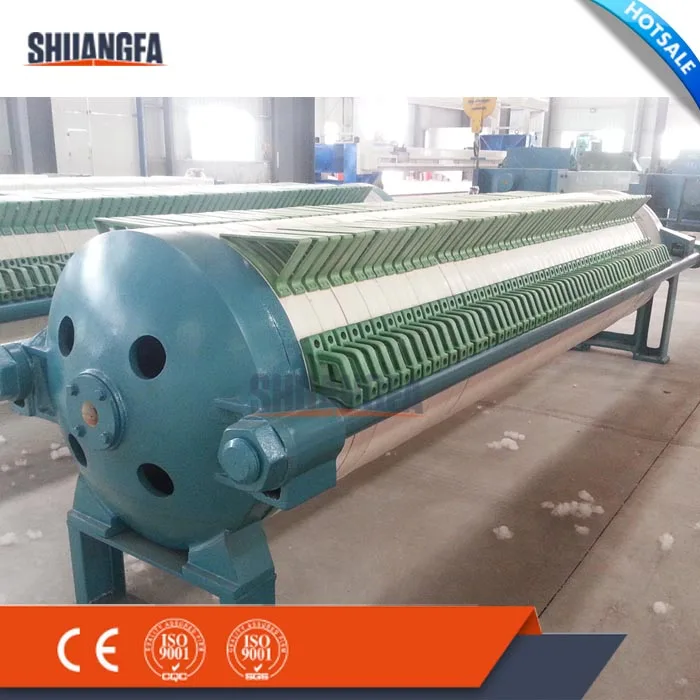

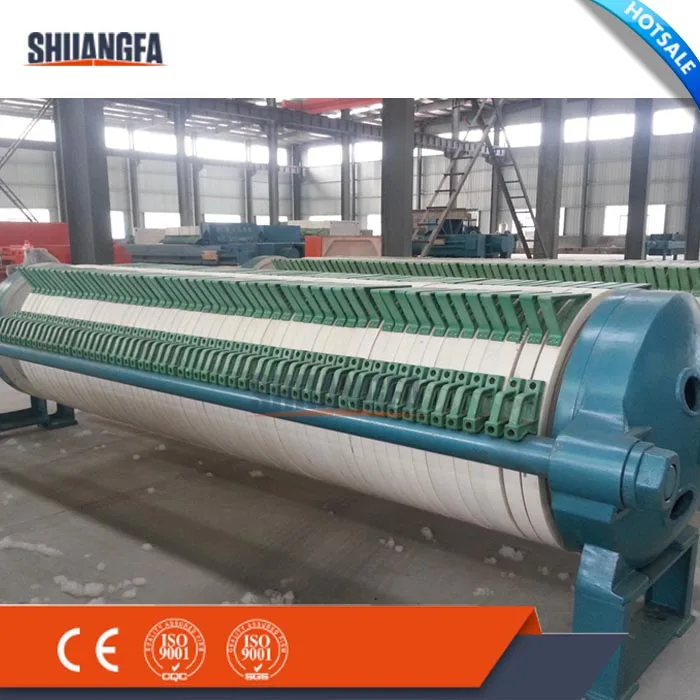

Ceramic Clay Slurry Round Plates Filter Press Equipment, High Pressure Filter Press Machine
- Category: >>>
- Supplier: Henan Shuangfa Chemical Industry Machinery Co. Ltd.
Share on (60803036898):
Product Overview
Description
Product Description
The ceramic filter press machine is a kind of solids-liquid separator. It is perfect for stone, kaolin, wastwater, ceramic, buliding materials industry, its special advantage is its high working pressure, and the maximum pressure can reach 2.5MPa, ensure drier filter cake.
Features of High pressure Round filter press:
1, After clay filter press machine filtration, the water content of filter cakes is quite low because of its high filtering pressure.
2, Automatic hydraulic maintaining pressure, manual plate shifting, simple and easy operation.
3, Main beam of hydraulic filter press/clay filter press is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.

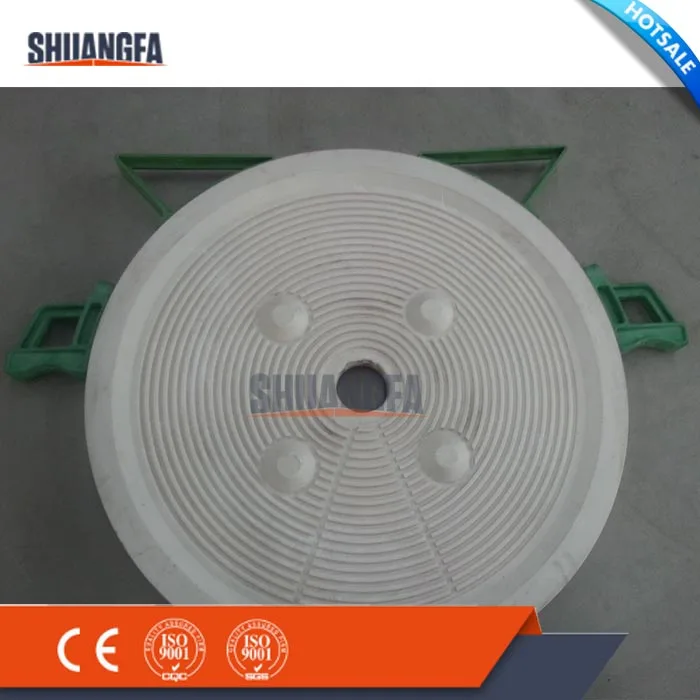

4, The filter plate of hydraulic filter press/clay filter press is made of pure reinforced PP, resistes to stronger corrosion and endure high pressure and service longer, and every plates is tested under high pressure 27 MPa.
5, The quantity of hydraulic filter press/clay filter press plate can be increased or decreased, then can be used in different liquid.
6, Hydraulic pistons of clay filter press machine are made by steel 45 after surface processing with feature of high hardness, anti-wearing, long life-span.
2, Automatic hydraulic maintaining pressure, manual plate shifting, simple and easy operation.
3, Main beam of hydraulic filter press/clay filter press is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.
4, The filter plate of hydraulic filter press/clay filter press is made of pure reinforced PP, resistes to stronger corrosion and endure high pressure and service longer, and every plates is tested under high pressure 27 MPa.
5, The quantity of hydraulic filter press/clay filter press plate can be increased or decreased, then can be used in different liquid.
6, Hydraulic pistons of clay filter press machine are made by steel 45 after surface processing with feature of high hardness, anti-wearing, long life-span.

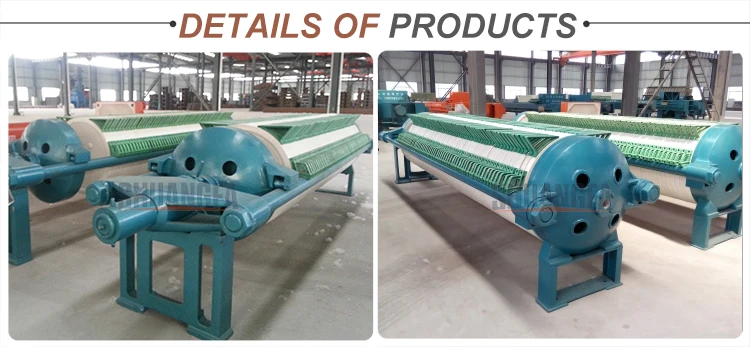

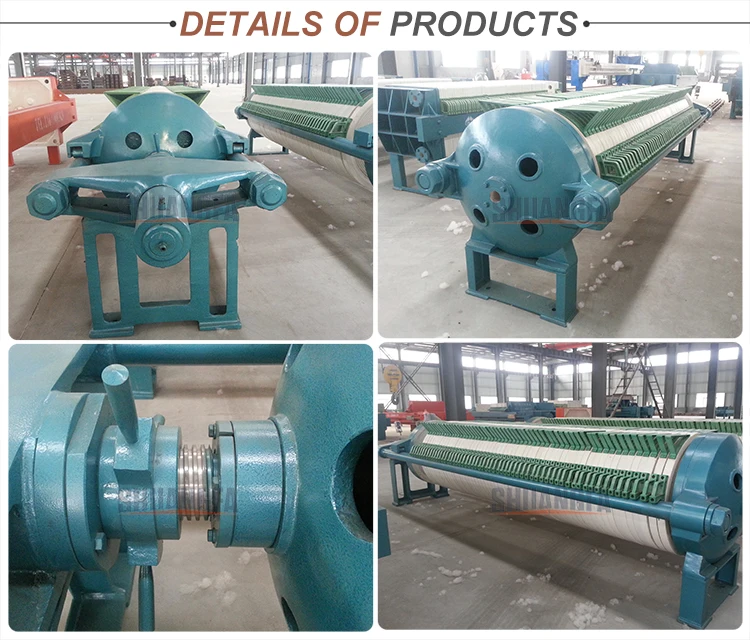

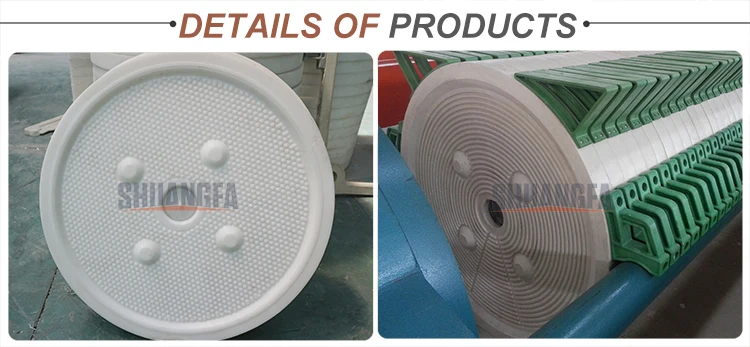

Detailed Images

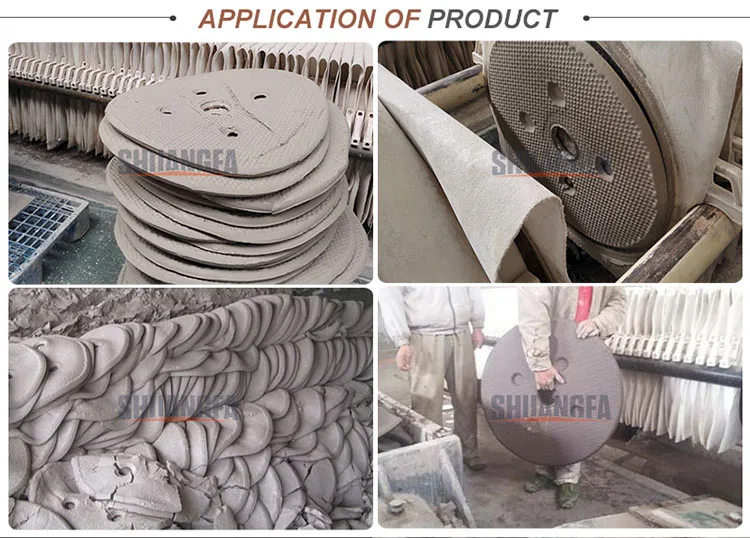

Application of Products
It is widely used in the stone wastewater,ceramic clay,kaolin and the construction material industry.
Size Information
Model | Filter area(m2) | Filter plate size(mm) | Quantity of filter plate(pcs) | Filter chamber volume(L) | Dimension(L*W*H)(mm) |
XMY800-H | 30 | 800 | 30 | 377 | 3780*1100*1060 |
40 | 800 | 40 | 499 | 4300*1100*1060 | |
50 | 800 | 50 | 621 | 4820*1100*1060 | |
60 | 800 | 60 | 753 | 5340*1100*1060 | |
70 | 800 | 70 | 875 | 5860*1100*1060 | |
80 | 800 | 80 | 1000 | 6200*1100*1060 |
Related Products
Packing&Shipping
Company Introduction
Sales Service & FAQ
Our service
1, Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.
2, Services during the sale:
We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3, After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.
FAQ
1, What products you provide?
Chamber filter press machine, membrane filter press machine, plate and frame filter press machine, belt filter press machine,vacuum belt filter, round filter press machine, cast iron filter press machine, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
1, Pre-sale services:
We will happily assist you in getting the information you need to make a decision on which products best fit your needs.We want you to feel good about your purchase.
We can design and manufacture products as per your special requirements.If required, we can train your technical personnel for you.
2, Services during the sale:
We strictly adhere to the principle of "the customer first".Your needs and concerns will be addressed to your complete satisfaction.
We can help clients to draft solutions to their specific situations.
3, After-sale services:
Our products are all guaranteed for a full year. During this period, if there is any quality problem, we repair it free of charge.
If there is any problem, we will take measures to solve it immediately,on-site.technical exchanging is also provided for you.
FAQ
1, What products you provide?
Chamber filter press machine, membrane filter press machine, plate and frame filter press machine, belt filter press machine,vacuum belt filter, round filter press machine, cast iron filter press machine, stainless steel filter machine, filter plate and filter cloth etc.
2, What's your MOQ?
We will indicate the MOQ for each item in the quotation list, generally the MOQ is 1set.
3, What is the payment terms?
TT and L/C are acceptable and TT will be more appreciated.
30% advance payment by T/T, 70% to be paid before delivery of goods by T/T.
4, Do you accept OEM?
Yes, we can manufacture according to your requirement.
5, What is the machine warranty?
All the machines from my factory have 1 year warranty.
6, Is on site installation & commissioning available?
Yes.
7, Can I visit you?
Sure, of course, welcome to visit our factory at any time!
