SF-800 Cooling digital temperature controller for chiller
Product Description

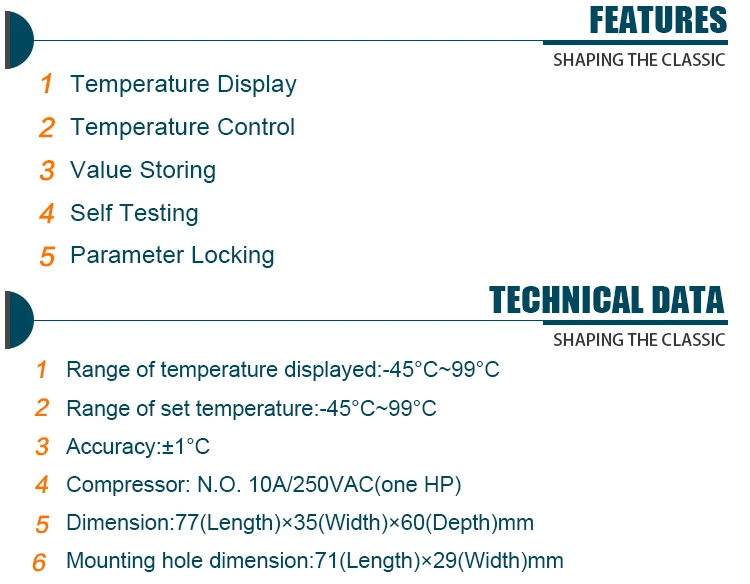

Features
Temperature Display
Temperature Control
Value Storing
Self Testing
Parameter Locking
Technical Data
Range of temperature displayed:-45℃~99℃
Range of set temperature:-45℃~99℃
Accuracy:±1℃
Compressor: N.O. 10A/250VAC(one HP)
Dimension:77(Length)×35(Width)×60(Depth)mm
Mounting hole dimension:71(Length)×29(Width)mm

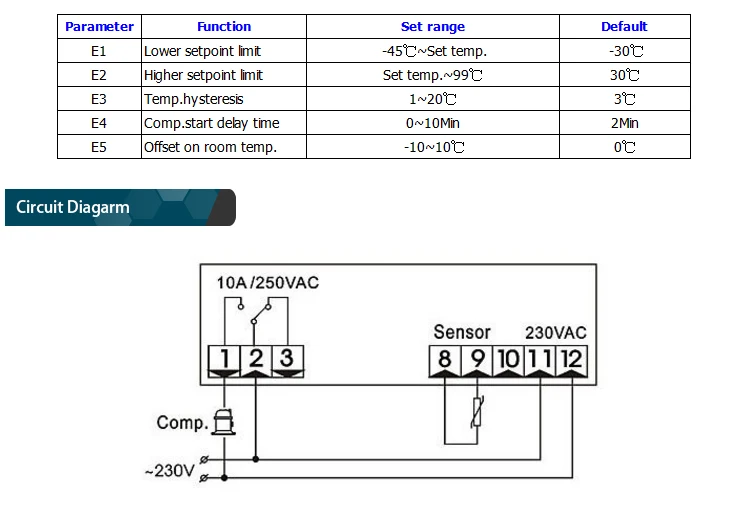

Parameter | Function | Set range | Default |
E1 | Lower setpoint limit | -45℃~Set temp. | -30℃ |
E2 | Higher setpoint limit | Set temp.~99℃ | 30℃ |
E3 | Temp.hysteresis | 1~20℃ | 3℃ |
E4 | Comp.start delay time | 0~10Min | 2Min |
E5 | Offset on room temp. | -10~10℃ | 0℃ |
Parameters 2
Parameter | Function | Set range | Default |
F1 | Max defrost duration | 1~90min | 15min |
F2 | Defrost interval time | 0~24Hr | 4Hr |
