EN 300W SV water pumping windmills for sale

Product Overview

Description

EN-300W-SV water pumping windmills for sale





Specification Sheet



Model	EN-100W-SV	EN-200W-SV	EN-300W-SV	EN-400W-SV	EN-500W-SV
Rated power	100W	200W	300W	400W	500W
Max power	130W	220W	310W	410W	510W
Nominal voltage	12V/24V	12V/24V	12V/24V	12V/24V	12V/24V
Start-up wind speed	1.5m/s	1.5m/s	2m/s	2m/s	2.0m/s
Rated wind speed	11m/s	11m/s	11m/s	11m/s	11m/s
Survival wind speed	45m/s	45m/s	45m/s	45m/s	45m/s
Top net weight	13.5kg	17kg	19kg	21kg	23kg
Wind wheel diameter	0.46m	0.46m	0.54m	0.54m	0.54m
Number of blades	10pcs	12pcs	8pcs	8pcs	8pcs
Blades material	Aluminum alloy
Generator	Maglev generators
Controller system	Electromagnetic
Speed regulation	The wind Angle automatically
Working temperature	-40°C~80°C

water pumping windmills for sale

Feature

·         Low starting wind speed, compact, light, beautiful and with little vibration.

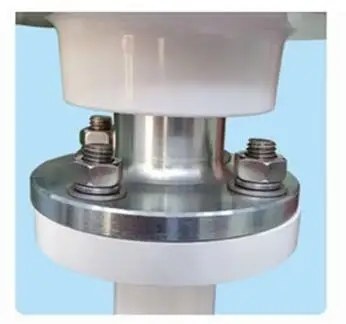

·         Easy installation, flange connection

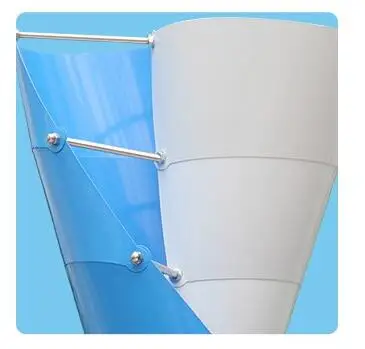

·         Blades using aluminum alloy, spray-paint and oxidation treatment of the blades surface, strengthen the anti-corrosion level, more beautiful and durable

·         Blades color optional https://item.taobao.com/item.htm?spm=a1z09.2.0.0.214c2e8dk1PW6O&id=527703053976&_u=hmfeju6cd61

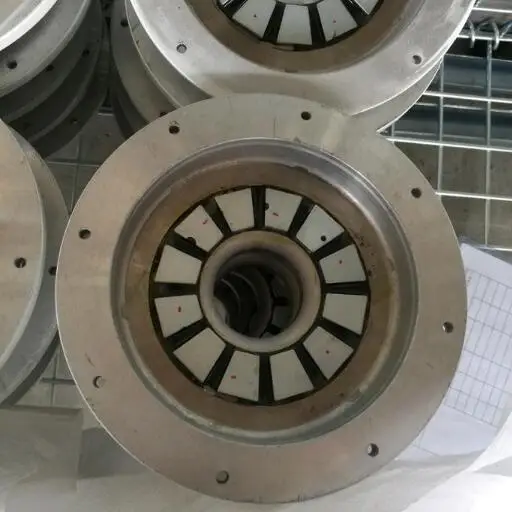

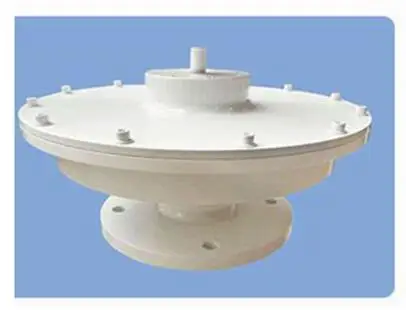

·         Patented permanent magnet ad generator with special stator(maglev generator), effectively reduce torque, make only 1/3 torque of ordinary generator, well match the wind wheel and generator, and ensure the performance of whole system.



Accessories





For Wind/Solar Hybrid Road Light System



Connection diagram of wind generator, solar panel & electrical appliance



Factory

water pumping windmills for sale







Project Case



water pumping windmills for sale

Packing

Below photos in carton and the wind turbie installed. We also provide wooden case packing.
