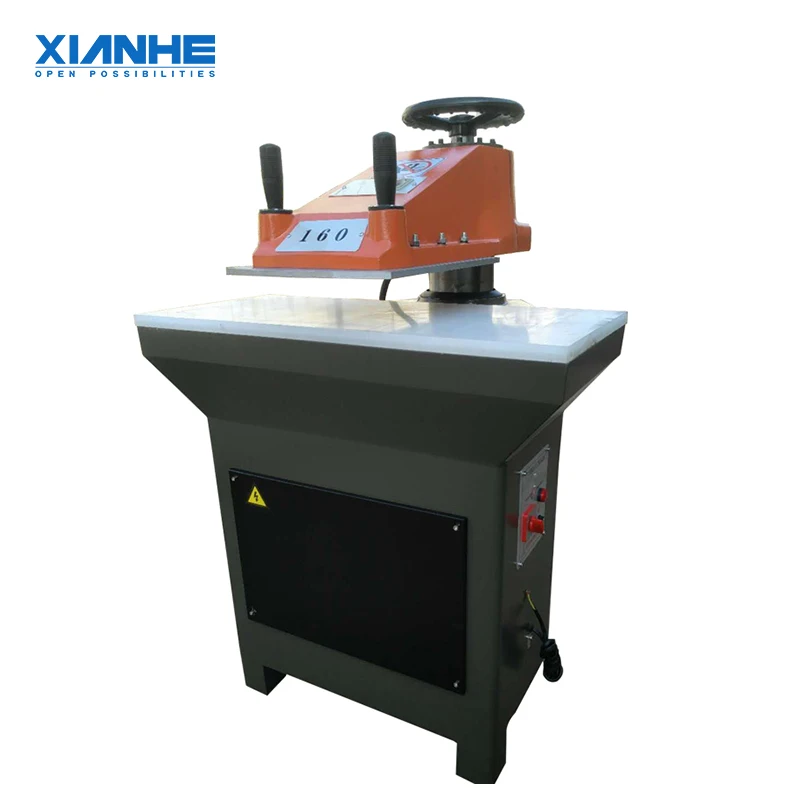

China shoe making machine swing beam press cutting machine
- Category: Shoemaking Machines >>>
- Supplier: Jiangsu Xianhe Machinery Manufacturing Co. Ltd.
Share on (60803122814):
Product Overview
Description
Product Description
This machine is suitable for cutting all kinds of shoe uppers, soles, insoles, leather, rubber, chemical fiber , cardboard, paper, nylon, canvas, non-woven fabrics, cotton and hemp fabrics, plastic bags, and all kinds of synthetic materials through cutting dies.
1. The machine is applicable to cutting of various nonmetal materials by die cutter.
2. The use of time control allows for simple and convenient setting of cutter depth.
3. Operation with both hands, safe and reliable.
4. The inertial energy of flying wheel is used so that the energy consumption is low ans the operation stable.
5. The whole machine uses self-lubricating system to reduce wear and extend the service life of the machine.
Features and Advantages
1. The machine is applicable to cutting of various nonmetal materials by die cutter.
2. The use of time control allows for simple and convenient setting of cutter depth.
3. Operation with both hands, safe and reliable.
4. The inertial energy of flying wheel is used so that the energy consumption is low ans the operation stable.
5. The whole machine uses self-lubricating system to reduce wear and extend the service life of the machine.

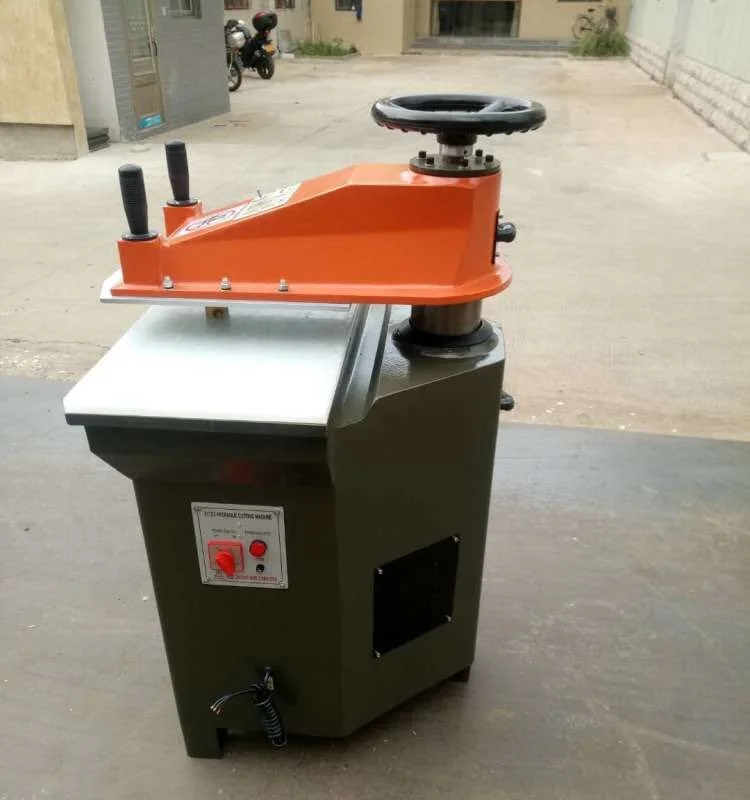

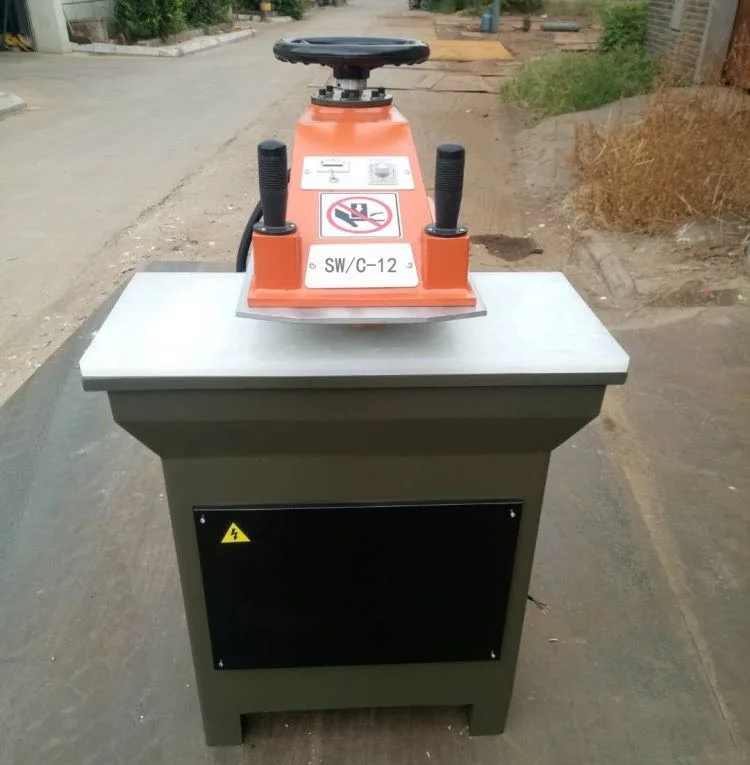

Detailed Images
Size Information
Model | SW/C-120 | SW/C-140 | SW/C-160 | SW/C-200 |
Cutting Force | 12T | 14T | 16T | 20T |
Stroke | 5-75mm | 5-75mm | 5-75mm | 5-100mm |
Distance between upper & lower board | 50-120mm | 50-120mm | 50-140mm | 65-150mm |
Working Table | 400*800mm | 400*900mm | 410*900mm | 500*1000mm |
Upper Board | 350*450mm | 350*450mm | 350*500mm | 350*550mm |
Power | 0.75kW | 0.75kW | 1.1kW | 1.5kW |
Voltage/Hz | 380V/220V 50Hz/60Hz | 380V/220V 50Hz/60Hz | 380V/220V 50Hz/60Hz | 380V/220V 50Hz/60Hz |
Weight | 380kg | 400kg | 470kg | 620kg |
Machine Dimension | 800*650*1240mm | 900*650*1240mm | 900*760*1330mm | 1000*950*1400mm |
Package Dimension | 880*845*1420mm | 980*845*1420mm | 980*960*1570mm | 1080*1030*1600mm |

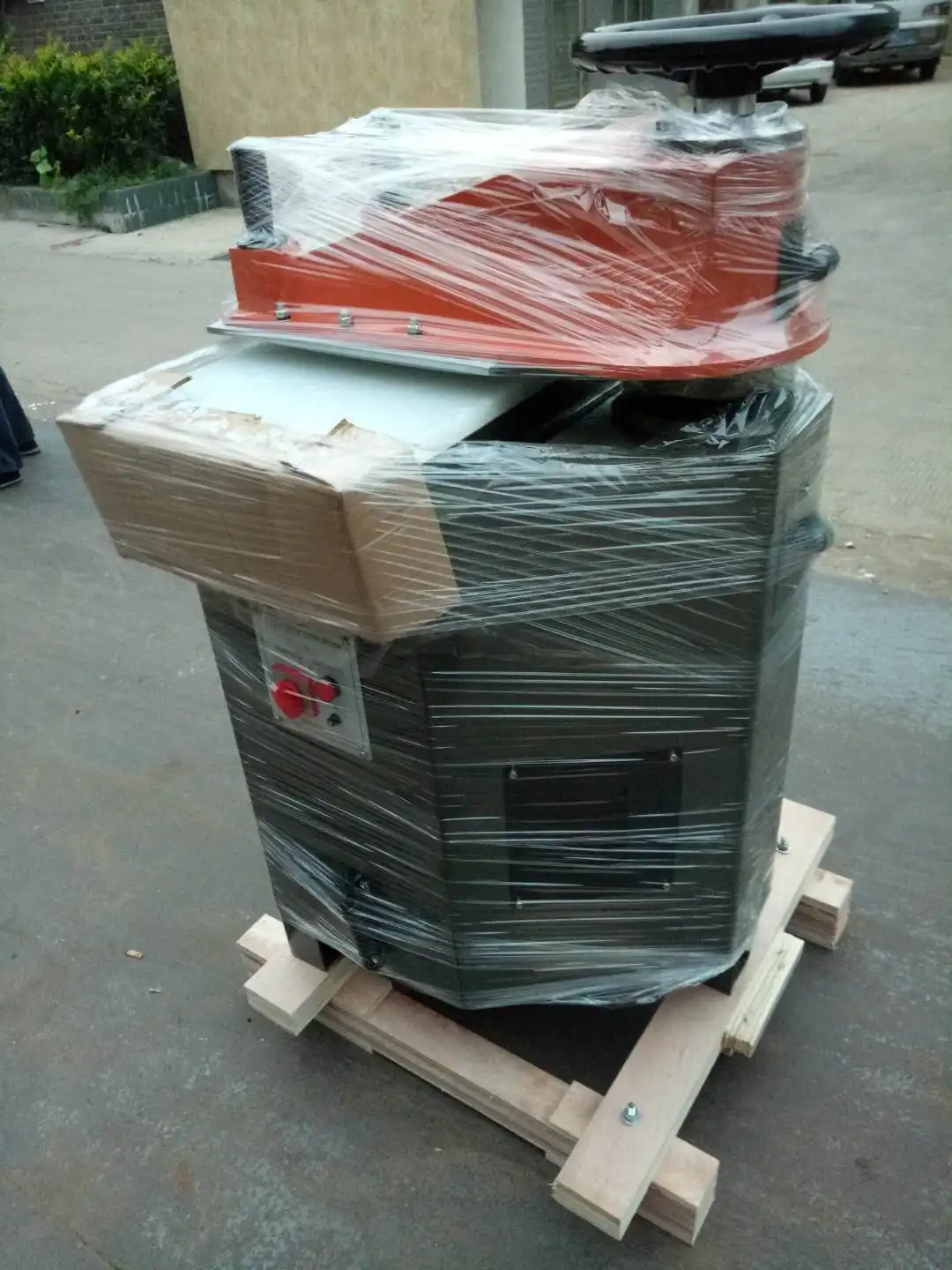

Packing&Shipping
